York
Heating & Cooling Combined Unit

Model # D7CG036N07946 Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D7CG036N07946 heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Belt 028-09573-000
#7

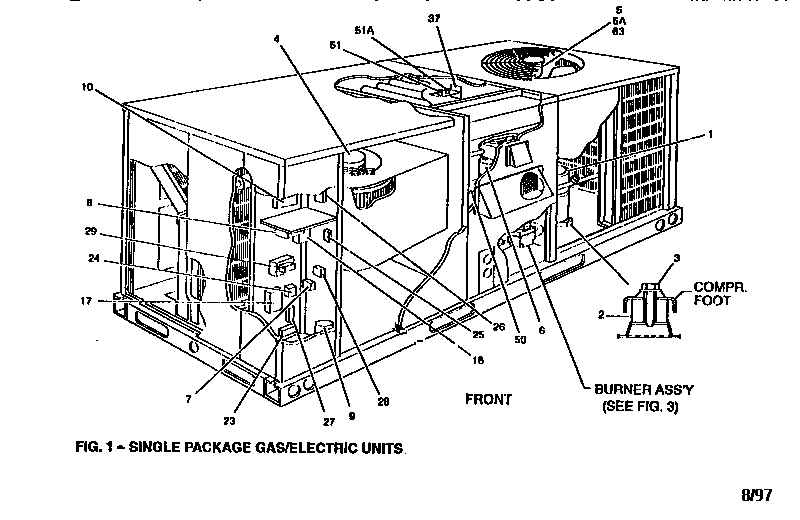

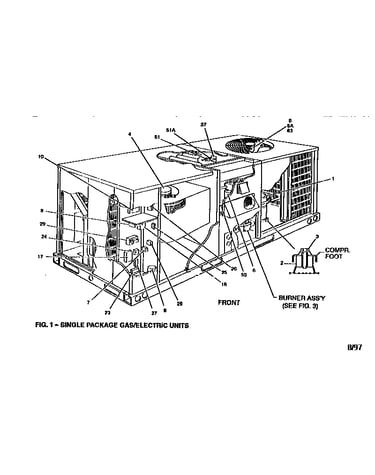

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-20045-700

#8

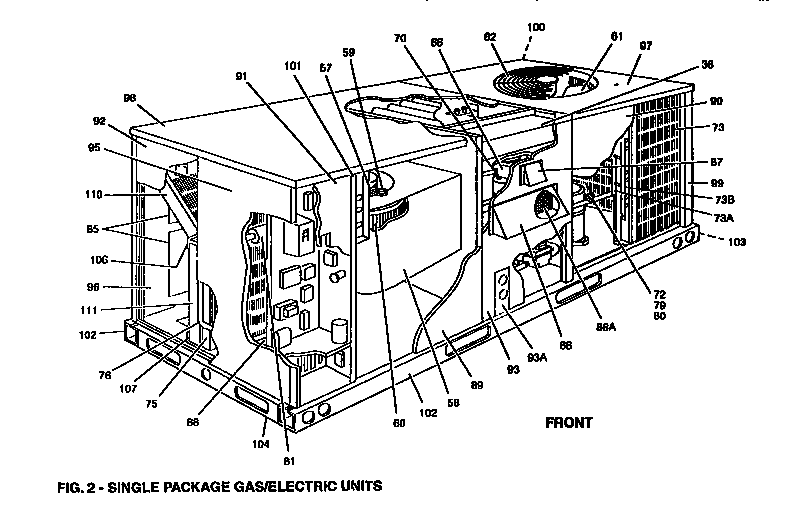

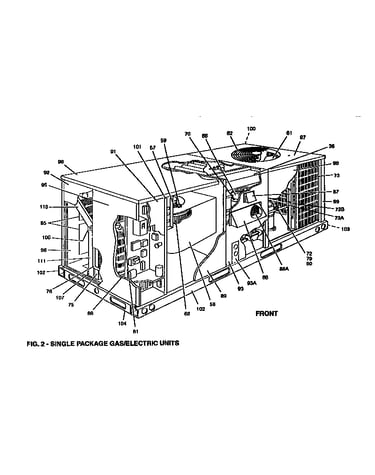

All parts diagram

Capacitor

Part #024-20045-700

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-700. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Capacitor 024-20043-000

#9

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Sem, Valve (1/4 Od Tube) 022-08017-000

#80

All parts diagram

Sem, valve (1/4 od tube)

Part #022-08017-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Access (heat Sect Front) 373-03100-701

#93

All parts diagram

Panel, access (heat sect front)

Part #373-03100-701

The manufacturer no longer makes this part, and there's no substitute part

Pulley, Fixed Pitch (blower) 028-12383-700
#9

Belt drive option diagram

Pulley, fixed pitch (blower)

Part #028-12383-700

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Bearing Suport (2-req'd) 073-12442-700
#13

Belt drive option diagram

Bracket, bearing suport (2-req'd)

Part #073-12442-700

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Heat Exch Tube (1-per Burn) 073-13498-000

#34

All parts diagram

Baffle, heat exch tube (1-per burn)

Part #073-13498-000

The manufacturer no longer makes this part, and there's no substitute part

Motor, 1-1/2 Hp 115/230-1-60 024-25868-700
#5

Belt drive option diagram

Motor, 1-1/2 hp 115/230-1-60

Part #024-25868-700

The manufacturer no longer makes this part, and there's no substitute part

Bracket Mnfl 063-93548-000

#42

All parts diagram

Bracket mnfl

Part #063-93548-000

The manufacturer no longer makes this part, and there's no substitute part
