Model # 706312930 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706312930 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

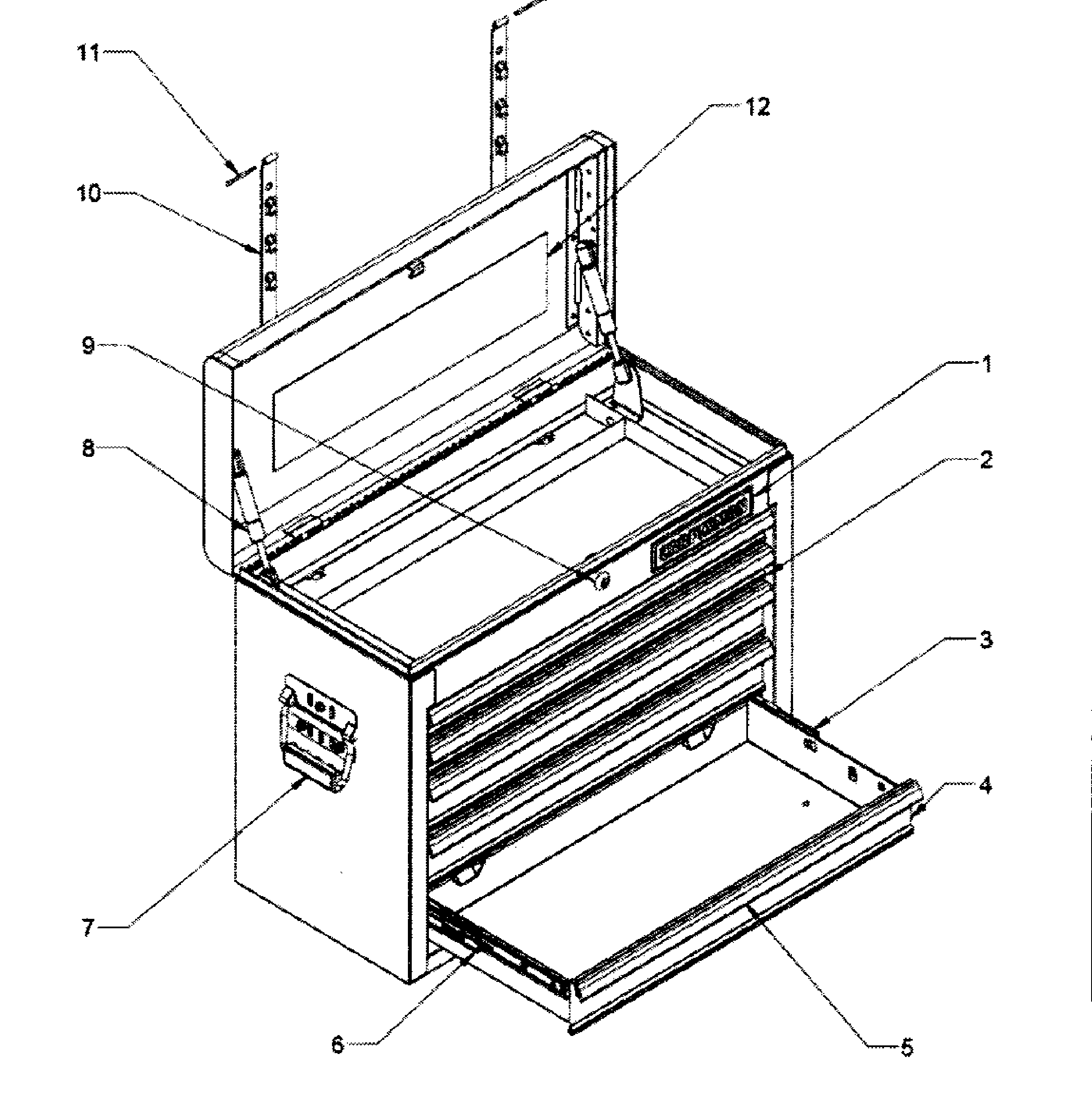

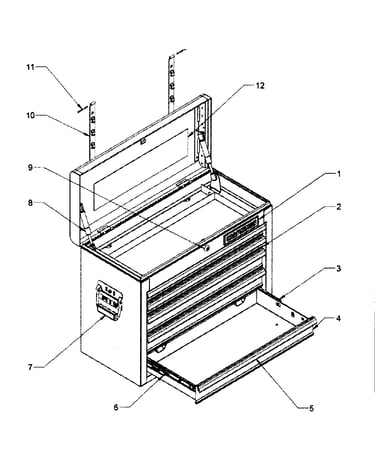

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Tool Cabinet Drawer Trim 1006364
#5

Tool chest diagram

Tool cabinet drawer trim

Part #1006364

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 3-in A17651A1-EBK
#4

Tool chest diagram

Tool chest drawer, 3-in

Part #A17651A1-EBK

The manufacturer no longer makes this part, and there's no substitute part

Decal 1006425
#12

Tool chest diagram

Decal

Part #1006425

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Nameplate 1006379
#1

Tool chest diagram

Tool chest nameplate

Part #1006379

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lid Damper 1006423
#8

Tool chest diagram

Tool chest lid damper

Part #1006423

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tool Chest Lock Bar W18459
#10

Tool chest diagram

Craftsman tool chest lock bar

Part #W18459

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle 16689
#7

Tool chest diagram

Tool chest handle

Part #16689

The manufacturer no longer makes this part, and there's no substitute part

Companion Tool Chest Door Hinge Pin M1495
#11

Tool chest diagram

Companion tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide, Left 1006380
#6

Tool chest diagram

Tool chest drawer slide, left

Part #1006380

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock M12918A6-SS
#9

Tool chest diagram

Tool chest lock

Part #M12918A6-SS

The manufacturer no longer makes this part, and there's no substitute part
