Model # 867587250 Official Kenmore electric furnace

Here are the diagrams and repair parts for Official Kenmore 867587250 electric furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Catch 602090
#15

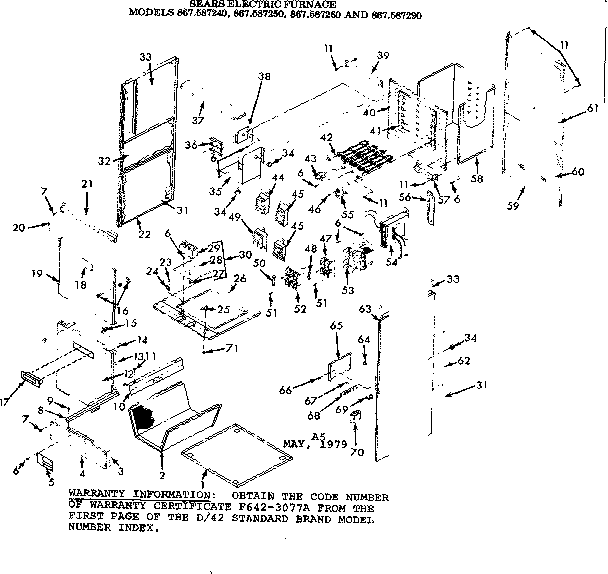

Functional replacement parts diagram

Catch

Part #602090

Replaced by #279570

?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Strike 602089
#14

Functional replacement parts diagram

Strike

Part #602089

Replaced by #279570

?
Manufacturer substitution
This part replaces 602089. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Motor 606169
#10C

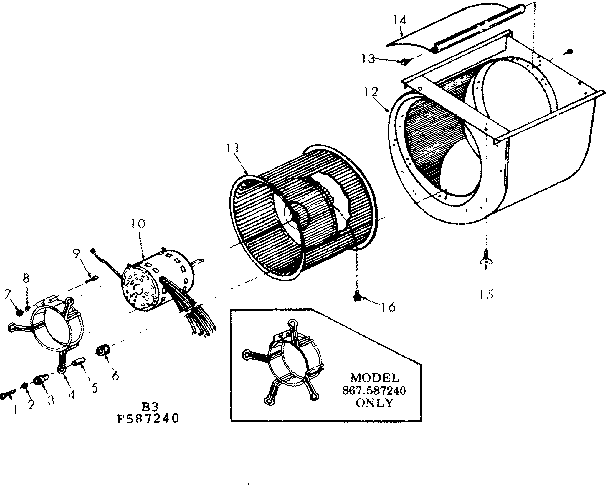

Blower assembly diagram

Motor

Part #606169

Replaced by #45461

?
Manufacturer substitution
This part replaces 606169. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Capacitor 91593
#70B

Functional replacement parts diagram

Capacitor

Part #91593

Replaced by #12908

?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#11A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Swtch, Limit 91588
#43

Functional replacement parts diagram

Swtch, limit

Part #91588

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 91588. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
Furnace Blower Fan Motor 604004
#10B

Blower assembly diagram

Furnace blower fan motor

Part #604004

$668.13
In Stock
Furnace Blower Fan Wheel 601211
#11B

Blower assembly diagram

Furnace blower fan wheel

Part #601211

$267.89
In Stock
Thermal Fuse 601503
#55

Functional replacement parts diagram

Thermal fuse

Part #601503

$50.87
In Stock
Bushing Wire 504096
#34

Functional replacement parts diagram

Bushing wire

Part #504096

$11.00
In Stock
