Paslode
Power Nailer

Model # IM250II90200 Official Paslode nailer

Here are the diagrams and repair parts for Official Paslode IM250II90200 nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Air Dam 900700
#23

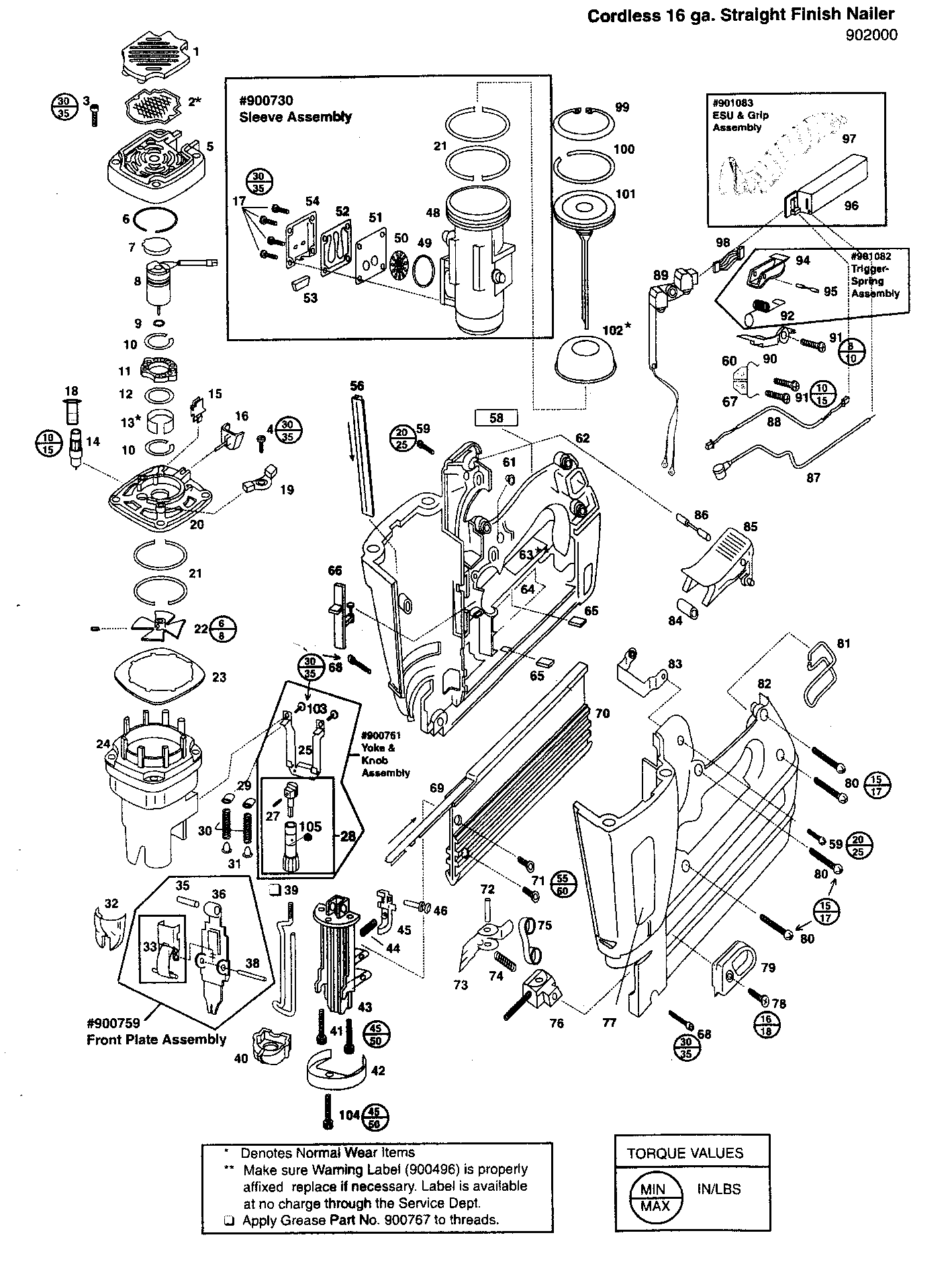

Nailer assy diagram

Air dam

Part #900700

The manufacturer no longer makes this part, and there's no substitute part

Ring 403099
#99

Nailer assy diagram

Ring

Part #403099

The manufacturer no longer makes this part, and there's no substitute part

Bracket 900703
#83

Nailer assy diagram

Bracket

Part #900703

The manufacturer no longer makes this part, and there's no substitute part

Spring 900631
#44

Nailer assy diagram

Spring

Part #900631

The manufacturer no longer makes this part, and there's no substitute part

Screw 900660
#71

Nailer assy diagram

Screw

Part #900660

The manufacturer no longer makes this part, and there's no substitute part

Nailer Position Probe Cap 900702
#40

Nailer assy diagram

Nailer position probe cap

Part #900702

The manufacturer no longer makes this part, and there's no substitute part

Carry Case 900751
#NI

Nailer assy diagram

Carry case

Part #900751

The manufacturer no longer makes this part, and there's no substitute part

Nailer Battery Car Charger Adapter 900507
#NI

Nailer assy diagram

Nailer battery car charger adapter

Part #900507

The manufacturer no longer makes this part, and there's no substitute part

Bushing 900755
#84

Nailer assy diagram

Bushing

Part #900755

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 900649
#6

Nailer assy diagram

Retaining ring

Part #900649

The manufacturer no longer makes this part, and there's no substitute part
