Frigidaire
Room Air Conditioner

Model # FAM187S2A13 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAM187S2A13 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

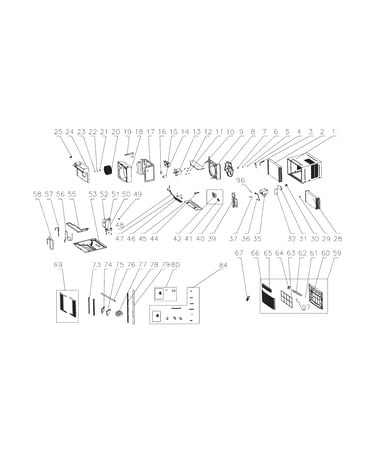

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Tube 5304459167
#3

Recommended spare parts diagram

Tube

Part #5304459167

In Stock
Bulkhead 5304459184
#17

Recommended spare parts diagram

Bulkhead

Part #5304459184

In Stock
Room Air Conditioner Blower Wheel 5304459187
#20

Recommended spare parts diagram

Room air conditioner blower wheel

Part #5304459187

In Stock
Bulkhead 5304459238
#39

Recommended spare parts diagram

Bulkhead

Part #5304459238

The manufacturer no longer makes this part, and there's no substitute part

Tube 5304459168
#4

Recommended spare parts diagram

Tube

Part #5304459168

The manufacturer no longer makes this part, and there's no substitute part

Base 5304459258
#53

Recommended spare parts diagram

Base

Part #5304459258

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304459252
#50

Recommended spare parts diagram

Compressor

Part #5304459252

The manufacturer no longer makes this part, and there's no substitute part

Thermistor 5304459876
#97

Recommended spare parts diagram

Thermistor

Part #5304459876

The manufacturer no longer makes this part, and there's no substitute part

Retainer 5304459536
#73

Recommended spare parts diagram

Retainer

Part #5304459536

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control 5304465432
#67

Recommended spare parts diagram

Room air conditioner remote control

Part #5304465432

The manufacturer no longer makes this part, and there's no substitute part
