Eureka
Upright Vacuum

Model # SE1945A Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka SE1945A vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Bottom Plate 25922-1
#28

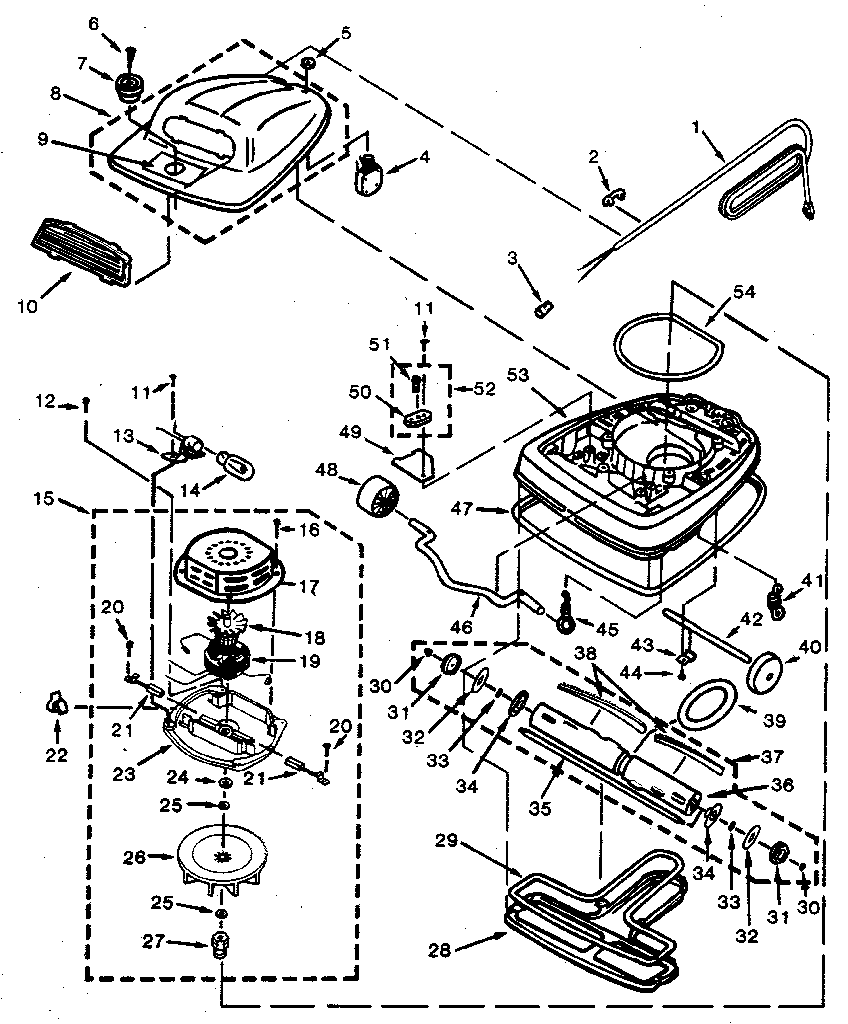

Nozzle and motor assembly diagram

Bottom plate

Part #25922-1

The manufacturer no longer makes this part, and there's no substitute part

Wheel Cover 36263
#49

Nozzle and motor assembly diagram

Wheel cover

Part #36263

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-11
#44

Nozzle and motor assembly diagram

Vacuum screw, 10-pack

Part #53238-11

The manufacturer no longer makes this part, and there's no substitute part

Socket 35958A
#13

Nozzle and motor assembly diagram

Socket

Part #35958A

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Parts List 56804

#NI

All parts diagram

Kenmore parts list

Part #56804

The manufacturer no longer makes this part, and there's no substitute part

Axle 35947A
#46

Nozzle and motor assembly diagram

Axle

Part #35947A

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Steel Washrs 53188-1
#24

Nozzle and motor assembly diagram

Electrolux steel washrs

Part #53188-1

The manufacturer no longer makes this part, and there's no substitute part

Spring 47722
#16

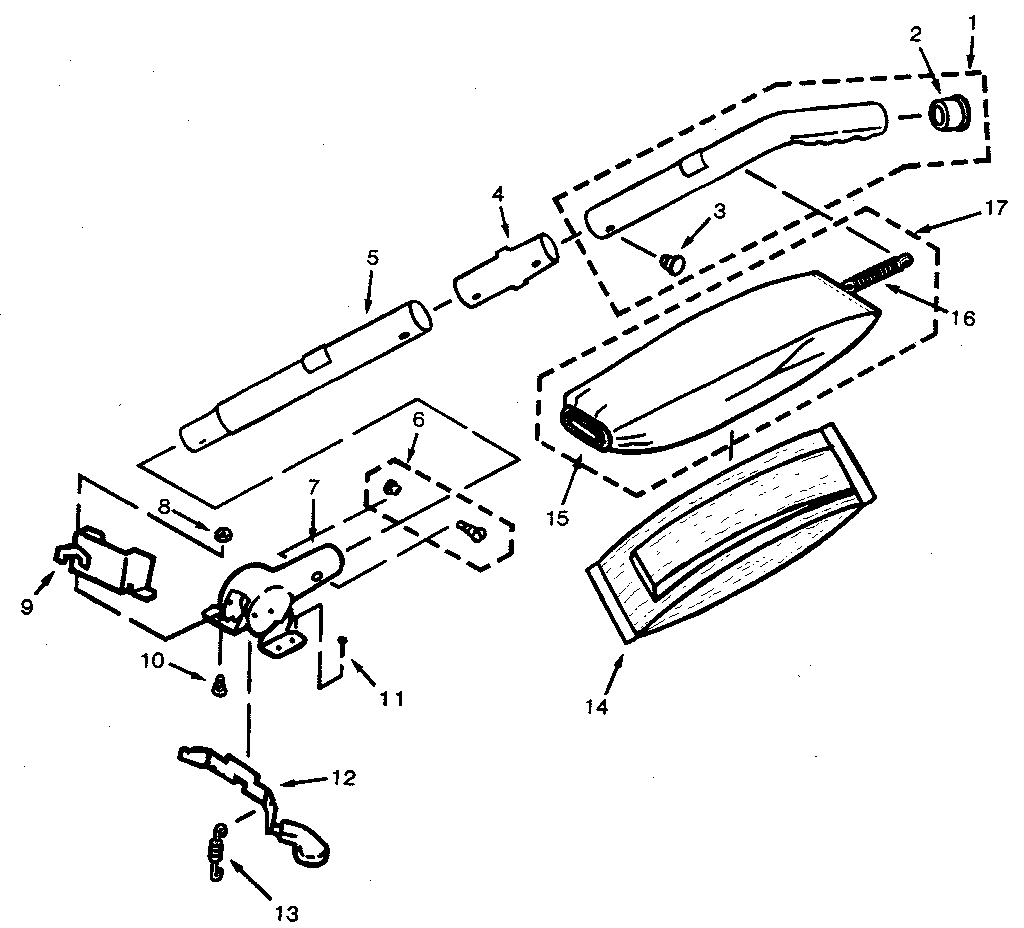

Handle and bag housing diagram

Spring

Part #47722

The manufacturer no longer makes this part, and there's no substitute part

Shaft Washer 53167
#33

Nozzle and motor assembly diagram

Shaft washer

Part #53167

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 53089-1
#2

Nozzle and motor assembly diagram

Strain relief

Part #53089-1

The manufacturer no longer makes this part, and there's no substitute part
