Model # CG206L-C Official Jenn-Air gas counter unit cooktop

Here are the diagrams and repair parts for Official Jenn-Air CG206L-C gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

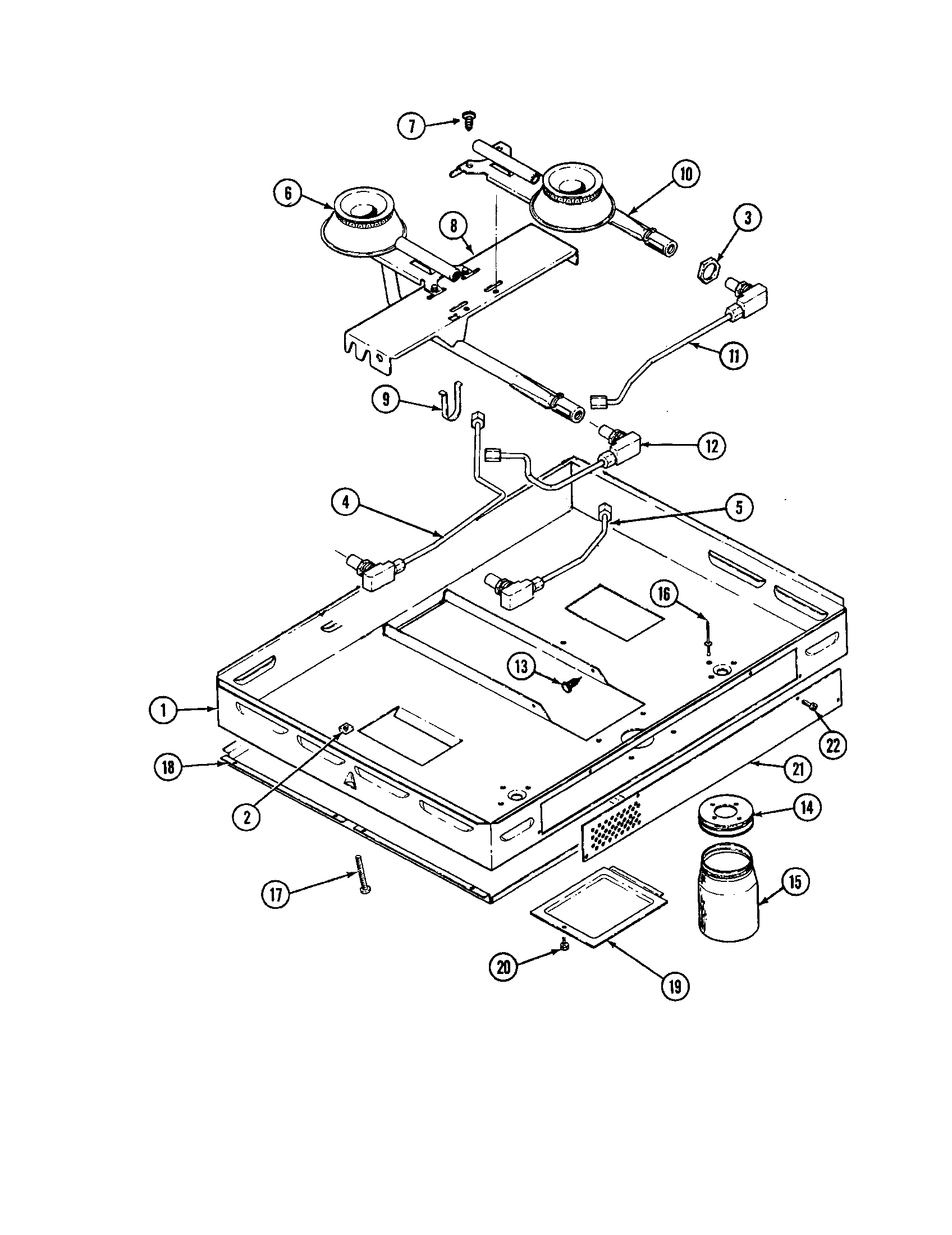

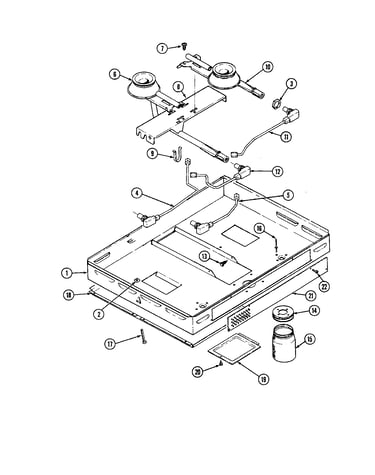

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

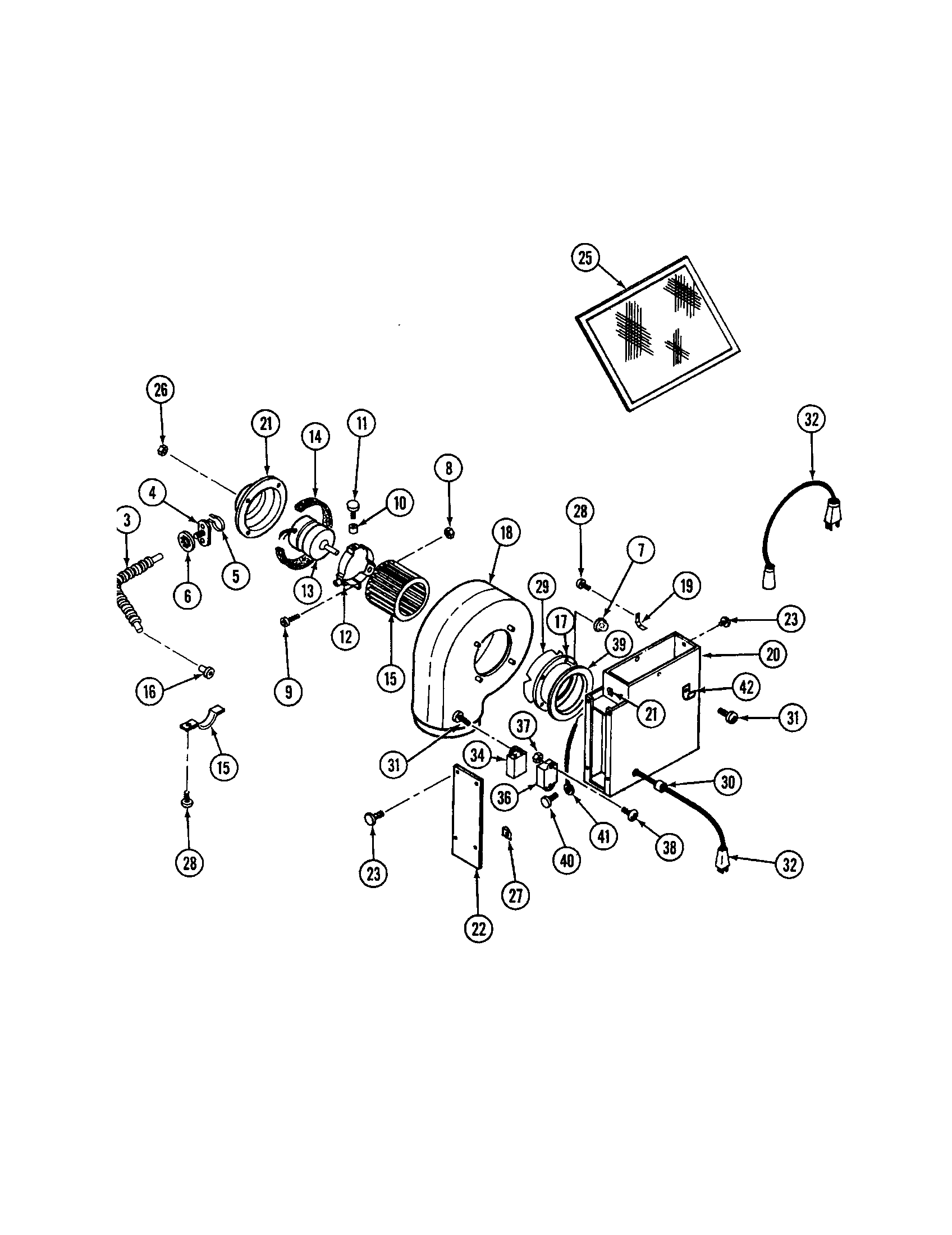

Range Downdraft Vent Grease Filter 707929
#25

Blower/plenum diagram

Range downdraft vent grease filter

Part #707929

Replaced by #WP707929

?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09
19% OFF Phone Price : $31.09
In Stock
Screw 708733
#31

Blower/plenum diagram

Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Blower Wheel 707985
#15

Blower/plenum diagram

Blower wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68
8% OFF Phone Price : $77.68
In Stock
Screw 707347
#5

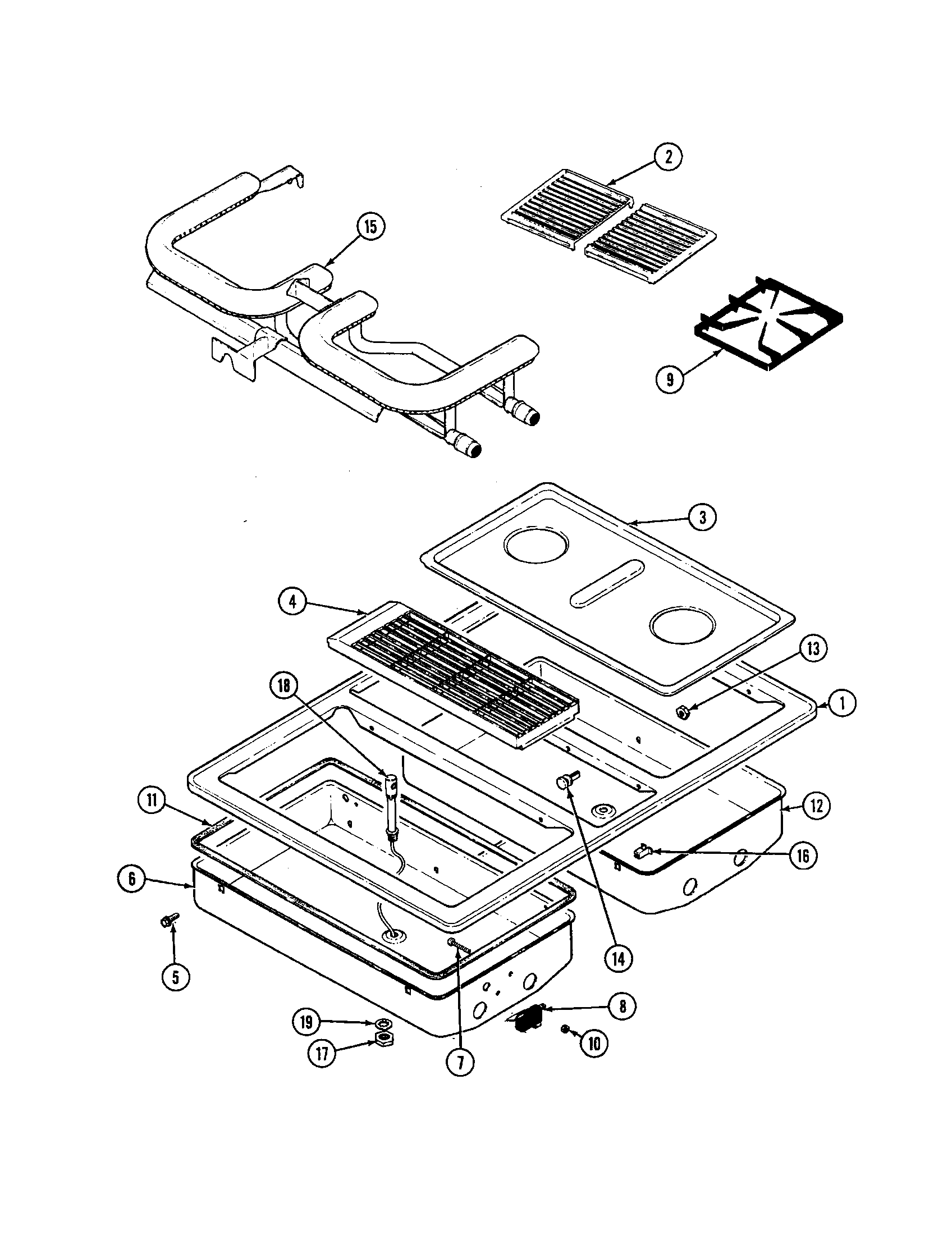

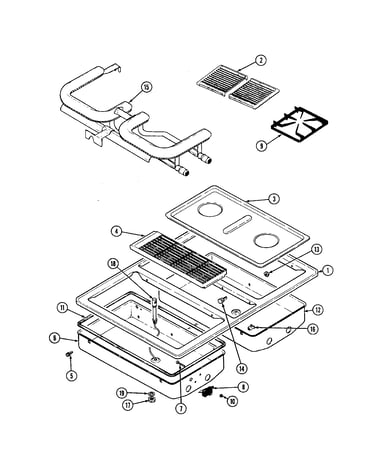

Top assembly diagram

Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock

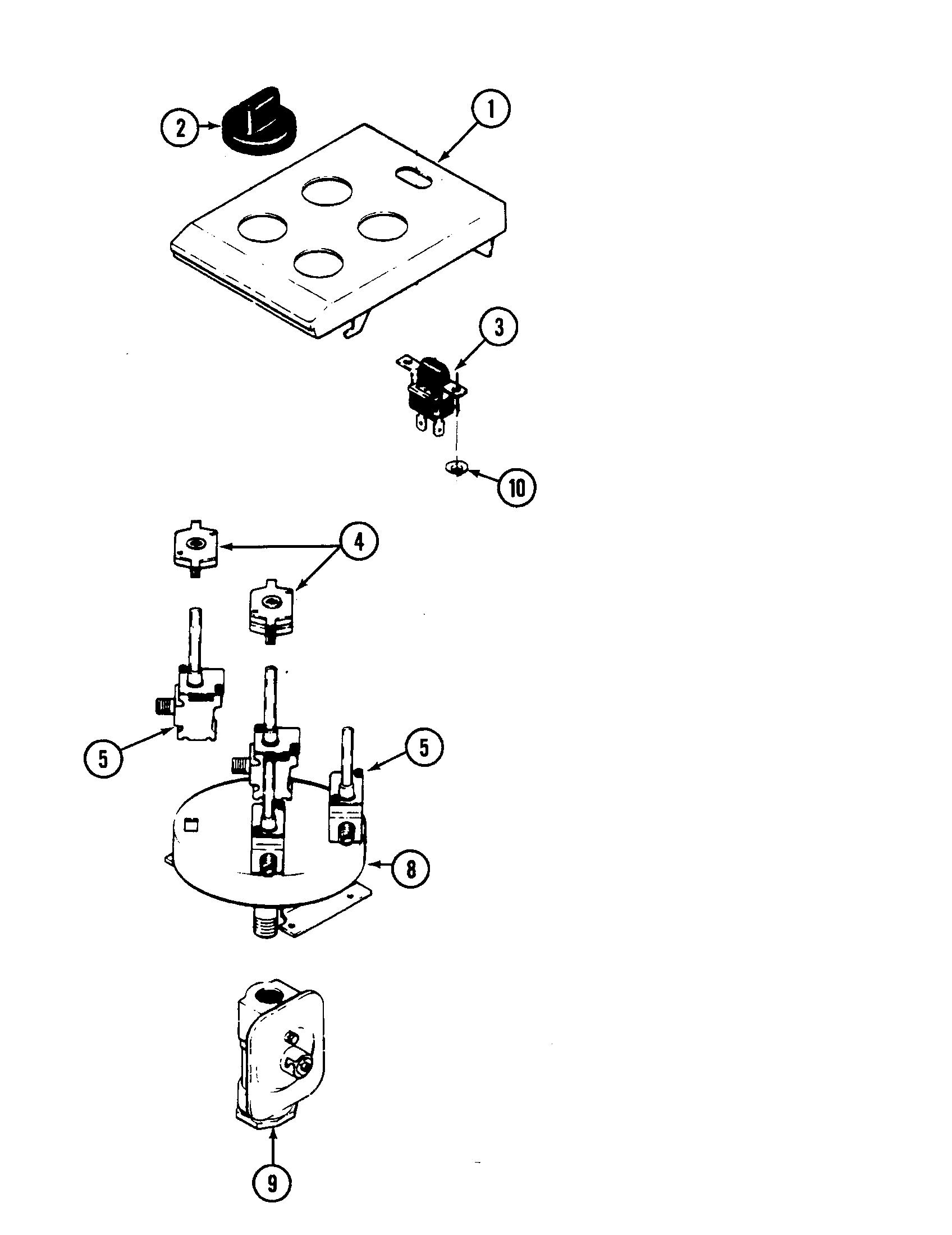

Valve Switch (white) 704512
Valve switch (white)

Part #704512

Replaced by #WPY704512

?
Manufacturer substitution
This part replaces 704512. Substitute parts can look different from the original.
$52.27
10% OFF Phone Price : $58.27
In Stock
Gas Valve 04100188
#7

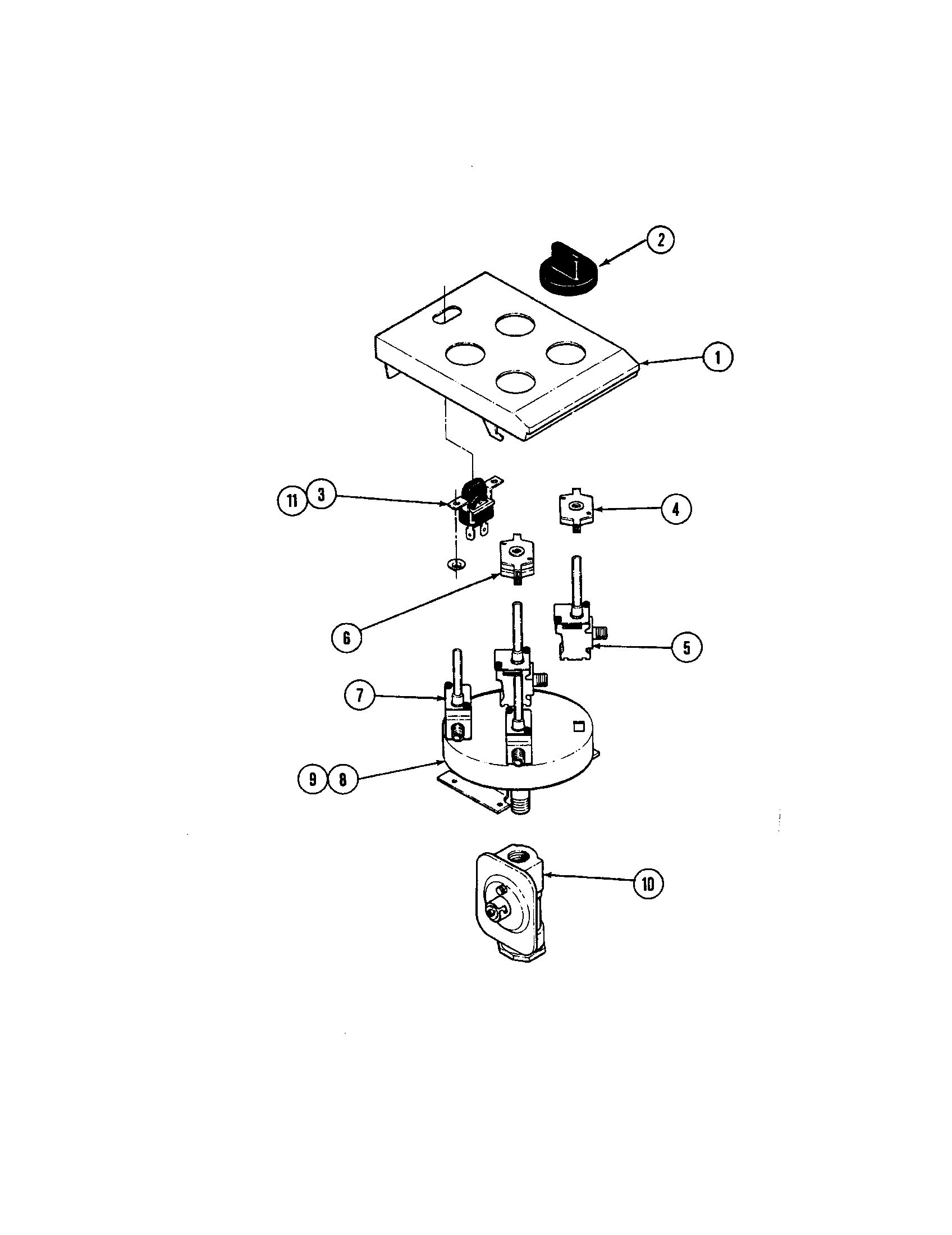

Control assembly diagram

Gas valve

Part #04100188

Replaced by #WPY04100188

?
Manufacturer substitution
This part replaces 04100188. Substitute parts can look different from the original.
$90.88
6% OFF Phone Price : $96.88
In Stock
Aeration Pan 712274
#3

Top assembly diagram

Aeration pan

Part #712274

Replaced by #3401X055-09

?
Manufacturer substitution
This part replaces 712274. Substitute parts can look different from the original.
$149.87
7% OFF Phone Price : $161.87
In Stock
Ignitor, Spa 704535
#18

Top assembly diagram

Ignitor, spa

Part #704535

Replaced by #WP71002179

?
Manufacturer substitution
This part replaces 704535. Substitute parts can look different from the original.
$111.14
10% OFF Phone Price : $123.14
In Stock
Pressure Regulator 704545
Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$107.45
10% OFF Phone Price : $119.45
In Stock
Isolator 708926
#10

Blower/plenum diagram

Isolator

Part #708926

Replaced by #WP71003558

?
Manufacturer substitution
This part replaces 708926. Substitute parts can look different from the original.
This item is not returnable
$9.19
10% OFF Phone Price : $10.19
In Stock
