Model # DSC-T110W Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-T110W digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Pcb Bt-064 188180721
#107

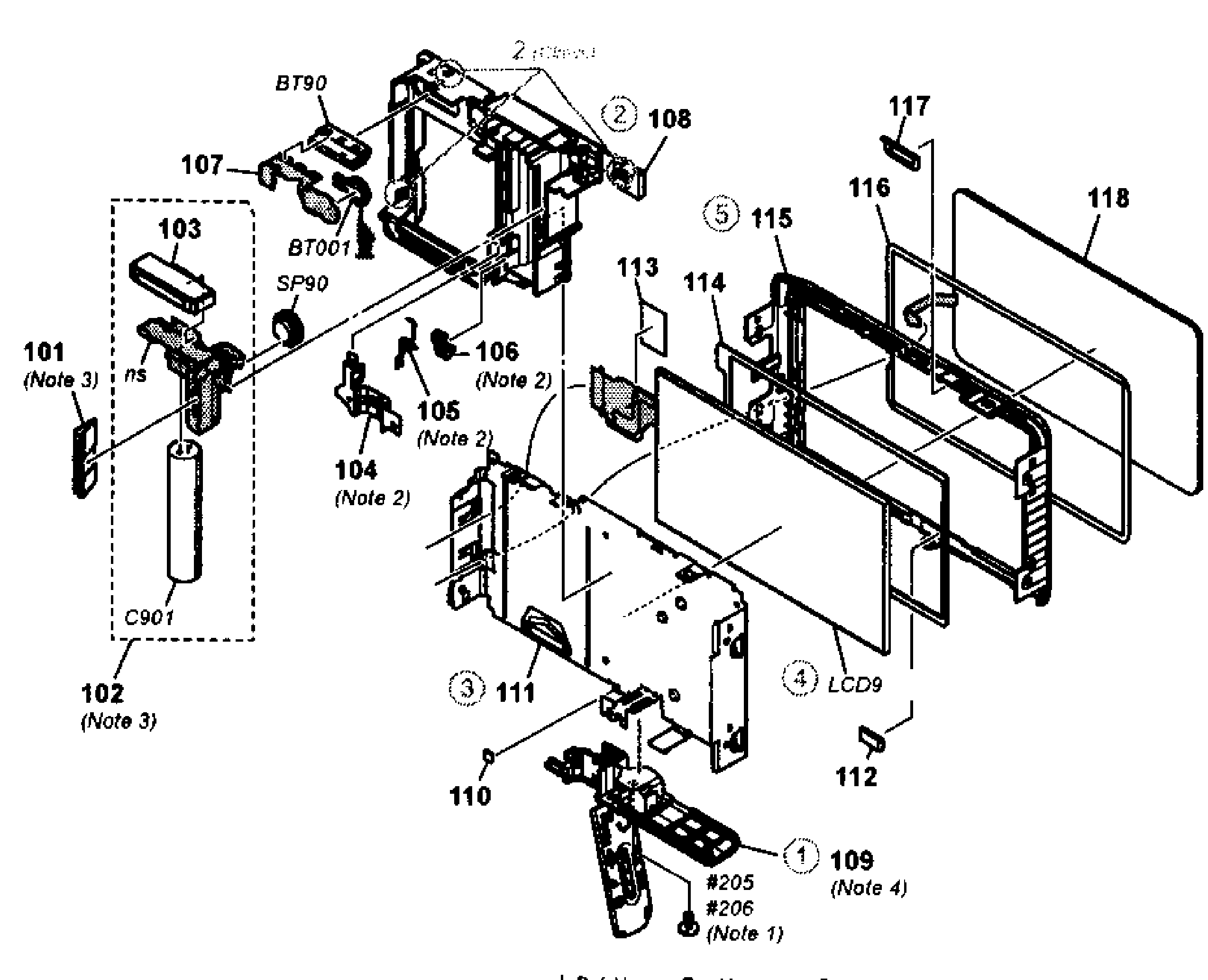

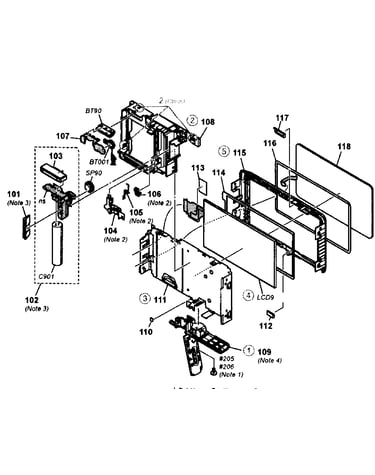

Rear section diagram

Pcb bt-064

Part #188180721

In Stock
Cushion 420949201
#52

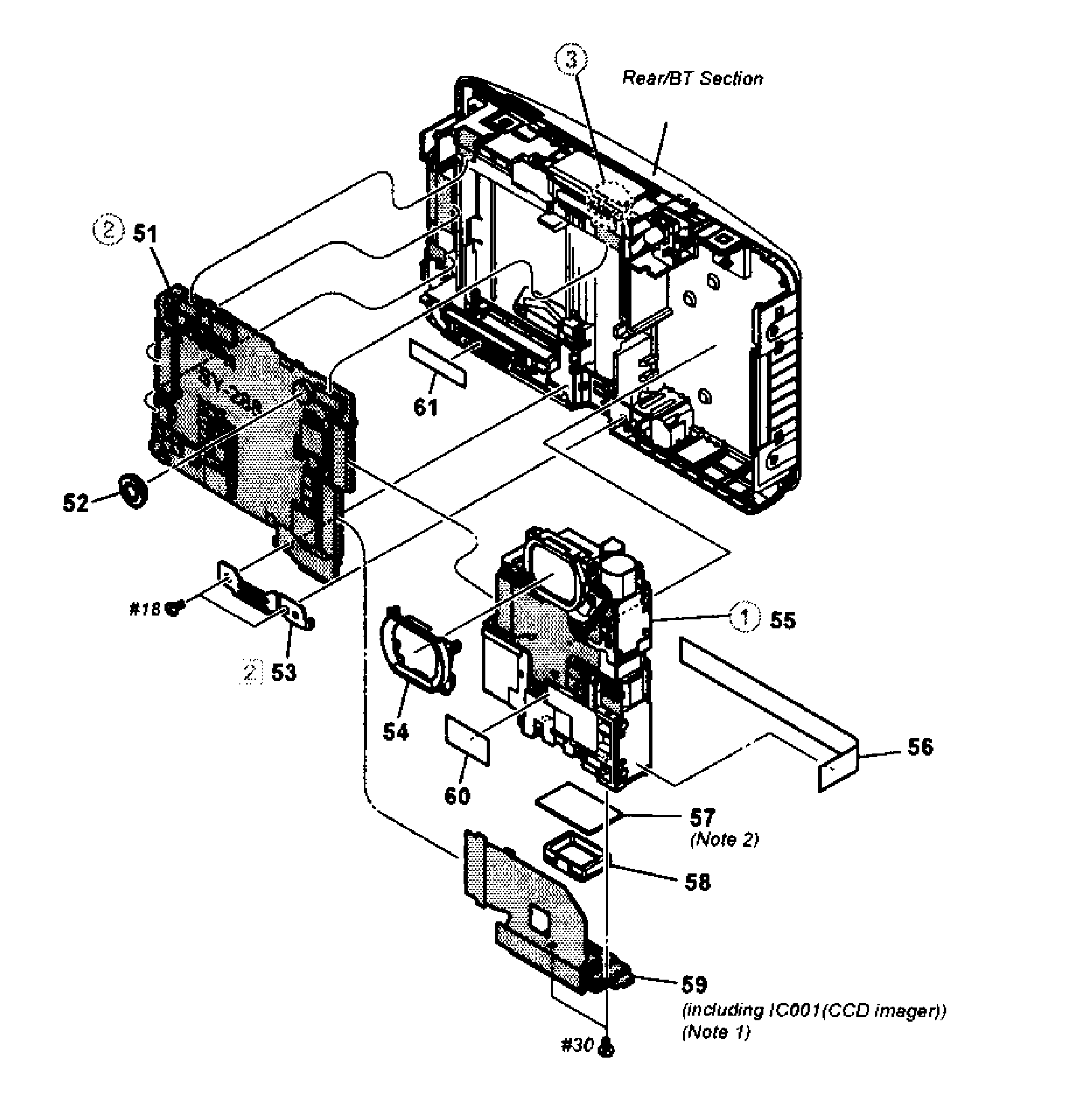

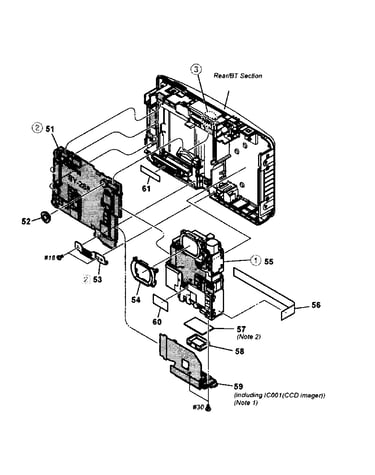

Main assy diagram

Cushion

Part #420949201

This item is not returnable
In Stock
Digital Camera Battery Charger 148752321
#NI

Cabinet parts diagram

Digital camera battery charger

Part #148752321

In Stock
Pcb Sy-288 A1812941A
#51

Main assy diagram

Pcb sy-288

Part #A1812941A

In Stock
Sony Center Cab 427342461
#2

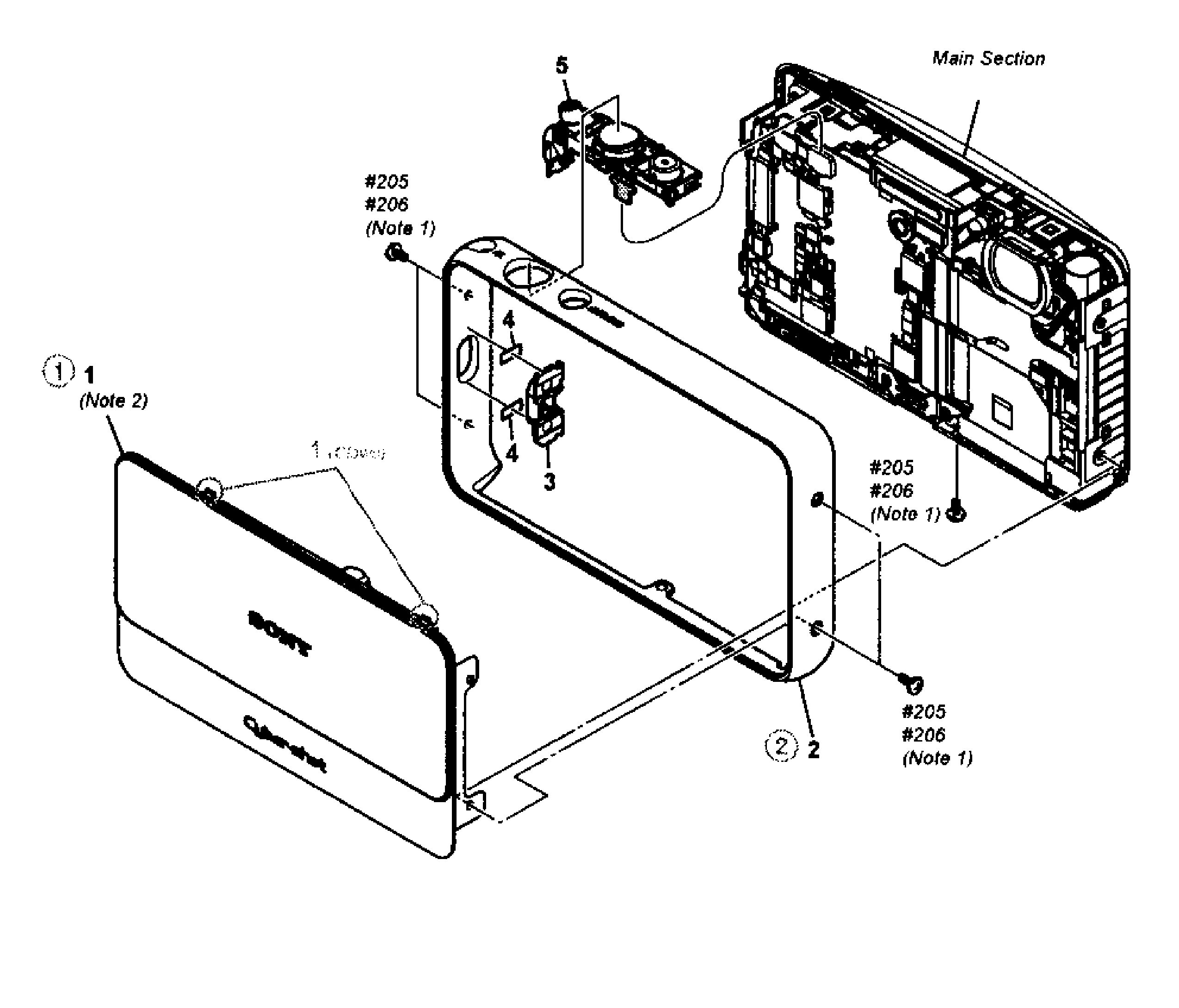

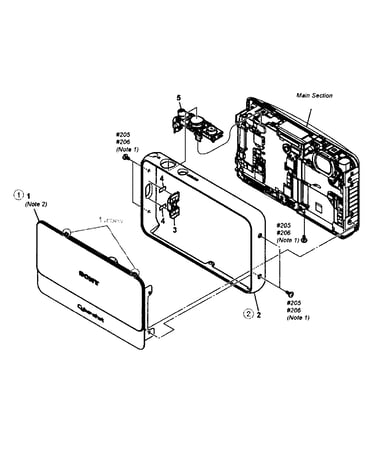

Cabinet parts diagram

Sony center cab

Part #427342461

In Stock
Fltr Block 185605811
#57

Main assy diagram

Fltr block

Part #185605811

In Stock
Electric Capacitor 111648811
#C901

Rear section diagram

Electric capacitor

Part #111648811

In Stock
Sony Block Assembly A1812610A
#5

Cabinet parts diagram

Sony block assembly

Part #A1812610A

In Stock
Pcb Cd-798 A1812804A
#59

Main assy diagram

Pcb cd-798

Part #A1812804A

In Stock
Plate Lens 419978601
#54

Main assy diagram

Plate lens

Part #419978601

In Stock
