Model # PFDS451EL2WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE PFDS451EL2WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

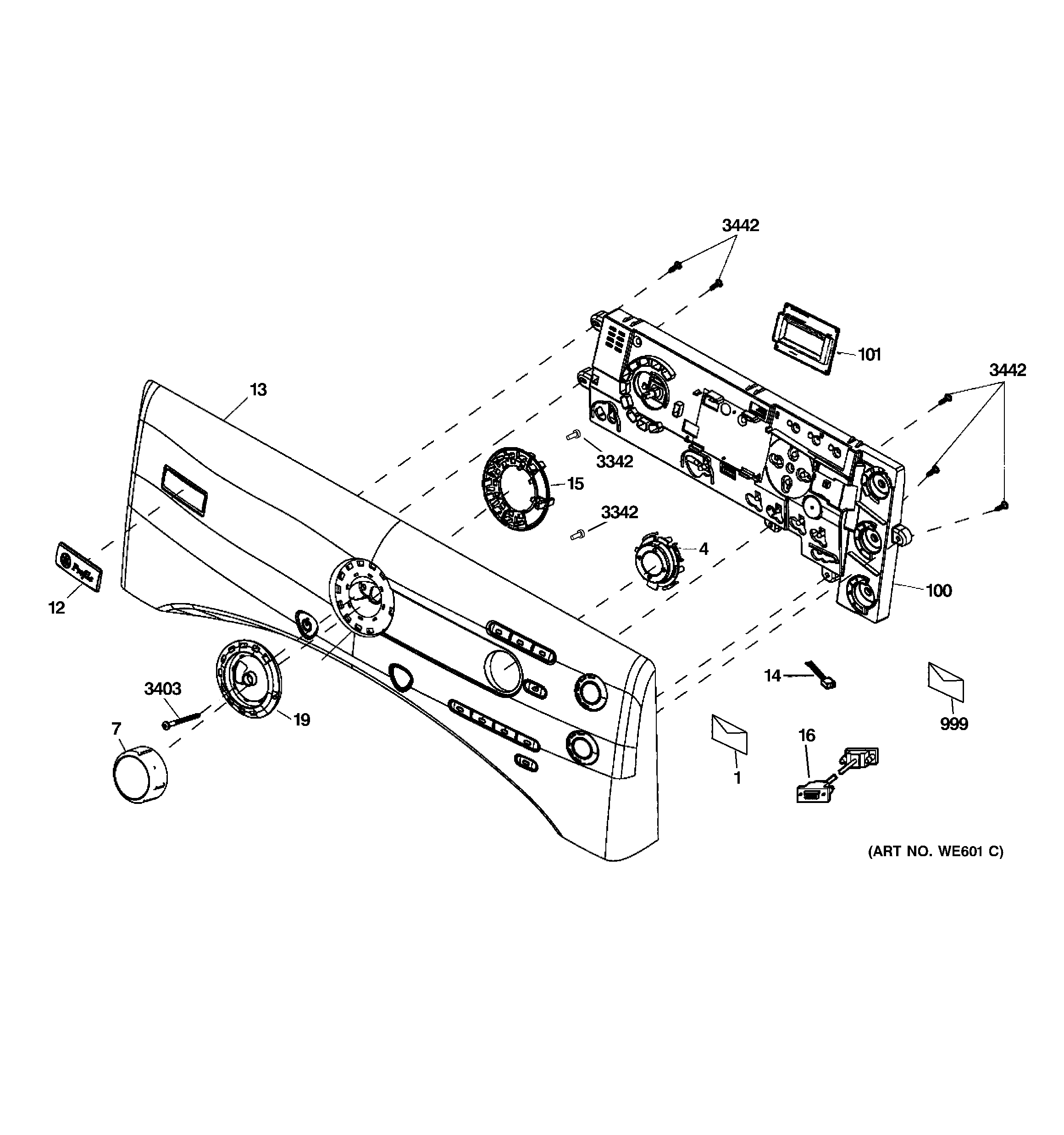

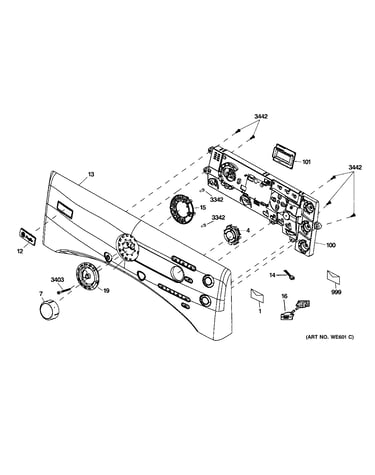

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Kenmore Dryer Drum Support Shaft (replaces We03m0033) WE3M33
#508

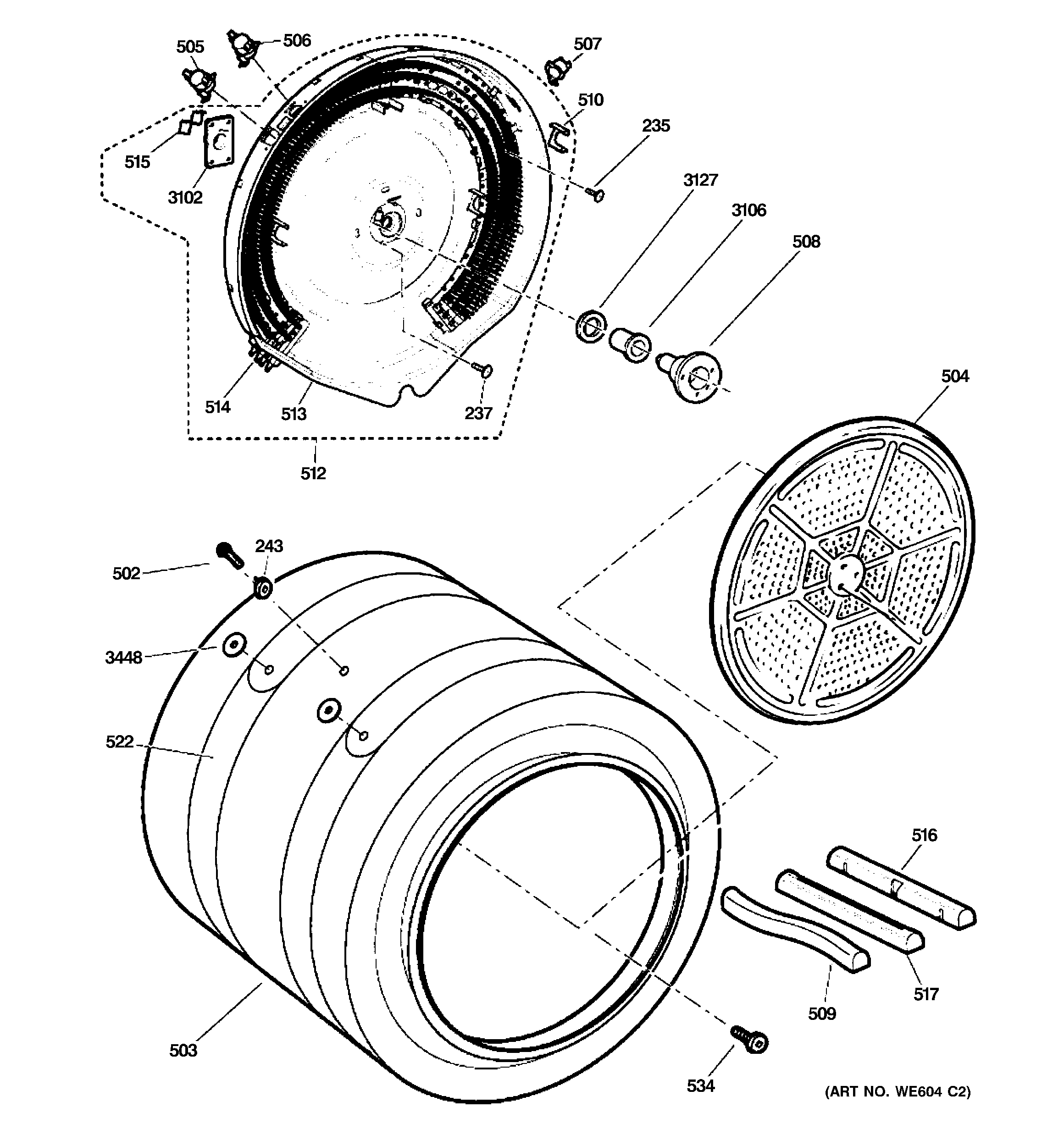

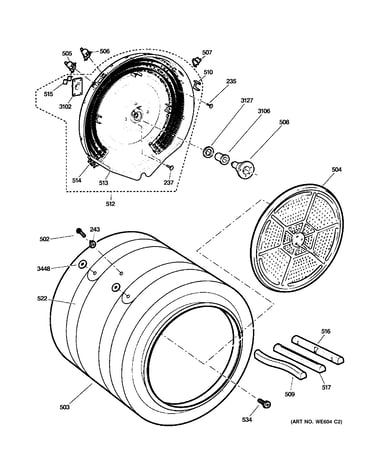

Drum diagram

Kenmore dryer drum support shaft (replaces we03m0033)

Part #WE3M33

BEST SELLER
$31.67 |
16% OFF Phone Price : $37.67
In Stock
Dryer Heating Element Control Thermistor (replaces We04m0398, We4m333) WE4M398
#506

Drum diagram

Dryer heating element control thermistor (replaces we04m0398, we4m333)

Part #WE4M398

BEST SELLER
$33.90 |
15% OFF Phone Price : $39.90
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Idler Pulley WE12M8
#216

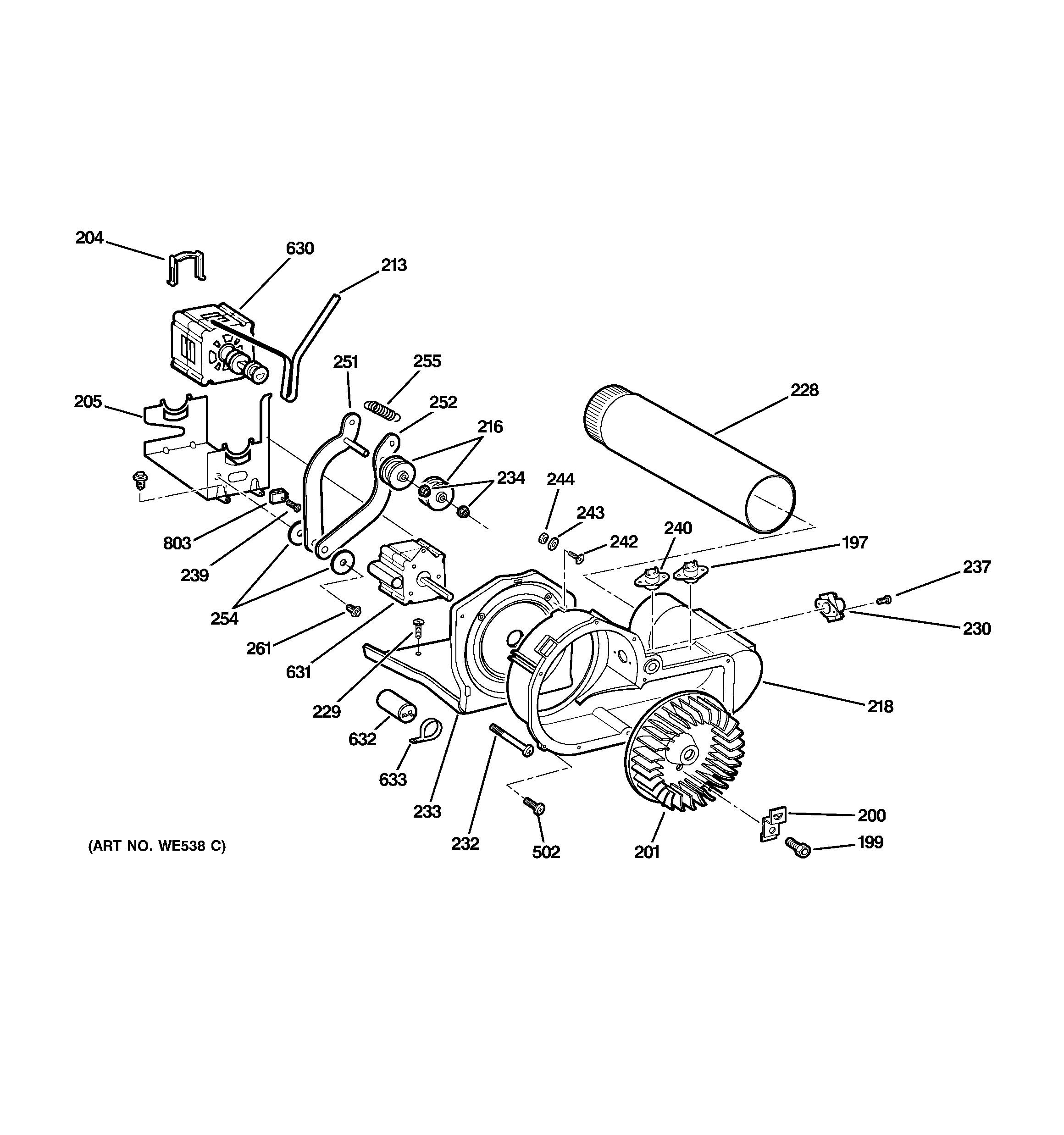

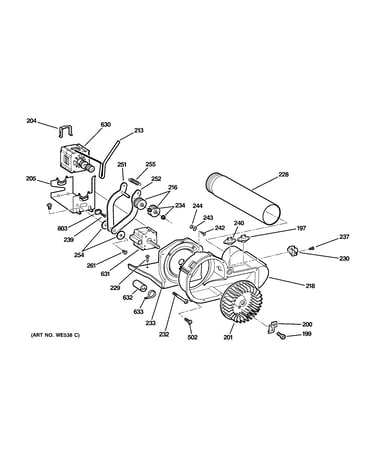

Blower & motor diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Dryer Thermistor (replaces We04m0391, We04m0448, We4m391) WE4M448
#240

Blower & motor diagram

Dryer thermistor (replaces we04m0391, we04m0448, we4m391)

Part #WE4M448

BEST SELLER
$37.26 |
14% OFF Phone Price : $43.26
In Stock
Dryer Drum Glide Bearing, Upper WE3M52
#316

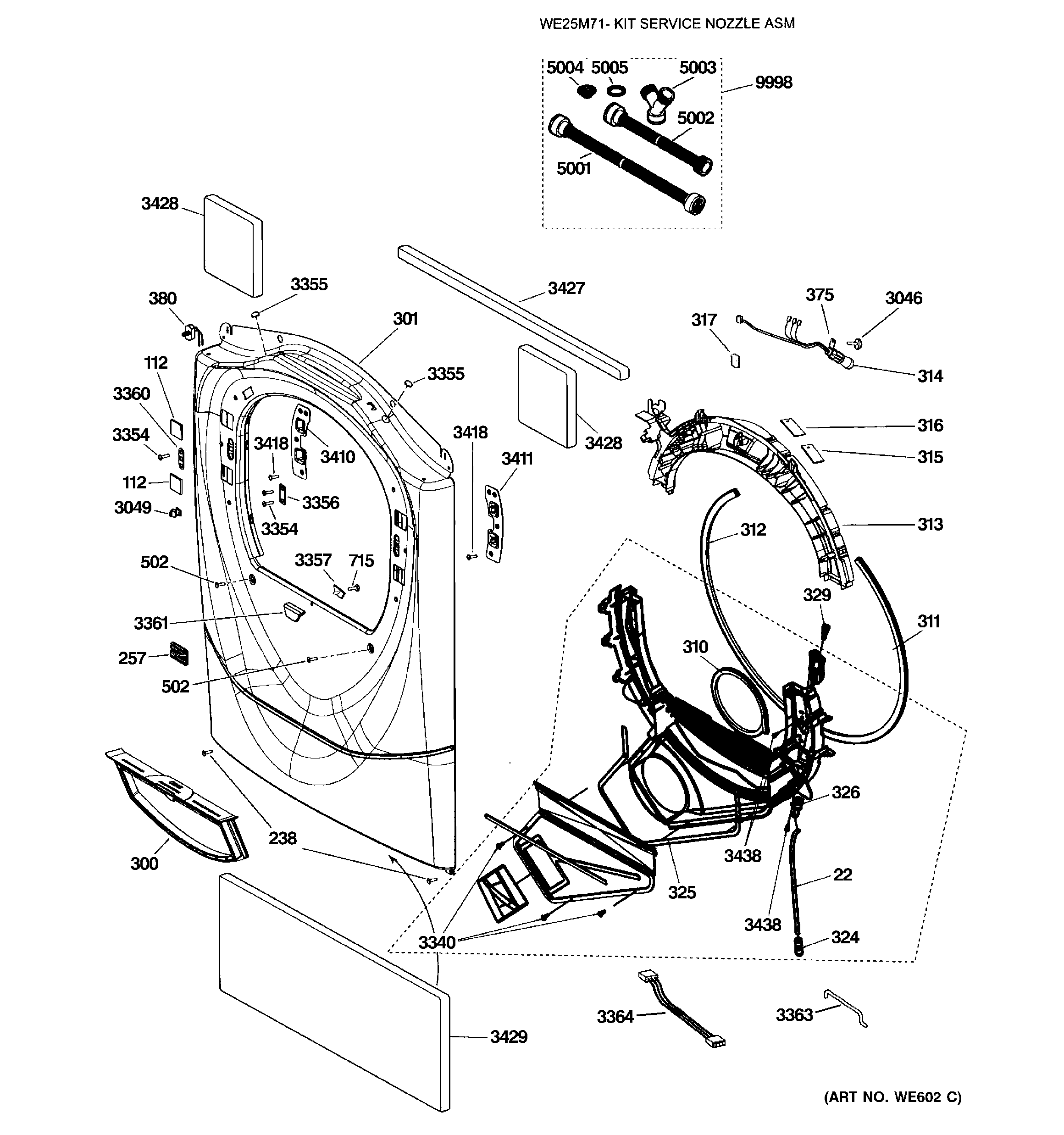

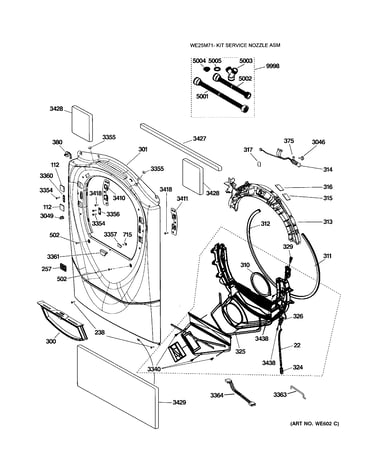

Front panel diagram

Dryer drum glide bearing, upper

Part #WE3M52

Replaced by #WE03X37320

?
Manufacturer substitution
This part replaces WE3M52. Substitute parts can look different from the original.
BEST SELLER
$24.93 |
19% OFF Phone Price : $30.93
In Stock
Dryer Drum Lamp WE4M305
#314

Front panel diagram

Dryer drum lamp

Part #WE4M305

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4M305. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Dryer Safety Thermostat (replaces We04m0160) WE4M160
#505

Drum diagram

Dryer safety thermostat (replaces we04m0160)

Part #WE4M160

BEST SELLER
$123.69 |
9% OFF Phone Price : $135.69
In Stock
Dryer Terminal Block And Grounding Strap (replaces We04m0325, We04x20403, We4m266, We4m324) WE4M325
#419

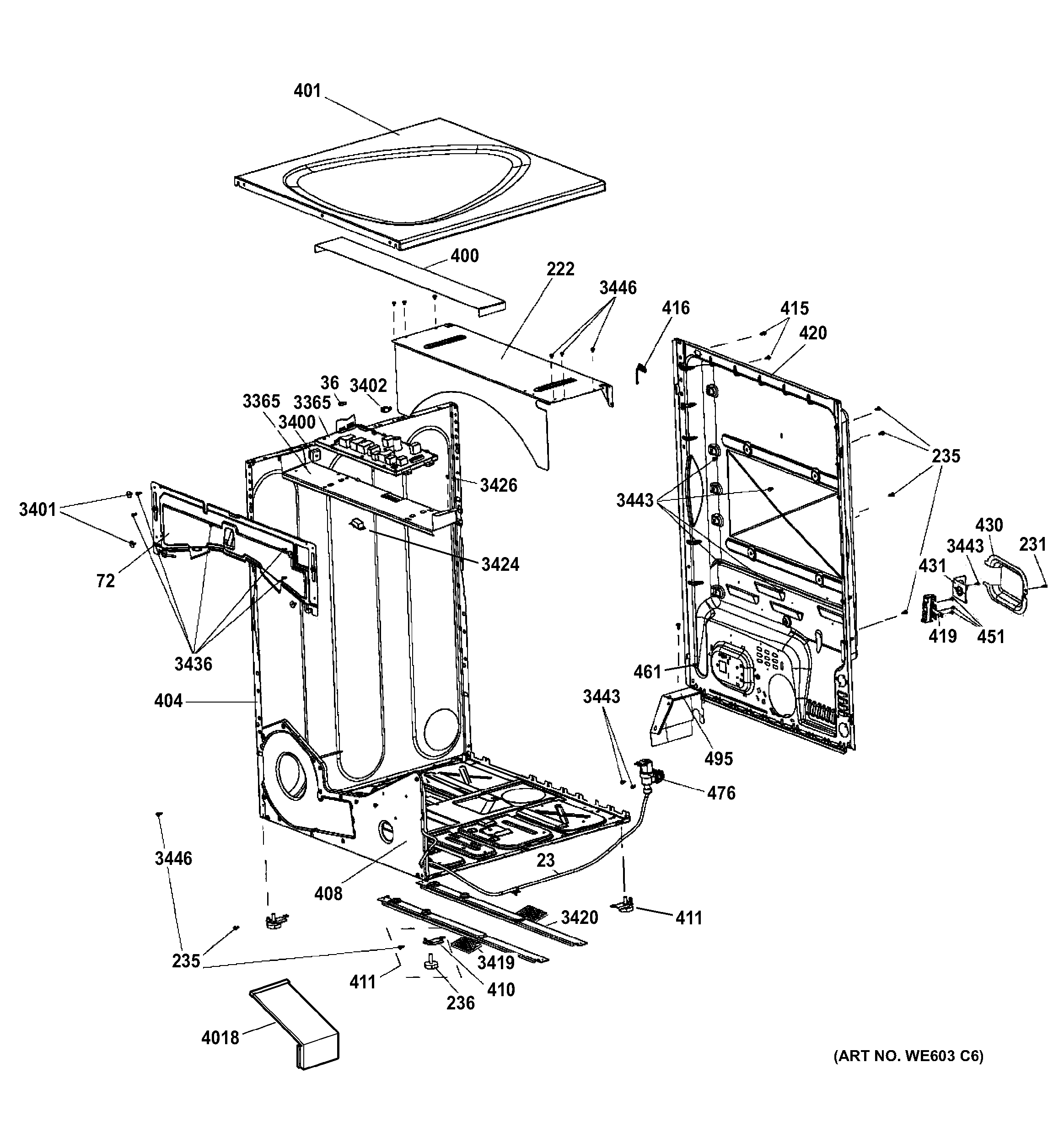

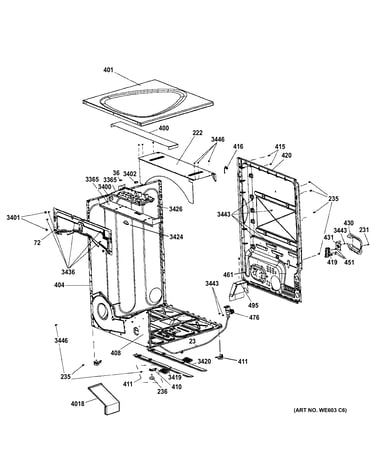

Cabinet & top panel diagram

Dryer terminal block and grounding strap (replaces we04m0325, we04x20403, we4m266, we4m324)

Part #WE4M325

BEST SELLER
This item is not returnable
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Latch WE1M536
#327

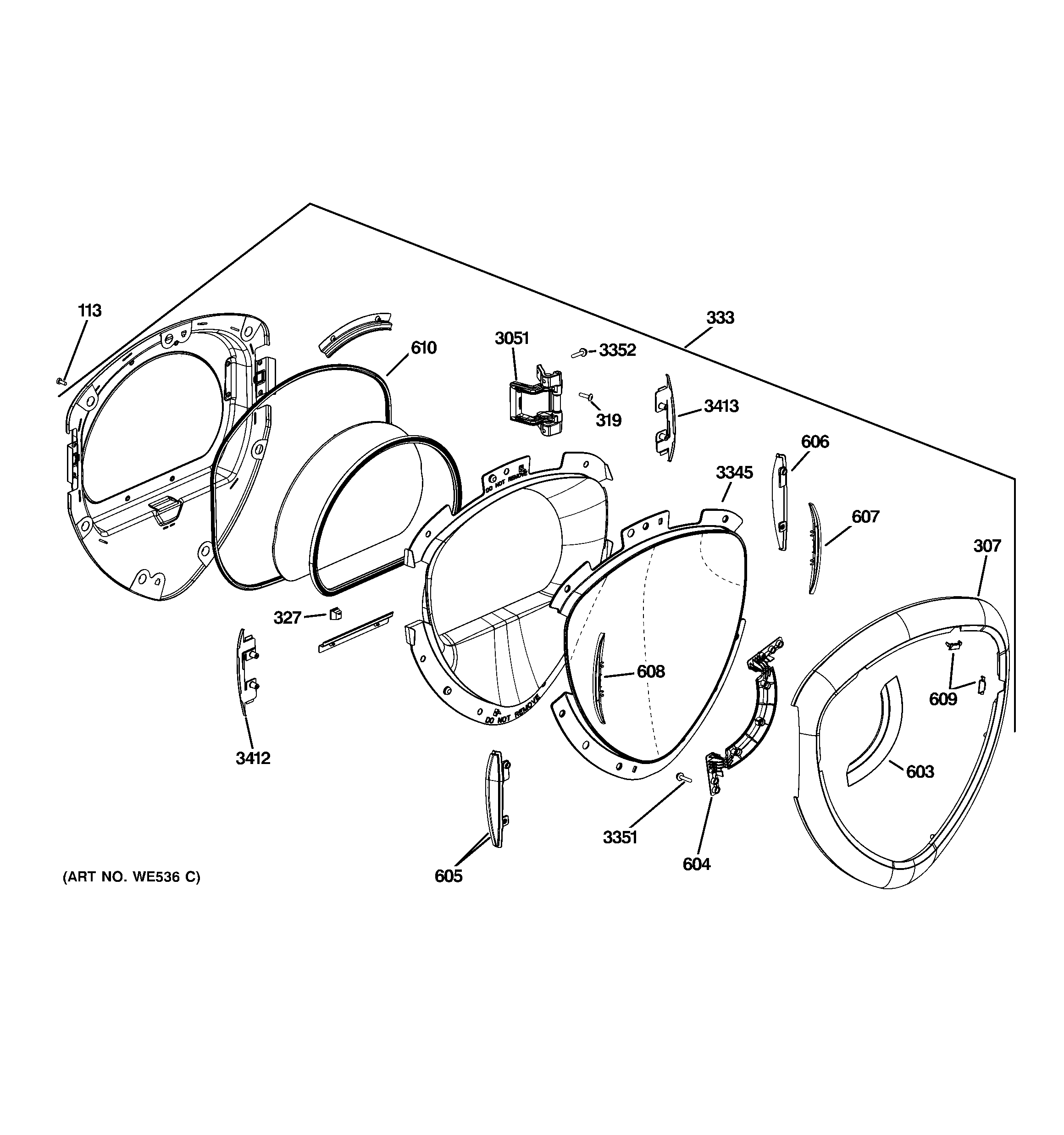

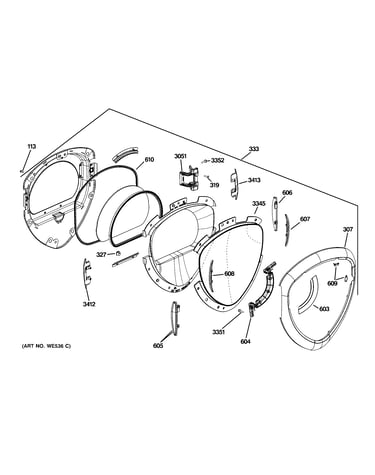

Door diagram

Latch

Part #WE1M536

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE1M536. Substitute parts can look different from the original.
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dryers
