Model # S620NG-2010 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber S620NG-2010 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Grate 70372
#8

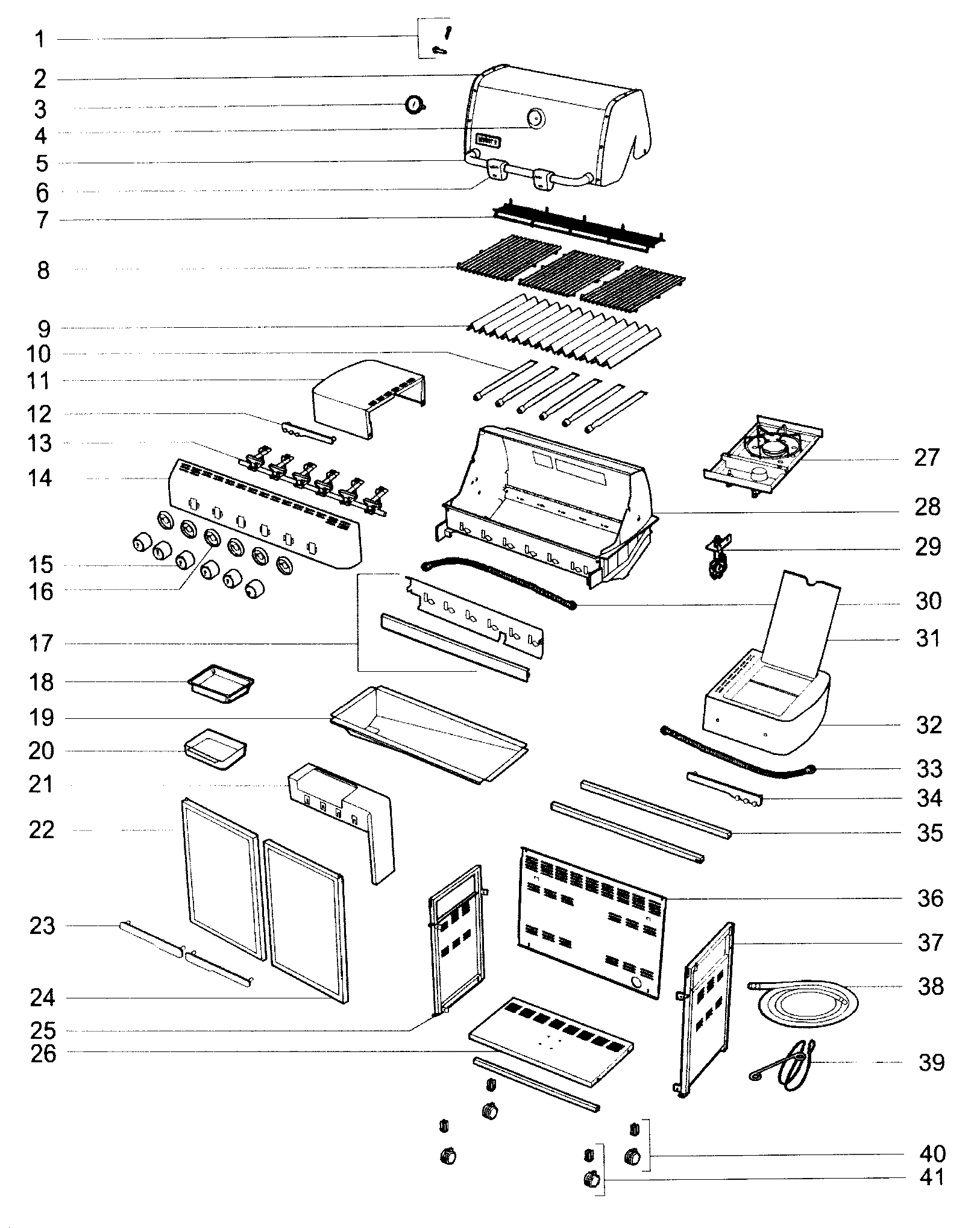

Grill parts diagram

Grate

Part #70372

The manufacturer no longer makes this part, and there's no substitute part

Side Table 70348
#32

Grill parts diagram

Side table

Part #70348

The manufacturer no longer makes this part, and there's no substitute part

Bezel,lrg 70318
#16

Grill parts diagram

Bezel,lrg

Part #70318

The manufacturer no longer makes this part, and there's no substitute part

Bumpers,silicone 70339
#28A

Grill parts diagram

Bumpers,silicone

Part #70339

The manufacturer no longer makes this part, and there's no substitute part

Magnet 81270
Magnet

Part #81270

The manufacturer no longer makes this part, and there's no substitute part

Bar, 1pk 81222
#9B

Grill parts diagram

Bar, 1pk

Part #81222

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88212
#29A

Grill parts diagram

Hardware

Part #88212

The manufacturer no longer makes this part, and there's no substitute part

Cookbook 10750
#NI

Grill parts diagram

Cookbook

Part #10750

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 70315
#14

Grill parts diagram

Control panel

Part #70315

The manufacturer no longer makes this part, and there's no substitute part

Hardware 70302
#1

Grill parts diagram

Hardware

Part #70302

The manufacturer no longer makes this part, and there's no substitute part
