Electric Line Trimmer

Model # 17274544 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 17274544 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Craftsman Line Trimmer Handle Assembly GGT4501U-8
#8

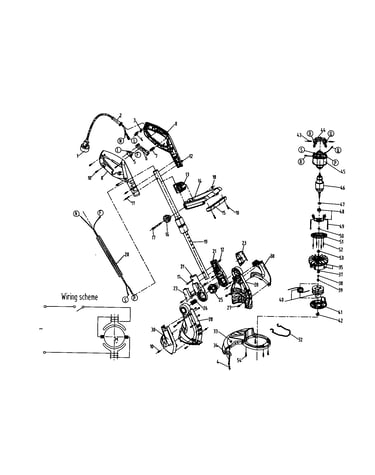

Cabinet parts diagram

Craftsman line trimmer handle assembly

Part #GGT4501U-8

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Assembly GGT4501U-40
#40

Cabinet parts diagram

Line trimmer spool assembly

Part #GGT4501U-40

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Stator GGT4501U-45
#45

Cabinet parts diagram

Craftsman stator

Part #GGT4501U-45

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Line Trimmer Debris Shield GGT4501U-33
#33

Cabinet parts diagram

Craftsman line trimmer debris shield

Part #GGT4501U-33

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Self-tapping Screw GGT4501U-4
#4

Cabinet parts diagram

Line trimmer self-tapping screw

Part #GGT4501U-4

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw GGT4501U-27
#27

Cabinet parts diagram

Tap screw

Part #GGT4501U-27

The manufacturer no longer makes this part, and there's no substitute part

Pressplate GGT4501U-3
#3

Cabinet parts diagram

Pressplate

Part #GGT4501U-3

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Handle Bolt GGT4501U-17
#17

Cabinet parts diagram

Line trimmer handle bolt

Part #GGT4501U-17

The manufacturer no longer makes this part, and there's no substitute part

Swvl.shell GGT4501U-23
#23

Cabinet parts diagram

Swvl.shell

Part #GGT4501U-23

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Nut GGT4501U-18
#18

Cabinet parts diagram

Line trimmer nut

Part #GGT4501U-18

The manufacturer no longer makes this part, and there's no substitute part
