Model # E-450LP Official Weber gas grill

Here are the diagrams and repair parts for Official Weber E-450LP gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

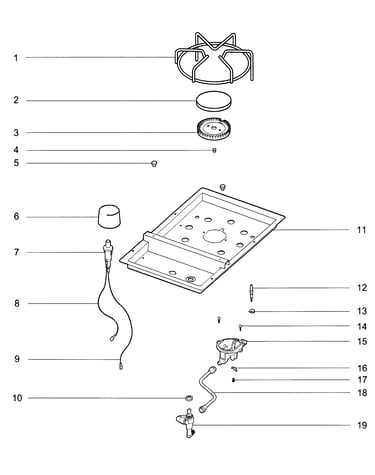

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Back Panel 70352
#51

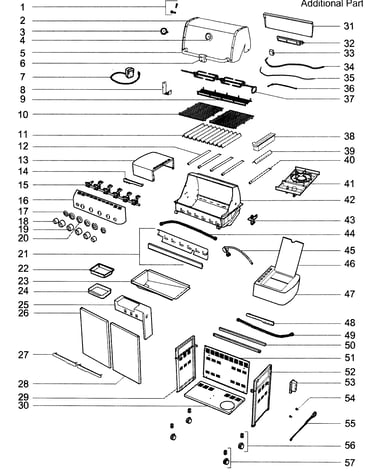

Cabinet assy diagram

Back panel

Part #70352

The manufacturer no longer makes this part, and there's no substitute part

Smoker Burner 70307
#40

Cabinet assy diagram

Smoker burner

Part #70307

The manufacturer no longer makes this part, and there's no substitute part

Caster Fixed 70359
#56

Cabinet assy diagram

Caster fixed

Part #70359

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer 70375
#11

Cabinet assy diagram

Gas grill flame tamer

Part #70375

The manufacturer no longer makes this part, and there's no substitute part

Bezel 67717
#4

Cabinet assy diagram

Bezel

Part #67717

The manufacturer no longer makes this part, and there's no substitute part

Smoker Box 70381
#38

Cabinet assy diagram

Smoker box

Part #70381

The manufacturer no longer makes this part, and there's no substitute part

Lp Orifice 70384
#32

Cabinet assy diagram

Lp orifice

Part #70384

The manufacturer no longer makes this part, and there's no substitute part

Wk.tbl/tuck Away Rotiss. 70886
#13

Cabinet assy diagram

Wk.tbl/tuck away rotiss.

Part #70886

The manufacturer no longer makes this part, and there's no substitute part

Tank Scale 88214
#53

Cabinet assy diagram

Tank scale

Part #88214

The manufacturer no longer makes this part, and there's no substitute part

Baffle Shield 70362
#21

Cabinet assy diagram

Baffle shield

Part #70362

The manufacturer no longer makes this part, and there's no substitute part
