Model # S1073--- Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1073- handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

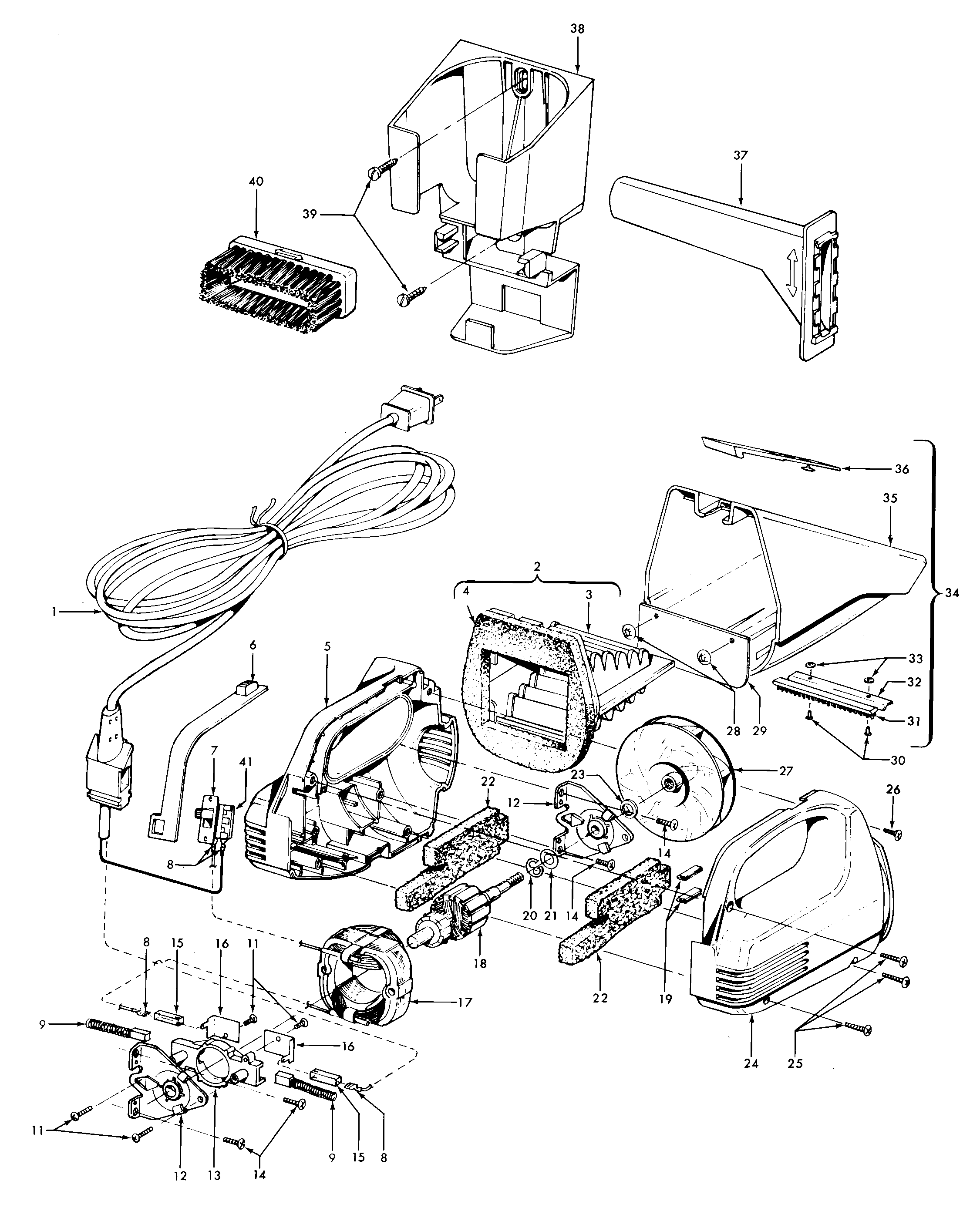

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Kenmore Terminal 27666702
#8A

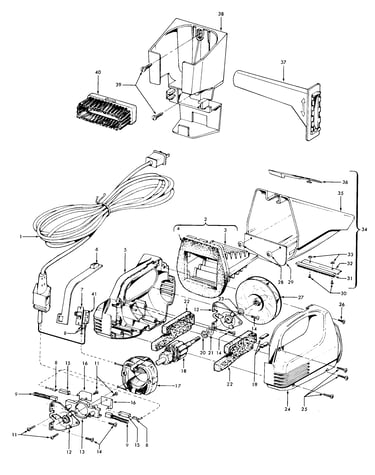

Motor, cleaningtools, motorhousing diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Shield 37258082
#41

Motor, cleaningtools, motorhousing diagram

Shield

Part #37258082

The manufacturer no longer makes this part, and there's no substitute part

Actuator 38452057
#6

Motor, cleaningtools, motorhousing diagram

Actuator

Part #38452057

The manufacturer no longer makes this part, and there's no substitute part

Screw 21447229
#14

Motor, cleaningtools, motorhousing diagram

Screw

Part #21447229

The manufacturer no longer makes this part, and there's no substitute part

Dust Cup Assembly 43645024
#34A

Motor, cleaningtools, motorhousing diagram

Dust cup assembly

Part #43645024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 48451001
#40

Motor, cleaningtools, motorhousing diagram

Vacuum dust brush

Part #48451001

The manufacturer no longer makes this part, and there's no substitute part

#35 Connecting Link- N/P
#35 connecting link-

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Washer 160030--
#23

Motor, cleaningtools, motorhousing diagram

Washer

Part #160030--

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 38617009
#37

Motor, cleaningtools, motorhousing diagram

Crevice tool

Part #38617009

The manufacturer no longer makes this part, and there's no substitute part

Screw Packet-s1073 40201053
#39

Motor, cleaningtools, motorhousing diagram

Screw packet-s1073

Part #40201053

The manufacturer no longer makes this part, and there's no substitute part
