Amana
Electric Cooktop

Model # AKE35E2-P1171903S Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AKE35E2-P1171903S electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Screw M0216703
#15

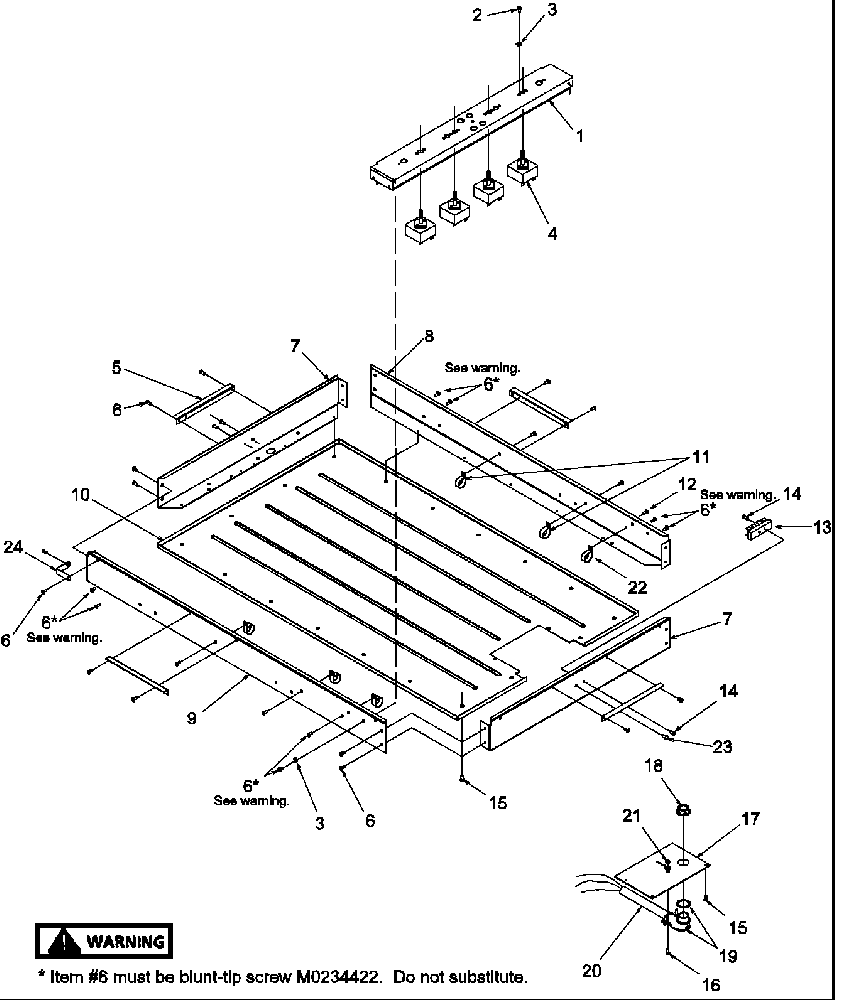

Heater box assembly diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0210816
Screw

Part #M0210816

Replaced by #12991101

?
Manufacturer substitution
This part replaces M0210816. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Nut M0282005
#13

Fuse box assembly--canadian units only (ake30e2/p1171901s) (ake30w2/p1155702s) (ake30w2/p1171902s) (ake35e2/p1155703s) (ake35e2/p1171903s) (ake35w2/p1155704s) (ake35w2/p1171904s) (cake30e2/p1155705s) (cake30e2/p1171905s) (cake30w2/p1155706s) (cake30w2/p11 diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0202321
#2

Heater box assembly diagram

Screw

Part #M0202321

Replaced by #W11214483

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0234029
#14

Heater box assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Use And Care Manual C2731449

#NI

All parts diagram

Use and care manual

Part #C2731449

The manufacturer no longer makes this part, and there's no substitute part

Insulator Pod M0325501
#16

Fuse box assembly--canadian units only (ake30e2/p1171901s) (ake30w2/p1155702s) (ake30w2/p1171902s) (ake35e2/p1155703s) (ake35e2/p1171903s) (ake35w2/p1155704s) (ake35w2/p1171904s) (cake30e2/p1155705s) (cake30e2/p1171905s) (cake30w2/p1155706s) (cake30w2/p11 diagram

Insulator pod

Part #M0325501

The manufacturer no longer makes this part, and there's no substitute part

Reflector, Small 10397401
#14

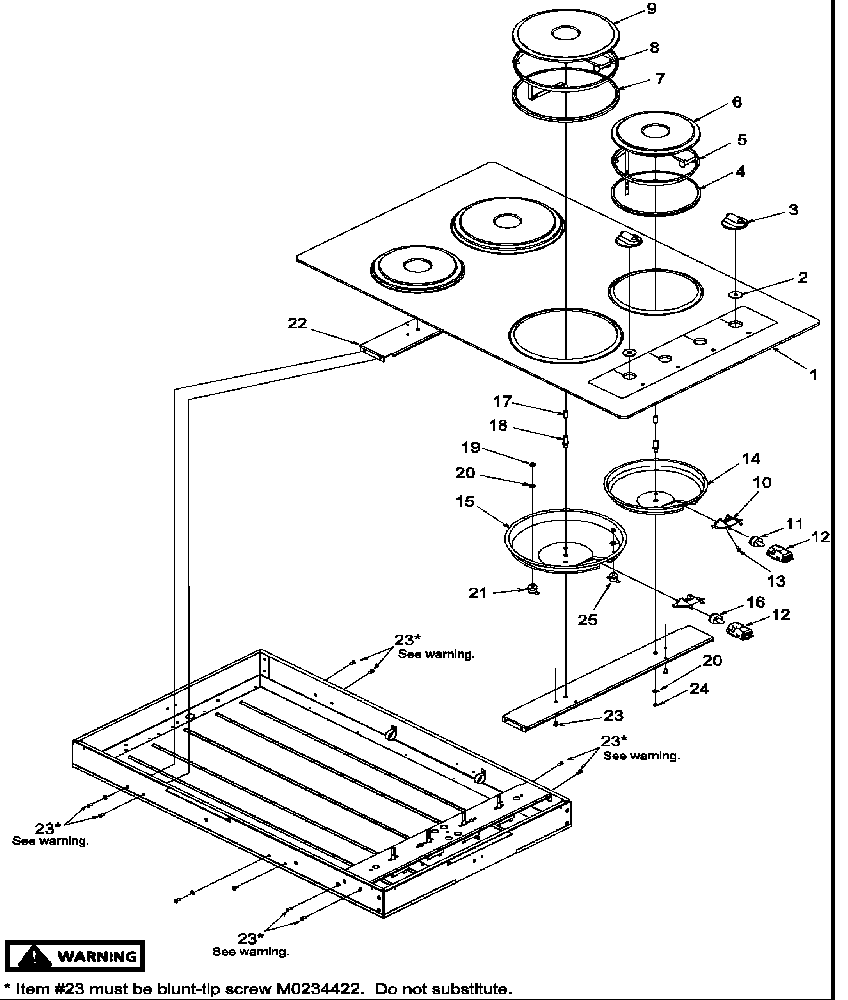

Cooktop assembly diagram

Reflector, small

Part #10397401

The manufacturer no longer makes this part, and there's no substitute part

Control Mounting Bracket 10397804
#1

Heater box assembly diagram

Control mounting bracket

Part #10397804

The manufacturer no longer makes this part, and there's no substitute part

Conduit Bushing M0327601
Conduit bushing

Part #M0327601

The manufacturer no longer makes this part, and there's no substitute part
