Model # SMI7056US/08 (FD 7208) Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SMI7056US-08-FD-7208 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

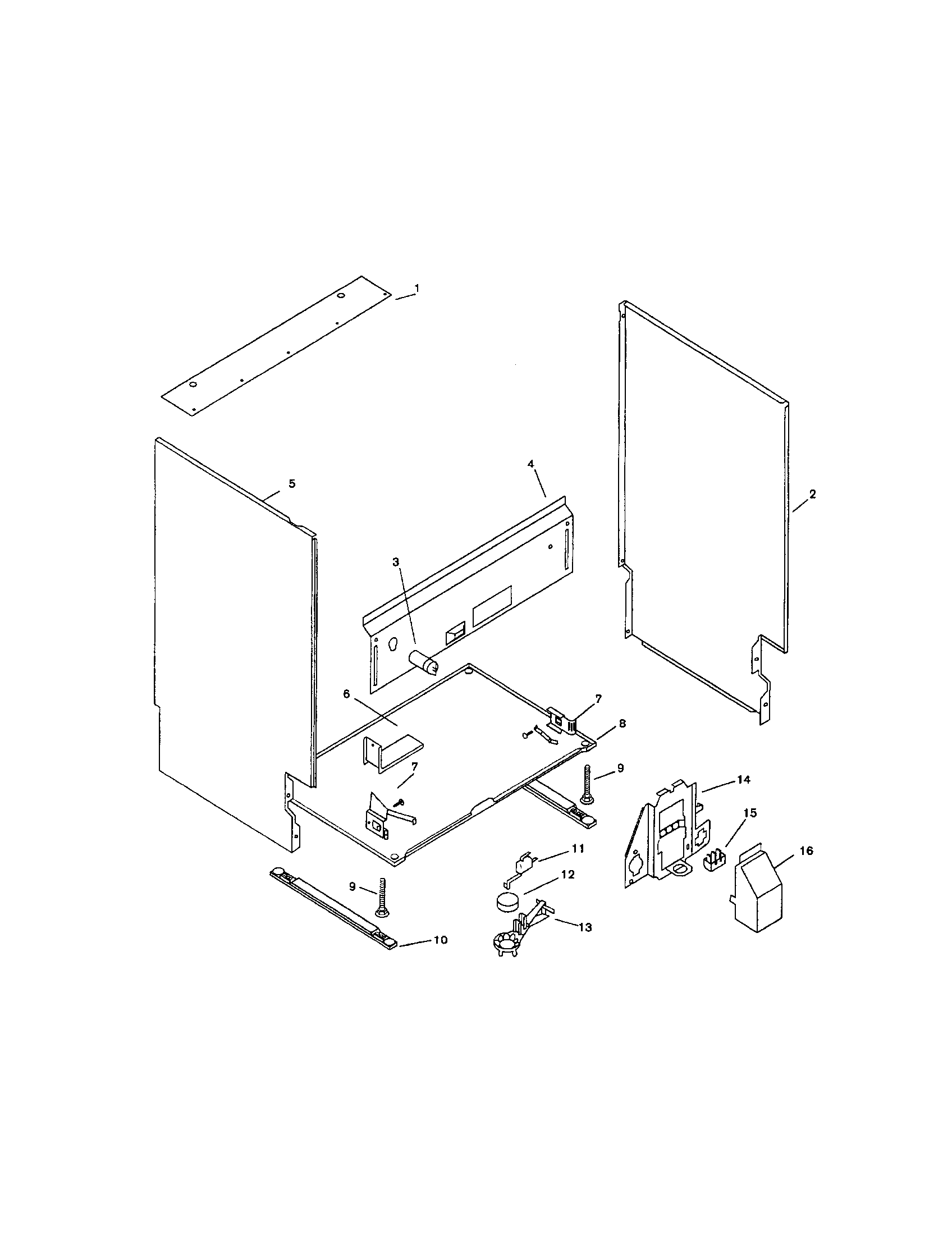

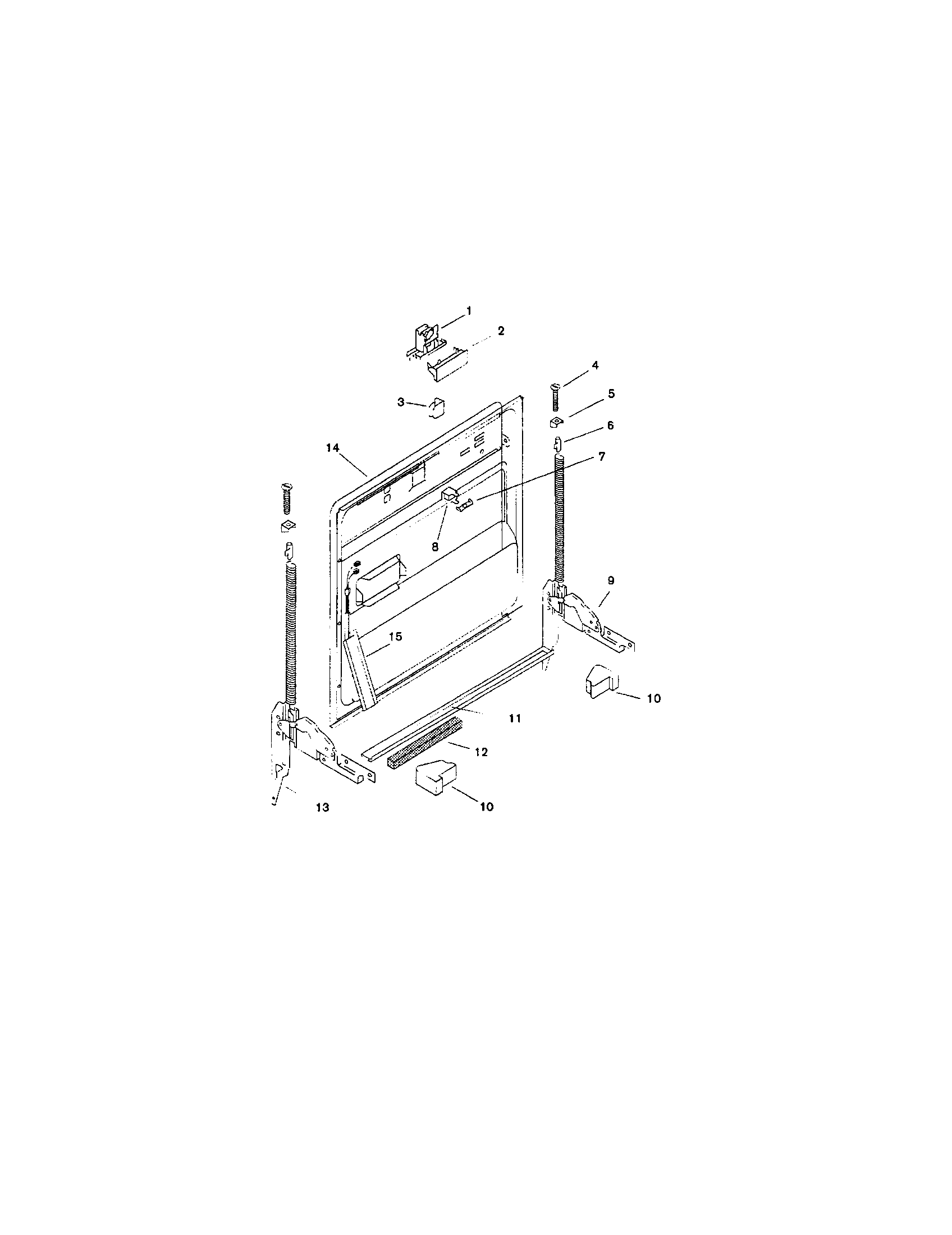

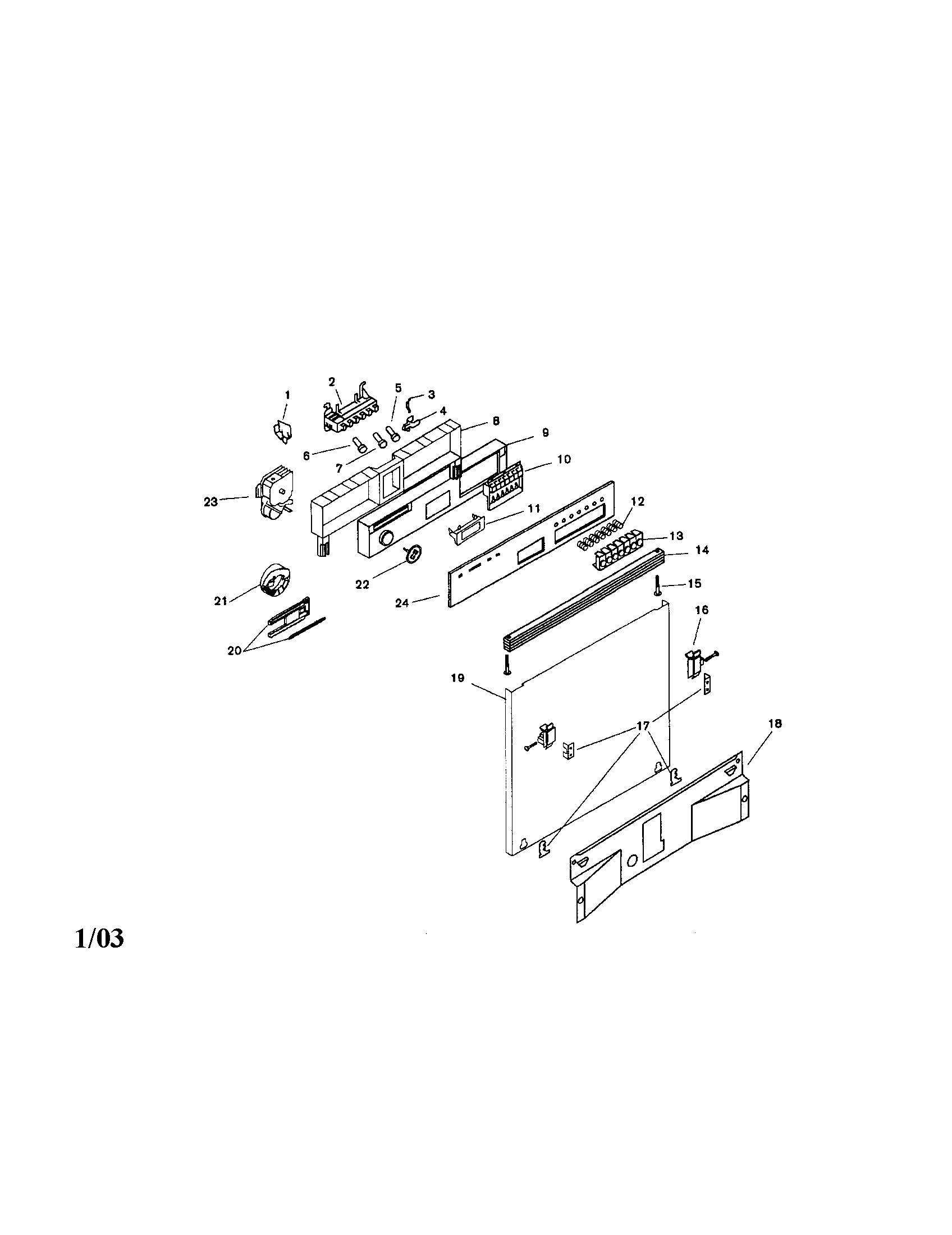

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Drain Hose 284311
#19

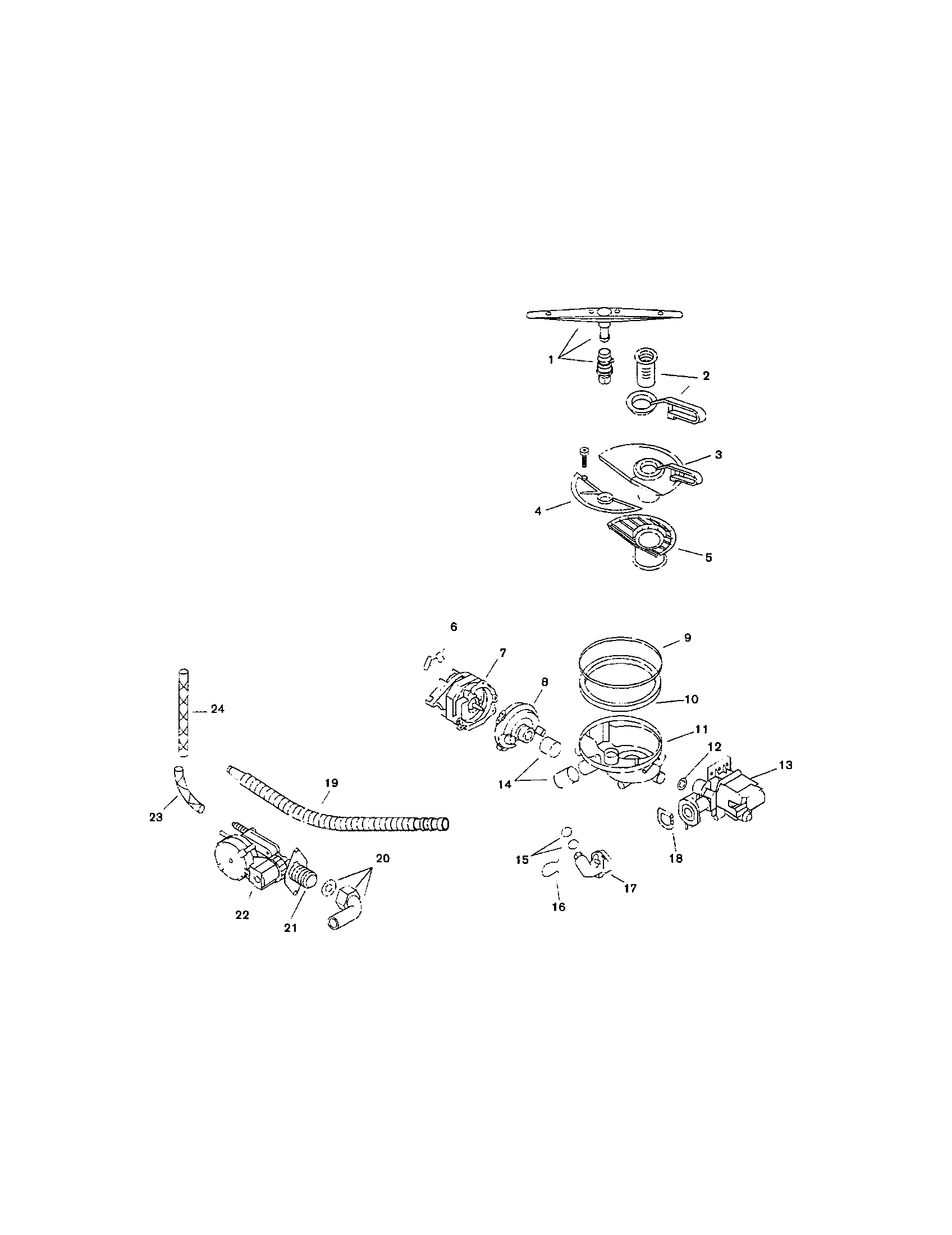

Component assemblies diagram

Drain hose

Part #284311

Replaced by #00298564

?
Manufacturer substitution
This part replaces 284311. Substitute parts can look different from the original.
$31.39 |
16% OFF Phone Price : $37.39
In Stock
Hose 086373
#25

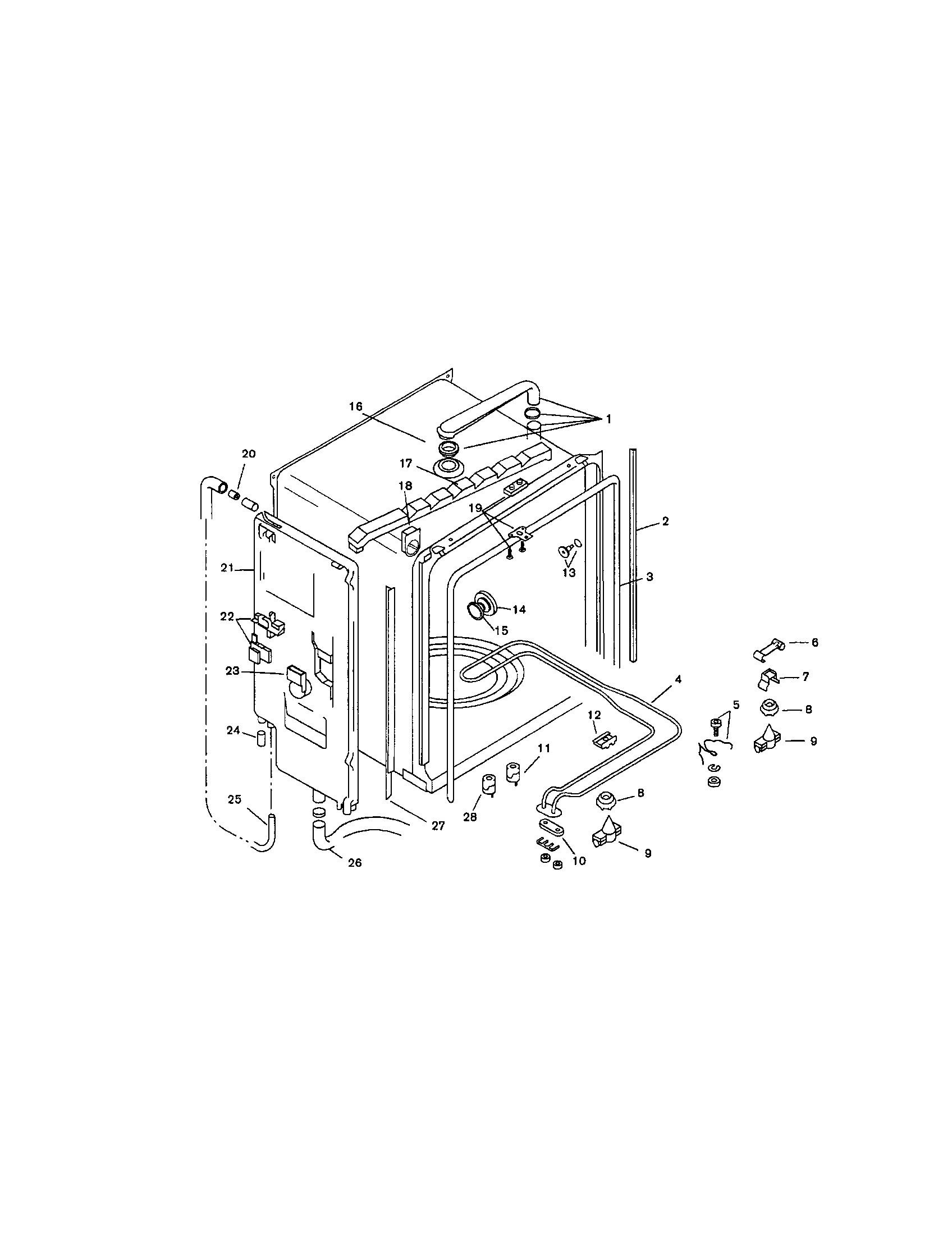

Inner liner diagram

Hose

Part #086373

Replaced by #00496099

?
Manufacturer substitution
This part replaces 086373. Substitute parts can look different from the original.
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Basket Lid 093045
#16

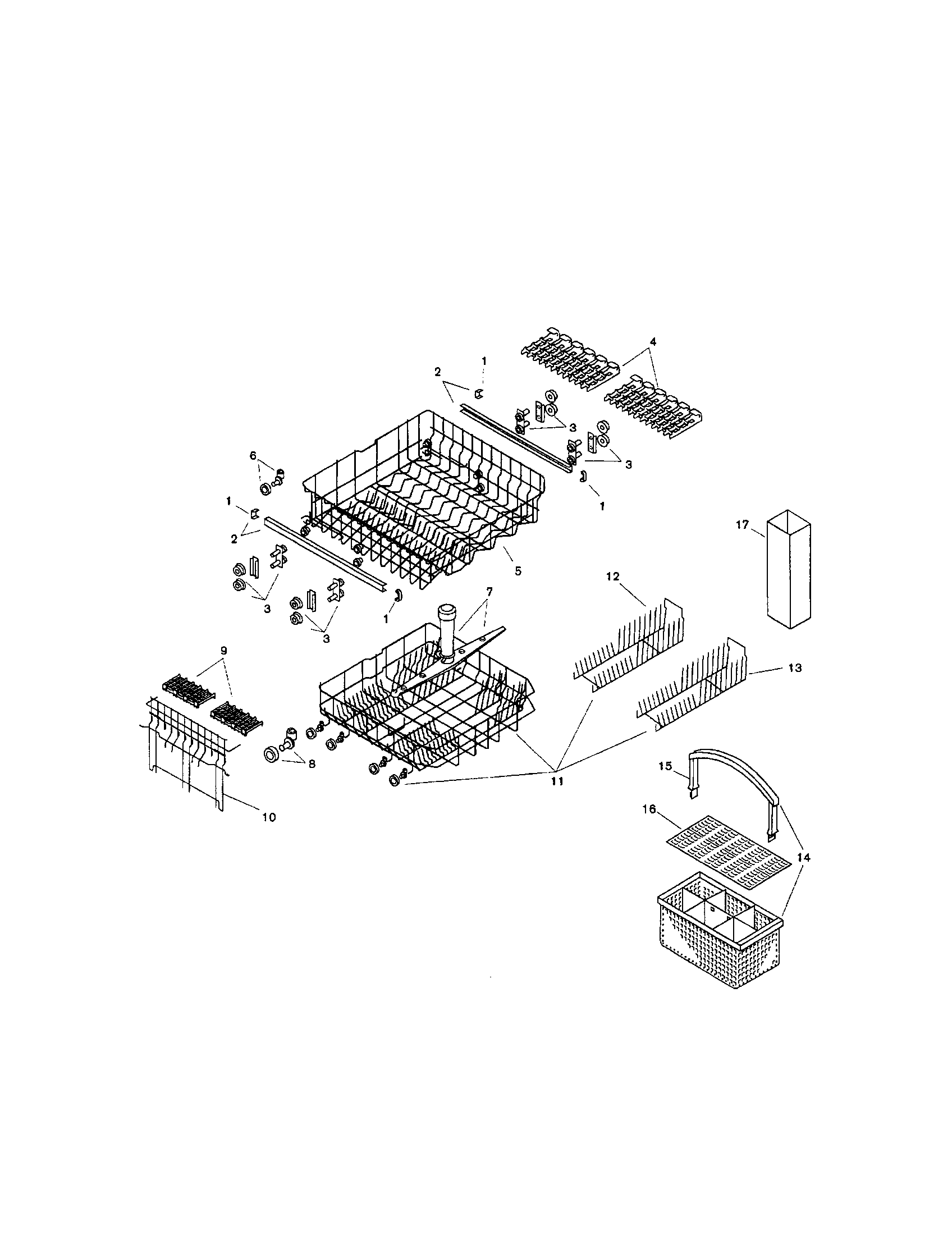

Racks diagram

Basket lid

Part #093045

Replaced by #00093046

?
Manufacturer substitution
This part replaces 093045. Substitute parts can look different from the original.
$51.49 |
10% OFF Phone Price : $57.49
In Stock
Basket 093046
#15

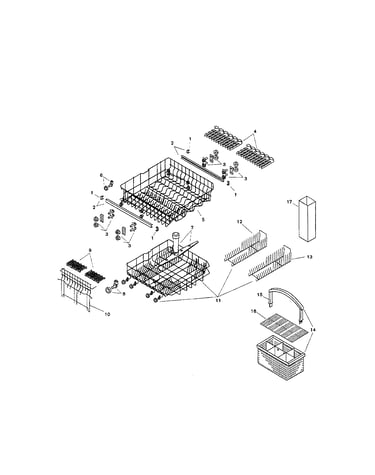

Racks diagram

Basket

Part #093046

$43.82
In Stock
Water Solenoid 092188
#22

Component assemblies diagram

Water solenoid

Part #092188

$176.50
In Stock
Dishwasher Dishrack Roller Kit, Lower 066320
#8

Racks diagram

Dishwasher dishrack roller kit, lower

Part #066320

$59.00
In Stock
Latch 066318
#1

Racks diagram

Latch

Part #066318

Replaced by #00066318

?
Manufacturer substitution
This part replaces 066318. Substitute parts can look different from the original.
This item is not returnable
$6.06
In Stock
Cap Assembly 066323
#12

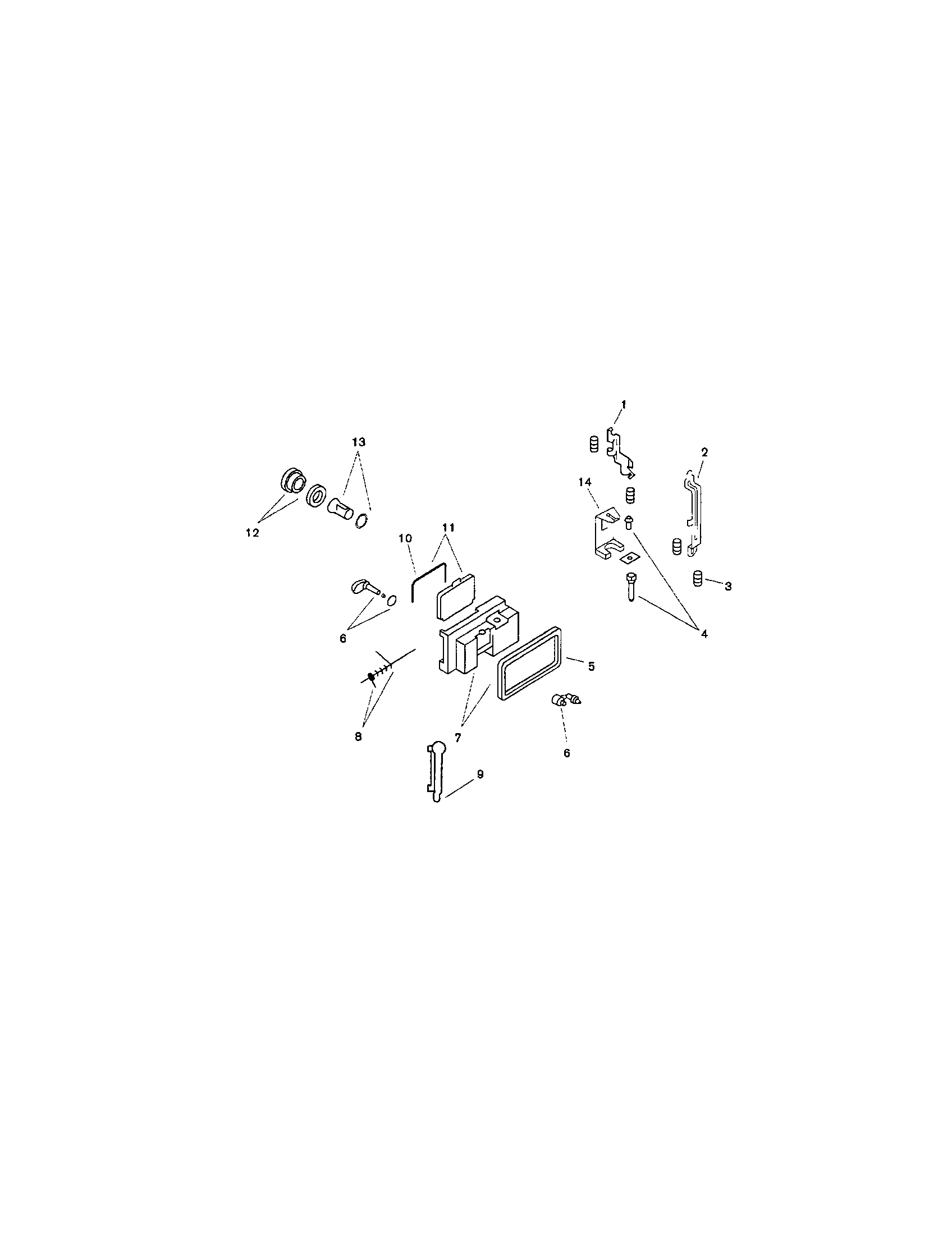

Dispenser diagram

Cap assembly

Part #066323

Replaced by #00066323

?
Manufacturer substitution
This part replaces 066323. Substitute parts can look different from the original.
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Dishwasher Rack 207799
#5

Racks diagram

Dishwasher rack

Part #207799

Replaced by #00207799

?
Manufacturer substitution
This part replaces 207799. Substitute parts can look different from the original.
$216.16
In Stock
Roller Set 066321
#6

Racks diagram

Roller set

Part #066321

Replaced by #00424717

?
Manufacturer substitution
This part replaces 066321. Substitute parts can look different from the original.
$26.64
In Stock
