Model # 23351848591 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 23351848591 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Range Hood Light Lens 99110437
#5

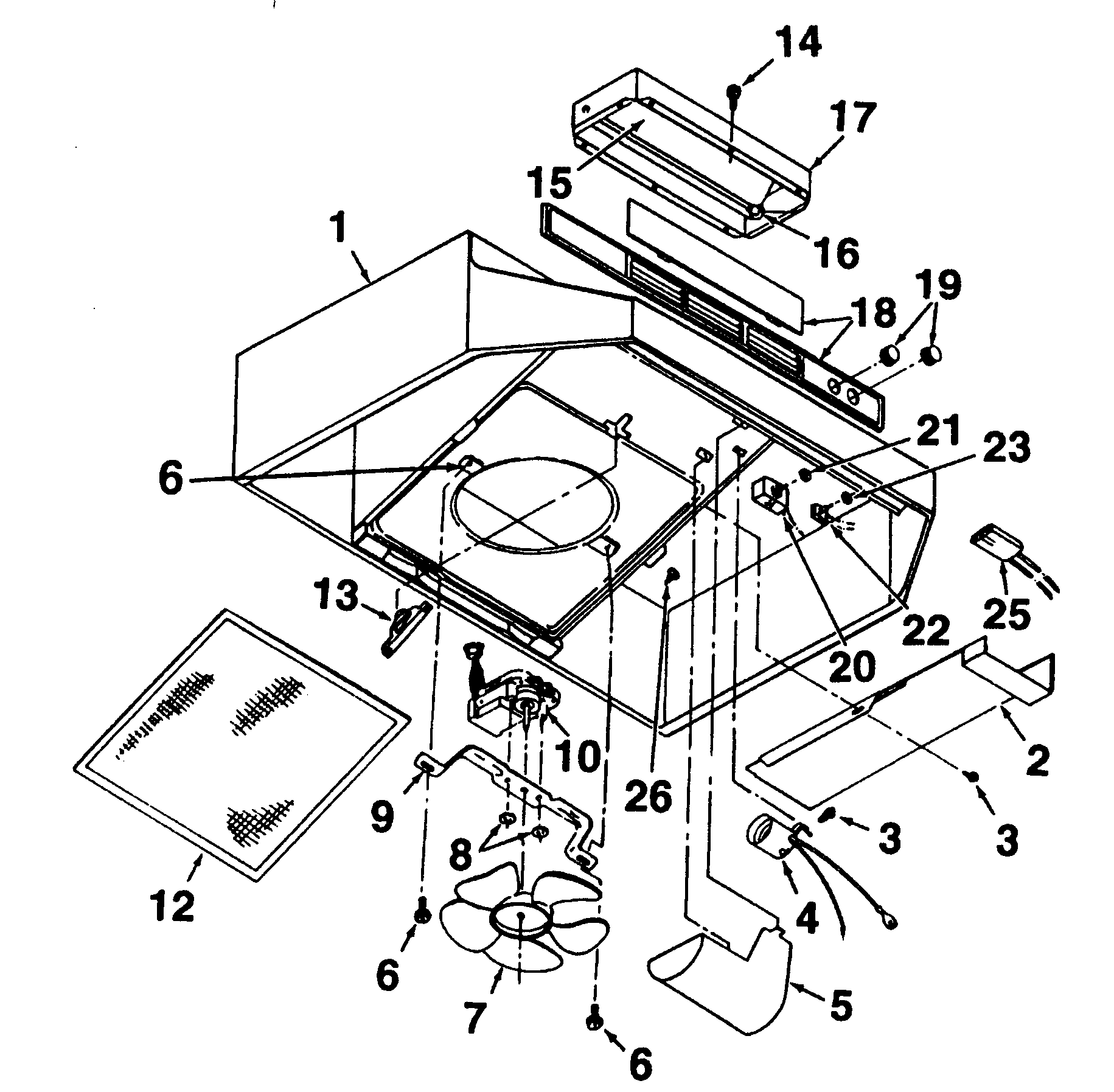

Hood assy diagram

Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Vent Damper 97005544
#17

Hood assy diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Blade 99020272
#7

Hood assy diagram

Range hood fan blade

Part #99020272

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Switch 97016438
#22

Hood assy diagram

Range hood light switch

Part #97016438

$20.29 |
23% OFF Phone Price : $26.29
In Stock
Range Hood Fan Motor 97011224
#10

Hood assy diagram

Range hood fan motor

Part #97011224

Replaced by #S97011224

?
Manufacturer substitution
This part replaces 97011224. Substitute parts can look different from the original.
$84.74 |
7% OFF Phone Price : $90.74
In Stock
Backsplash, 30-in 58120
#NI

Hood assy diagram

Backsplash, 30-in

Part #58120

$28.99
In Stock
Pal Nut 99260422
#21

Hood assy diagram

Pal nut

Part #99260422

Replaced by #S99260419

?
Manufacturer substitution
This part replaces 99260422. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Range Hood Vent Damper Cover 98005221
#15

Hood assy diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Range Hood Nameplate (black) 97014275
#18

Hood assy diagram

Range hood nameplate (black)

Part #97014275

Replaced by #S97018378

?
Manufacturer substitution
This part replaces 97014275. Substitute parts can look different from the original.
This item is not returnable
$6.54
In Stock
Screw Kit (gray) 97011217
#6

Hood assy diagram

Screw kit (gray)

Part #97011217

Replaced by #S97011217

?
Manufacturer substitution
This part replaces 97011217. Substitute parts can look different from the original.
This item is not returnable
$4.69
In Stock
