Model # U4361--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4361- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Kenmore Vacuum Wheel Retainer 32182001
#51

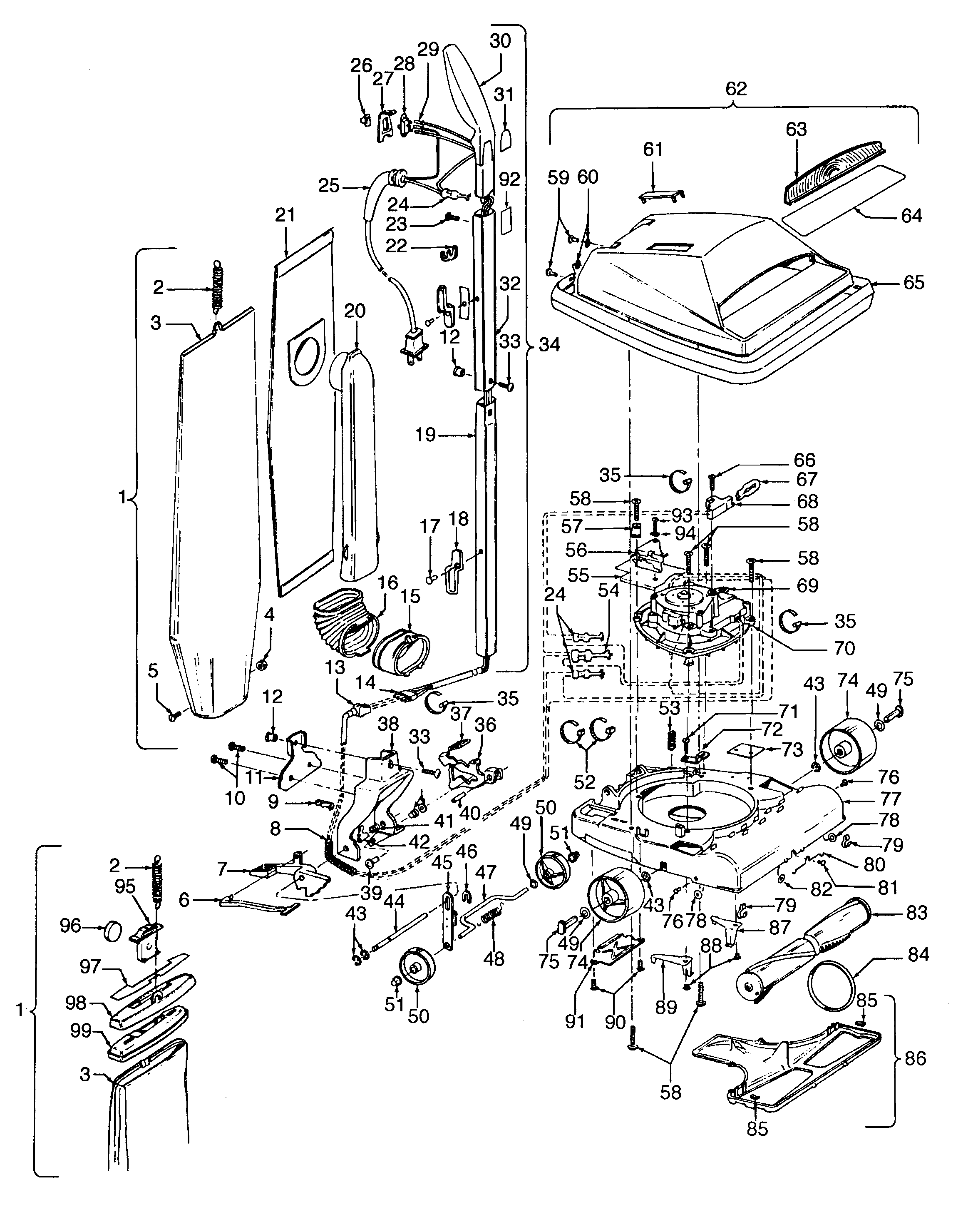

Handle, mainbody, outerbag, hood diagram

Kenmore vacuum wheel retainer

Part #32182001

The manufacturer no longer makes this part, and there's no substitute part

Motor Case 42195003
#5A

Motor assembly diagram

Motor case

Part #42195003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Brush Cap 36315003
#7

Motor assembly diagram

Kenmore brush cap

Part #36315003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Follower 43263005
#45

Handle, mainbody, outerbag, hood diagram

Kenmore follower

Part #43263005

The manufacturer no longer makes this part, and there's no substitute part

Bellows 38673001
#16

Handle, mainbody, outerbag, hood diagram

Bellows

Part #38673001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Self Stick Support Pad 34111001
#85

Handle, mainbody, outerbag, hood diagram

Kenmore self stick support pad

Part #34111001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hndl Cnt Lvr 38456050
#36

Handle, mainbody, outerbag, hood diagram

Kenmore hndl cnt lvr

Part #38456050

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Pvt Pn Rtnr 34665007
#72

Handle, mainbody, outerbag, hood diagram

Kenmore pvt pn rtnr

Part #34665007

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#7A

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part
