Model # 220334600 Official Kenmore 30-gallon power miser v gas water heater

Here are the diagrams and repair parts for Official Kenmore 220334600 30-gallon power miser v gas water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for220334600 30-Gallon Power Miser V Gas Water Heater

  • Door AS-29501
    #11

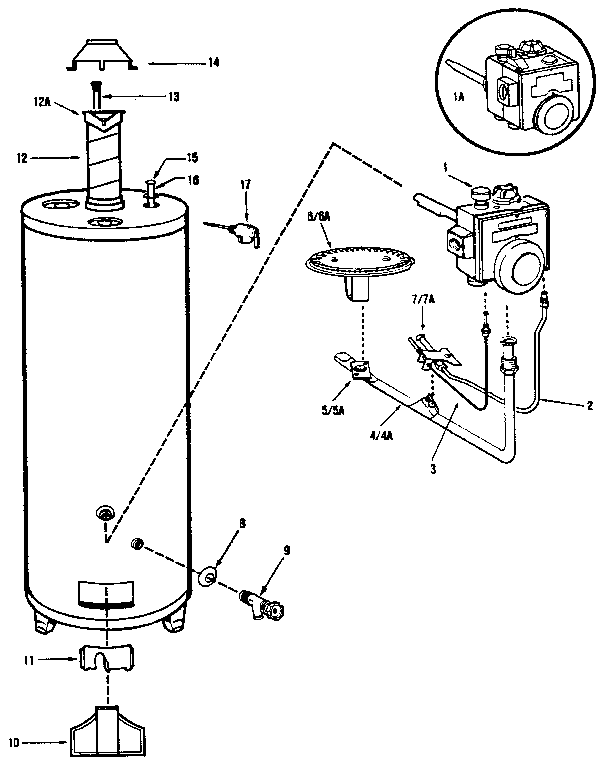

    Replacement parts diagram

    Door

    Part #AS-29501

    Replaced by #AS29501-3

    ?
    Manufacturer substitution
    This part replaces AS-29501. Substitute parts can look different from the original.
    This item is not returnable
    $28.00
    18% OFF Phone Price : $34.00
    In Stock
  • Thermocouple AP-6379-Q
    #3

    Replacement parts diagram

    Thermocouple

    Part #AP-6379-Q

    Replaced by #H06E-36

    ?
    Manufacturer substitution
    This part replaces AP-6379-Q. Substitute parts can look different from the original.
    $14.91
    12% OFF Phone Price : $16.91
    Back Order
  • Dip Tube AS-21064-Q
    #15

    Replacement parts diagram

    Dip tube

    Part #AS-21064-Q

    Replaced by #SP11248R

    ?
    Manufacturer substitution
    This part replaces AS-21064-Q. Substitute parts can look different from the original.
    In Stock
  • Drain Valve AP-10424-B
    #9

    Replacement parts diagram

    Drain valve

    Part #AP-10424-B

    Replaced by #100108605

    ?
    Manufacturer substitution
    This part replaces AP-10424-B. Substitute parts can look different from the original.
    In Stock
  • Thermostat AP-8456-B
    #1

    Replacement parts diagram

    Thermostat

    Part #AP-8456-B

    Replaced by #SP12258B

    ?
    Manufacturer substitution
    This part replaces AP-8456-B. Substitute parts can look different from the original.
    In Stock
  • Hanger AS-20622-C
    #12A

    Replacement parts diagram

    Hanger

    Part #AS-20622-C

    The manufacturer no longer makes this part, and there's no substitute part

  • Anode Rod AS-35693A-C
    #13

    Replacement parts diagram

    Anode rod

    Part #AS-35693A-C

    The manufacturer no longer makes this part, and there's no substitute part

  • Draft Hood AS-36352(CB)
    #14

    Replacement parts diagram

    Draft hood

    Part #AS-36352(CB)

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner AP-8980-C
    #7

    Replacement parts diagram

    Burner

    Part #AP-8980-C

    The manufacturer no longer makes this part, and there's no substitute part

  • Shroud Valve AP-2480
    #8

    Replacement parts diagram

    Shroud valve

    Part #AP-2480

    The manufacturer no longer makes this part, and there's no substitute part
