Model # WOD51EC7HW20 Official Whirlpool electric double wall oven

Here are the diagrams and repair parts for Official Whirlpool WOD51EC7HW20 electric double wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

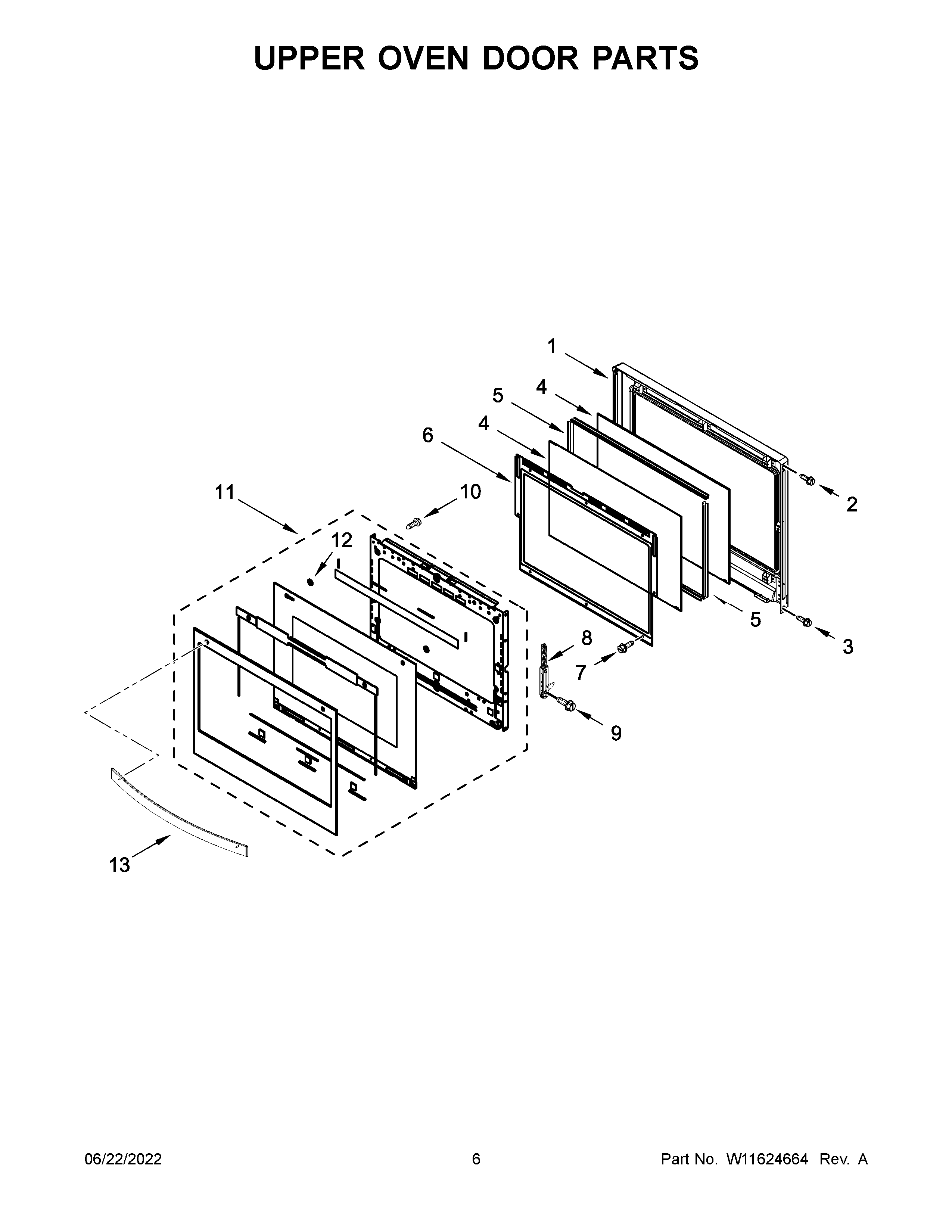

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Range High-limit Thermostat 4449751
#18

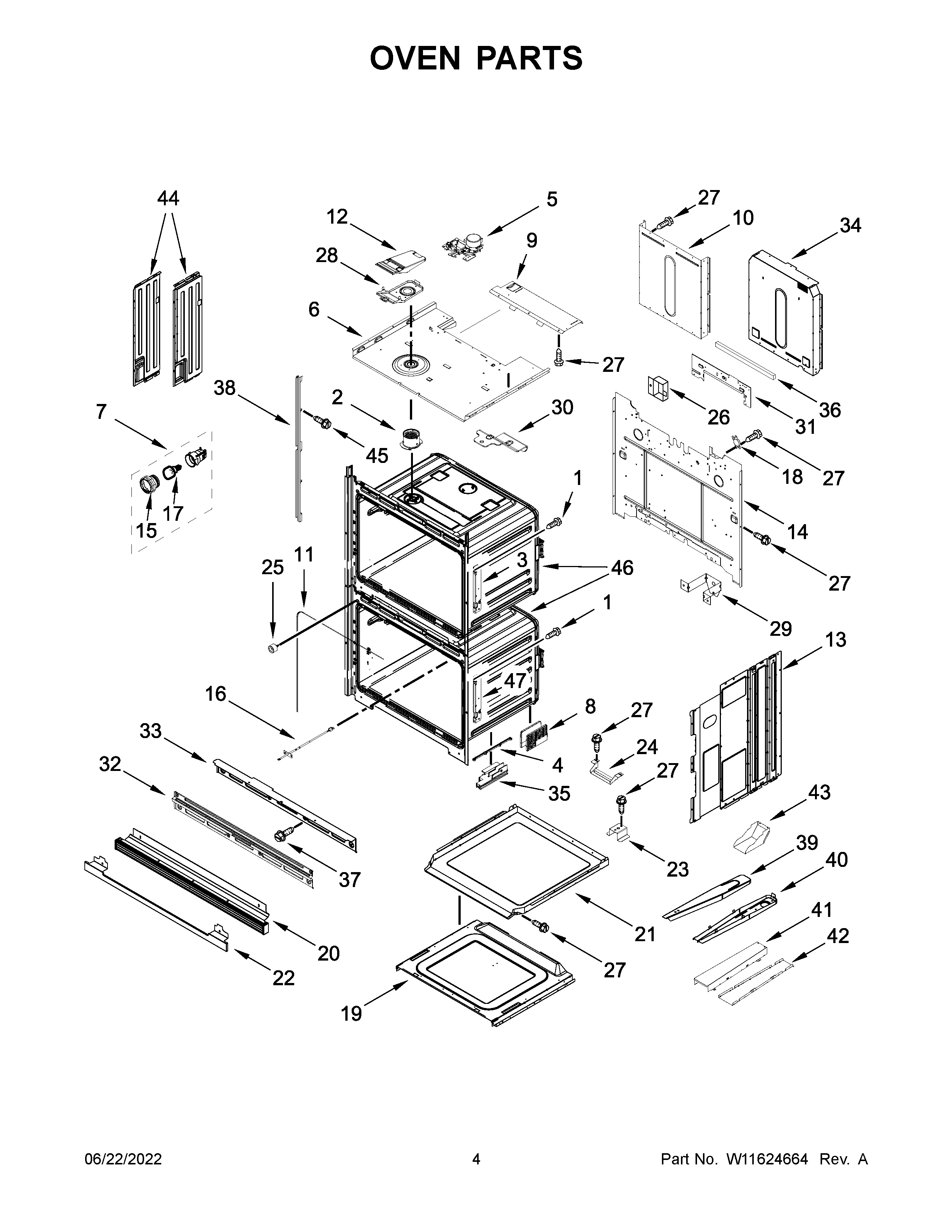

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Bake Element W11292248
#7

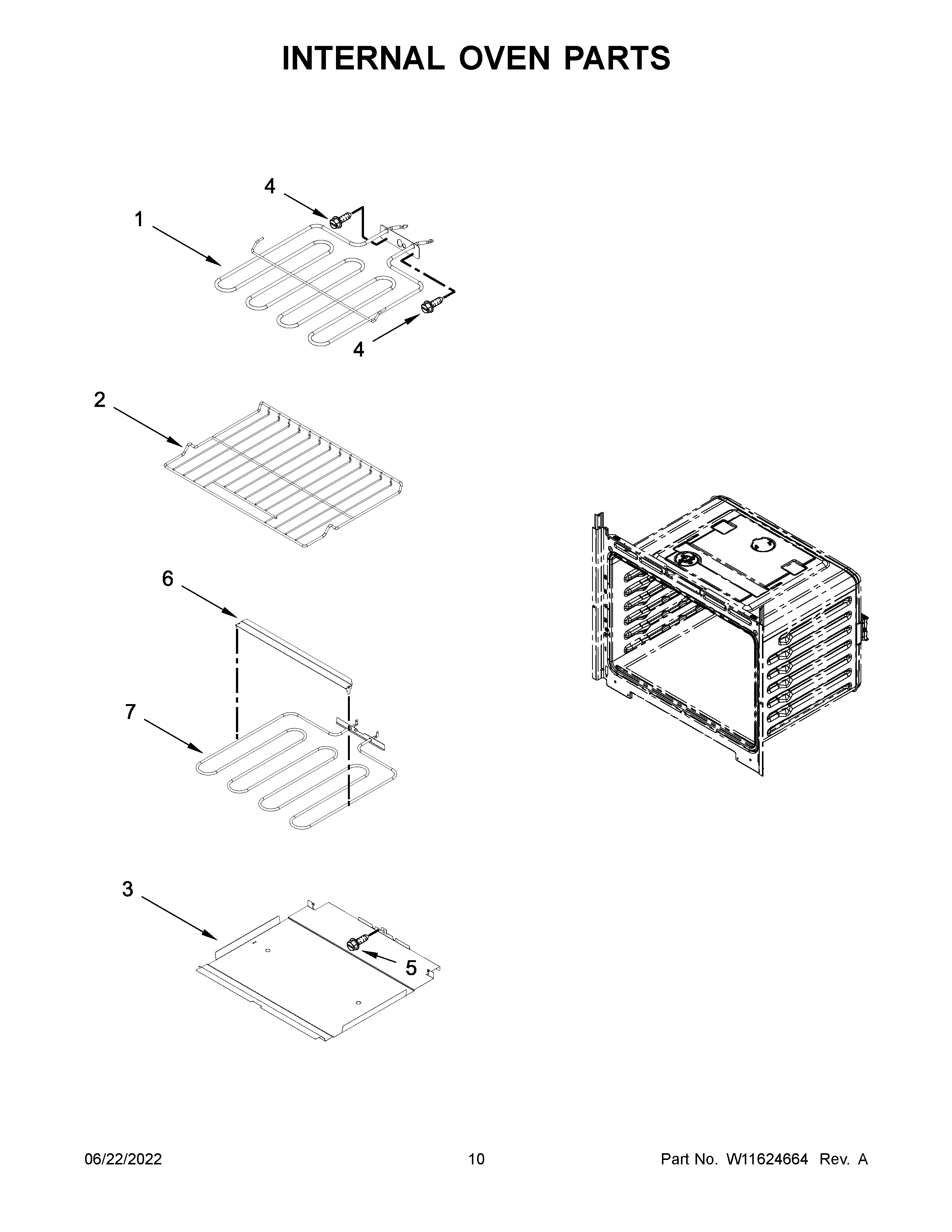

Internal oven parts diagram

Range bake element

Part #W11292248

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W11292248. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Adhesive 482338
#NI

Optional parts (not included) diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Blower W11397930
#5

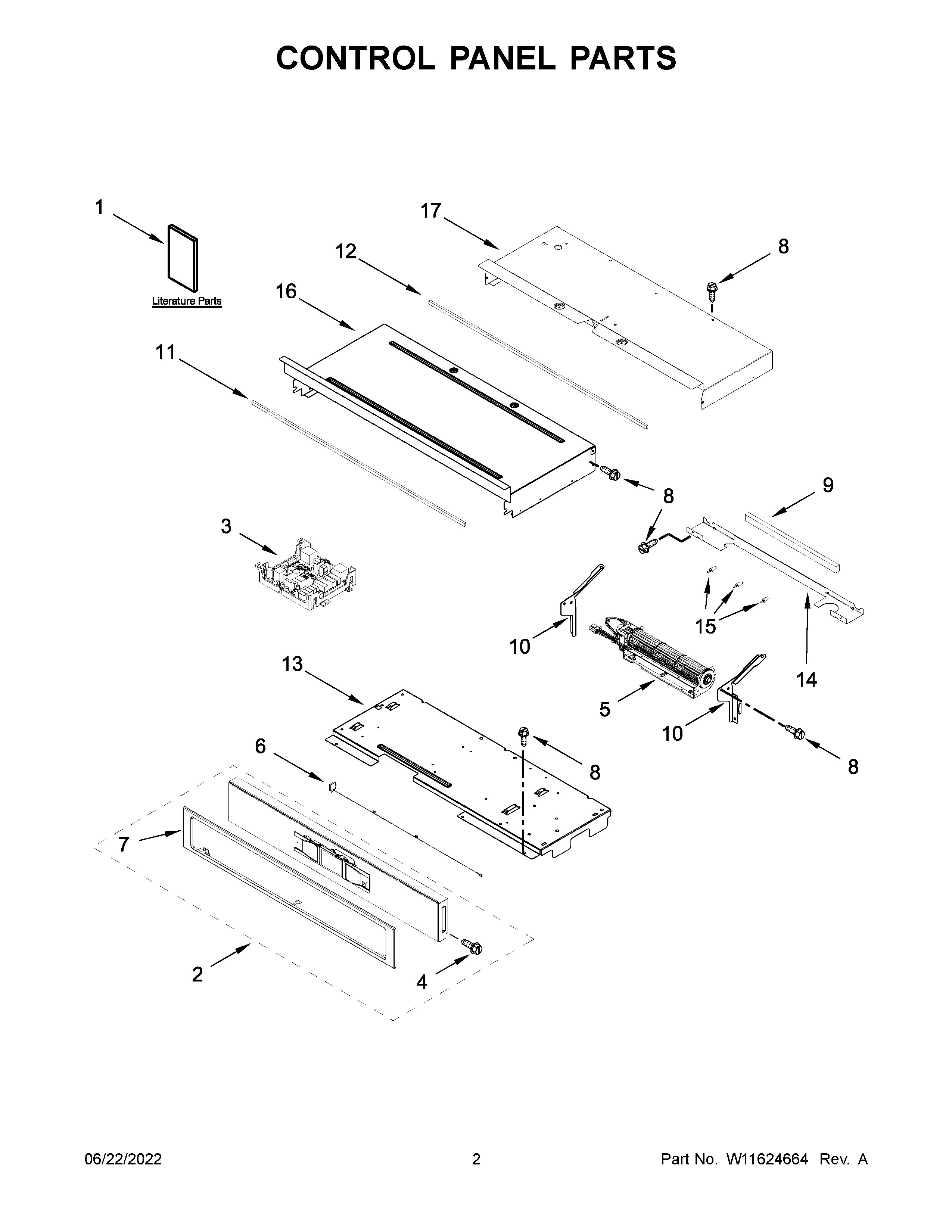

Control panel parts diagram

Blower

Part #W11397930

Replaced by #W11598119

?
Manufacturer substitution
This part replaces W11397930. Substitute parts can look different from the original.
$123.79 |
9% OFF Phone Price : $135.79
In Stock
Badge, Whirl W10884775
#13

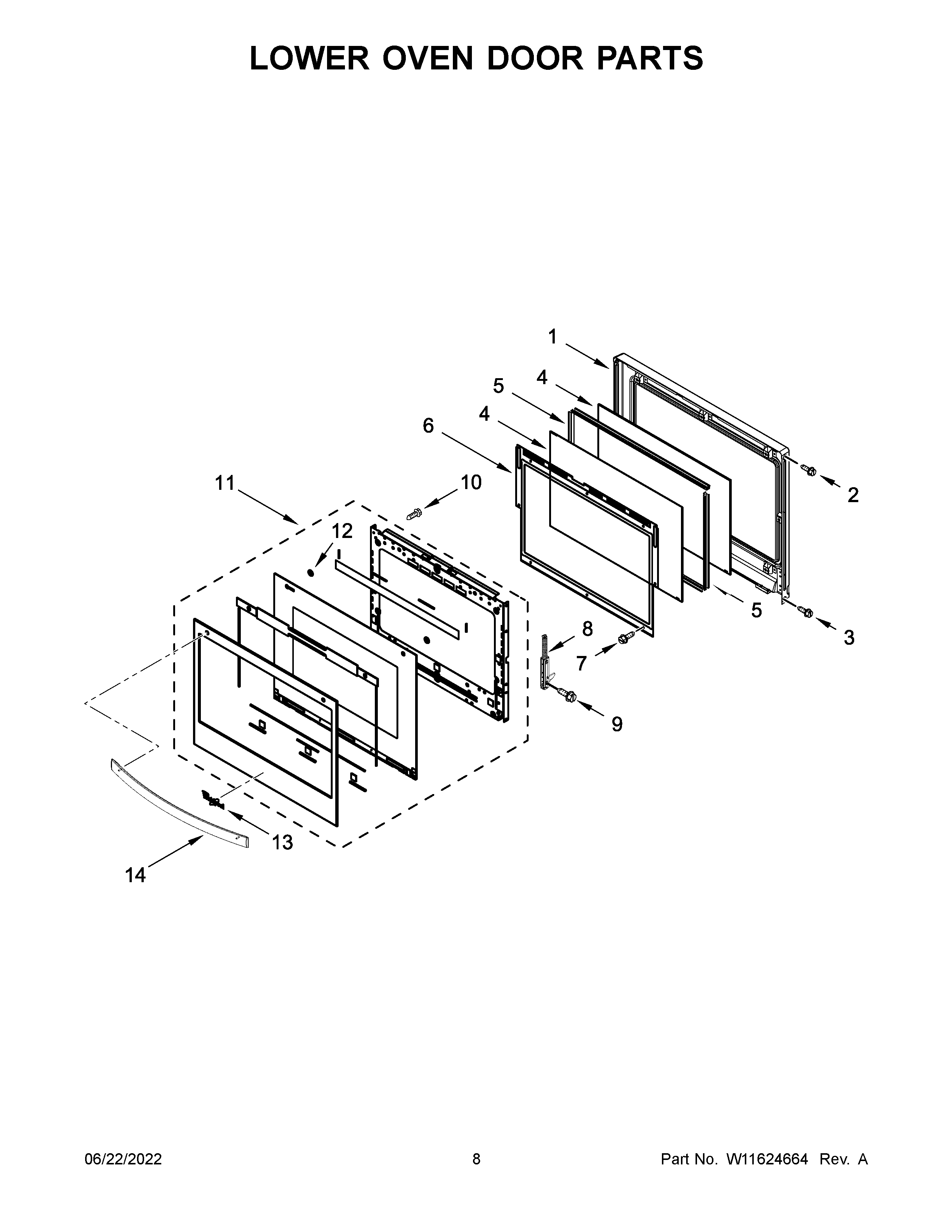

Lower oven door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
Copernicus N W11253188
#3A

Control panel parts diagram

Copernicus n

Part #W11253188

Replaced by #W11261169

?
Manufacturer substitution
This part replaces W11253188. Substitute parts can look different from the original.
$212.14 |
5% OFF Phone Price : $224.14
In Stock
Probe, Sensor W11346074
#16

Oven parts diagram

Probe, sensor

Part #W11346074

Replaced by #W11598120

?
Manufacturer substitution
This part replaces W11346074. Substitute parts can look different from the original.
$21.99 |
21% OFF Phone Price : $27.99
In Stock
8-18 X .375 W11249635
#37

Oven parts diagram

8-18 x .375

Part #W11249635

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces W11249635. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
