Model # R3951SR Official Roadmaster bicycle

Here are the diagrams and repair parts for Official Roadmaster R3951SR bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

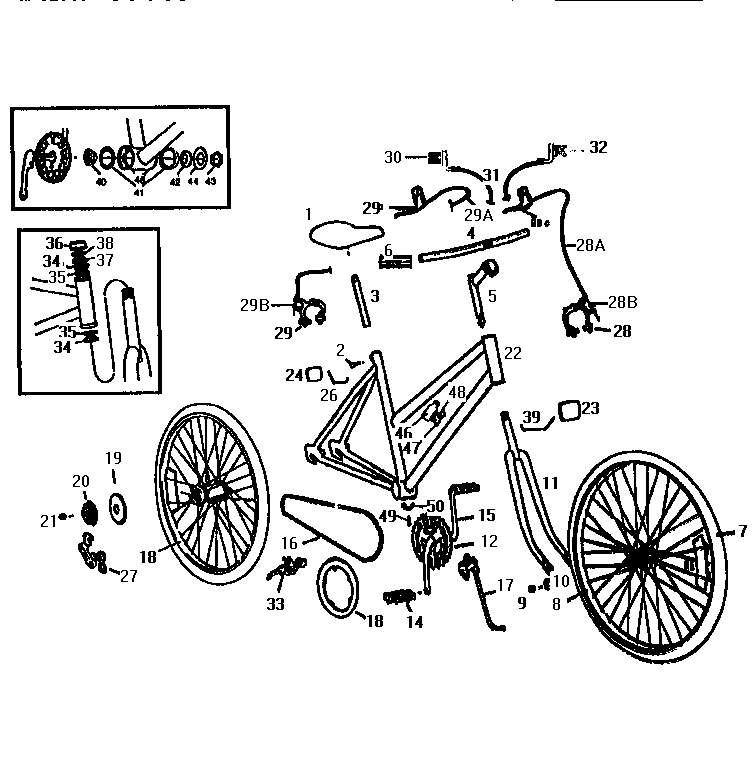

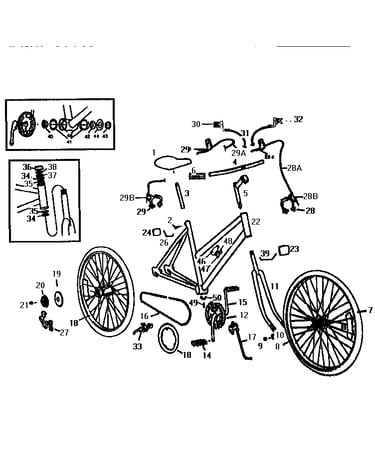

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Wheel 082627D
#18

Unit parts diagram

Wheel

Part #082627D

The manufacturer no longer makes this part, and there's no substitute part

Bracket HH5110D
#39

Unit parts diagram

Bracket

Part #HH5110D

The manufacturer no longer makes this part, and there's no substitute part

Bracket HH5112D
#26

Unit parts diagram

Bracket

Part #HH5112D

The manufacturer no longer makes this part, and there's no substitute part

Handlebar PP0300D
#4

Unit parts diagram

Handlebar

Part #PP0300D

The manufacturer no longer makes this part, and there's no substitute part

Cluster PP7486D
#20

Unit parts diagram

Cluster

Part #PP7486D

The manufacturer no longer makes this part, and there's no substitute part

Pedal,1/2" KK2840D
#14

Unit parts diagram

Pedal,1/2"

Part #KK2840D

The manufacturer no longer makes this part, and there's no substitute part

Unv Derail PP8718D
#31

Unit parts diagram

Unv derail

Part #PP8718D

The manufacturer no longer makes this part, and there's no substitute part

Crank,1pc, HH5551D
#15

Unit parts diagram

Crank,1pc,

Part #HH5551D

The manufacturer no longer makes this part, and there's no substitute part

Rflctr Set MM2011D
#24

Unit parts diagram

Rflctr set

Part #MM2011D

The manufacturer no longer makes this part, and there's no substitute part

Kickstand PP0050D
#17

Unit parts diagram

Kickstand

Part #PP0050D

The manufacturer no longer makes this part, and there's no substitute part
