Model # WR87X0293 Official GE refrigerator
Here are the diagrams and repair parts for Official GE WR87X0293 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WR87X0293 Refrigerators
#729

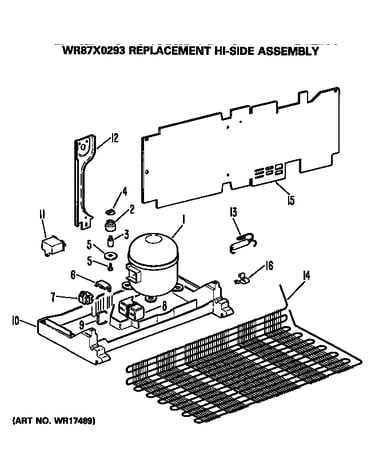

All parts diagram
Refrigerator capacitor
Part #WR62X50
Replaced by #WR55X24065
?
Manufacturer substitution
This part replaces WR62X50. Substitute parts can look different from the original.
$50.06 |
11% OFF Phone Price : $56.06
In Stock
#737
All parts diagram
Refrigerator compressor mounting post
Part #WR1X1779
$7.57 |
12% OFF Phone Price : $8.57
In Stock
#750
All parts diagram
Refrigerator screw
Part #WR1X1786
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#740
All parts diagram
Dryer assembly
Part #WR86X86
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
#725
All parts diagram
Compressor
Part #WR87X247
Replaced by #WR87X10082
?
Manufacturer substitution
This part replaces WR87X247. Substitute parts can look different from the original.
$663.46 |
$12.00 OFF Phone Price : $675.46
In Stock
#736
All parts diagram
Washer
Part #WR1X1780
The manufacturer no longer makes this part, and there's no substitute part
#737
All parts diagram
Grommet
Part #WR2X7238
The manufacturer no longer makes this part, and there's no substitute part
#734
All parts diagram
Release cover
Part #WR2X7050
The manufacturer no longer makes this part, and there's no substitute part
#733
All parts diagram
Refrigerator relay
Part #WR7X195
The manufacturer no longer makes this part, and there's no substitute part
#734
All parts diagram
Refrigerator cover clip
Part #WR2X7049
The manufacturer no longer makes this part, and there's no substitute part
