Model # 580320440 Official Craftsman 1350-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580320440 1350-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Screw 24419
#20

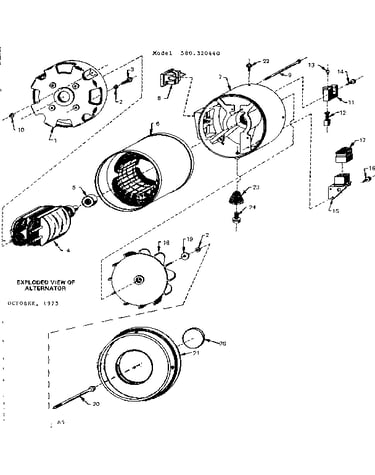

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Bearing 24049
#5

Stator assembly diagram

Bearing

Part #24049

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22283
#6

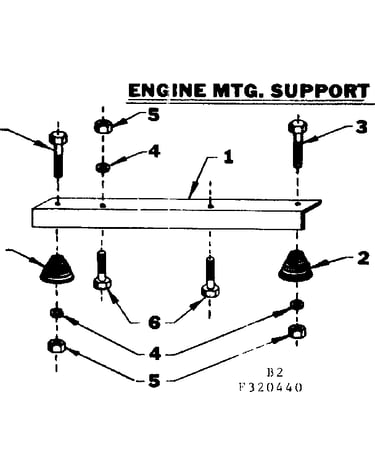

Engine mtg. support diagram

Cap screw

Part #22283

The manufacturer no longer makes this part, and there's no substitute part

Screw 24490
#24

Stator assembly diagram

Screw

Part #24490

The manufacturer no longer makes this part, and there's no substitute part

Support 24509
#1

Engine mtg. support diagram

Support

Part #24509

The manufacturer no longer makes this part, and there's no substitute part

Taptite Scrw 24413
#22

Stator assembly diagram

Taptite scrw

Part #24413

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37803
#21

Stator assembly diagram

Fan cover

Part #37803

The manufacturer no longer makes this part, and there's no substitute part

Handle 24045-A
#2

Handle diagram

Handle

Part #24045-A

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22336
#3

Stator assembly diagram

Cap screw

Part #22336

The manufacturer no longer makes this part, and there's no substitute part

Adapter Housing 24381
#1

Stator assembly diagram

Adapter housing

Part #24381

The manufacturer no longer makes this part, and there's no substitute part
