Model # S3535 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3535 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Detent Spring 35276008
#9

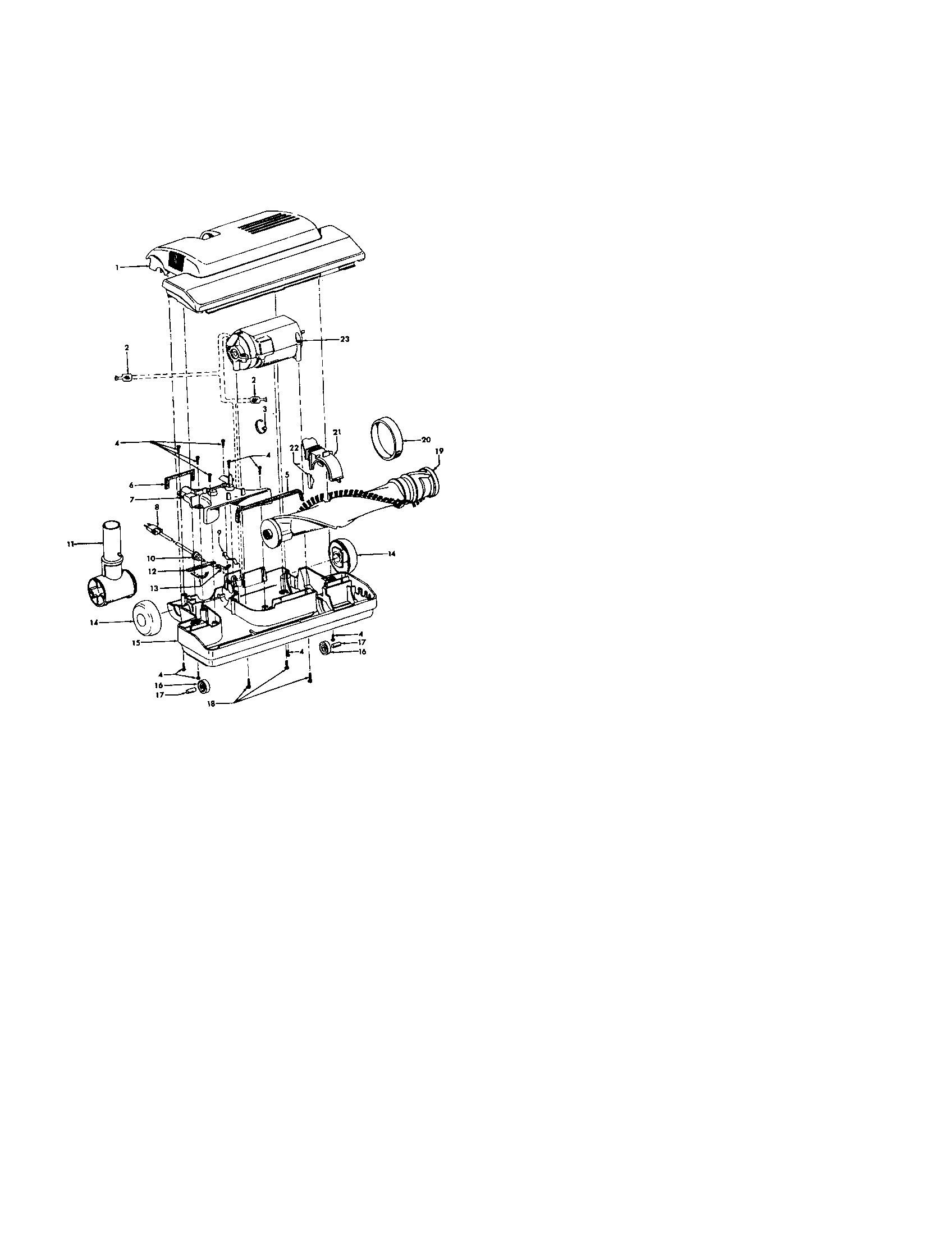

Power nozzle diagram

Detent spring

Part #35276008

The manufacturer no longer makes this part, and there's no substitute part

Base Plate 42246115
#15

Power nozzle diagram

Base plate

Part #42246115

The manufacturer no longer makes this part, and there's no substitute part

Seal-12 Pk 34122014
#13

Power nozzle diagram

Seal-12 pk

Part #34122014

The manufacturer no longer makes this part, and there's no substitute part

Torsion Spring 38351009
#27

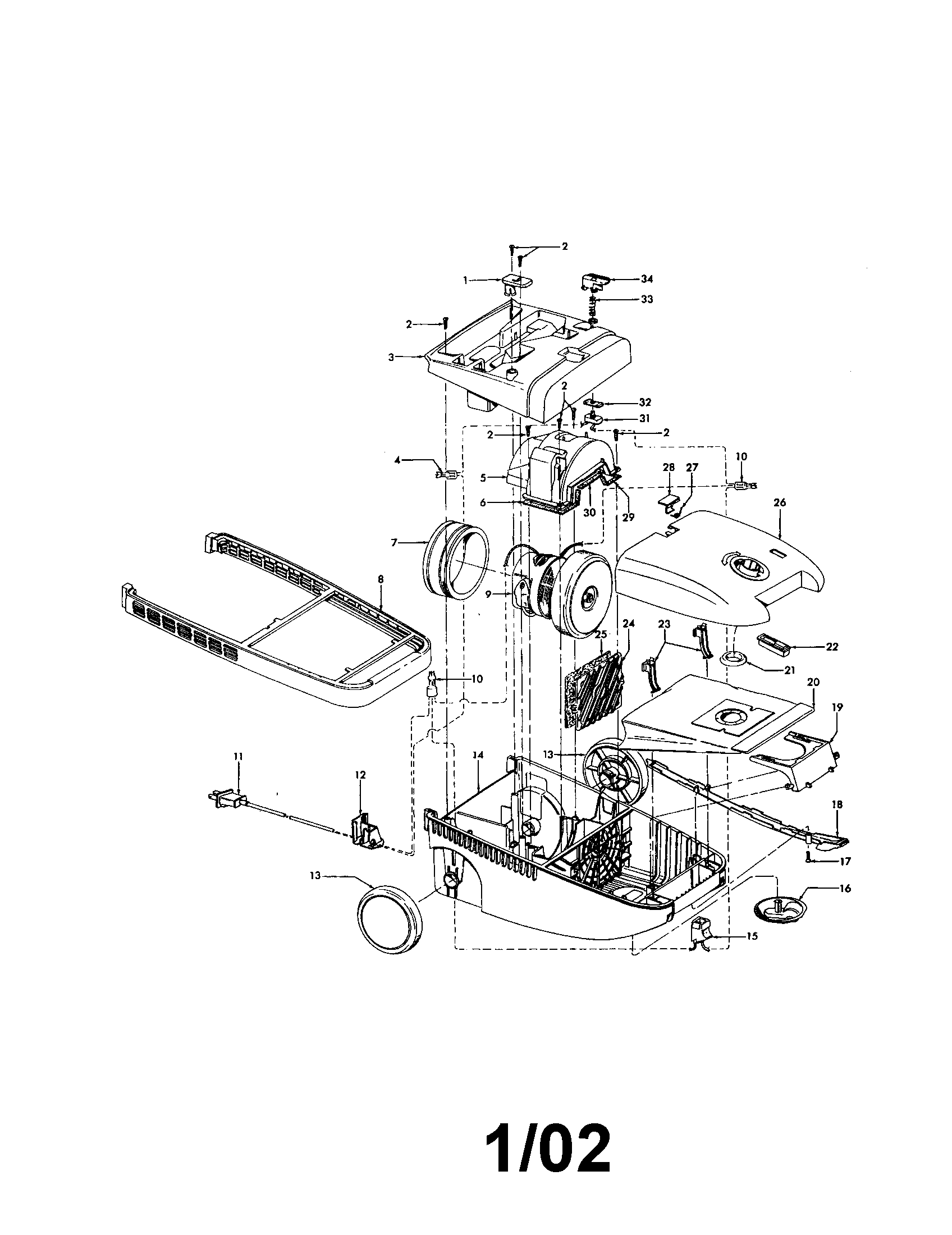

Main body/wheels diagram

Torsion spring

Part #38351009

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Wheel 32761001
#16

Power nozzle diagram

Kenmore vacuum wheel

Part #32761001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Left 36423017
#7

Agitator 48414079 diagram

Vacuum beater bar housing end cap, left

Part #36423017

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 27618508
#2A

Power nozzle diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#2

Main body/wheels diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 46326082
#15A

Main body/wheels diagram

Receptacle

Part #46326082

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447003
#4

Power nozzle diagram

Regina vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part
