Model # E23BC69SPS0 Official Electrolux refrigerator

Here are the diagrams and repair parts for Official Electrolux E23BC69SPS0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

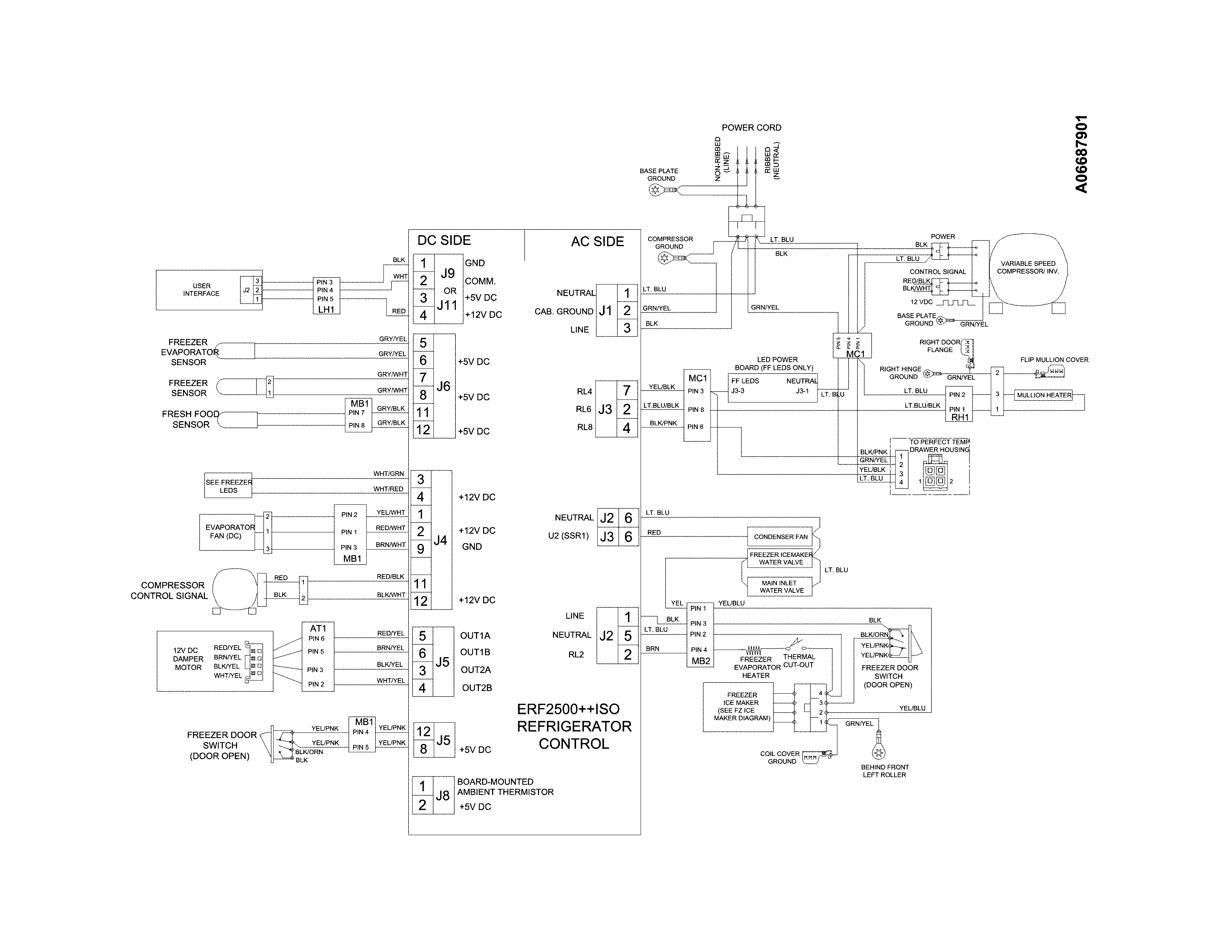

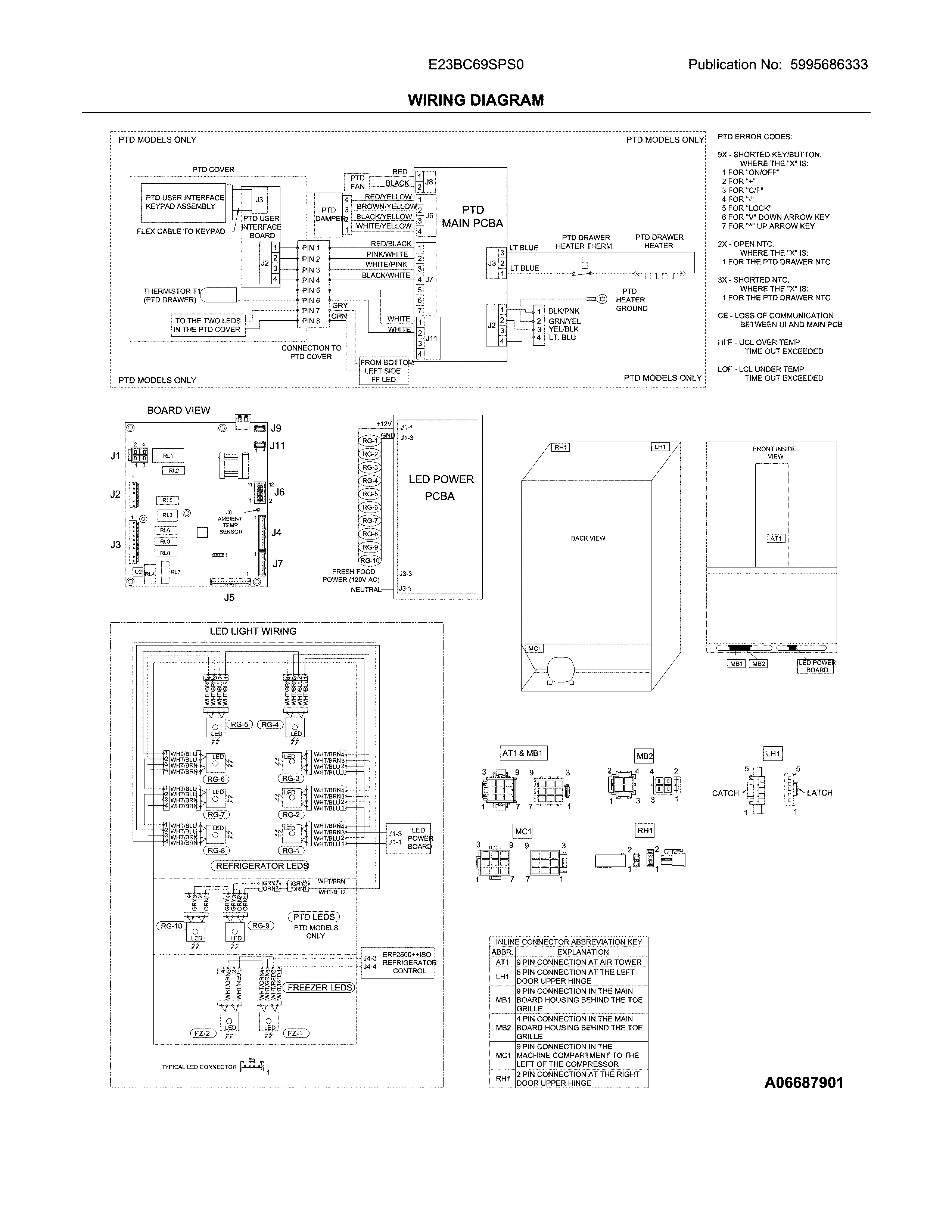

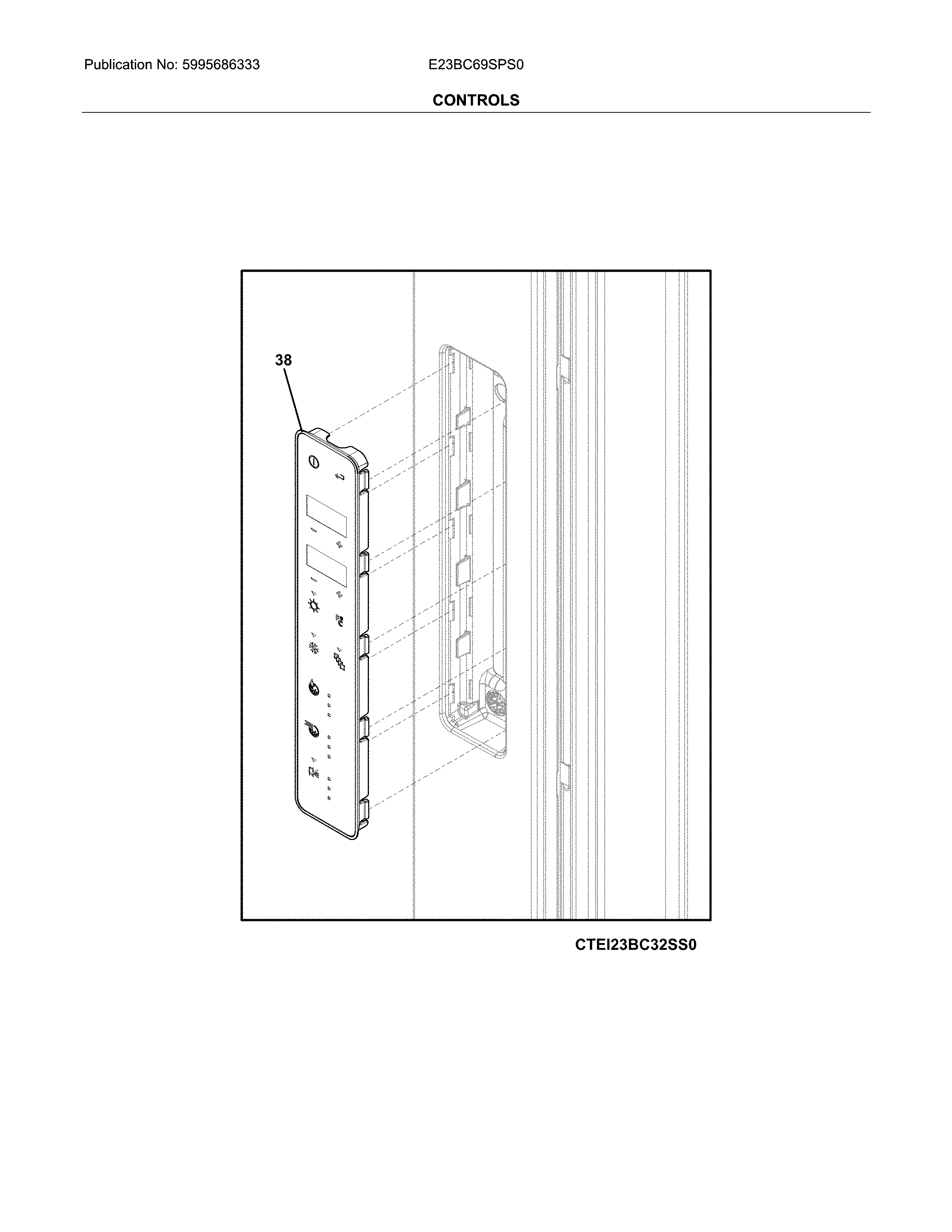

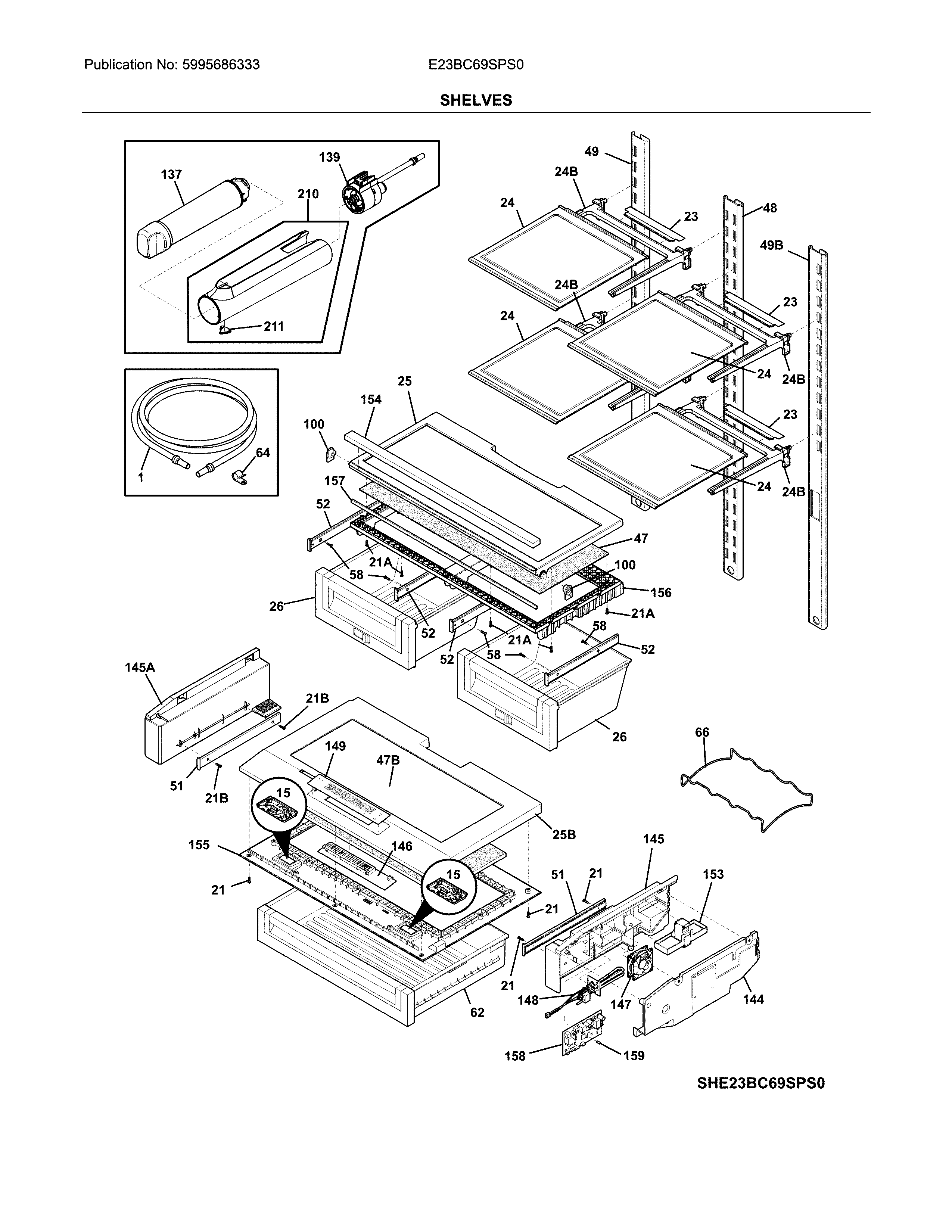

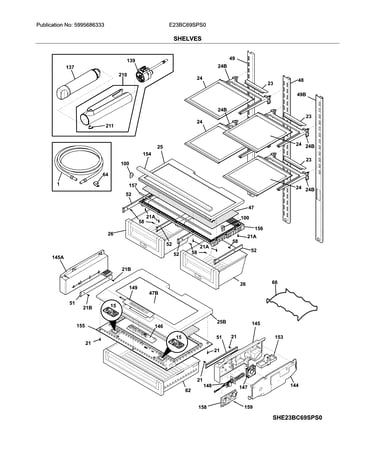

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Refrigerator Door Air Filter 242047801
#95

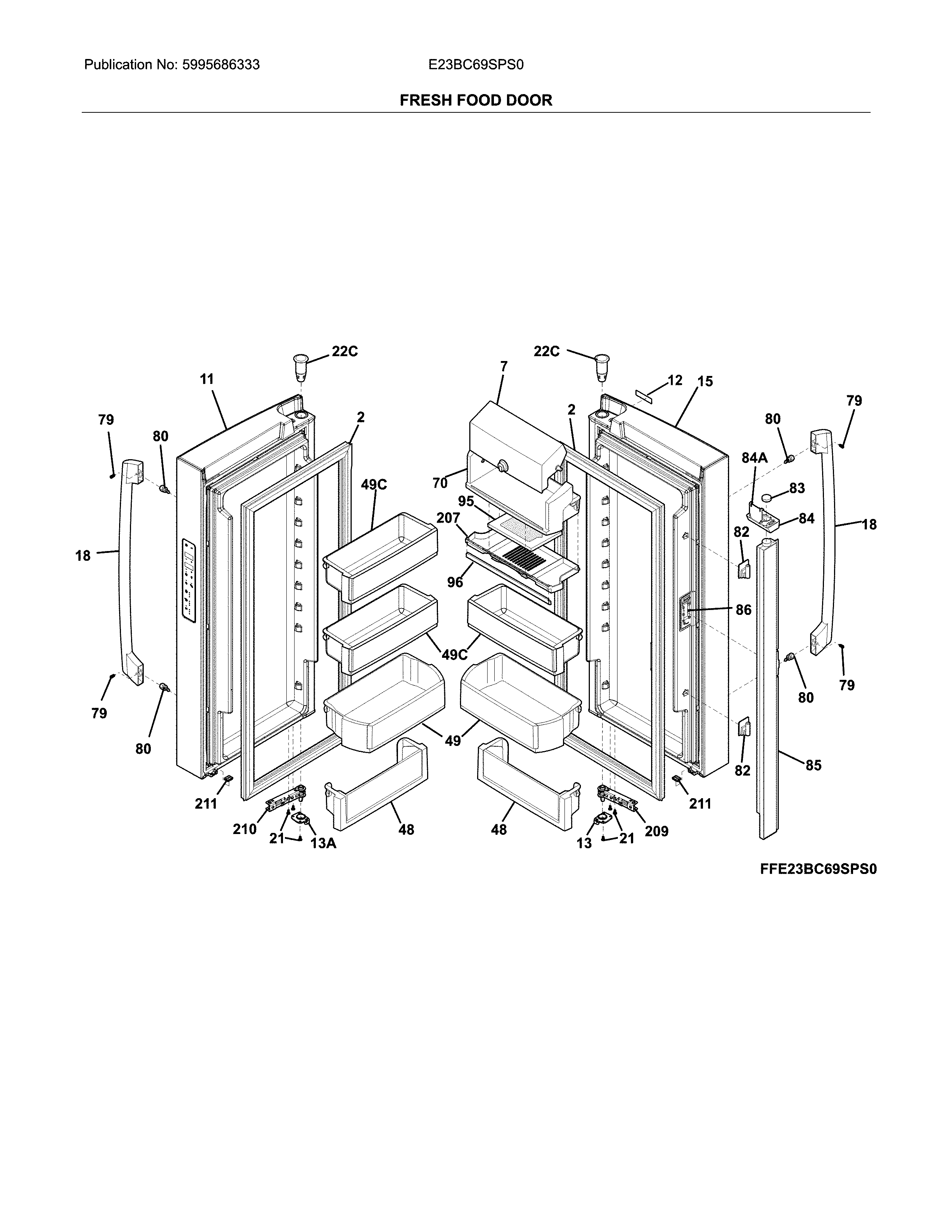

Fresh food door diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Refrigerator Filter Dryer 242047603
#4

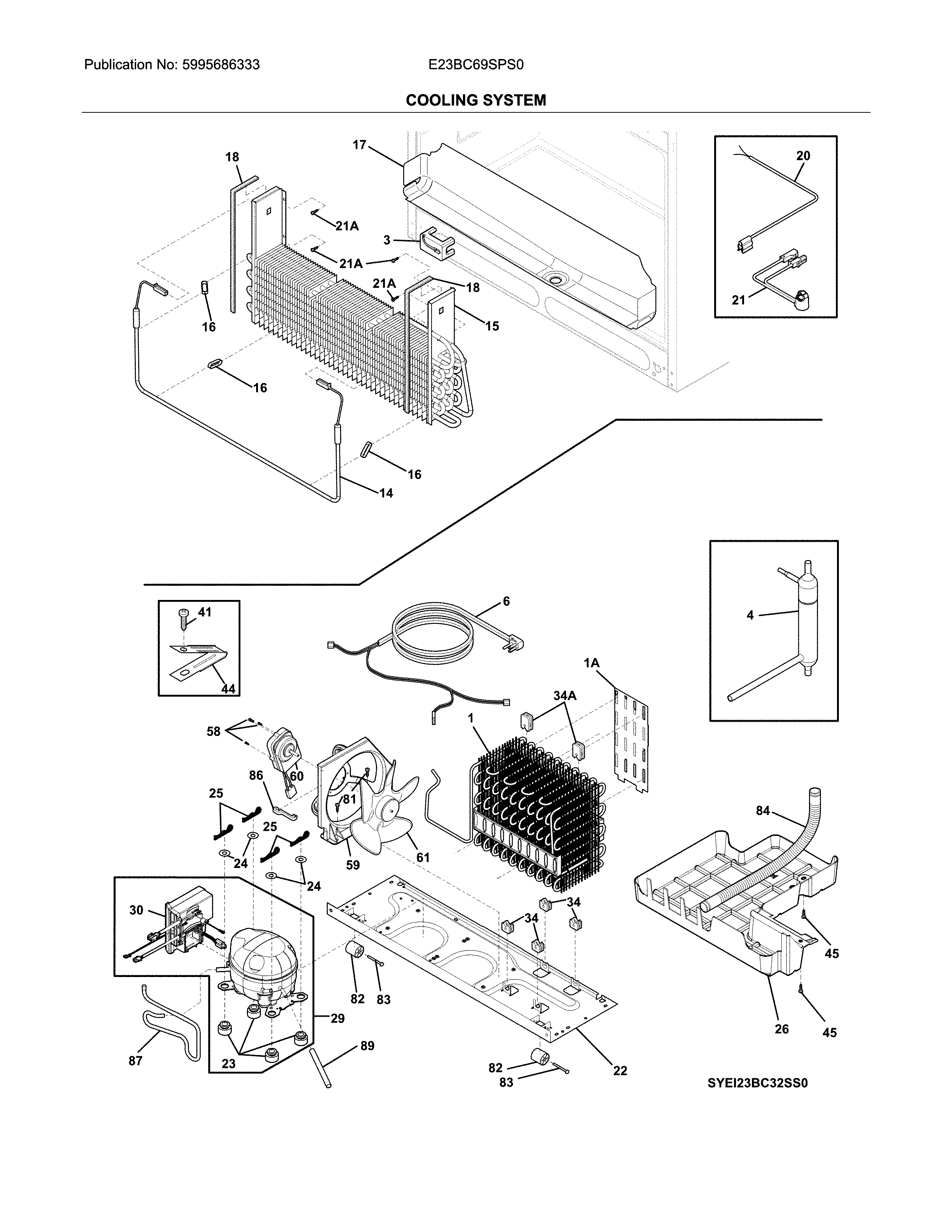

Cooling system diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

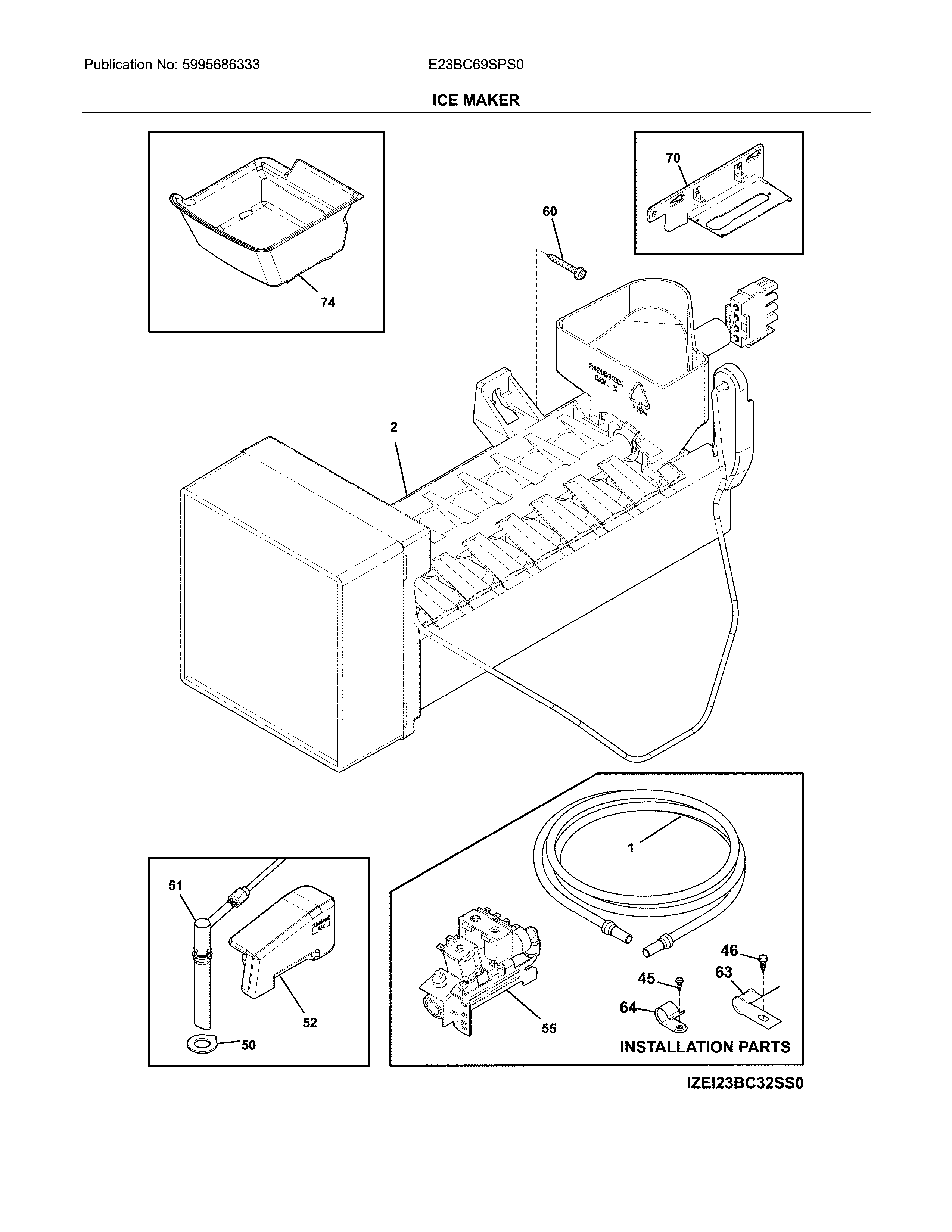

Icemaker diagram

Refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$78.80 |
7% OFF Phone Price : $84.80
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Gasket (gray) 241778307
#2

Fresh food door diagram

Universal/multiflex (frigidaire) refrigerator door gasket (gray)

Part #241778307

The manufacturer no longer makes this part, and there's no substitute part

Ikea Refrigerator Freezer Door Gasket (replaces 241778308) 5304501270
#1

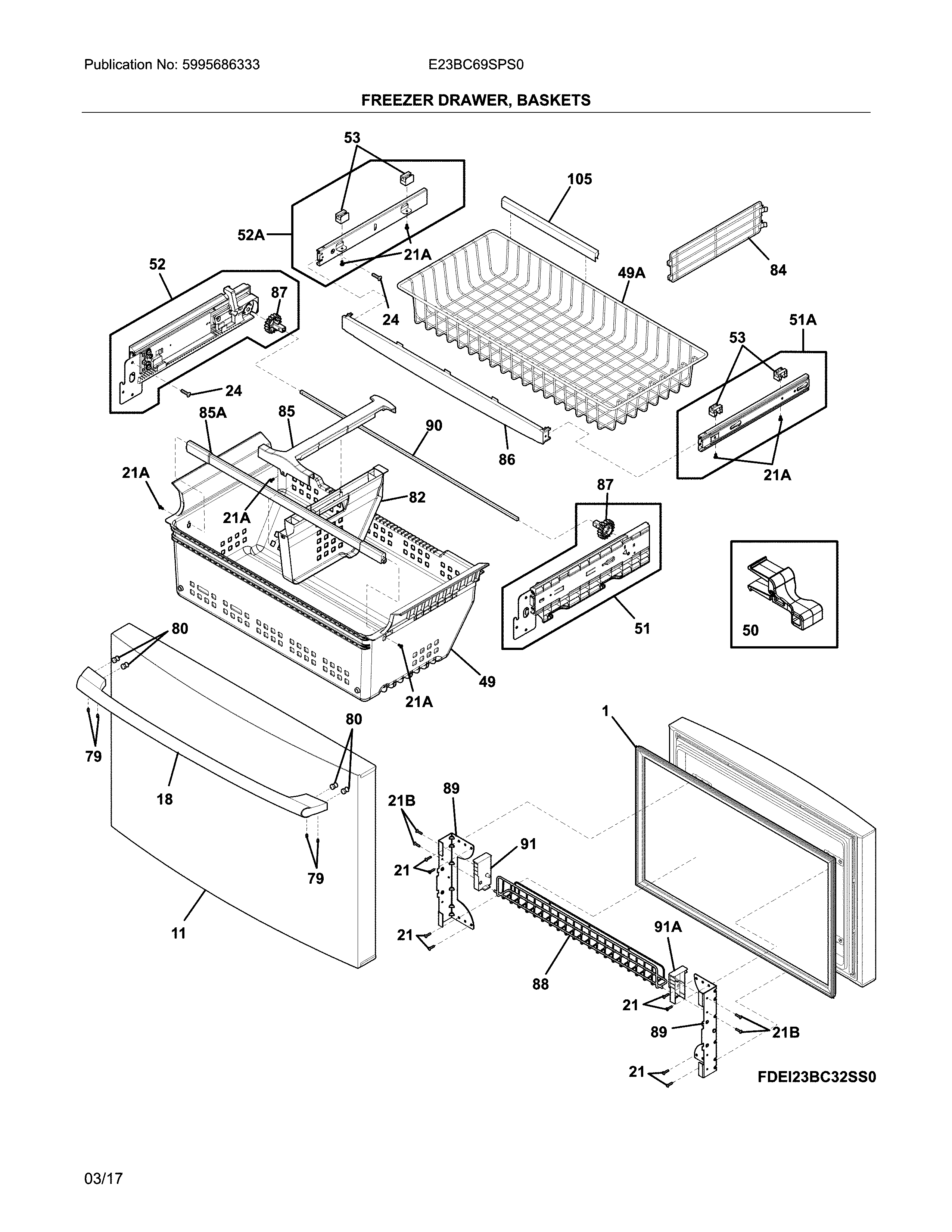

Freezer drawer, baskets diagram

Ikea refrigerator freezer door gasket (replaces 241778308)

Part #5304501270

BEST SELLER
$128.55 |
9% OFF Phone Price : $140.55
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#90

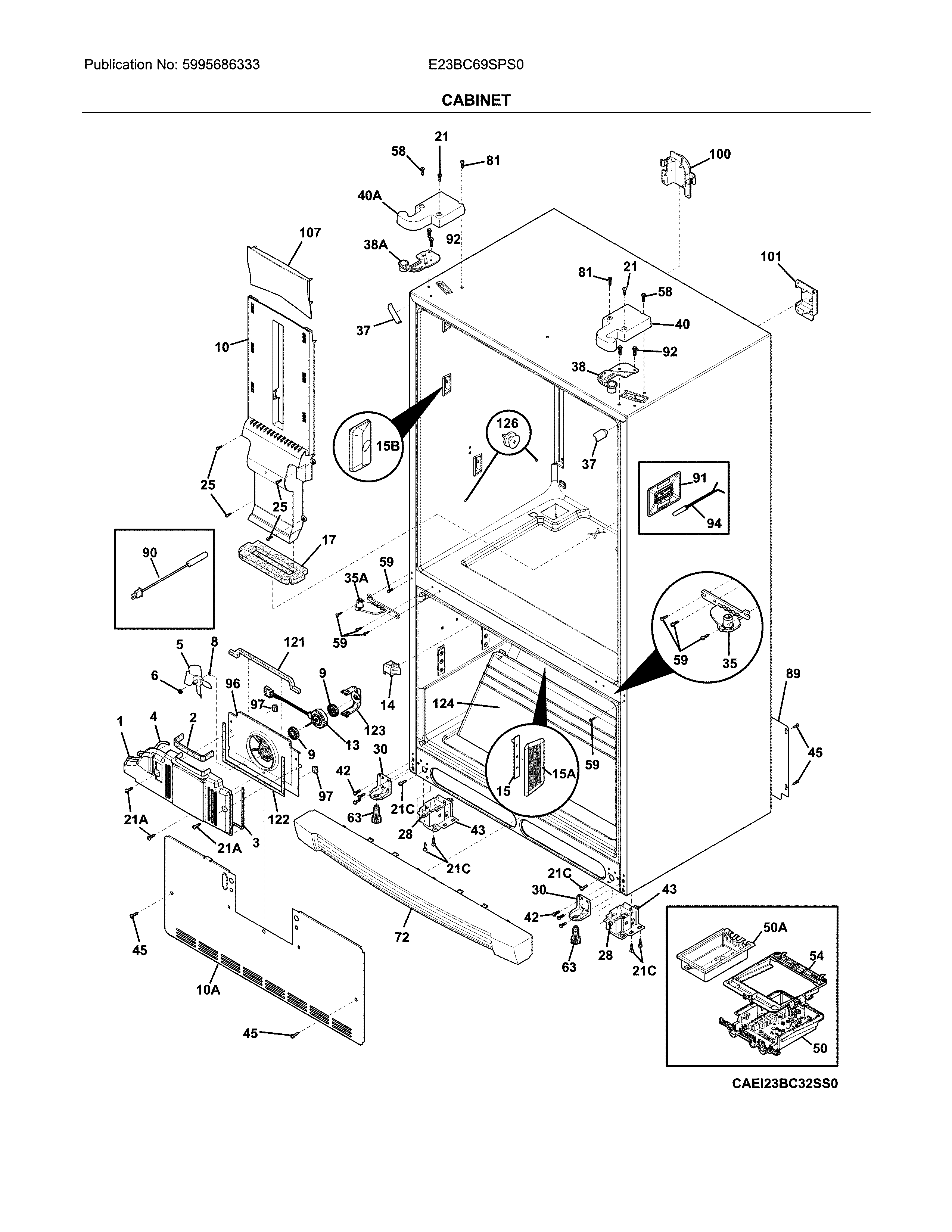

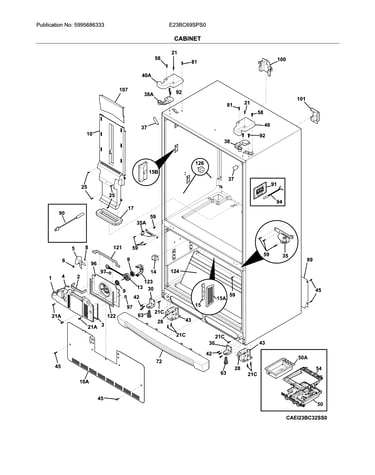

Cabinet diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Refrigerator Evaporator Fan Motor 809069201
#13

Cabinet diagram

Refrigerator evaporator fan motor

Part #809069201

BEST SELLER
$94.60 |
6% OFF Phone Price : $100.60
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

Cooling system diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Ice Maker 241798226
#2

Icemaker diagram

Refrigerator ice maker

Part #241798226

Replaced by #241798233

?
Manufacturer substitution
This part replaces 241798226. Substitute parts can look different from the original.
BEST SELLER
$128.14 |
9% OFF Phone Price : $140.14
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

Cooling system diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
