Frigidaire
Chest Freezer

Model # CFS18LL2 Official Frigidaire chest freezer - lf30890040

Here are the diagrams and repair parts for Official Frigidaire CFS18LL2 chest freezer - lf30890040, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Filter 08000027
#1

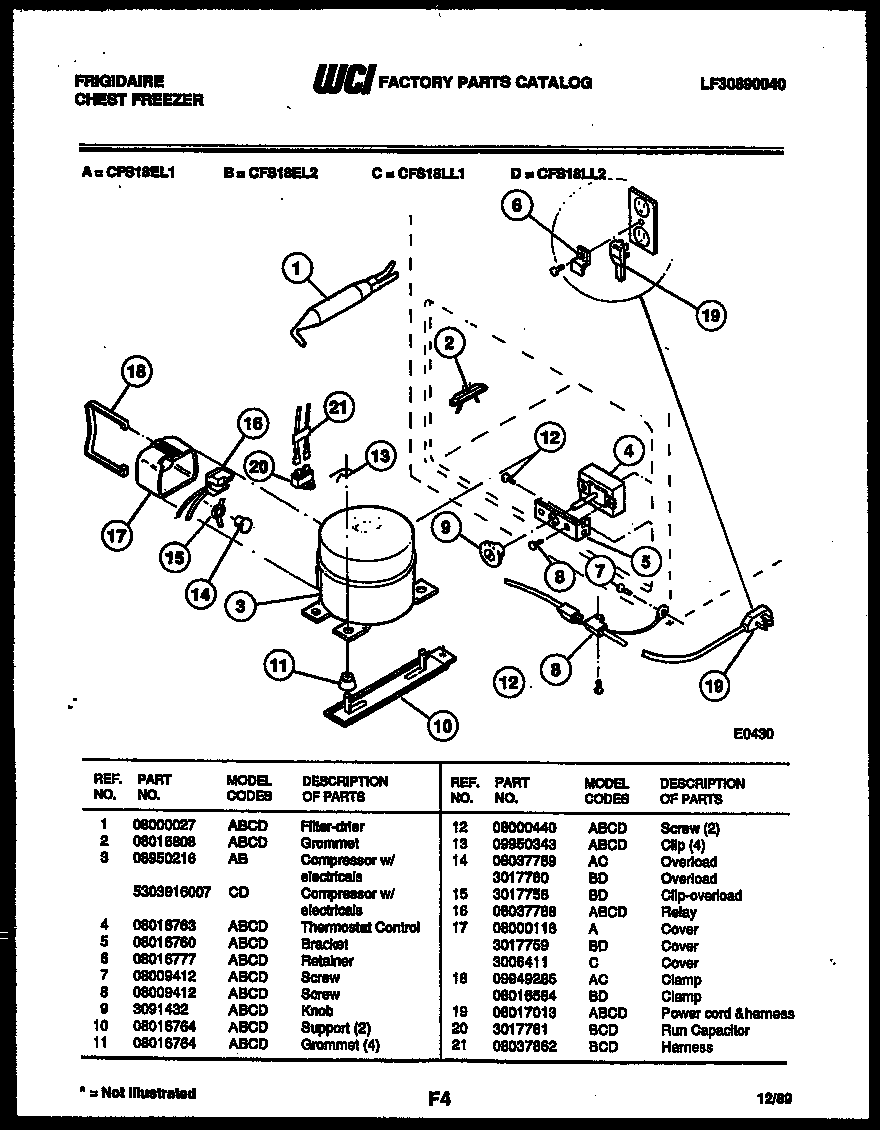

Electrical parts diagram

Filter

Part #08000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 08000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 08037402
#6

Panel parts diagram

Key

Part #08037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 08037402. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Capacitor 3017761
#20

Electrical parts diagram

Capacitor

Part #3017761

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 3017761. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Plug 06593887
#8

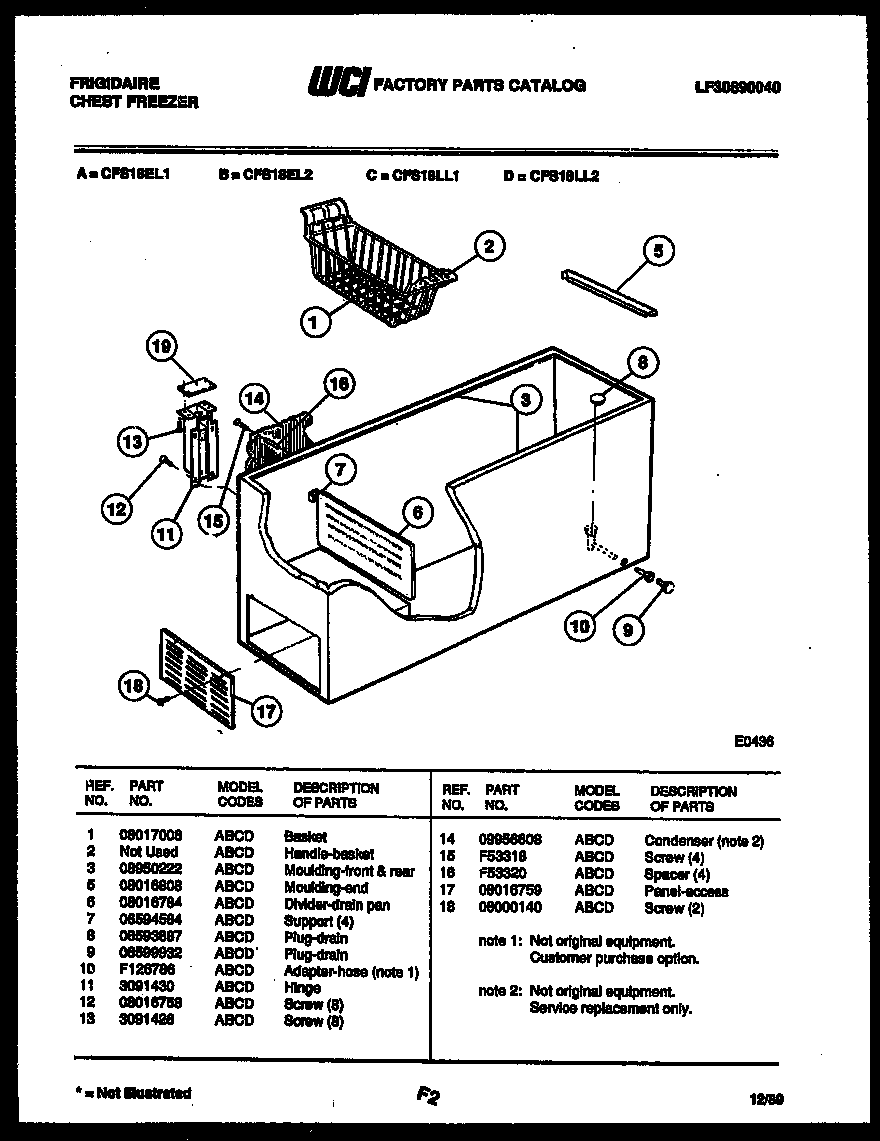

Cabinet parts diagram

Plug

Part #06593887

Replaced by #216502600

?
Manufacturer substitution
This part replaces 06593887. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Clip 09948647
#10

Panel parts diagram

Clip

Part #09948647

Replaced by #216922700

?
Manufacturer substitution
This part replaces 09948647. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Clip 3017758
#15

Electrical parts diagram

Clip

Part #3017758

This item is not returnable
$2.16
In Stock
Freezer Panel 3017742
#1

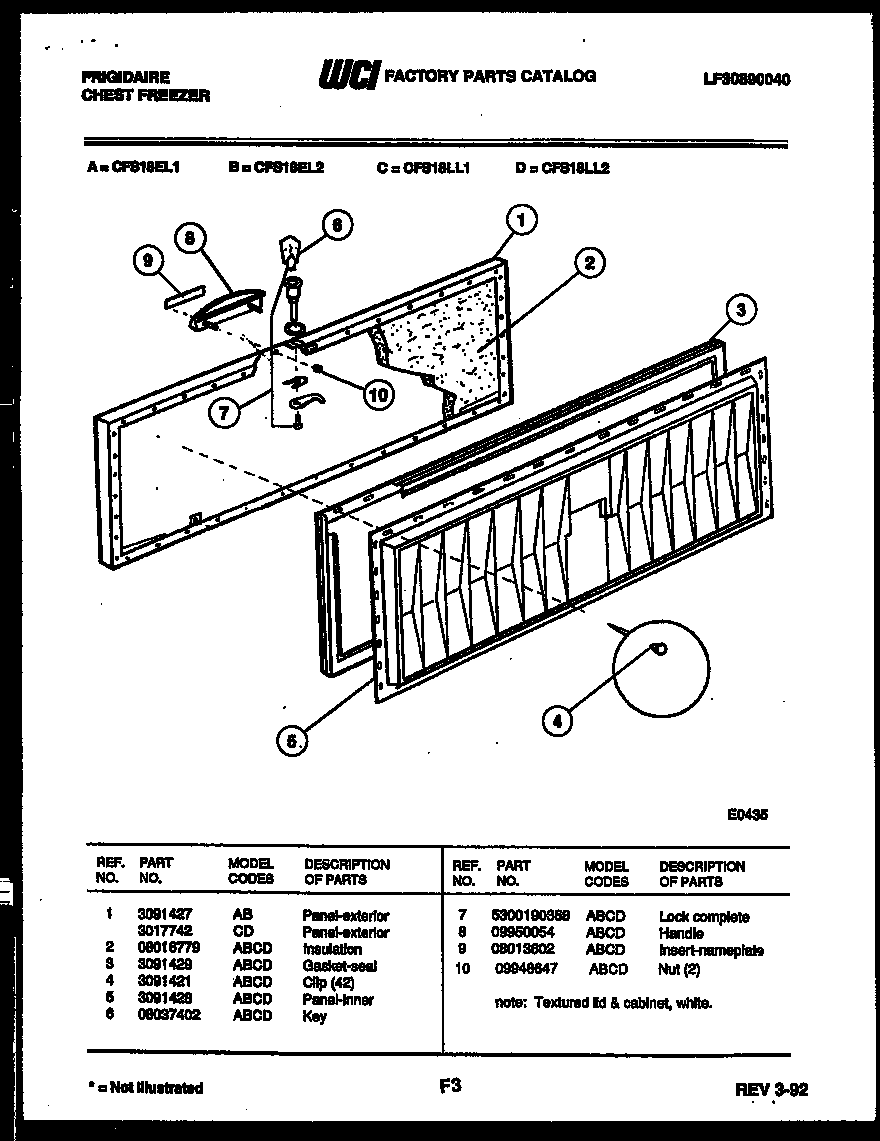

Panel parts diagram
