Model # JDP40CB1CC Official GE electric range

Here are the diagrams and repair parts for Official GE JDP40CB1CC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Range Oven Light Bulb WX12X1510
#280

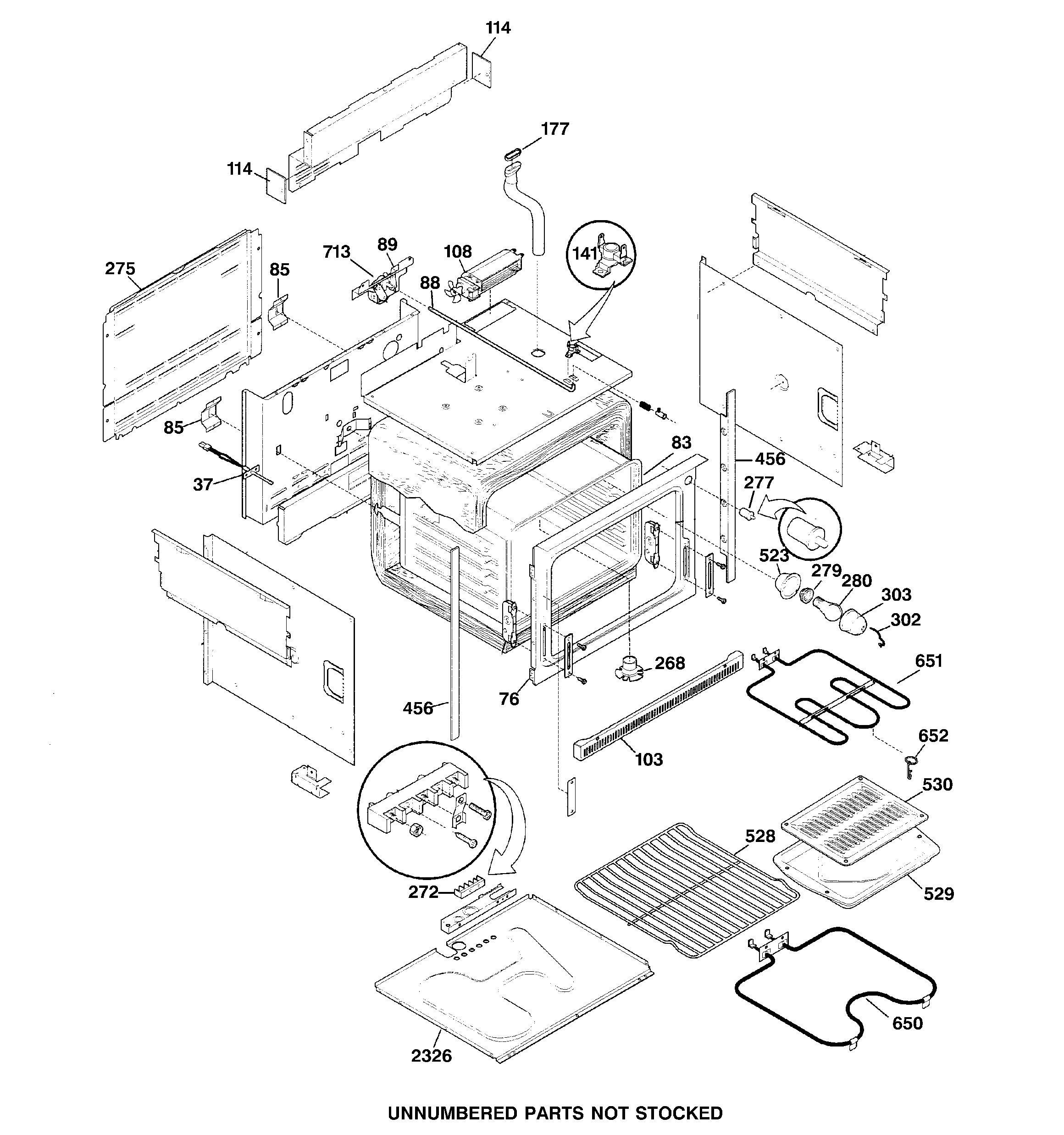

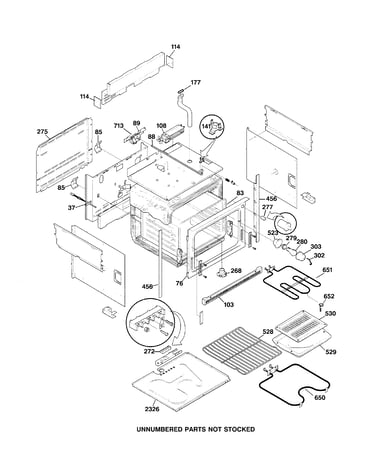

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Halogen Element WB30K5032
#15

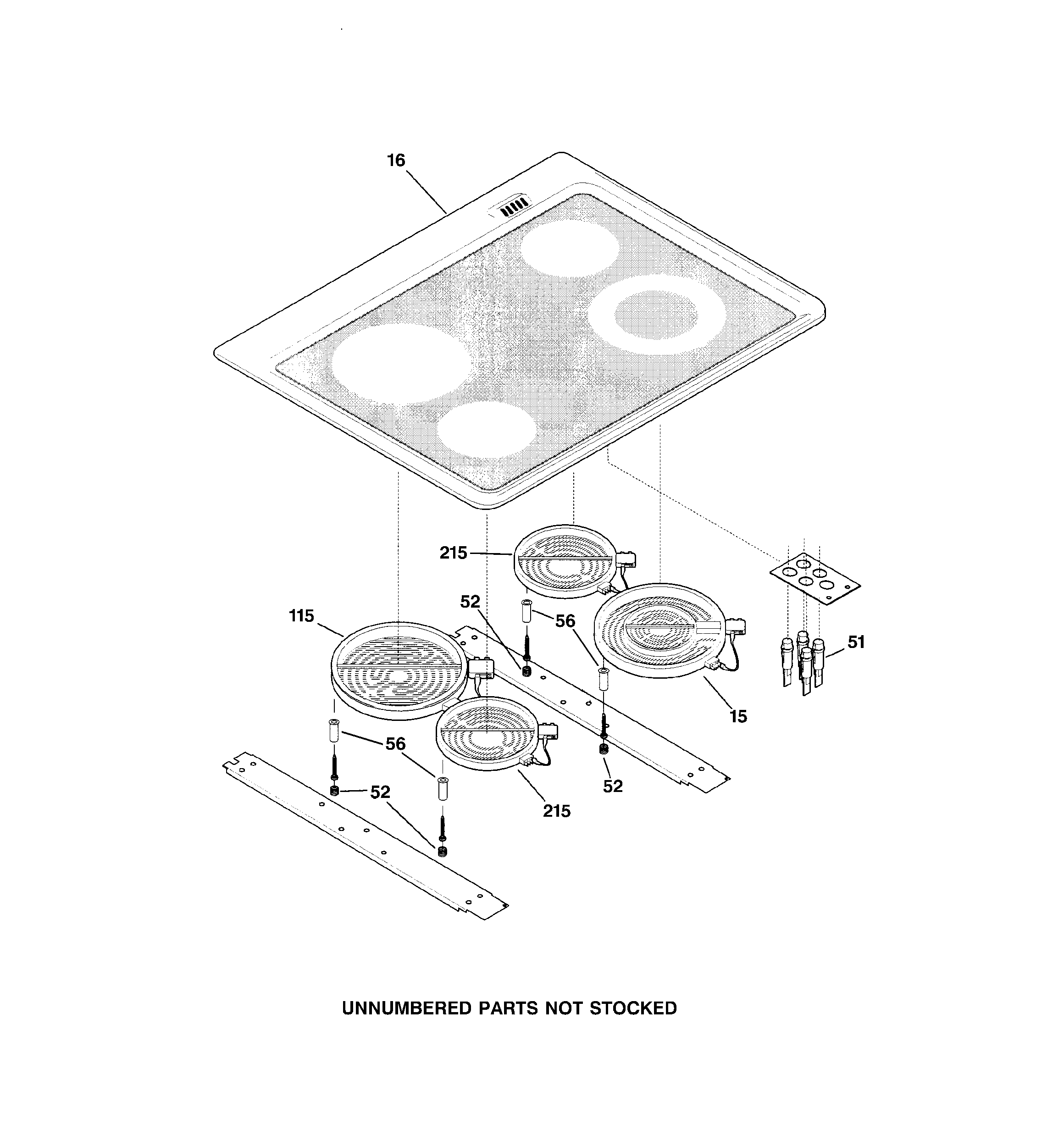

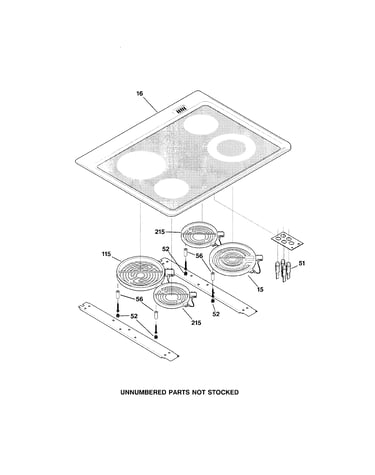

Cooktop diagram

Halogen element

Part #WB30K5032

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30K5032. Substitute parts can look different from the original.
BEST SELLER
$100.57 |
11% OFF Phone Price : $112.57
In Stock
Trim Oven Fr WB07X10280
#456

Body parts diagram

Trim oven fr

Part #WB07X10280

$41.99
In Stock
Timer Bracket WB02X10630
#23

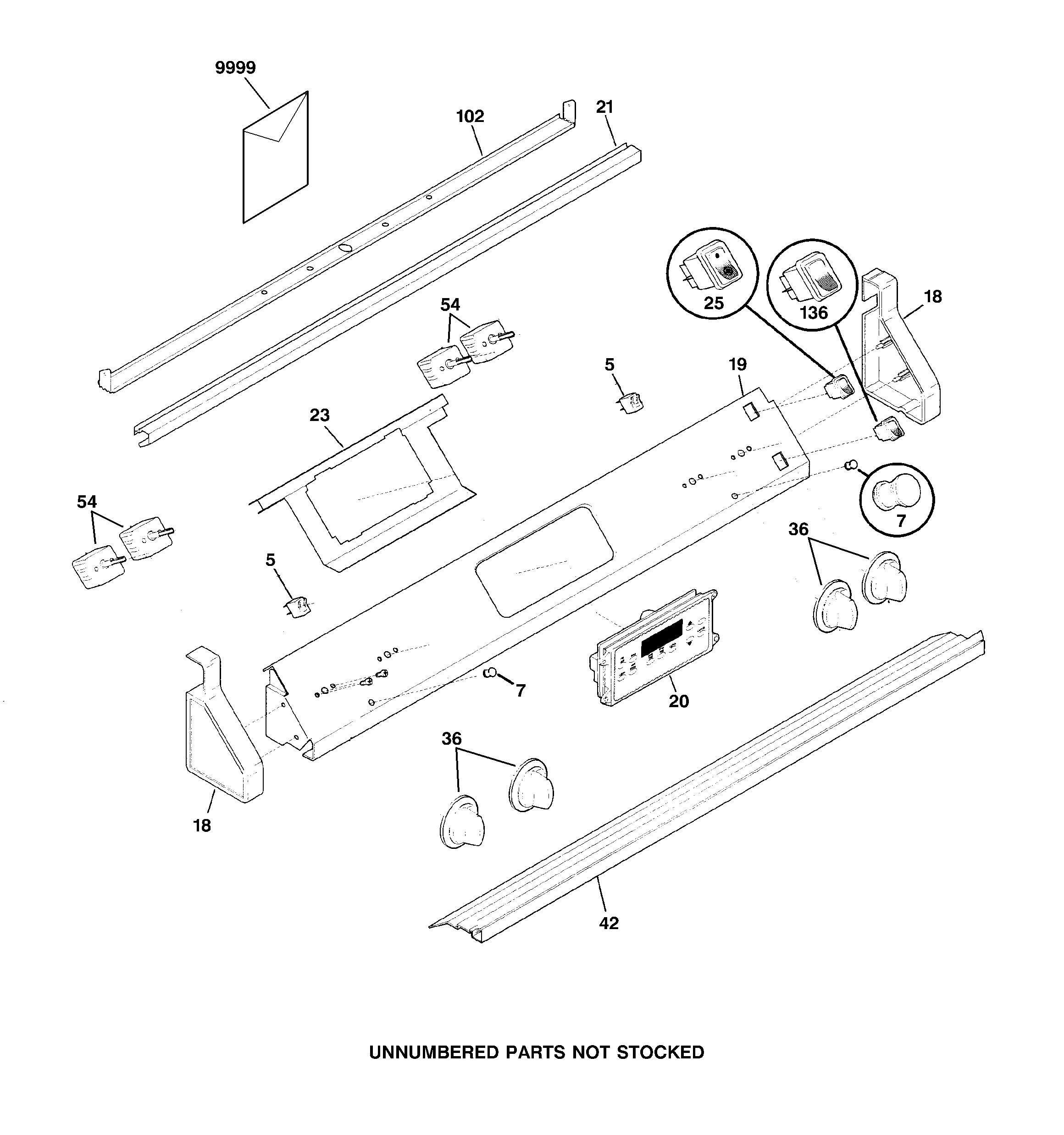

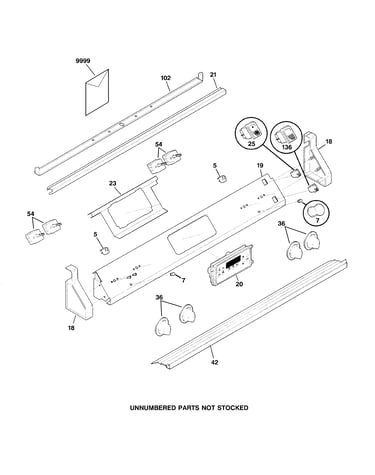

Control panel diagram

Timer bracket

Part #WB02X10630

$70.99
In Stock
Trim Base Bk WB07X10304
#103

Body parts diagram

Trim base bk

Part #WB07X10304

$130.99
In Stock
Trim Vent Bk WB07X10303
#42

Control panel diagram

Trim vent bk

Part #WB07X10303

$95.99
In Stock
Halogen Element WB30K5033
#215

Cooktop diagram

Halogen element

Part #WB30K5033

Replaced by #WB30X44826

?
Manufacturer substitution
This part replaces WB30K5033. Substitute parts can look different from the original.
$120.96
In Stock
Trim Ov Dr H WB07K10119
#2

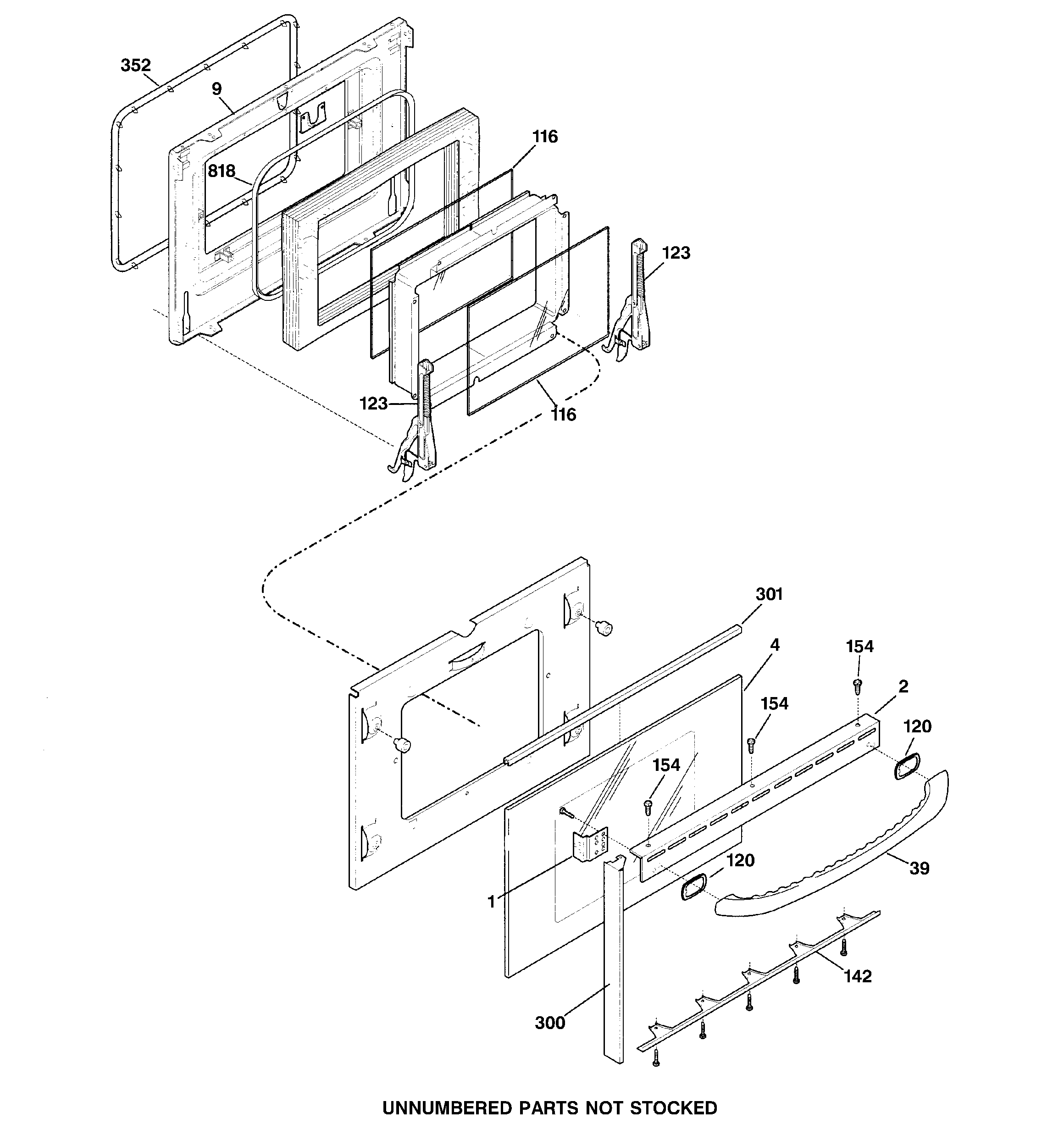

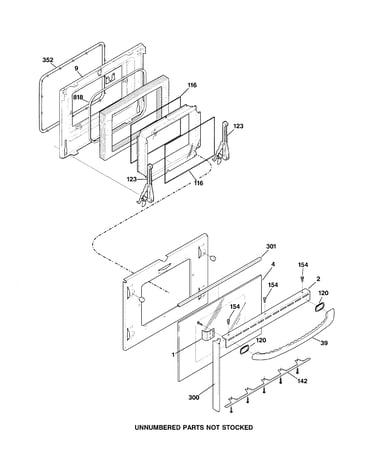

Door diagram

Trim ov dr h

Part #WB07K10119

Replaced by #WB7K10119

?
Manufacturer substitution
This part replaces WB07K10119. Substitute parts can look different from the original.
$57.49
In Stock
Screw 8-18x1 WB01X10095
#154

Door diagram

Screw 8-18x1

Part #WB01X10095

Replaced by #WB1X10095

?
Manufacturer substitution
This part replaces WB01X10095. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Screw 8-18x1 WB01X10096
#154

Door diagram

Screw 8-18x1

Part #WB01X10096

Replaced by #WB1X10096

?
Manufacturer substitution
This part replaces WB01X10096. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
