Model # 11650212001 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11650212001 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
11650212001 Vacuum Cleaners
Muskin Gasket 742968
#57

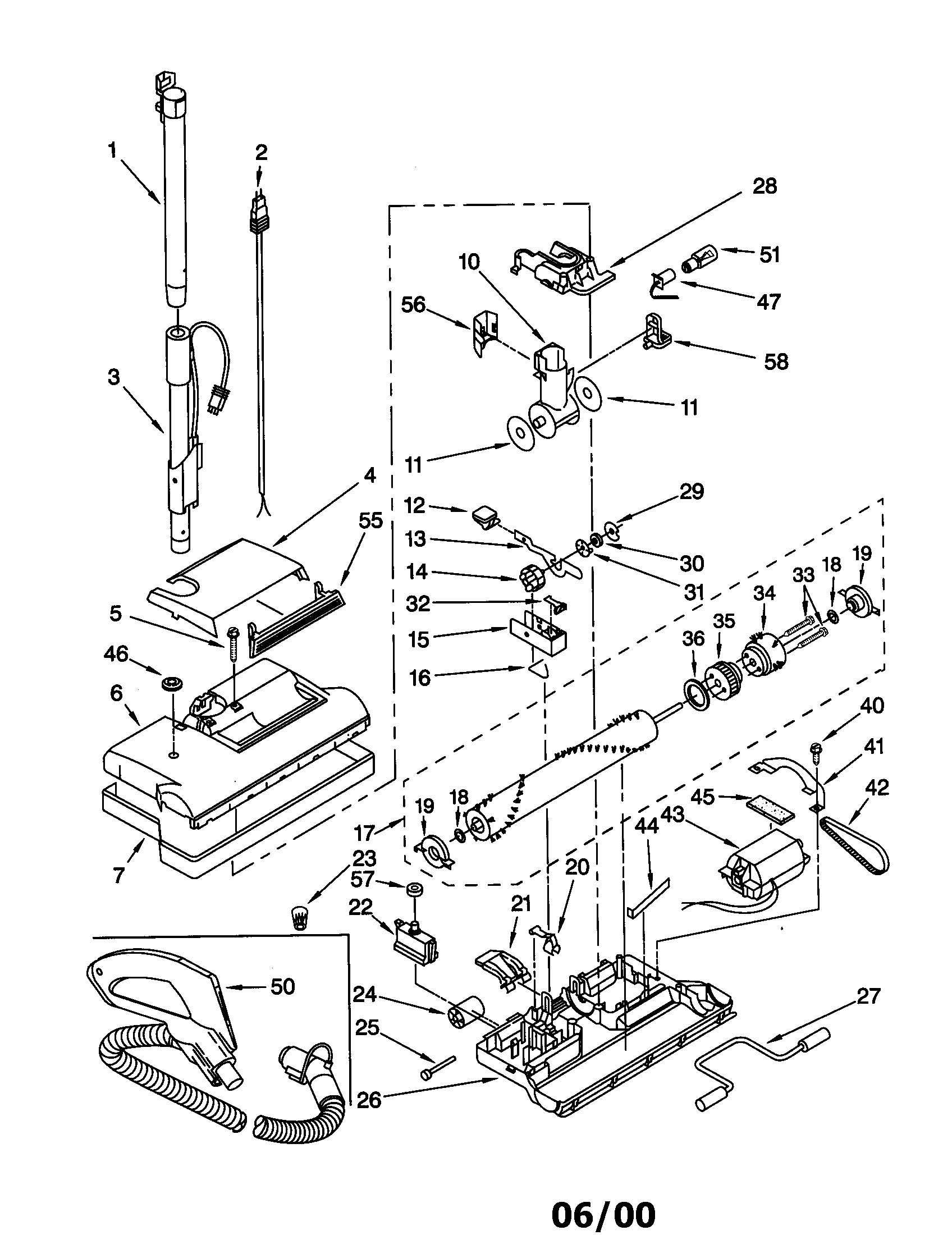

Power mate diagram

Muskin gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Switch Button 8195147
#58

Power mate diagram

Vacuum power switch button

Part #8195147

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bulb 4370018
#51

Power mate diagram

Bulb

Part #4370018

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#27

Power mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part

Lens 742983
#55

Power mate diagram

Lens

Part #742983

The manufacturer no longer makes this part, and there's no substitute part

Swivel Seal (white) 742019
#11

Power mate diagram

Swivel seal (white)

Part #742019

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 4370661
#28

Power mate diagram

Swivel cap

Part #4370661

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram Label LIT0747155

#NI

All parts diagram

Wiring diagram label

Part #LIT0747155

The manufacturer no longer makes this part, and there's no substitute part
