GE
Top-Mount Refrigerator

Model # MTX21GIXERAA Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE MTX21GIXERAA refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

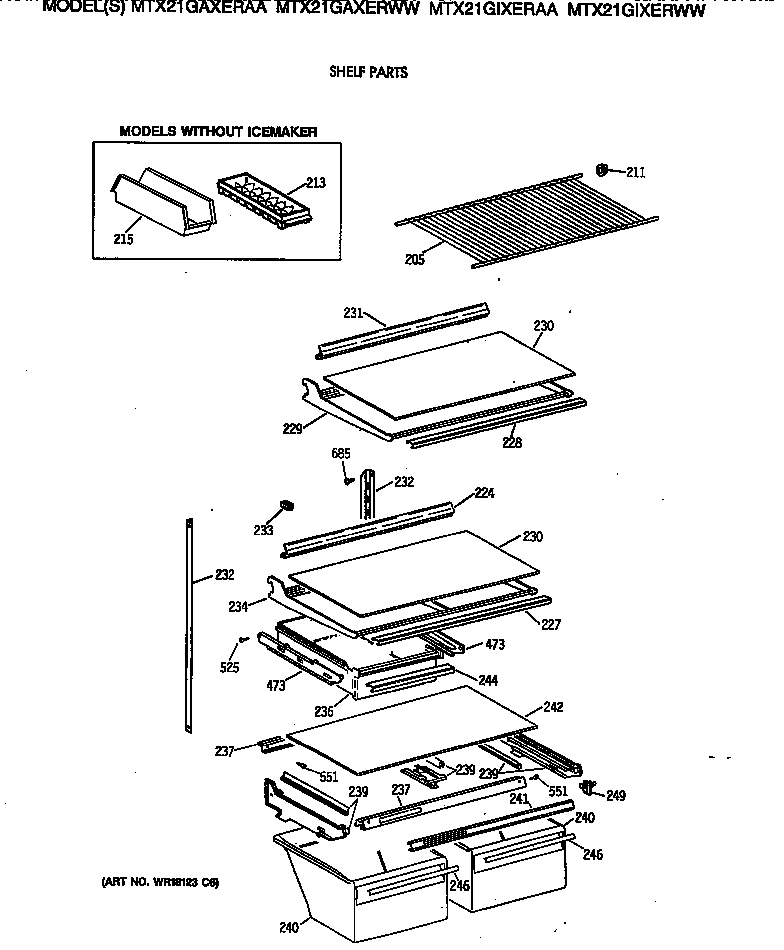

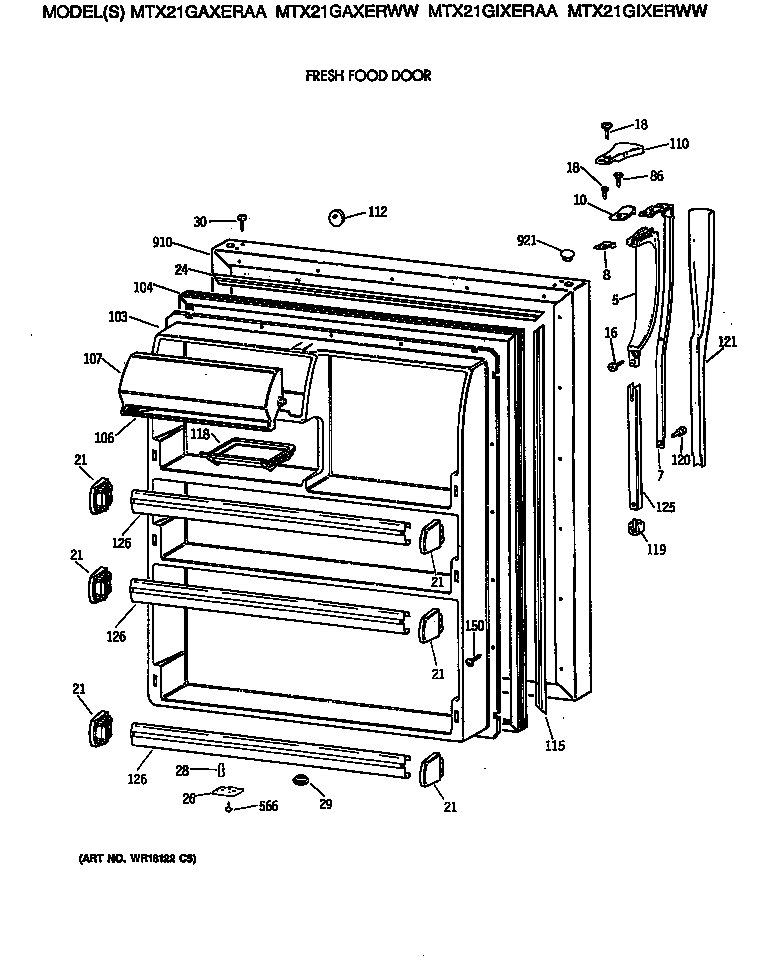

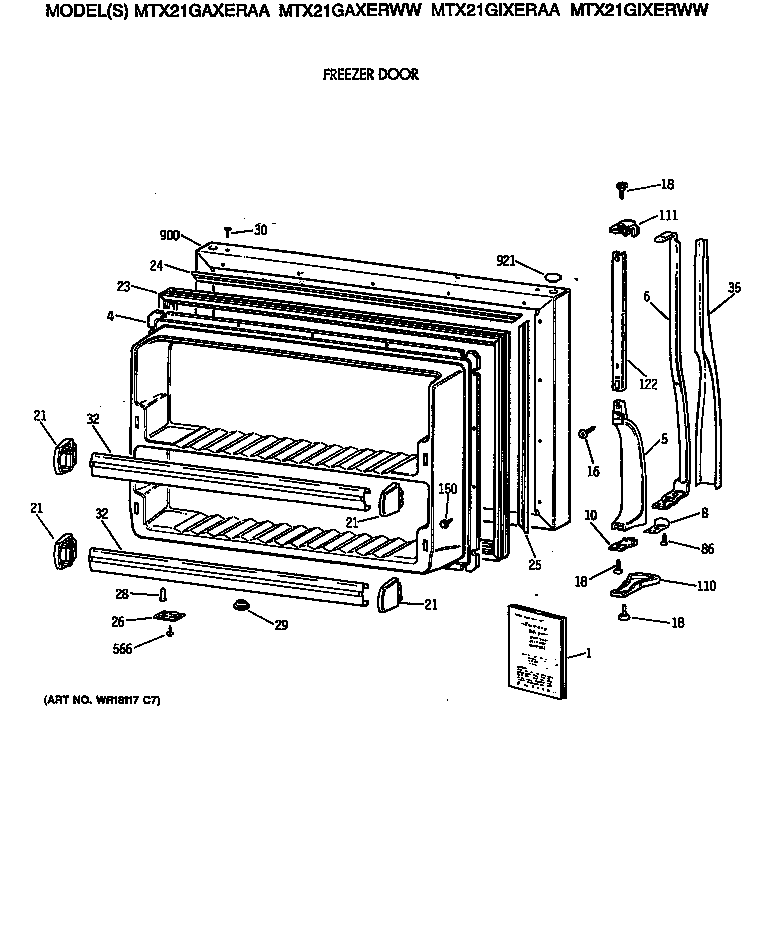

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 210 parts  |
Refrigerator Ice Maker WR30X318
#820

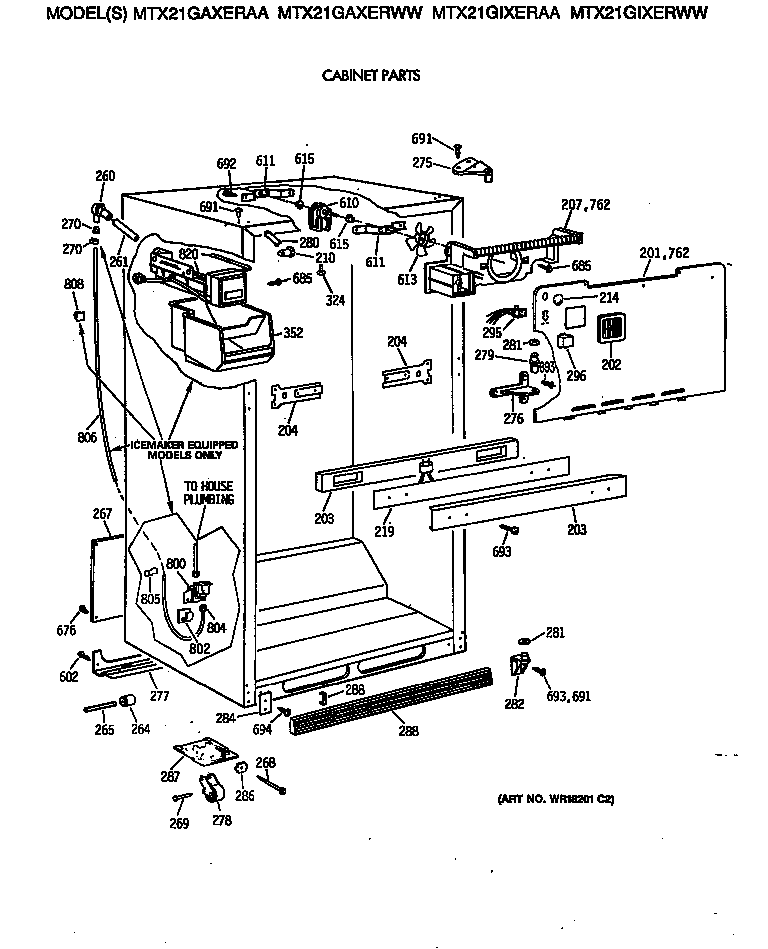

Cabinet parts diagram

Refrigerator ice maker

Part #WR30X318

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X318. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Filter Dryer WR86X96
#740

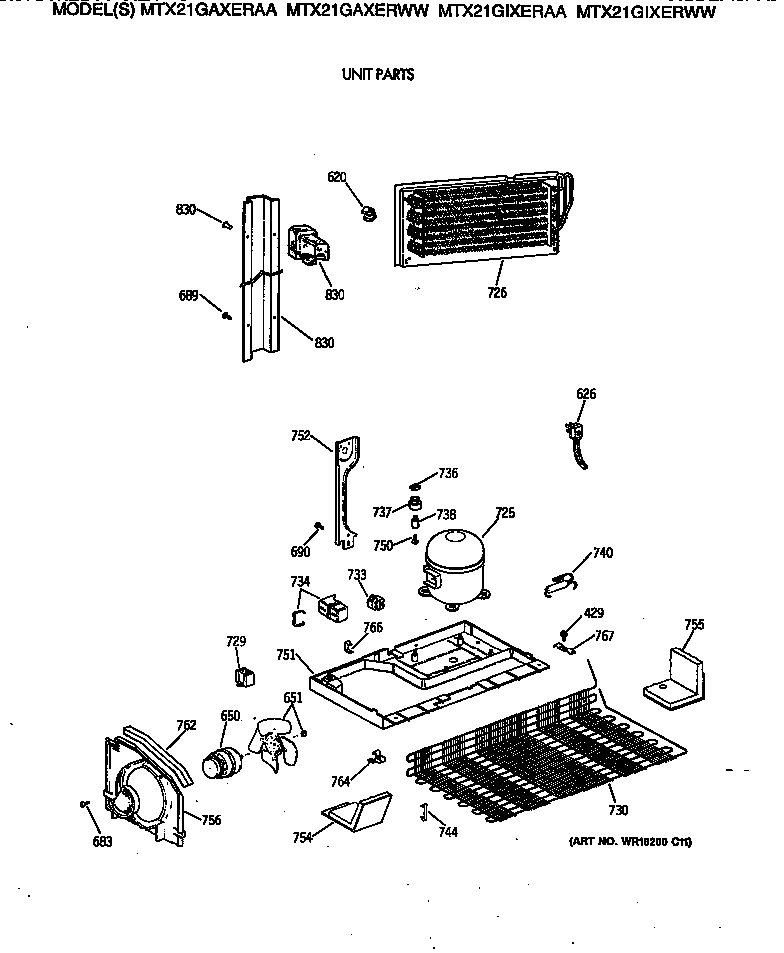

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435A

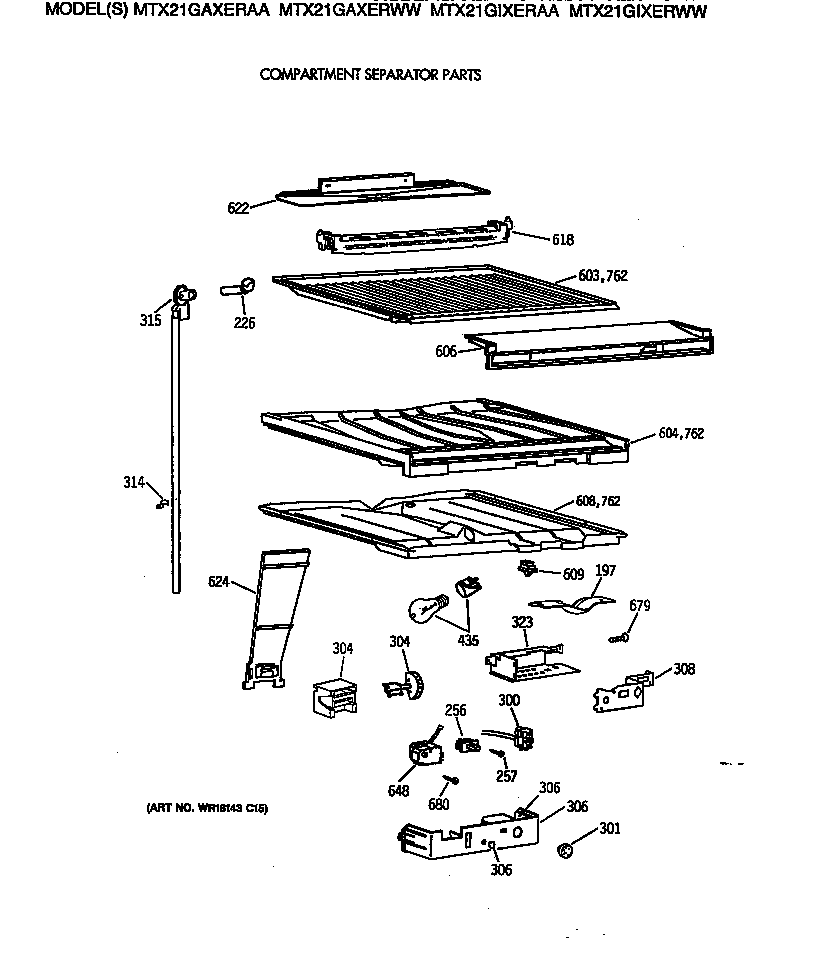

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Compressor Kit WR87X475
#725

Unit parts diagram

Refrigerator compressor kit

Part #WR87X475

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X475. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Water Valve WR57X110
#800

Cabinet parts diagram

Refrigerator water valve

Part #WR57X110

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X110. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Refrigerator Defrost Heater (replaces Wr51x0465, Wr51x317, Wr51x368, Wr51x424, Wr51x431, Wr51x448) WR51X465
#618

Compartment separator parts diagram

Refrigerator defrost heater (replaces wr51x0465, wr51x317, wr51x368, wr51x424, wr51x431, wr51x448)

Part #WR51X465

$118.07 |
9% OFF Phone Price : $130.07
In Stock
Refrigerator Ice Maker Fill Tube (replaces Swr17x1948, Wr17x0969, Wr17x1059, Wr17x1125, Wr17x12313, Wr17x1356, Wr17x5404, Wr17x5566, Wr17x969, Wr29x5036) WR17X1948
#806

Cabinet parts diagram

Refrigerator ice maker fill tube (replaces swr17x1948, wr17x0969, wr17x1059, wr17x1125, wr17x12313, wr17x1356, wr17x5404, wr17x5566, wr17x969, wr29x5036)

Part #WR17X1948

This item is not returnable
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Light Switch WR23X193
#609

Compartment separator parts diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

Cabinet parts diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
