Tappan
Electric Range

Model # VE30AW5 Official Tappan electric range - lv32089020

Here are the diagrams and repair parts for Official Tappan VE30AW5 electric range - lv32089020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Kit 3016957
#5

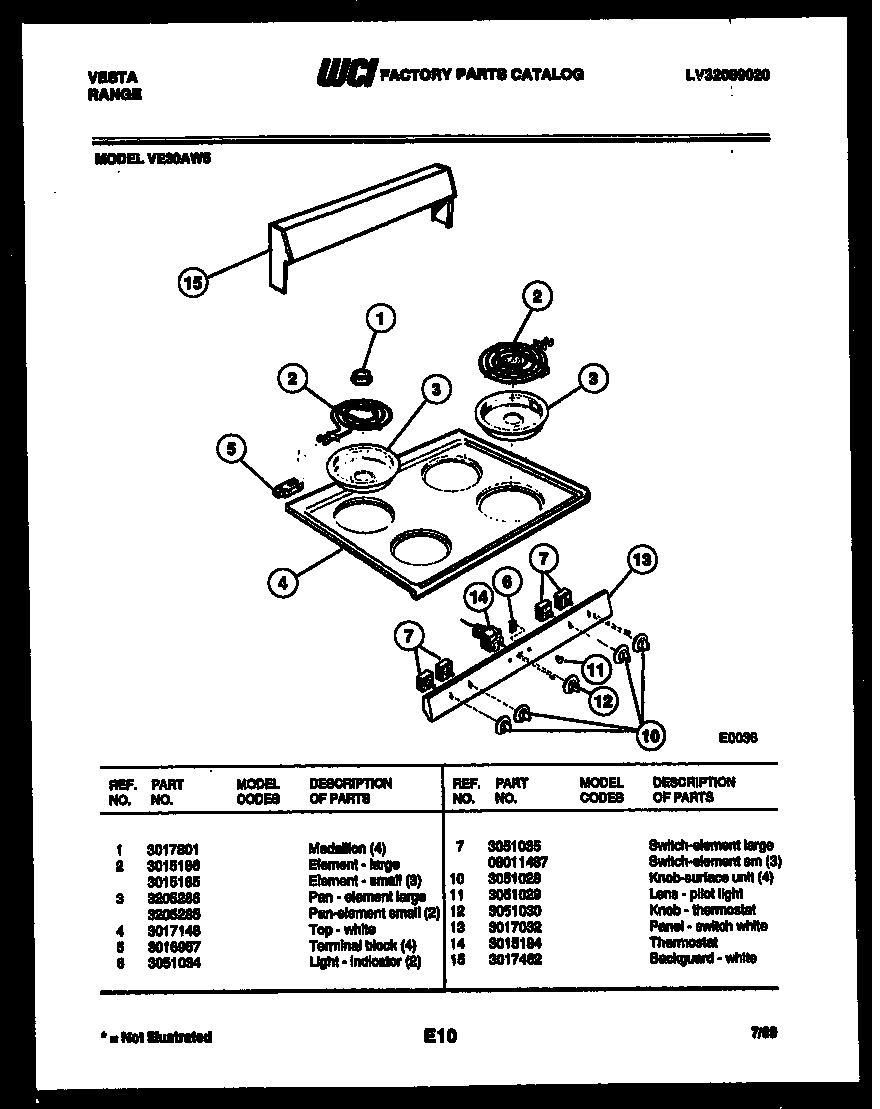

Cooktop and backguard parts diagram

Kit

Part #3016957

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 3016957. Substitute parts can look different from the original.
BEST SELLER
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Pan 3205286
#3

Cooktop and backguard parts diagram

Pan

Part #3205286

Replaced by #316048413

?
Manufacturer substitution
This part replaces 3205286. Substitute parts can look different from the original.
BEST SELLER
$7.52 |
12% OFF Phone Price : $8.52
In Stock
Pan 3205285
#3A

Cooktop and backguard parts diagram

Pan

Part #3205285

Replaced by #316048414

?
Manufacturer substitution
This part replaces 3205285. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Block 3051098
#28

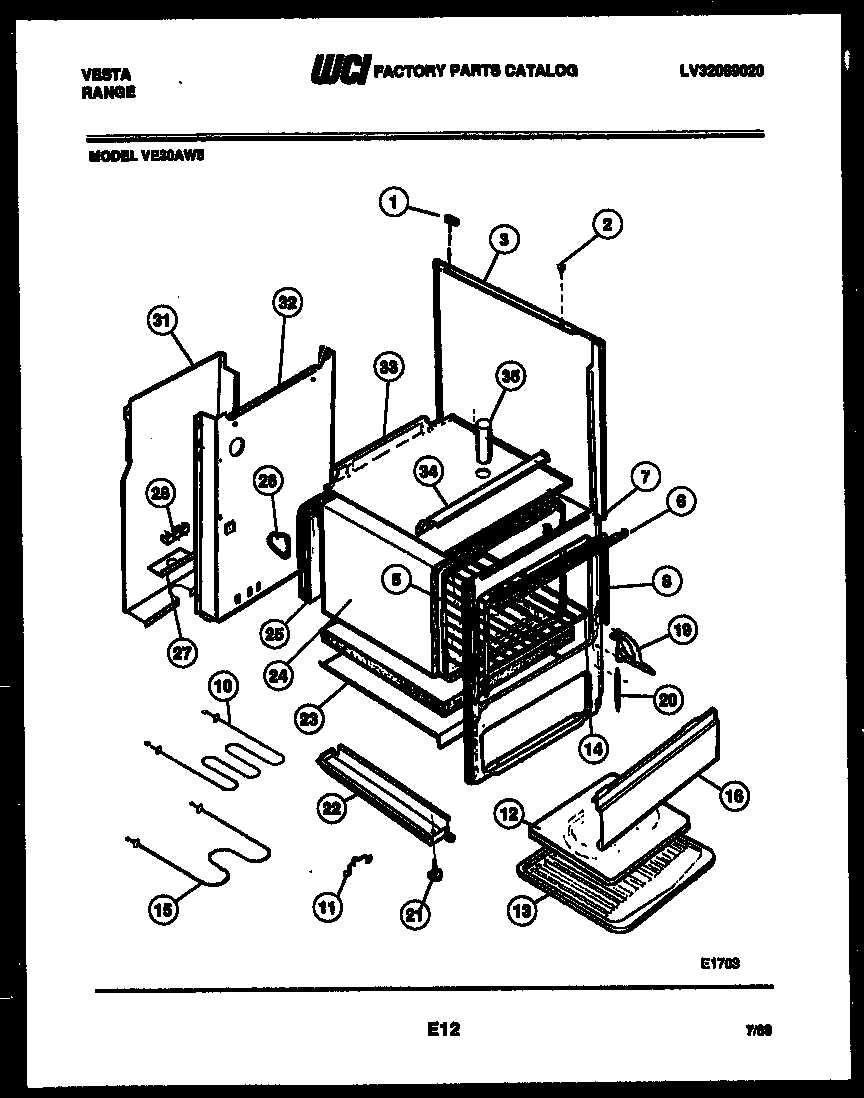

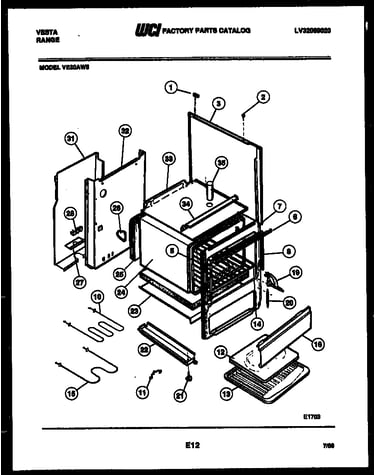

Body parts diagram

Block

Part #3051098

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 3051098. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Surface Element 3015185
#2A

Cooktop and backguard parts diagram

Surface element

Part #3015185

Replaced by #318372210

?
Manufacturer substitution
This part replaces 3015185. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Switch 08011487
#7A

Cooktop and backguard parts diagram

Switch

Part #08011487

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 08011487. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Switch 3051035
#7

Cooktop and backguard parts diagram

Switch

Part #3051035

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051035. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Hinge 3204672
#19

Body parts diagram

Hinge

Part #3204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Nut 3051038
#7

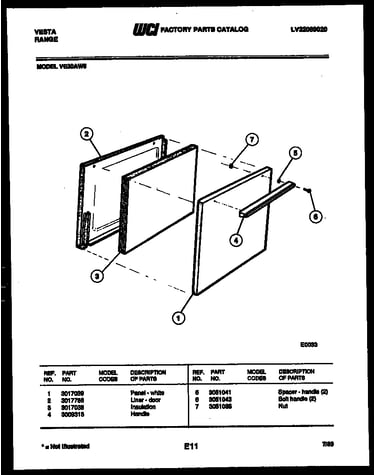

Door parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Surface Element 3015186
#2

Cooktop and backguard parts diagram

Surface element

Part #3015186

Replaced by #316442300

?
Manufacturer substitution
This part replaces 3015186. Substitute parts can look different from the original.
$26.03 |
19% OFF Phone Price : $32.03
In Stock
