Model # FDSH4501AS0A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDSH4501AS0A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

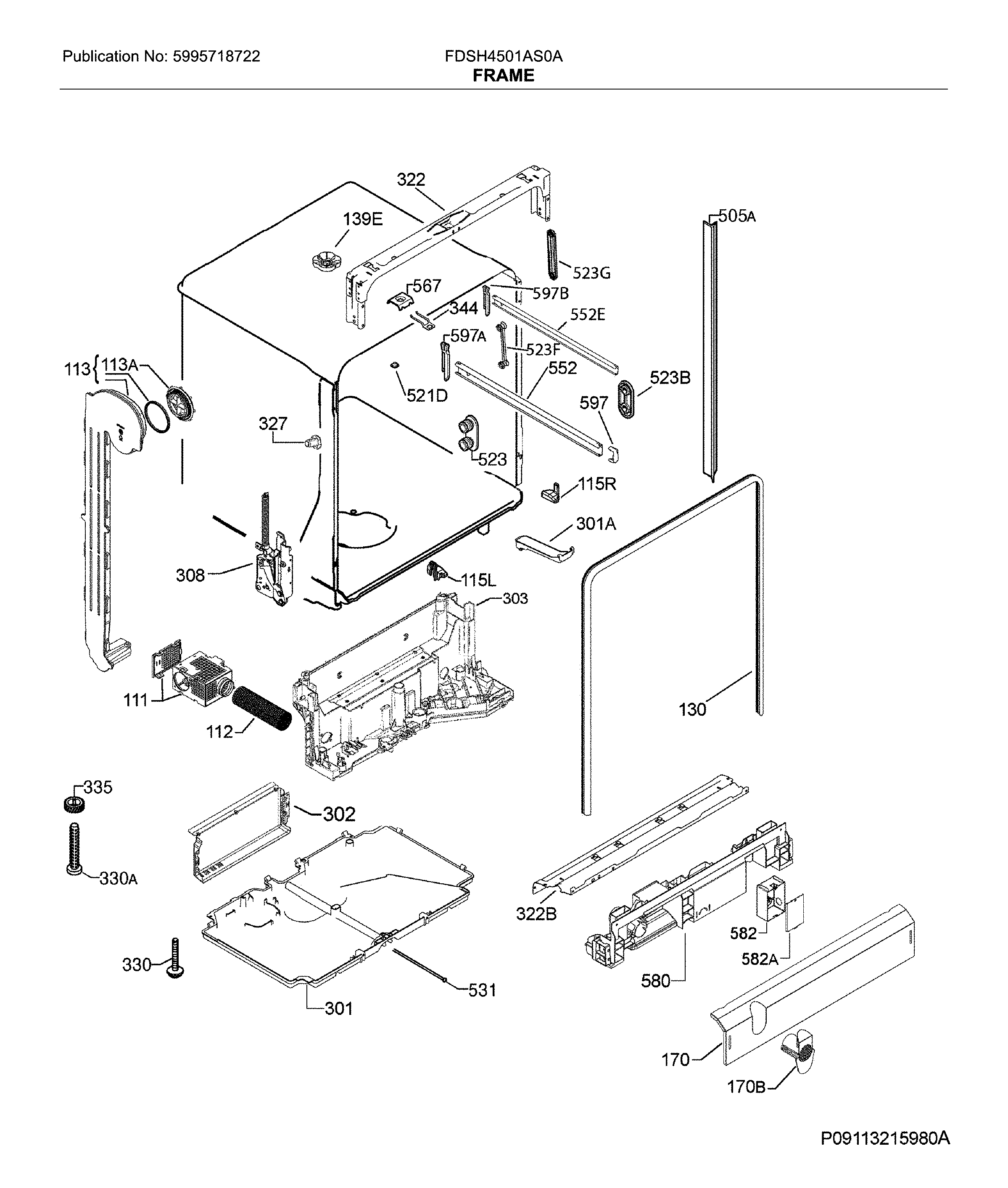

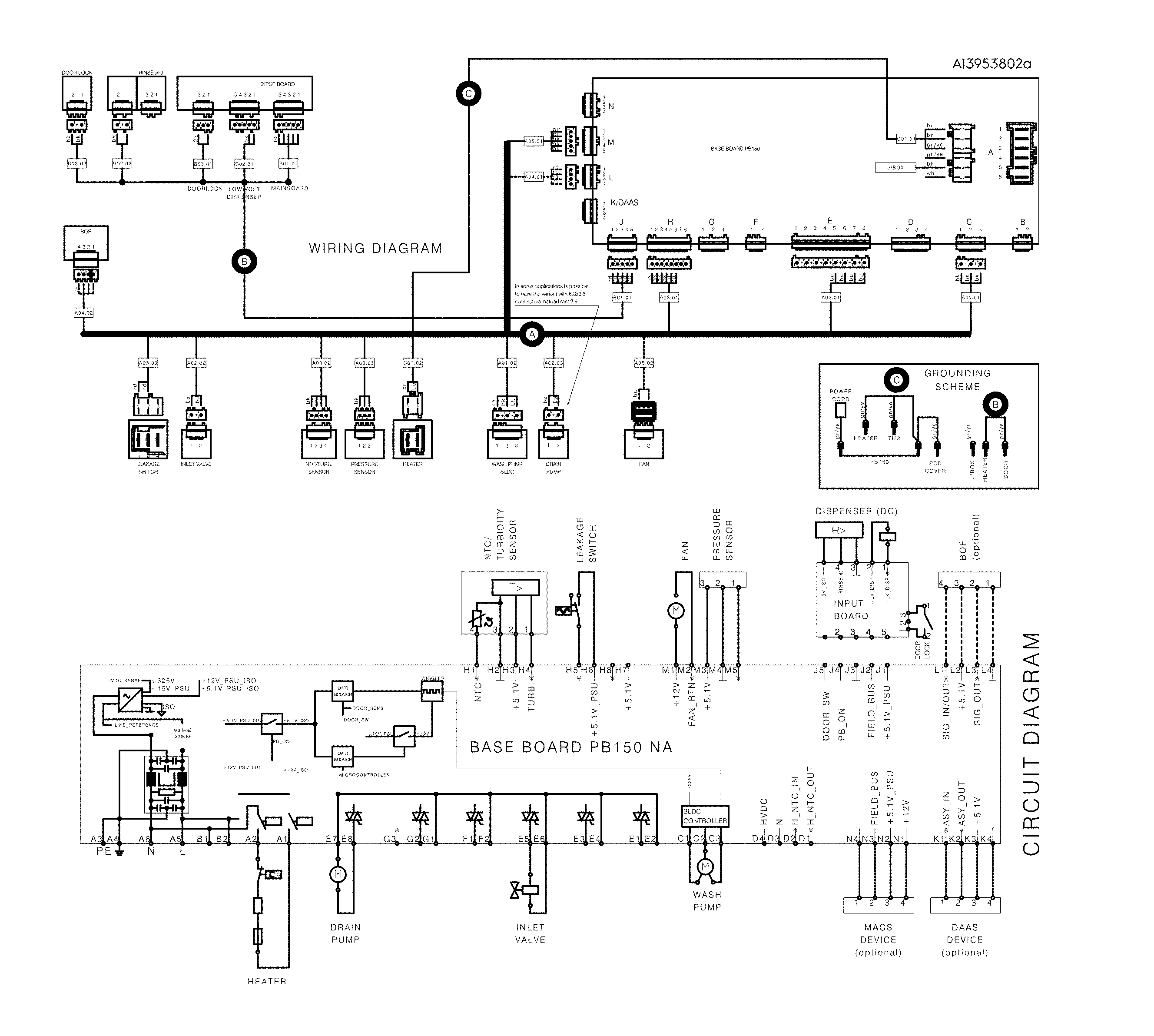

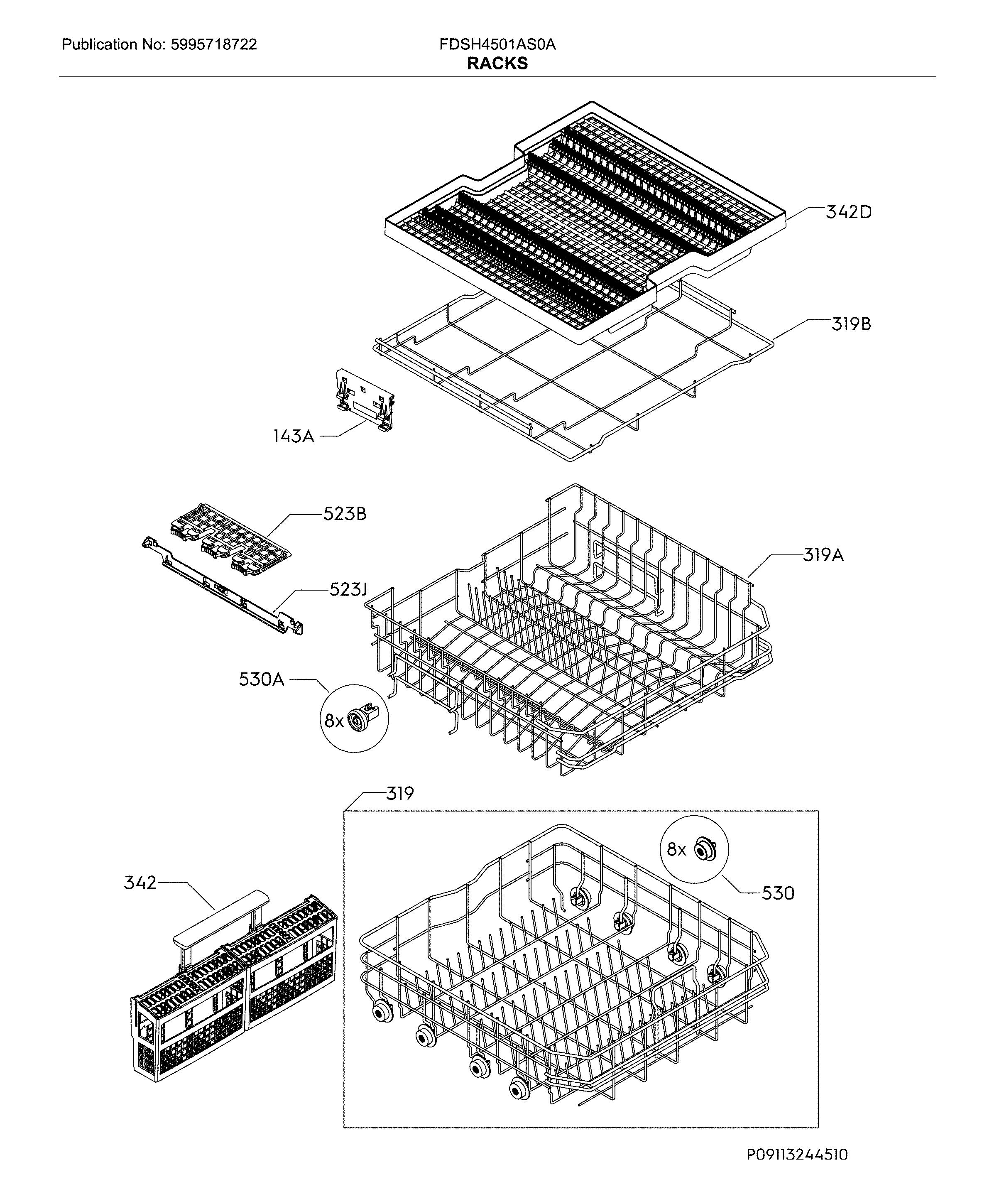

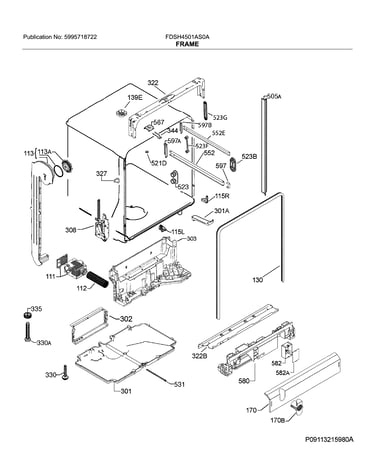

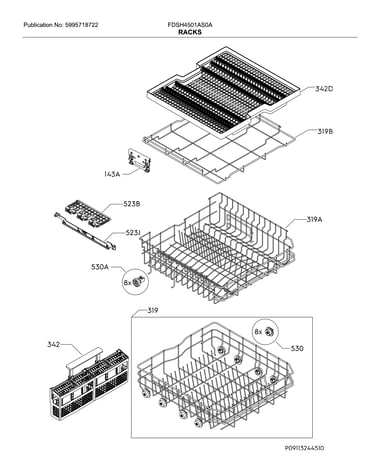

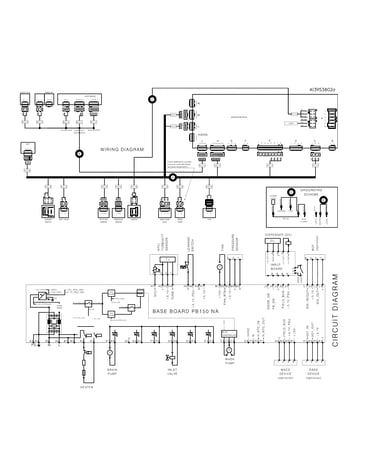

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Dishwasher Water Inlet Valve 807445904
#5

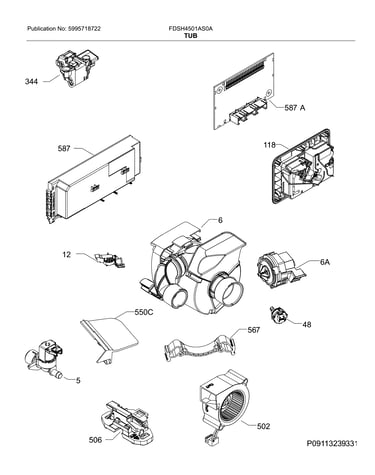

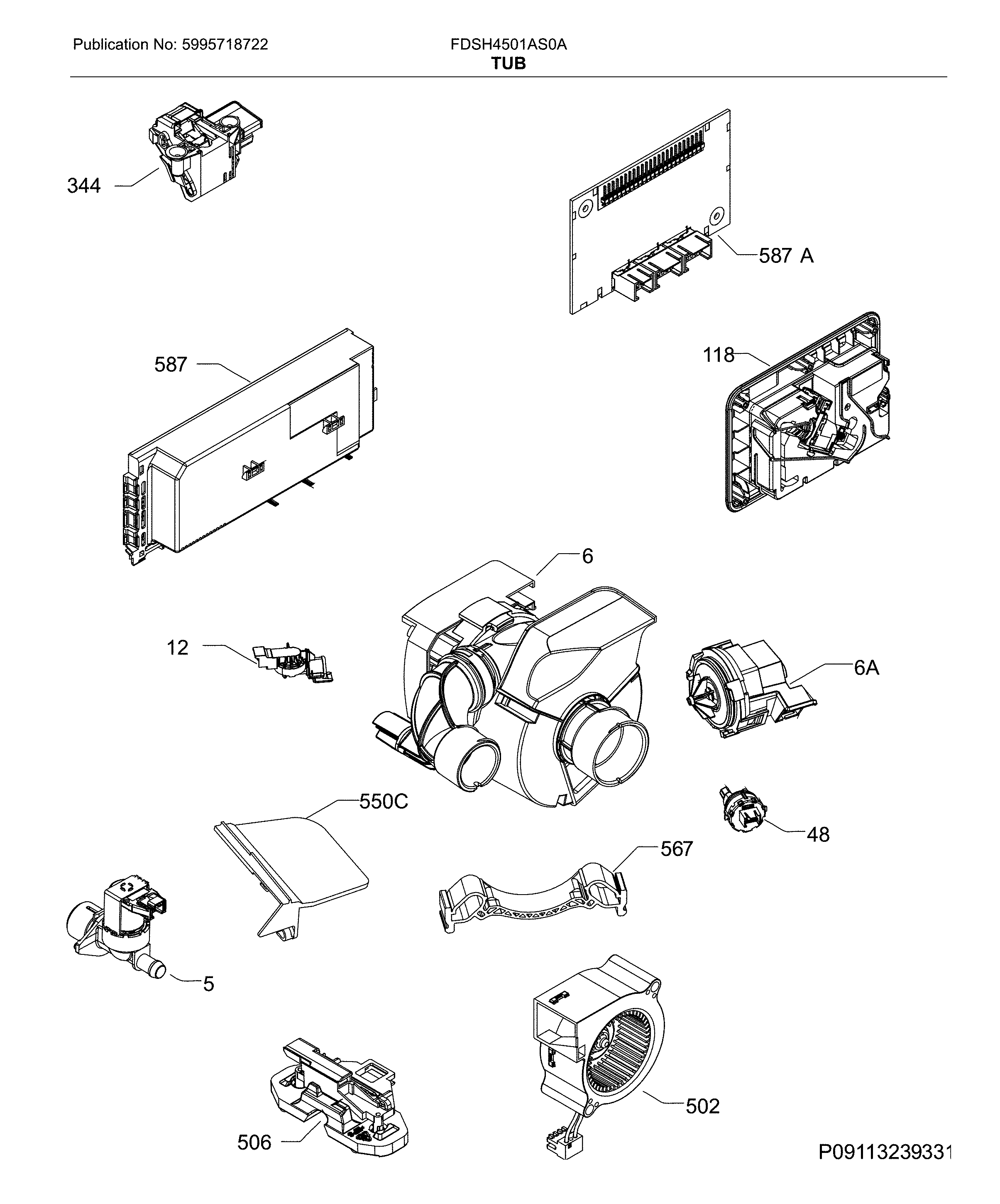

Tub diagram

Dishwasher water inlet valve

Part #807445904

Replaced by #807445905

?
Manufacturer substitution
This part replaces 807445904. Substitute parts can look different from the original.
BEST SELLER
$69.13
In Stock
Dishwasher User Interface A06115601
#587

Tub diagram

Dishwasher user interface

Part #A06115601

BEST SELLER
This item is not returnable
$68.79 |
8% OFF Phone Price : $74.79
In Stock
Dishwasher Control Panel Assembly (black) 117512440
#510

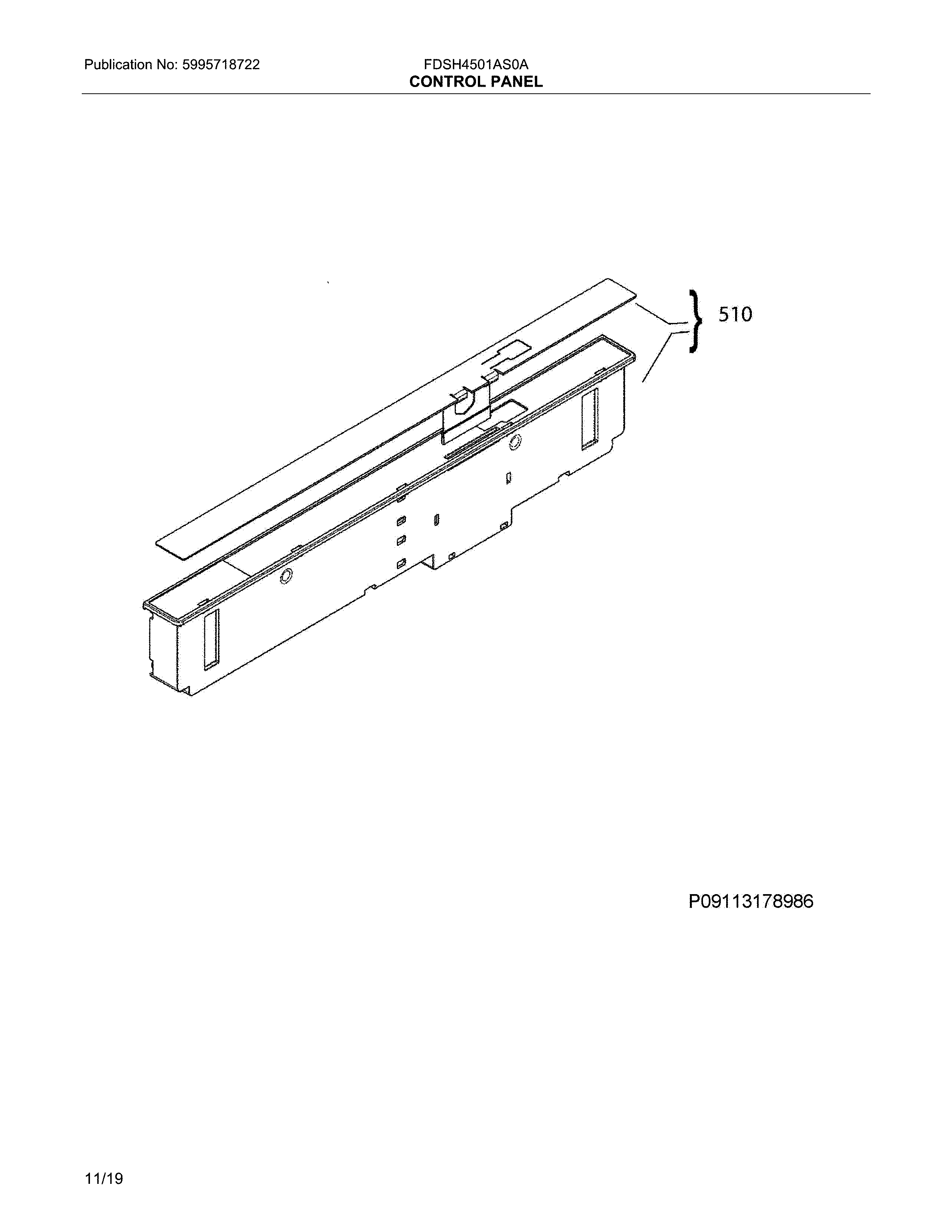

Control diagram

Dishwasher control panel assembly (black)

Part #117512440

BEST SELLER
$224.98 |
5% OFF Phone Price : $236.98
In Stock
Crosley Dishwasher Circulation Pump A10281701
#6

Tub diagram

Crosley dishwasher circulation pump

Part #A10281701

BEST SELLER
$183.53 |
6% OFF Phone Price : $195.53
In Stock
Dishwasher Drain Pump A00044305
#6A

Tub diagram

Dishwasher drain pump

Part #A00044305

$85.03 |
7% OFF Phone Price : $91.03
In Stock
Crosley Dishwasher Door Latch Assembly 111315040
#344

Tub diagram

Crosley dishwasher door latch assembly

Part #111315040

$158.12 |
7% OFF Phone Price : $170.12
In Stock
Dishwasher Turbidity Sensor A00040101
#48

Tub diagram

Dishwasher turbidity sensor

Part #A00040101

Replaced by #A00040106

?
Manufacturer substitution
This part replaces A00040101. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Crosley Dishwasher Blower Assembly A05660402
#502

Tub diagram

Crosley dishwasher blower assembly

Part #A05660402

$106.16
In Stock
Crosley Dishwasher Door Inner Panel A00010702
#311

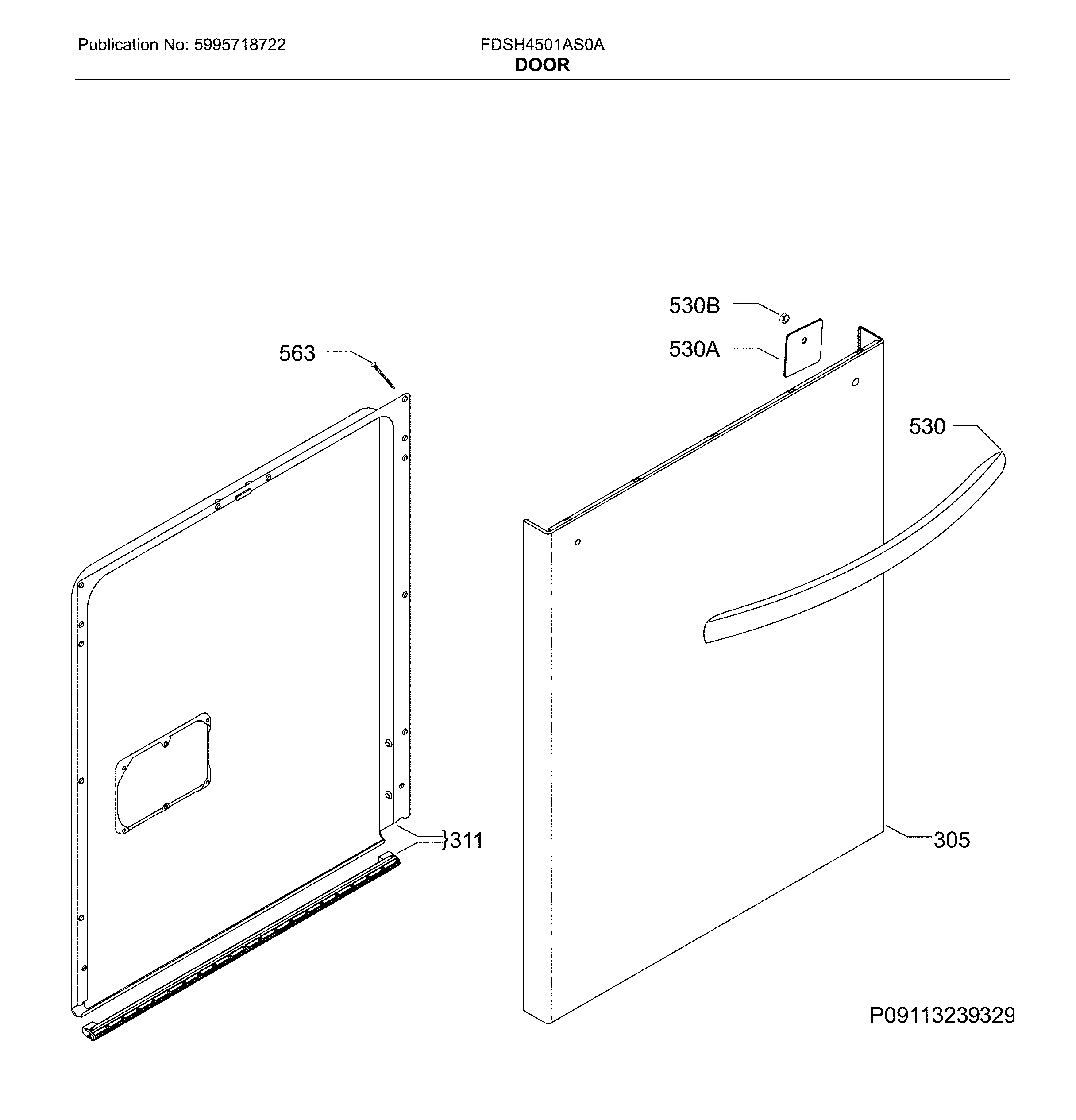

Door diagram

Crosley dishwasher door inner panel

Part #A00010702

$266.29 |
$12.00 OFF Phone Price : $278.29
In Stock
Crosley Spray Arm,middle ,dark Grey A05814602
#139

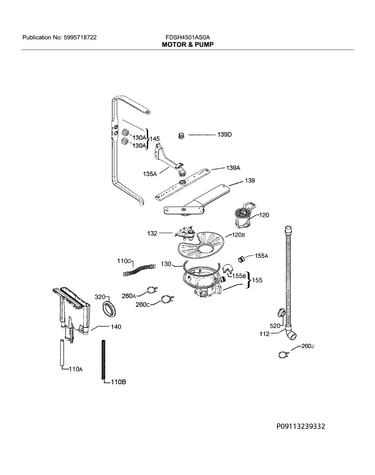

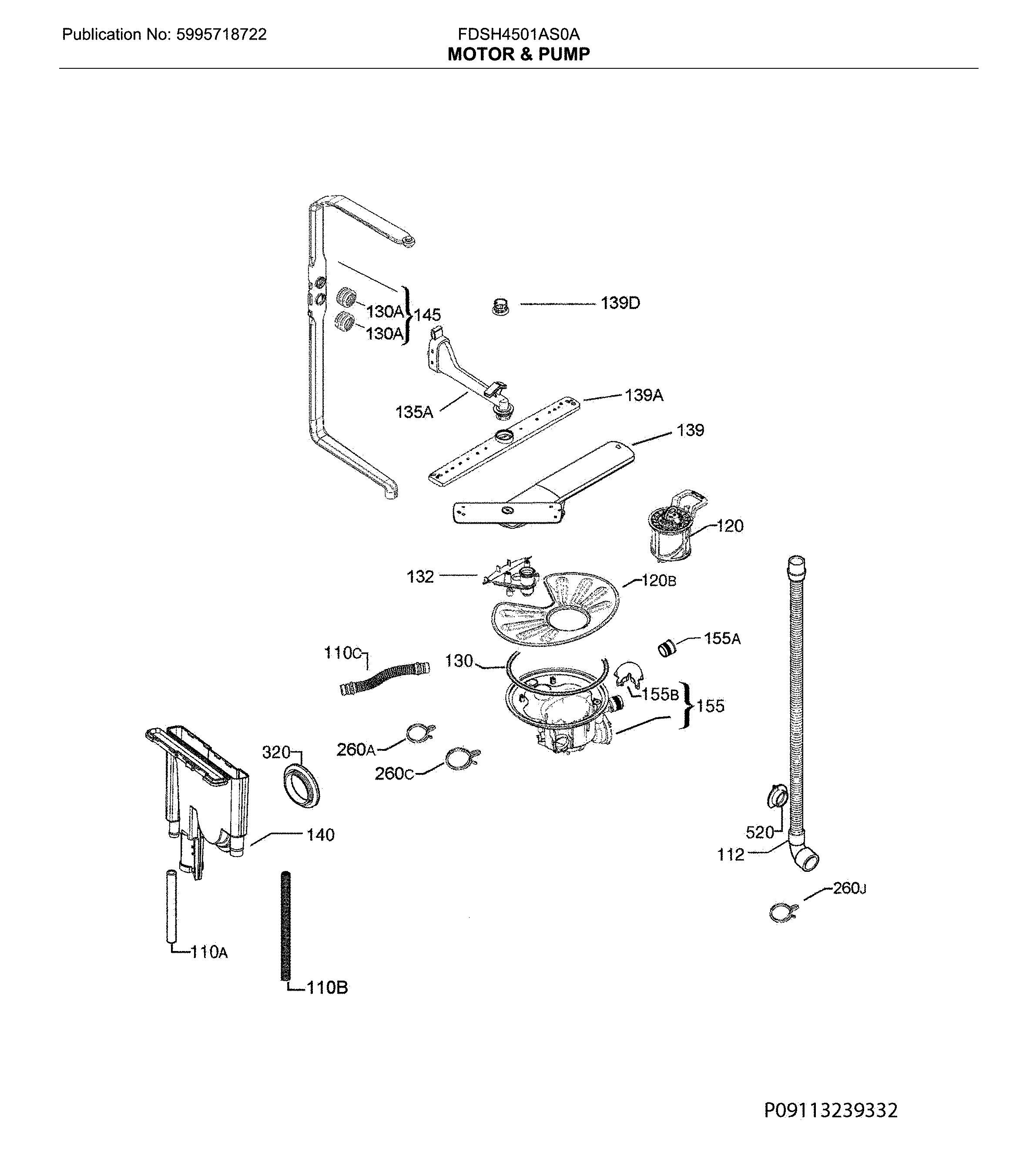

Motor diagram
