Model # D254-O4 Official DeWalt screwdriver deck

Here are the diagrams and repair parts for Official DeWalt D254-O4 screwdriver deck, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
D254-O4 Power Tools
Sears Plug 234900-02
#53

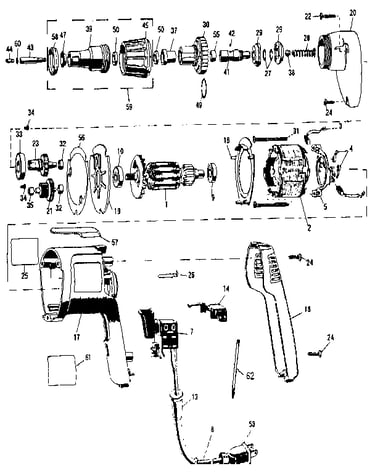

Unit parts diagram

Sears plug

Part #234900-02

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#33

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Ring 89210-00
#27

Unit parts diagram

Black & decker ring

Part #89210-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 330019-16
#22

Unit parts diagram

Black & decker screw

Part #330019-16

The manufacturer no longer makes this part, and there's no substitute part

Sears Screwdriver Clutch 96558-00
#29

Unit parts diagram

Sears screwdriver clutch

Part #96558-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Dust Seal 449890-00
#58

Unit parts diagram

Sears dust seal

Part #449890-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#13

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Sears Spindle 96540-01
#41

Unit parts diagram

Sears spindle

Part #96540-01

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#31

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Retain Ring 450750-00
#49

Unit parts diagram

Black & decker retain ring

Part #450750-00

The manufacturer no longer makes this part, and there's no substitute part
