Model # 70631018 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 70631018 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Tool Chest Drawer, 4-in 1005071-EBK
#7

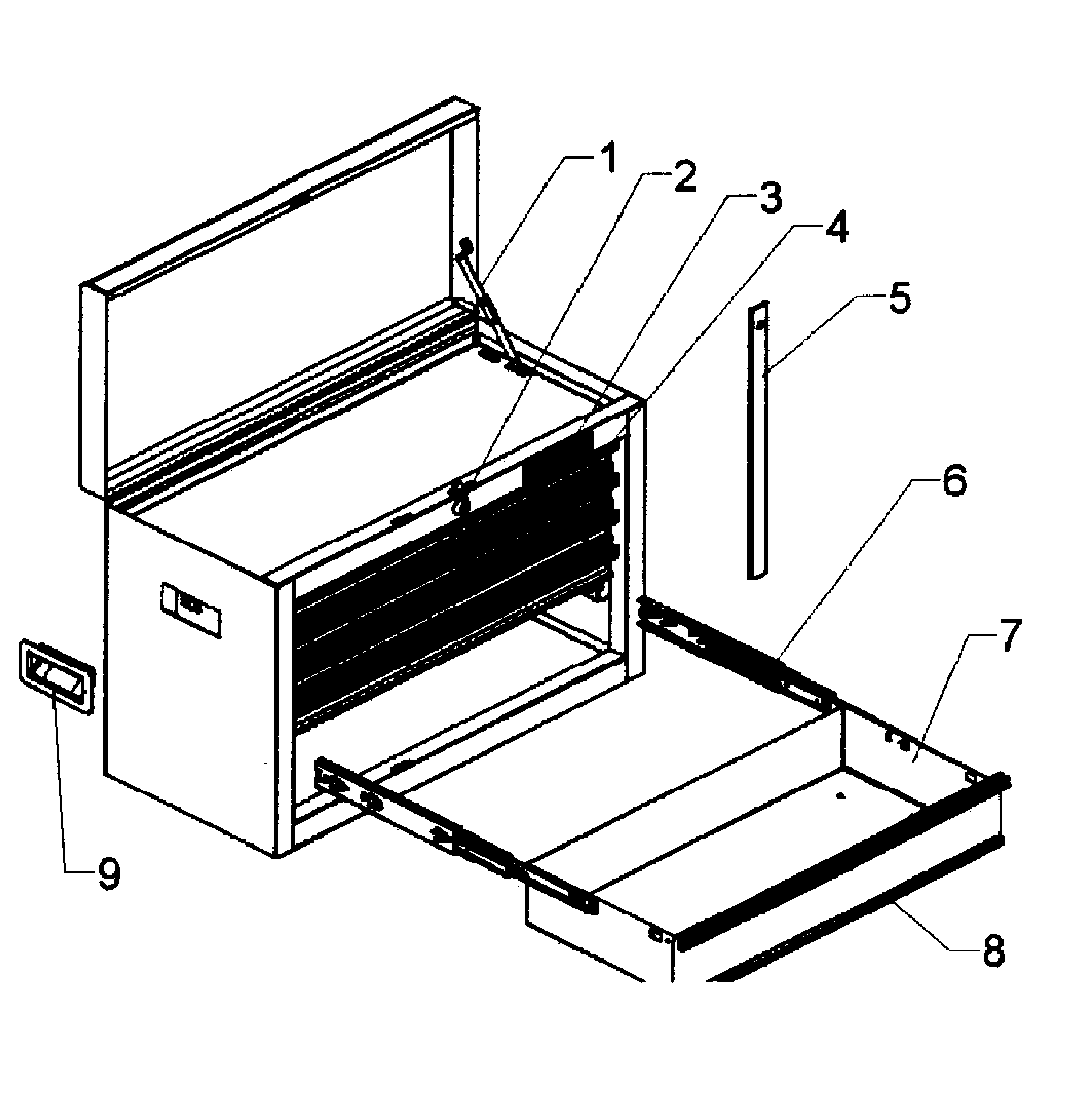

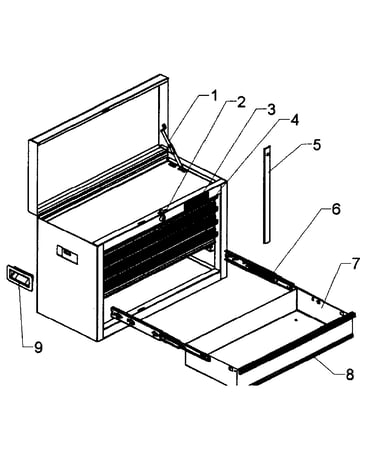

Tool chest diagram

Tool chest drawer, 4-in

Part #1005071-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Bar 19824A2-EBK
#5

Tool chest diagram

Tool chest lock bar

Part #19824A2-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle 27860A1-RF
#9

Tool chest diagram

Tool chest handle

Part #27860A1-RF

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 2-in 1005072-EBK
#4

Tool chest diagram

Tool chest drawer, 2-in

Part #1005072-EBK

The manufacturer no longer makes this part, and there's no substitute part

Cover Stop 1006300
#1

Tool chest diagram

Cover stop

Part #1006300

The manufacturer no longer makes this part, and there's no substitute part

Workbench Drawer Trim 18914A3
#8

Tool chest diagram

Workbench drawer trim

Part #18914A3

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Nameplate (replaces 27194) 1004305
#3

Tool chest diagram

Tool chest nameplate (replaces 27194)

Part #1004305

The manufacturer no longer makes this part, and there's no substitute part

Lock Assembly 12918A36-SS
#2

Tool chest diagram

Lock assembly

Part #12918A36-SS

The manufacturer no longer makes this part, and there's no substitute part

Top Slide 1005980
#6

Tool chest diagram

Top slide

Part #1005980

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Instruction Sheet F1819
#NI

Tool chest diagram

Tool chest instruction sheet

Part #F1819

The manufacturer no longer makes this part, and there's no substitute part
