Countertop Microwave

Model # NN-L639WA Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-L639WA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

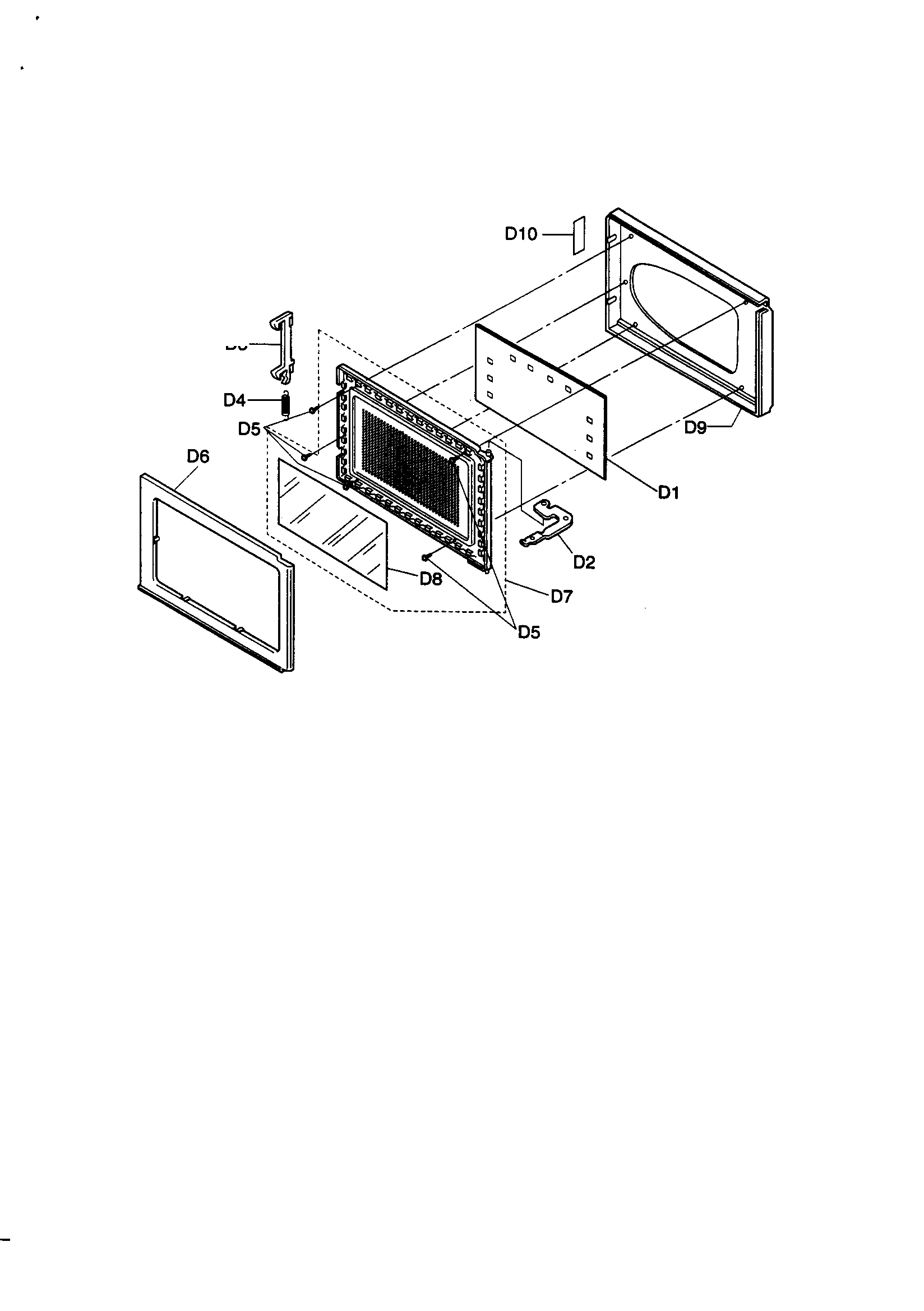

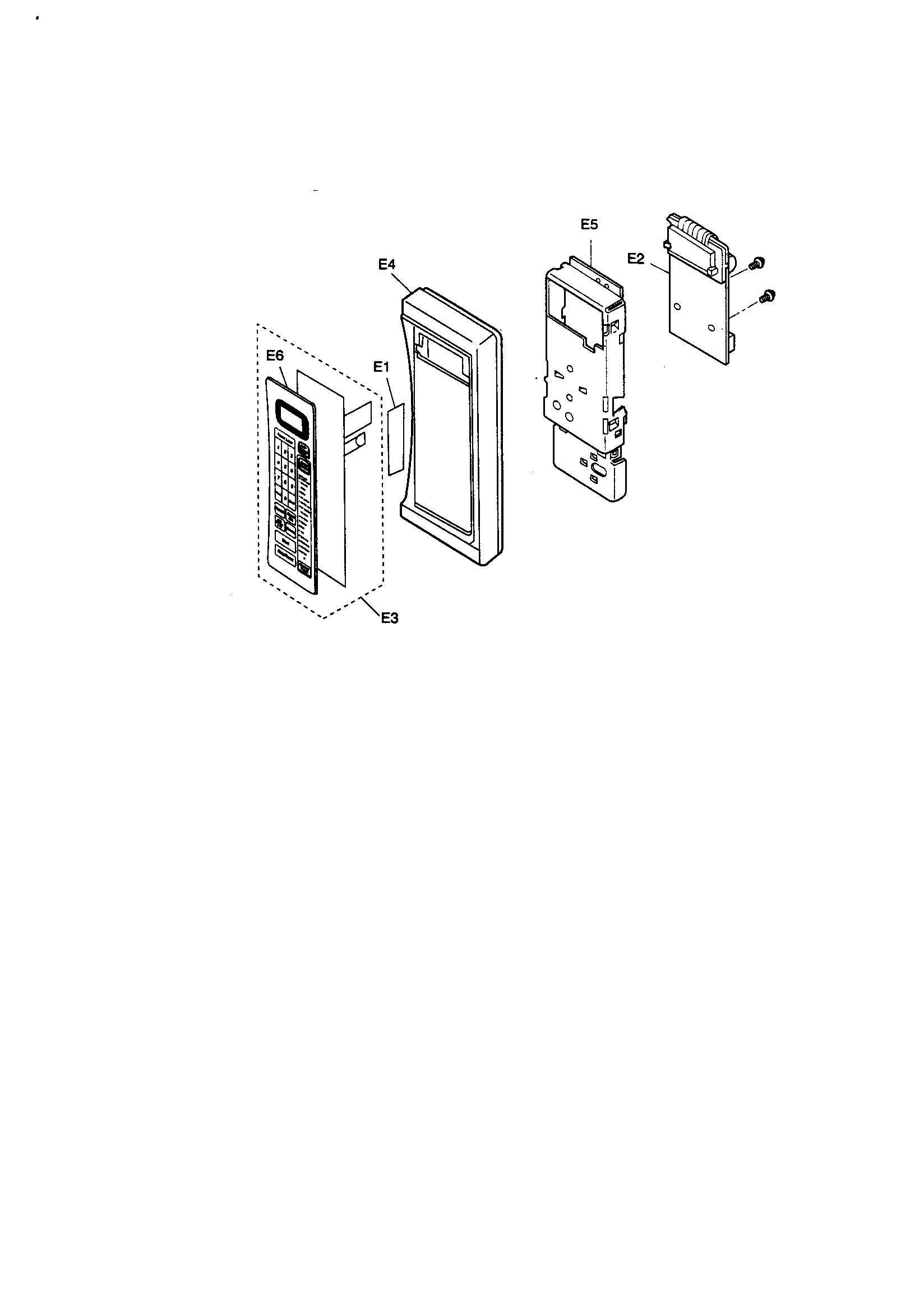

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |

Microwave Turntable Roller B290D9330AP
#17

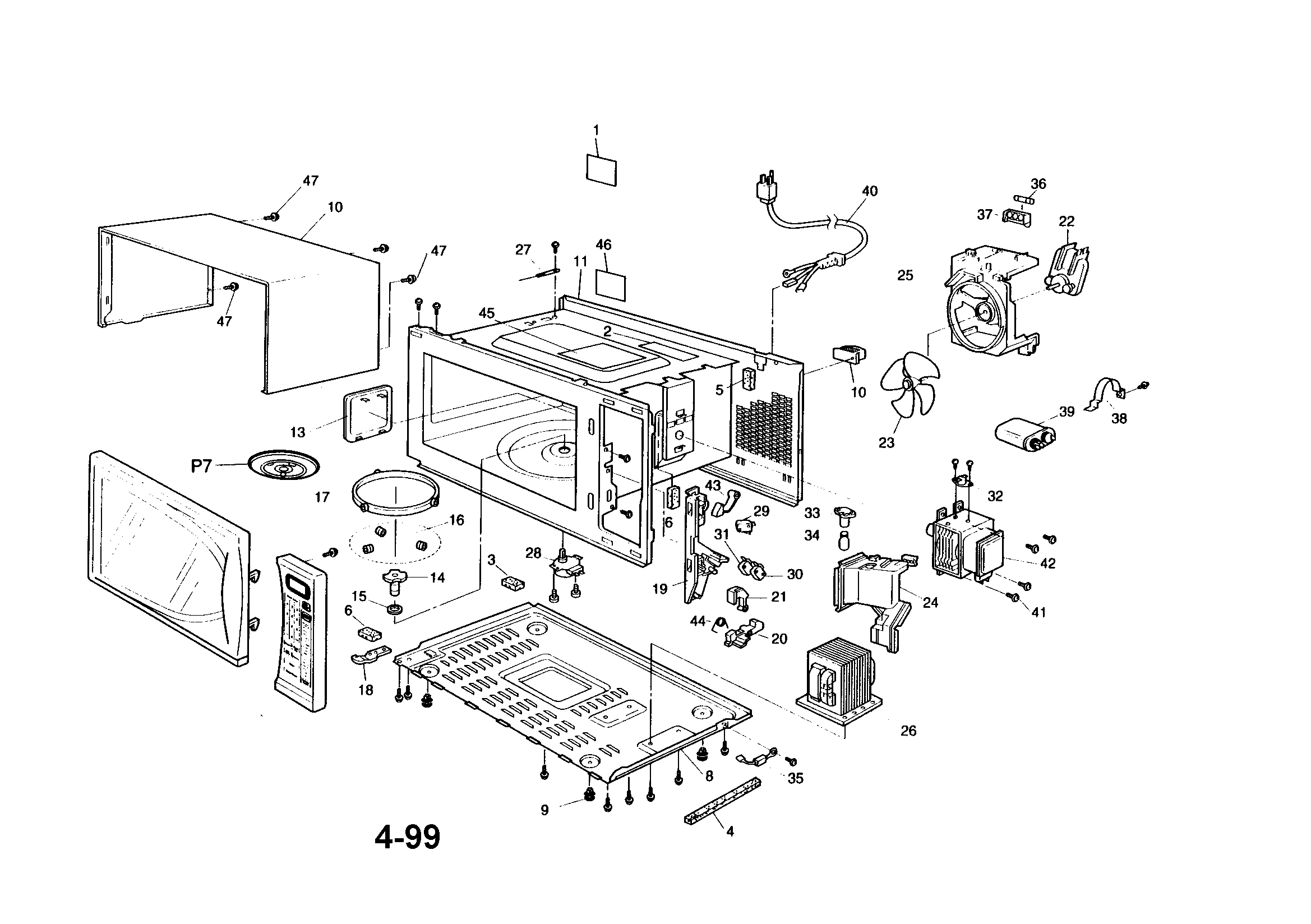

Cabinet/switches diagram

Microwave turntable roller

Part #B290D9330AP

Replaced by #F290D9330AP

?
Manufacturer substitution
This part replaces B290D9330AP. Substitute parts can look different from the original.
$15.79
11% OFF Phone Price : $17.79
In Stock
Capacitor B60905500AP
#39A

Cabinet/switches diagram

Capacitor

Part #B60905500AP

The manufacturer no longer makes this part, and there's no substitute part

Switch A61785180AP
#31

Cabinet/switches diagram

Switch

Part #A61785180AP

Replaced by #501213

?
Manufacturer substitution
This part replaces A61785180AP. Substitute parts can look different from the original.
$7.69
12% OFF Phone Price : $8.69
In Stock
Panasonic Screw XTTANE4T12A0
#47

Cabinet/switches diagram

Panasonic screw

Part #XTTANE4T12A0

This item is not returnable
In Stock
Panasonic Label B00338290AP
#2

Cabinet/switches diagram

Panasonic label

Part #B00338290AP

This item is not returnable
In Stock
Panasonic Cushion AMQ0902000BA
#3

Cabinet/switches diagram

Panasonic cushion

Part #AMQ0902000BA

This item is not returnable
In Stock
Panasonic Shaft B21315540AP
#14

Cabinet/switches diagram

Panasonic shaft

Part #B21315540AP

In Stock
Panasonic Motor B63264080AP
#28

Cabinet/switches diagram

Panasonic motor

Part #B63264080AP

In Stock
Panasonic Spring J3097-1480
#44

Cabinet/switches diagram

Panasonic spring

Part #J3097-1480

This item is not returnable
In Stock
Panasonic Spacer B3138-1480
#21

Cabinet/switches diagram

Panasonic spacer

Part #B3138-1480

This item is not returnable
In Stock
