Goldstar
Microwave/Hood Combo

Model # MV-1515B Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1515B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

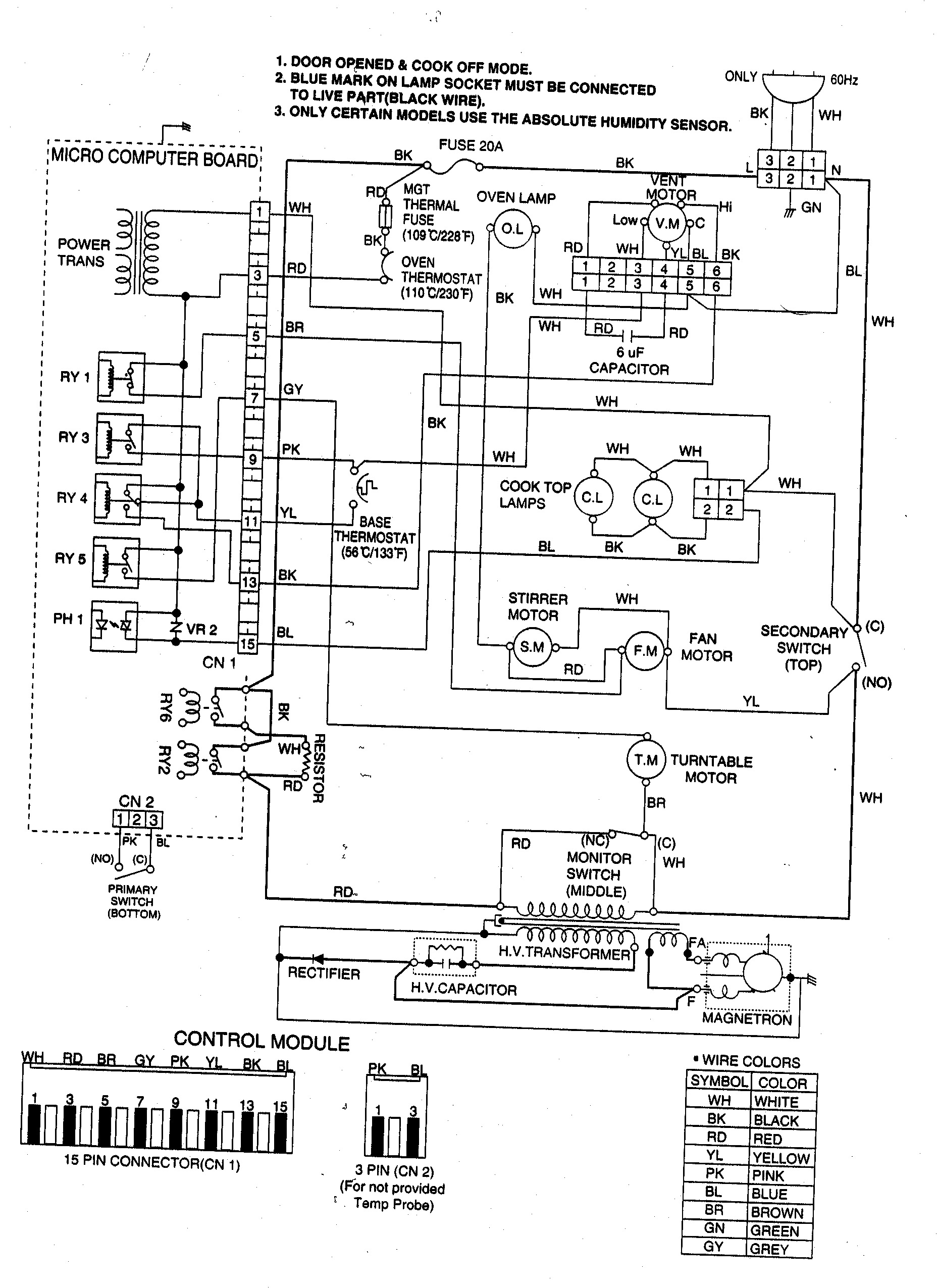

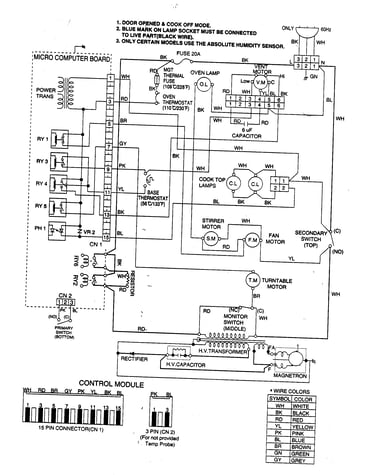

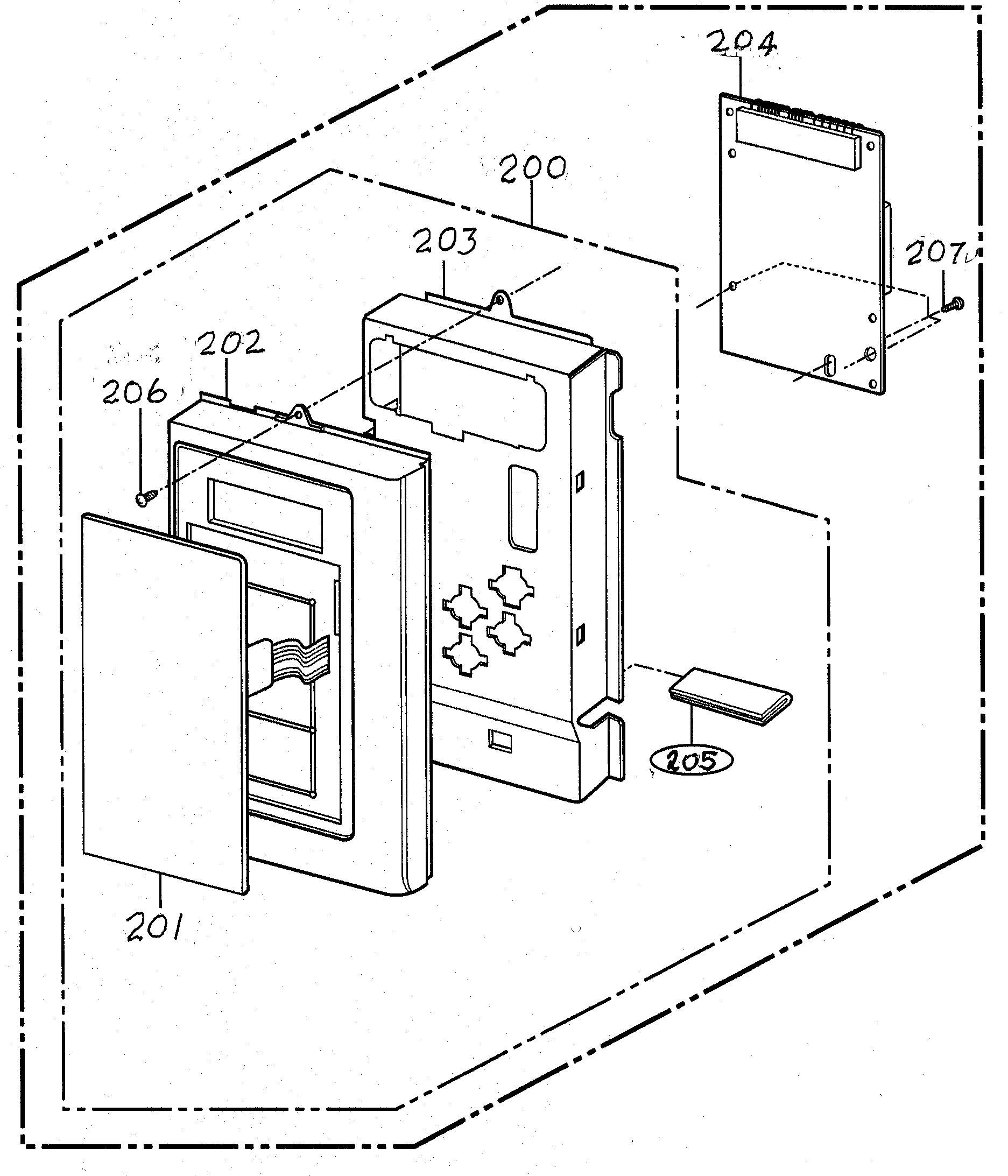

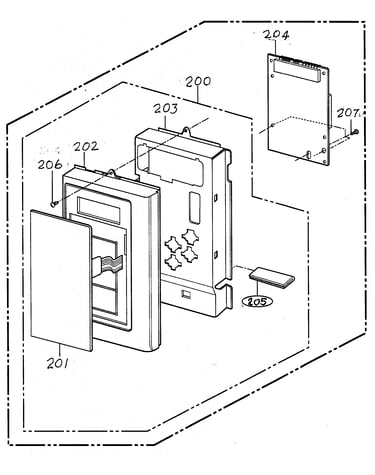

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
High-voltage Diode 6021W3B001A
#509

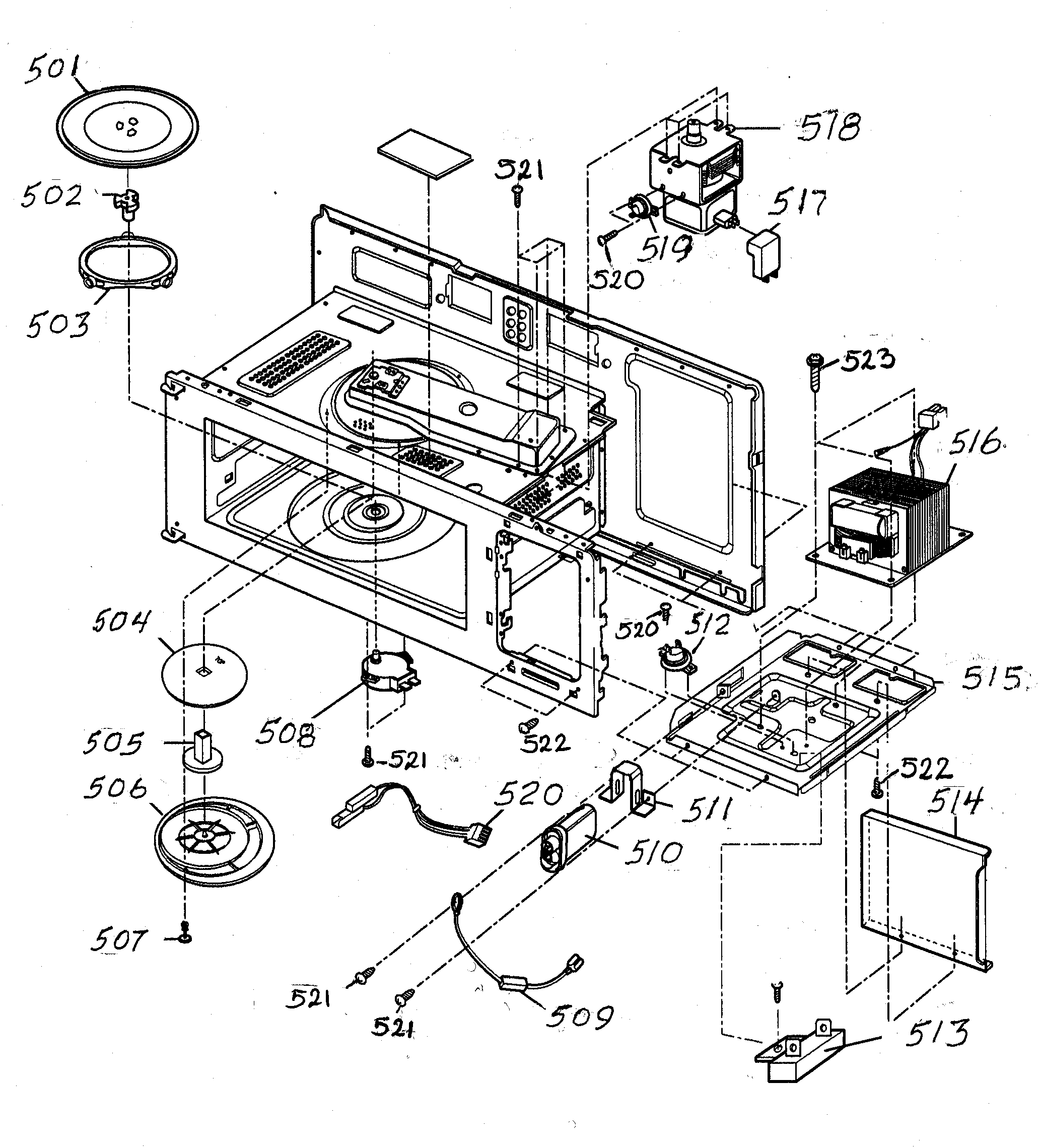

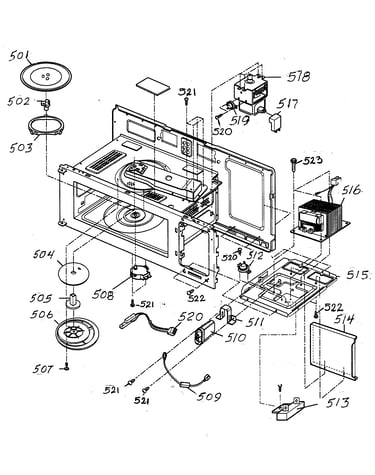

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001A

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#510

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Grease Filter 2B72705B
#303

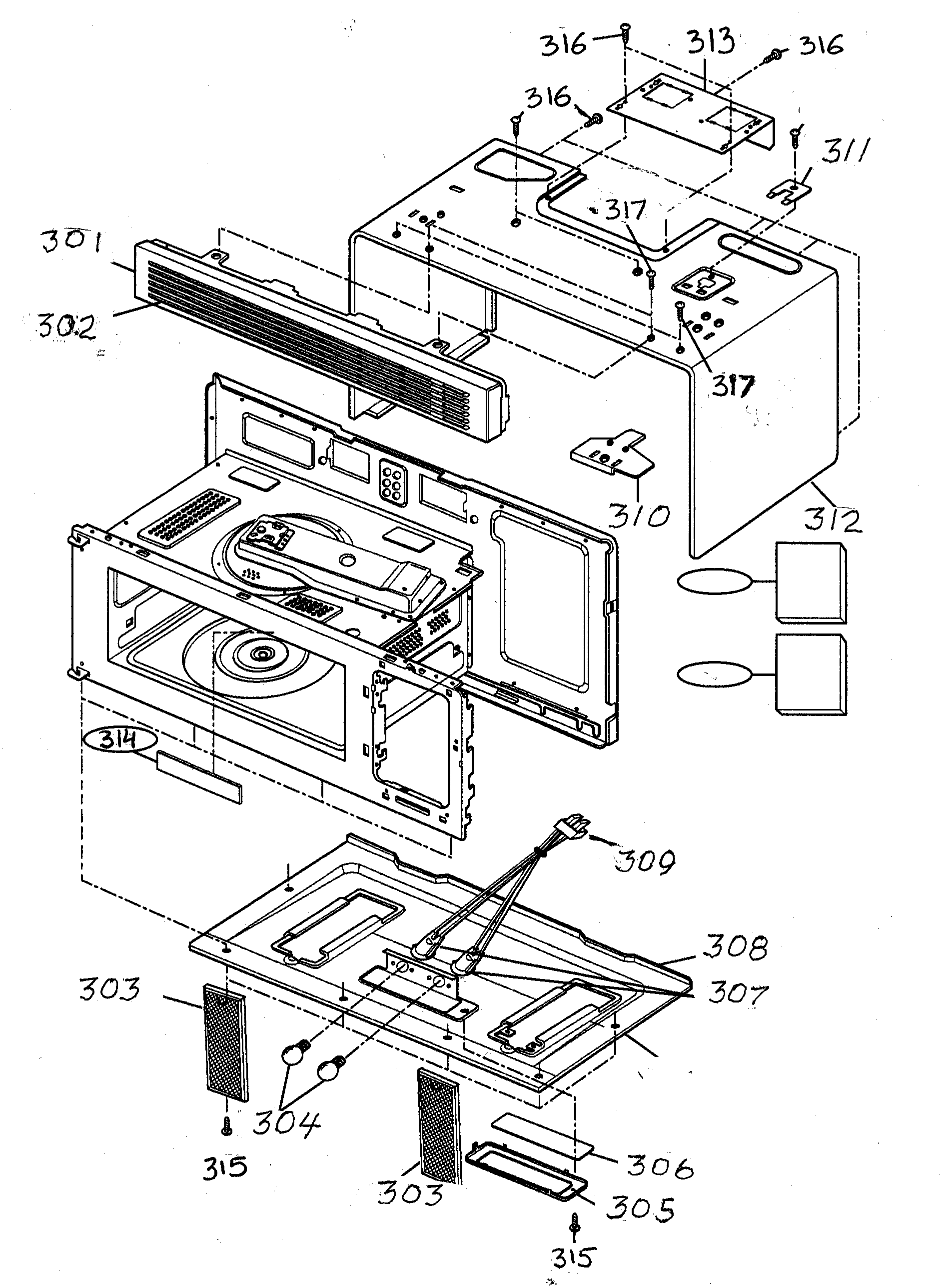

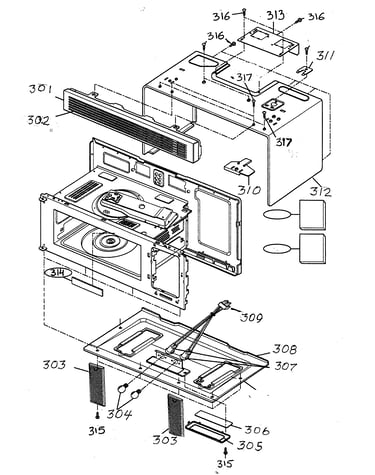

Oven cavity diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$9.84 |
9% OFF Phone Price : $10.84
In Stock
Microwave Door Interlock Switch 3B73361E
#403

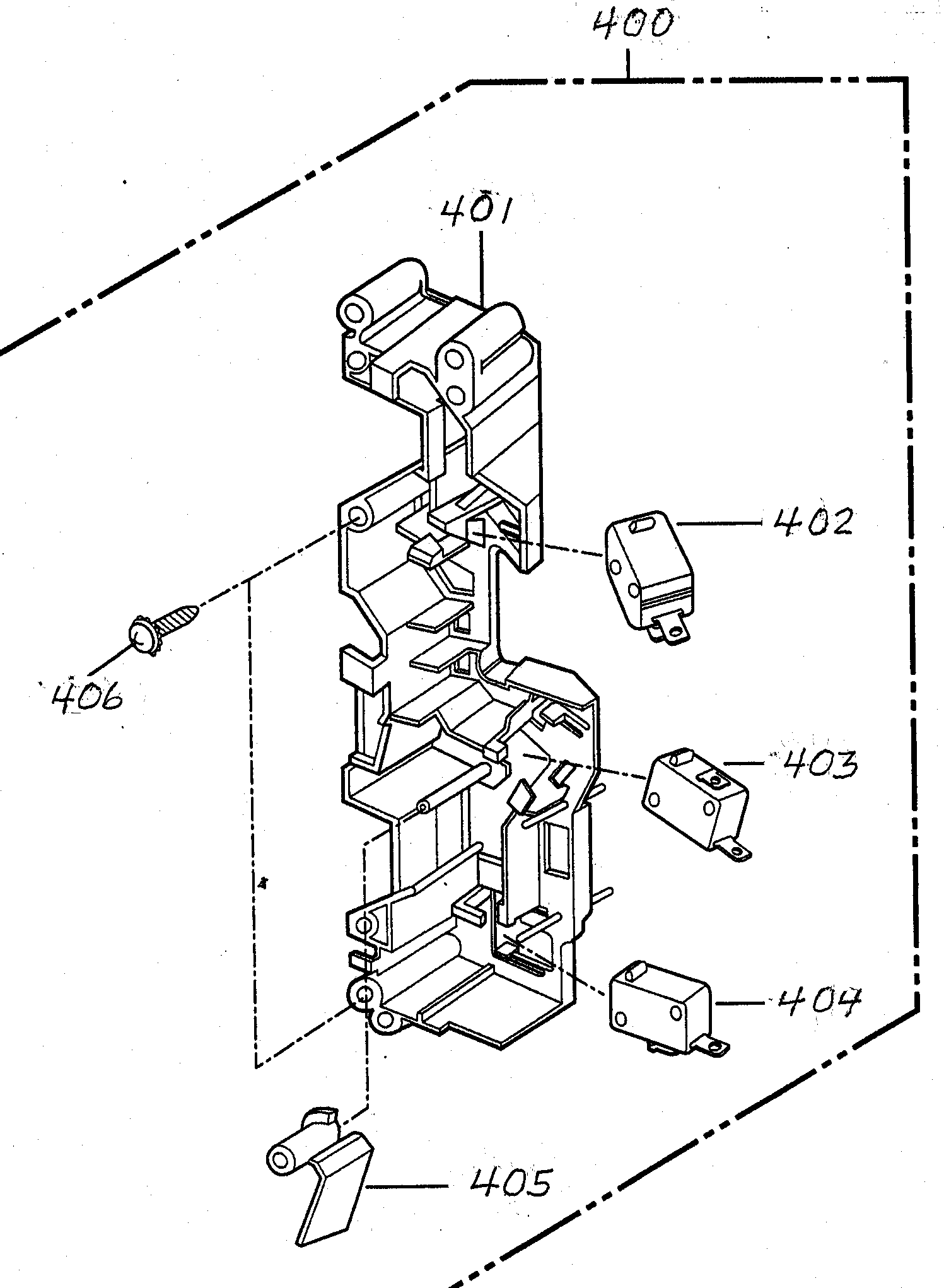

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.12 |
14% OFF Phone Price : $14.12
In Stock
Oven Lamp 6912W3Q001A
Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.34 |
10% OFF Phone Price : $10.34
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#614

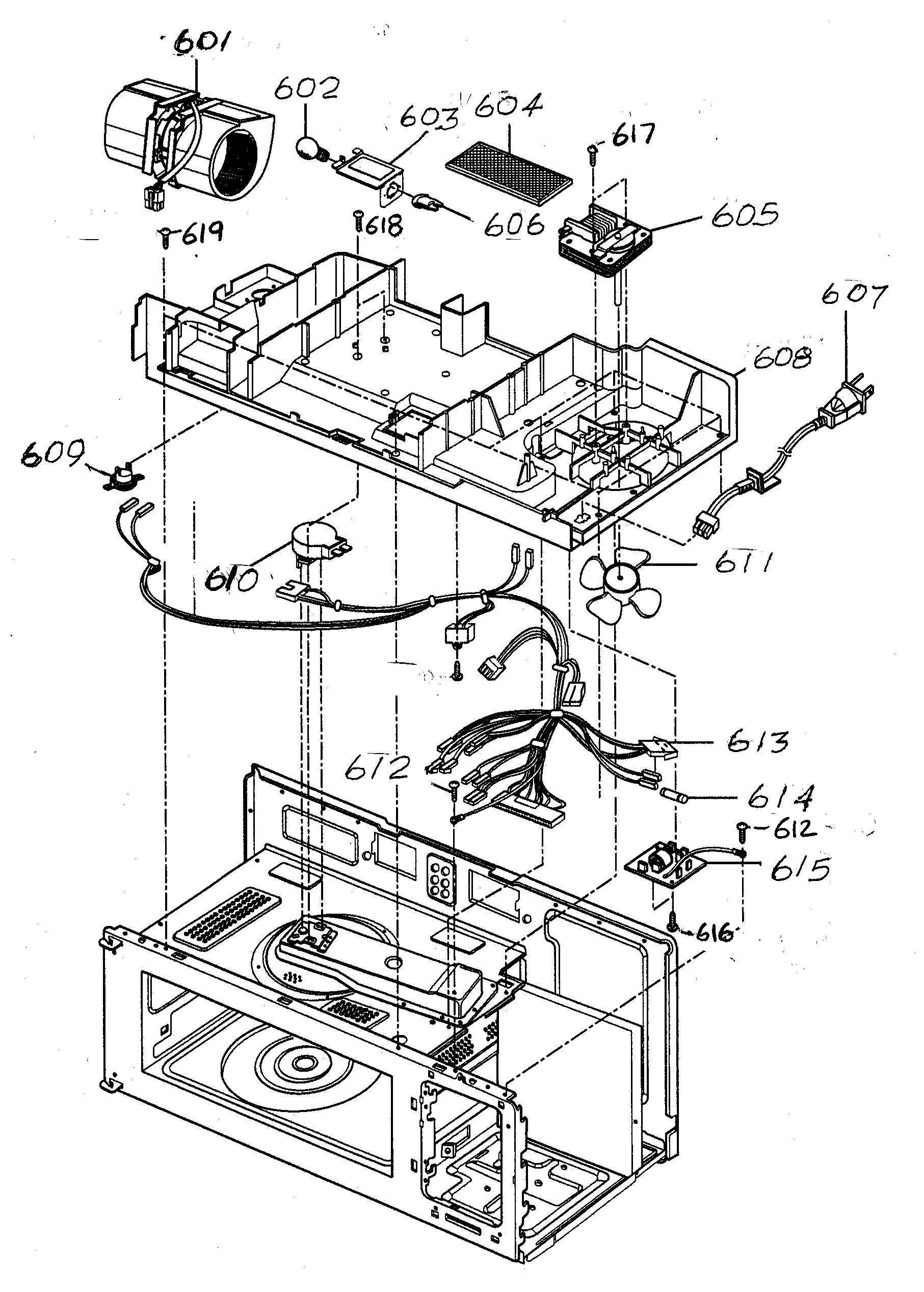

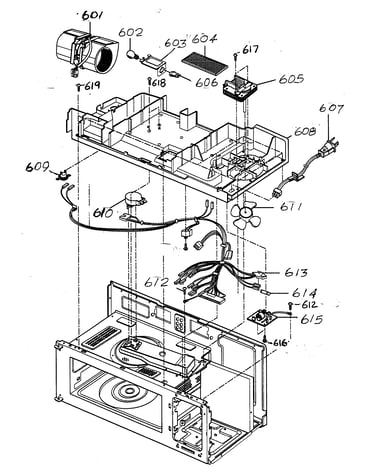

Interior parts 2 diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Glass Turntable Tray 1B71961E
#501

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961E

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Door Latch Hook 4026W2A015A
#107

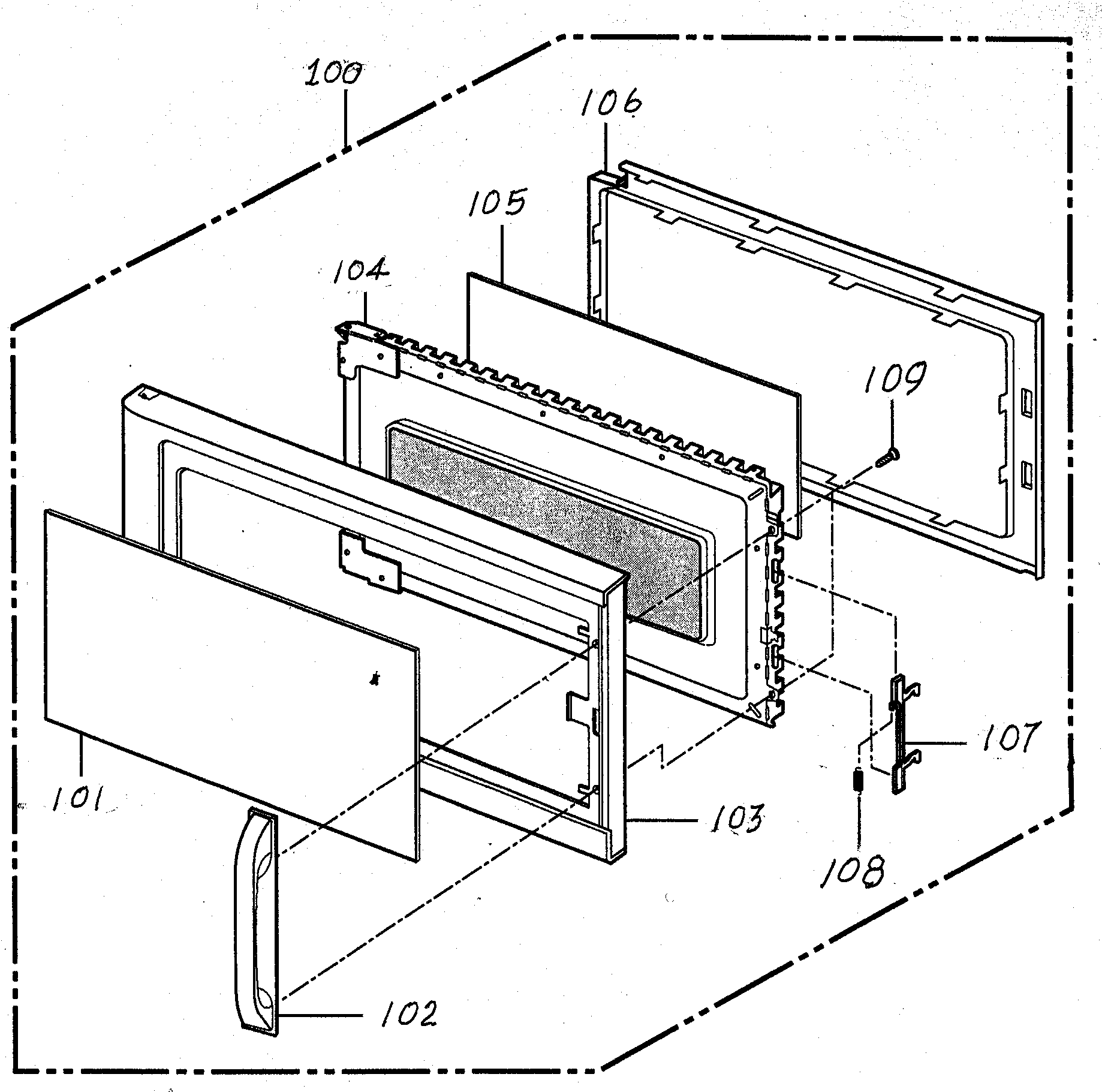

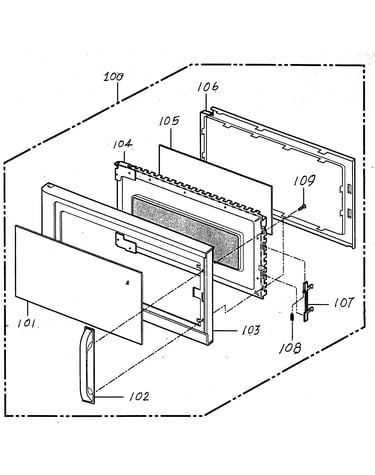

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Ge Microwave Micro-switch (replaces 46-692286-3) 3B73362F
Ge microwave micro-switch (replaces 46-692286-3)

Part #3B73362F

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Damper 3B71432A
#702

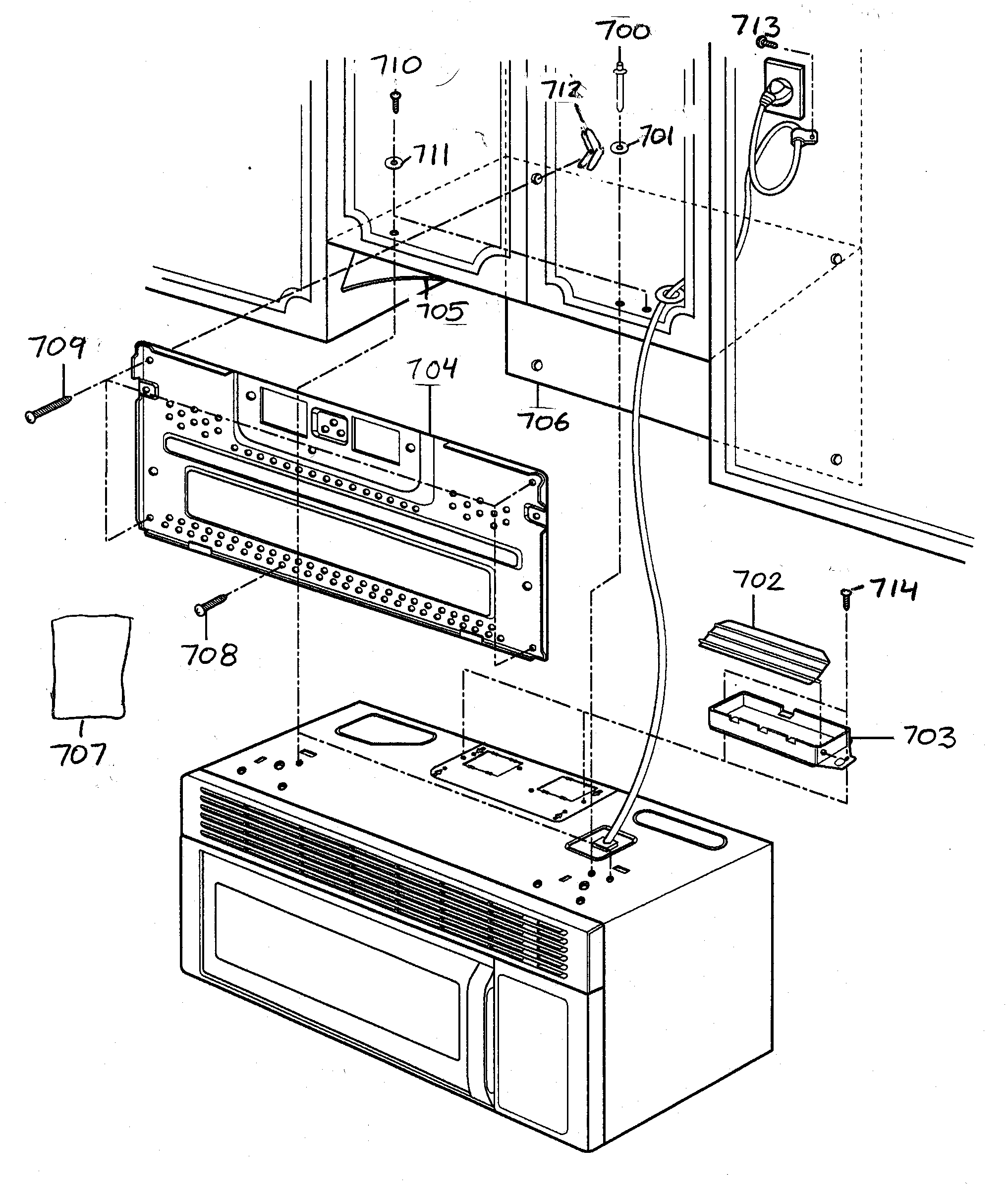

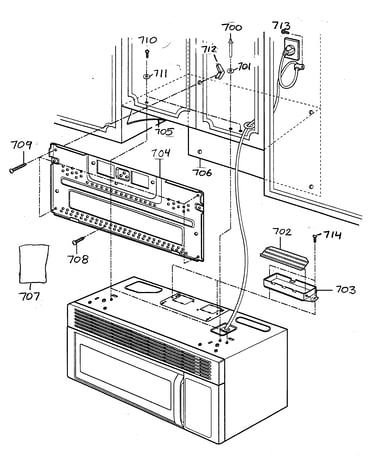

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
