Model # 400649200 Official Kenmore slow cooker

Here are the diagrams and repair parts for Official Kenmore 400649200 slow cooker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

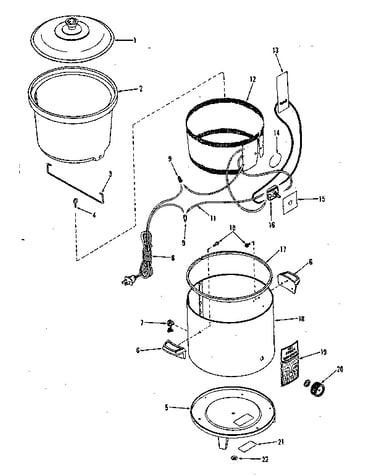

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Eye Bolt 3629-444-0000
#4

Replacement parts diagram

Eye bolt

Part #3629-444-0000

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 3056-444-0000
#11

Replacement parts diagram

Lead wire

Part #3056-444-0000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Insert 3198-449-0010
#21

Replacement parts diagram

Kenmore insert

Part #3198-449-0010

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut 4203-008-3210
#22

Replacement parts diagram

Pal nut

Part #4203-008-3210

The manufacturer no longer makes this part, and there's no substitute part

Presto Twist-on Wire Connector 3125-451-0000
#9

Replacement parts diagram

Presto twist-on wire connector

Part #3125-451-0000

The manufacturer no longer makes this part, and there's no substitute part

Proctor Silex Strain Relief 3083-822-0500
#7

Replacement parts diagram

Proctor silex strain relief

Part #3083-822-0500

The manufacturer no longer makes this part, and there's no substitute part

Glass Cover 3510-444-0000
#1

Replacement parts diagram

Glass cover

Part #3510-444-0000

The manufacturer no longer makes this part, and there's no substitute part

Wire Mount 3528-444-0000
#3

Replacement parts diagram

Wire mount

Part #3528-444-0000

The manufacturer no longer makes this part, and there's no substitute part

Insulator 3533-448-0000
#15

Replacement parts diagram

Insulator

Part #3533-448-0000

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610802
#10

Replacement parts diagram

Screw

Part #STD610802

The manufacturer no longer makes this part, and there's no substitute part
