Bosch
Gas Range

Model # HGS432UC/01 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HGS432UC-01 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

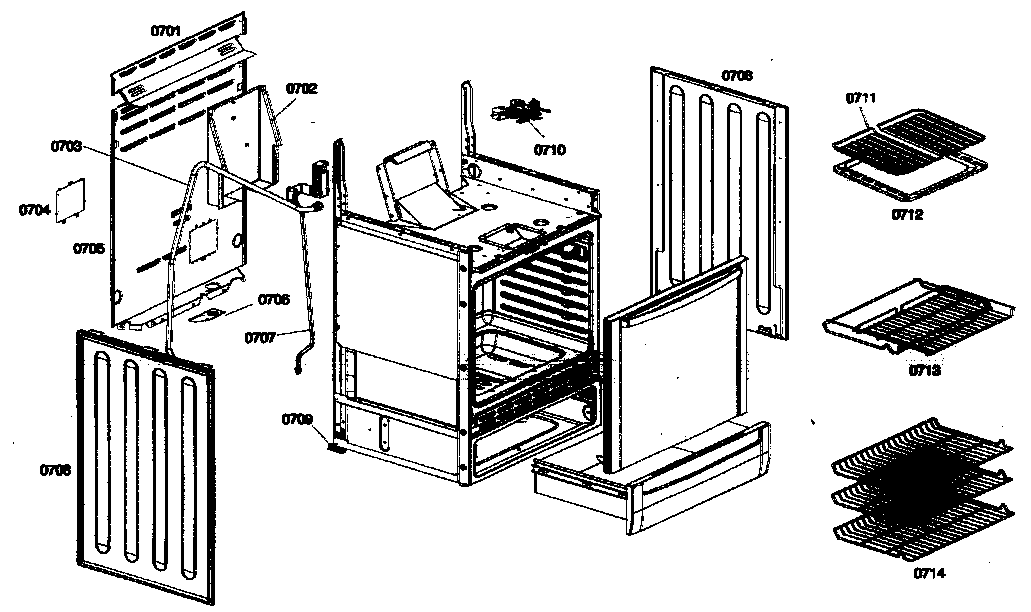

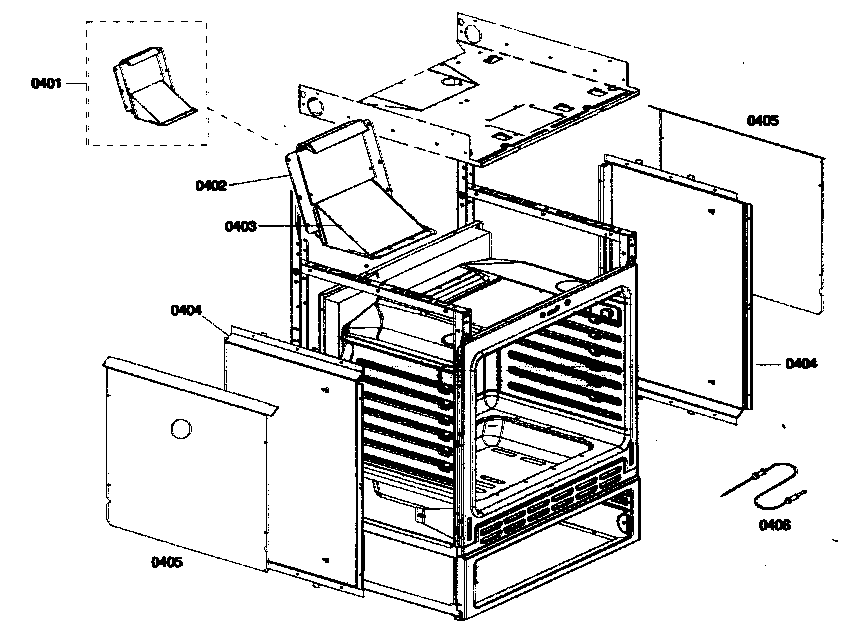

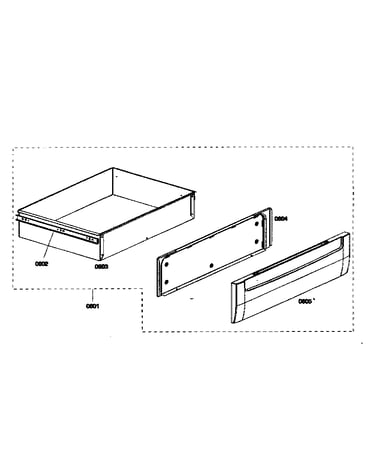

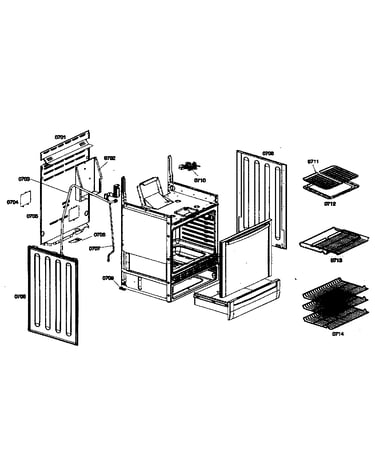

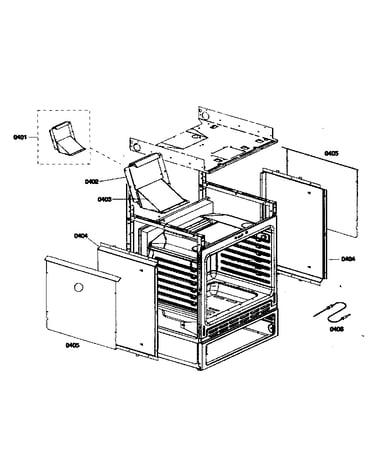

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Igniter 492431
#309

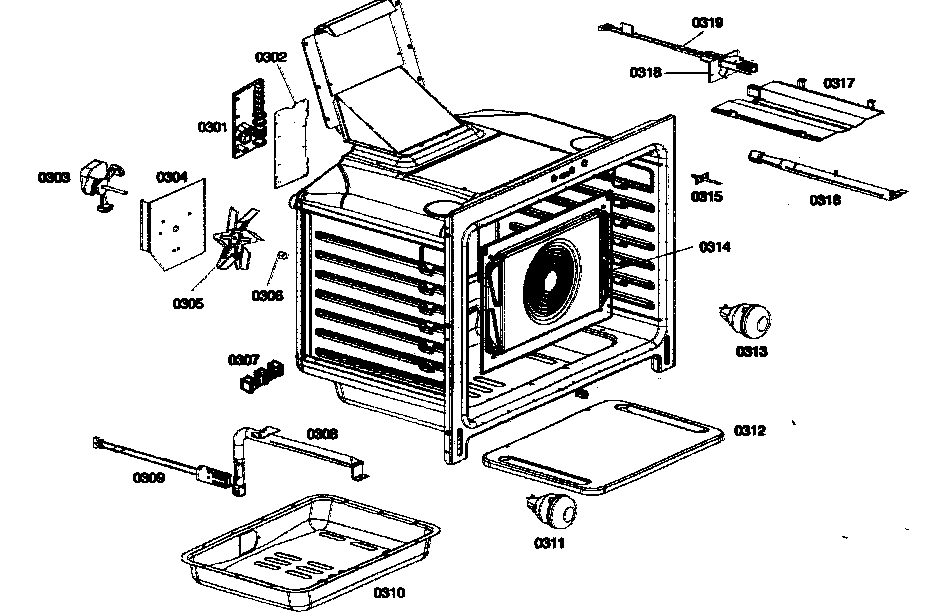

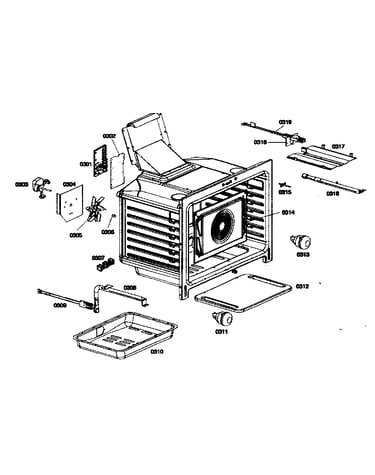

Oven cabinet parts diagram

Igniter

Part #492431

The manufacturer no longer makes this part, and there's no substitute part

Burner Housing 423446
#113

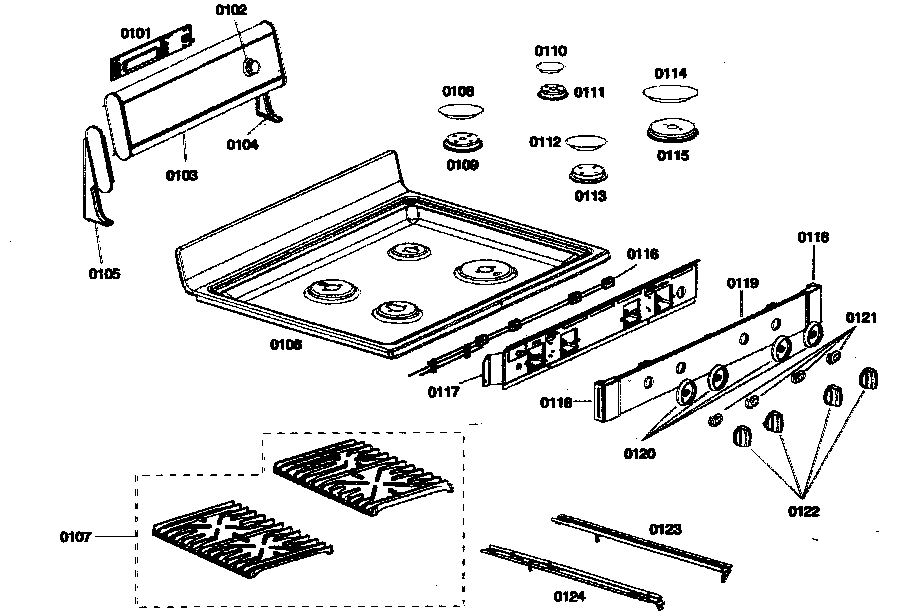

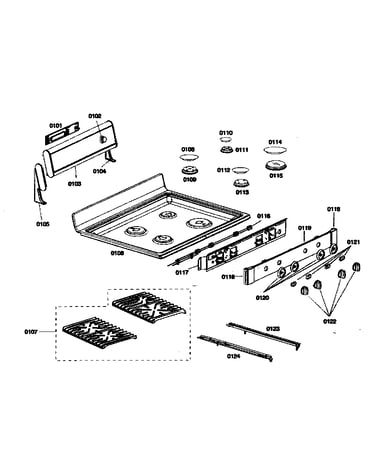

Cook top diagram

Burner housing

Part #423446

Replaced by #00423446

?
Manufacturer substitution
This part replaces 423446. Substitute parts can look different from the original.
$51.96
In Stock
Jet Holder 423486
#201

Valves diagram

Jet holder

Part #423486

Replaced by #00423486

?
Manufacturer substitution
This part replaces 423486. Substitute parts can look different from the original.
$59.62
In Stock
Jet Holder 423485
#204

Valves diagram

Jet holder

Part #423485

Replaced by #00423485

?
Manufacturer substitution
This part replaces 423485. Substitute parts can look different from the original.
$60.22
In Stock
Jet Holder 423487
#202

Valves diagram

Jet holder

Part #423487

Replaced by #00423487

?
Manufacturer substitution
This part replaces 423487. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Hinge 491539
#505

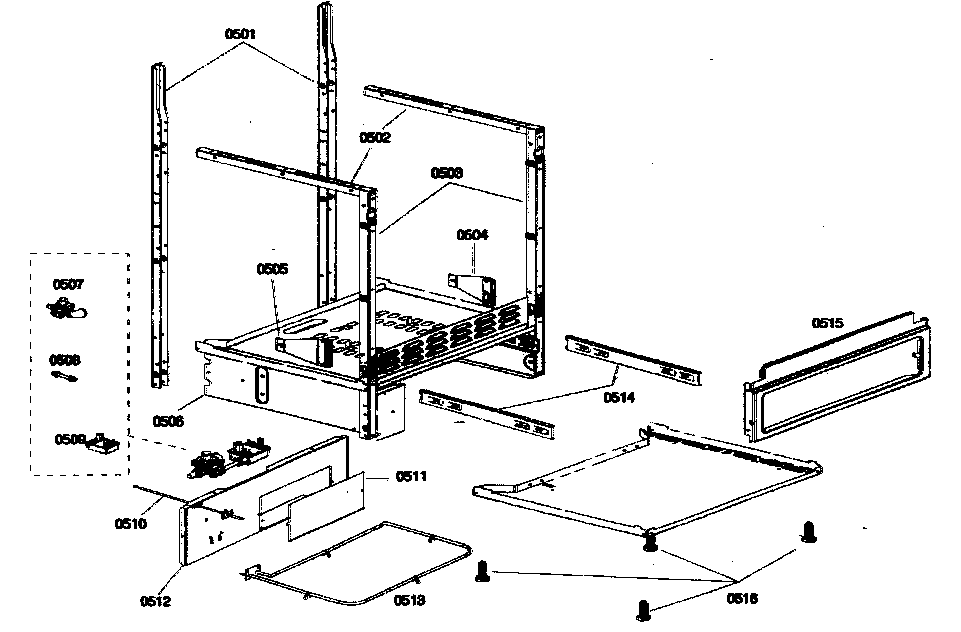

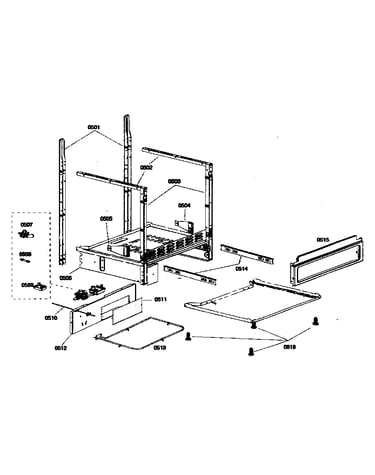

Base assy diagram

Hinge

Part #491539

Replaced by #00491539

?
Manufacturer substitution
This part replaces 491539. Substitute parts can look different from the original.
$43.62
In Stock
Burner Housing 423442
#111

Cook top diagram

Burner housing

Part #423442

Replaced by #00423442

?
Manufacturer substitution
This part replaces 423442. Substitute parts can look different from the original.
$62.24
In Stock
Oven Lamp Assembly 415045
#311

Oven cabinet parts diagram

Oven lamp assembly

Part #415045

Replaced by #00415045

?
Manufacturer substitution
This part replaces 415045. Substitute parts can look different from the original.
$79.29 |
7% OFF Phone Price : $85.29
In Stock
Oven Glass 436379
#804

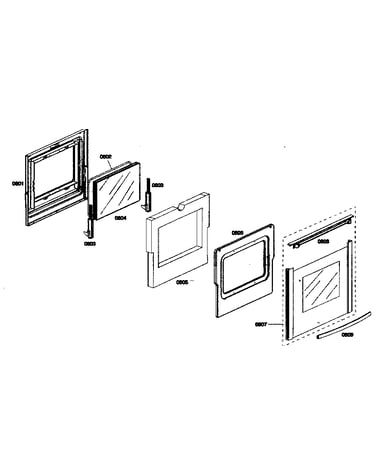

Door assy diagram

Oven glass

Part #436379

Replaced by #00436379

?
Manufacturer substitution
This part replaces 436379. Substitute parts can look different from the original.
$174.99 |
6% OFF Phone Price : $186.99
In Stock
Range Right Front Orifice Holder Assembly 423488
#203

Valves diagram

Range right front orifice holder assembly

Part #423488

Replaced by #00423488

?
Manufacturer substitution
This part replaces 423488. Substitute parts can look different from the original.
$91.16
In Stock
