GE
Top-Mount Refrigerator

Model # TBX21JASCRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBX21JASCRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

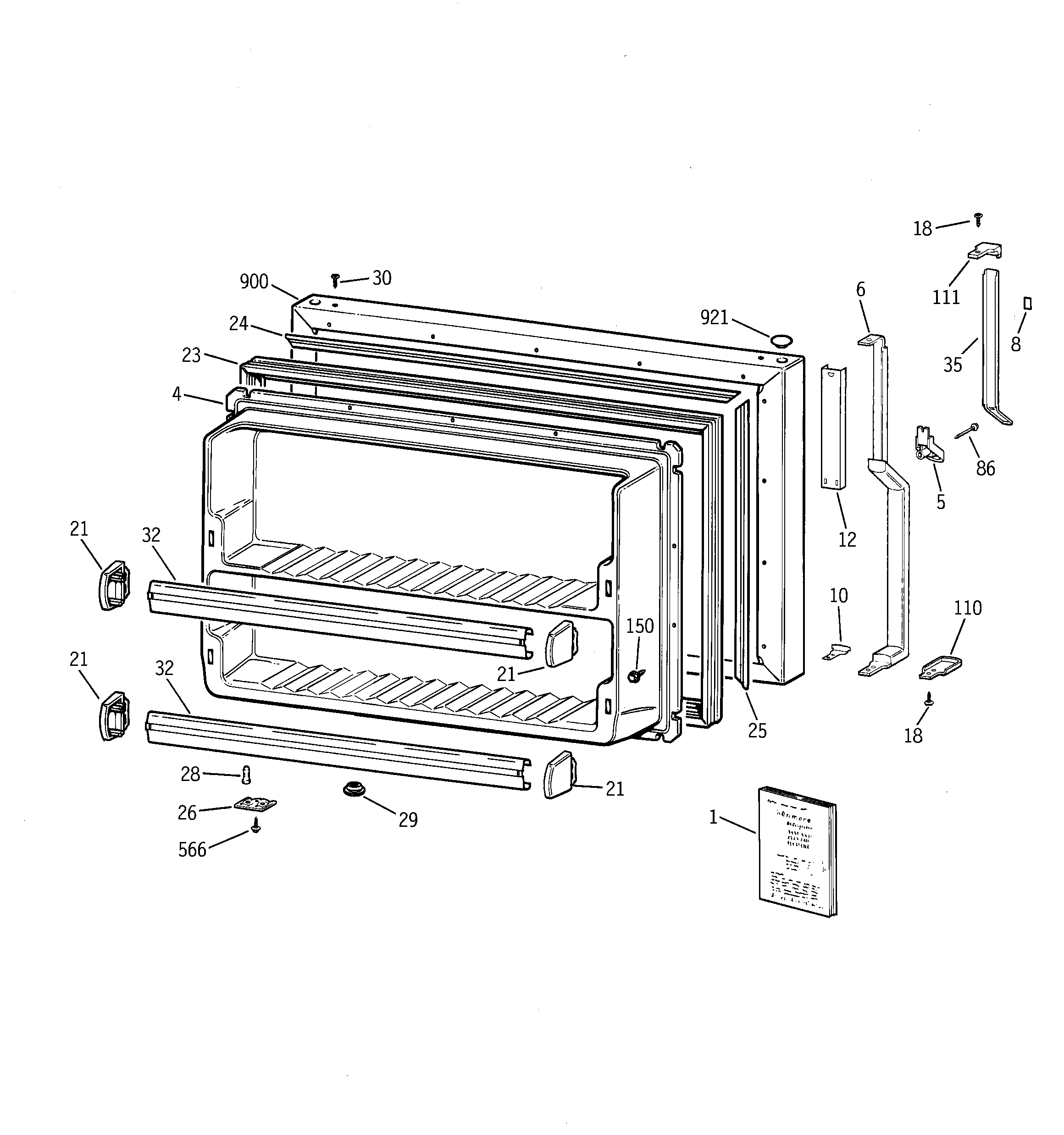

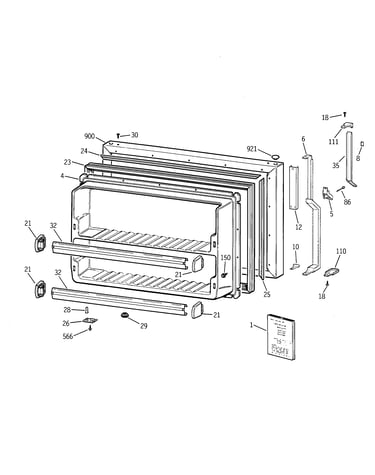

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Dryer Assembly WR86X0086
#740

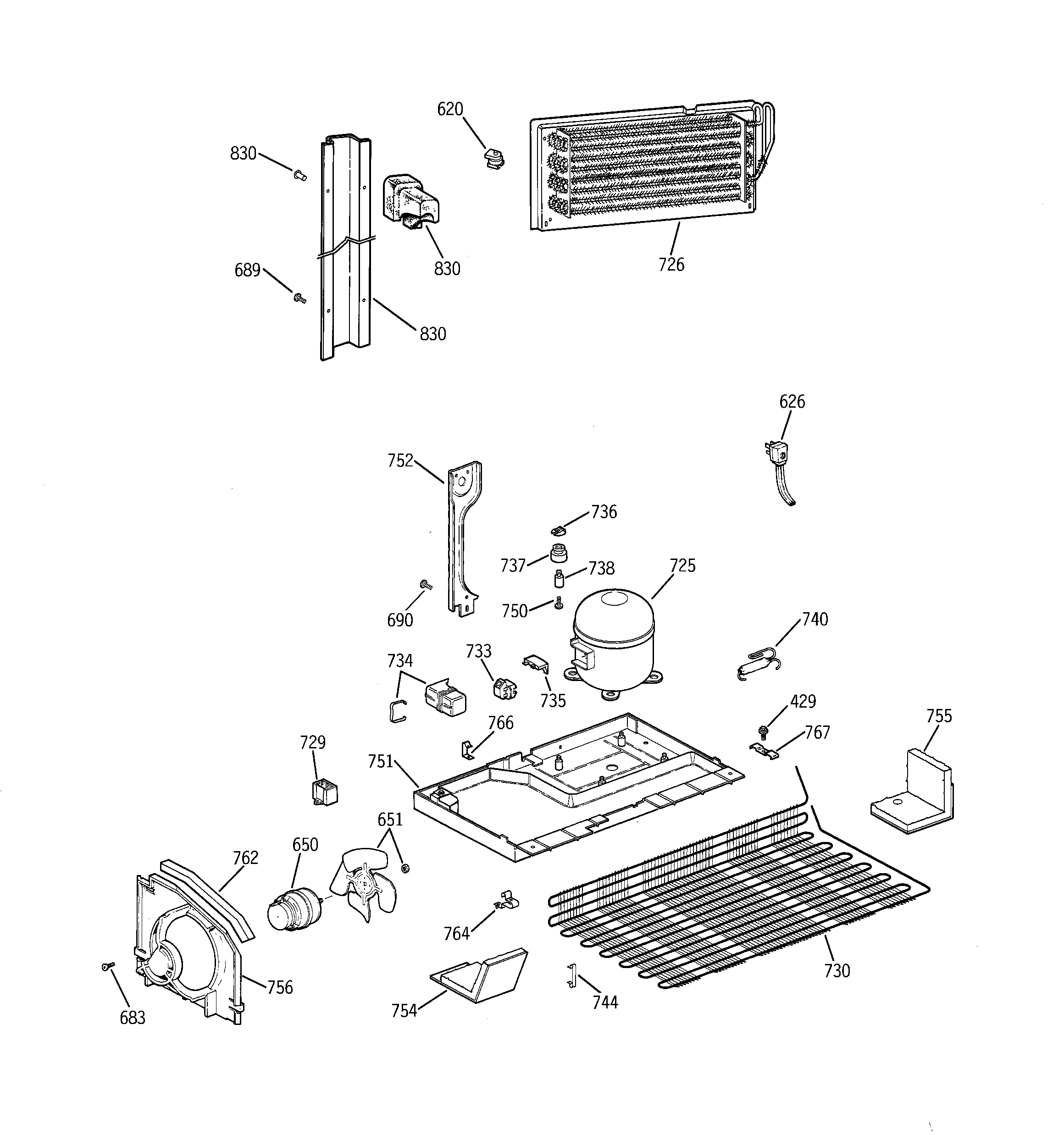

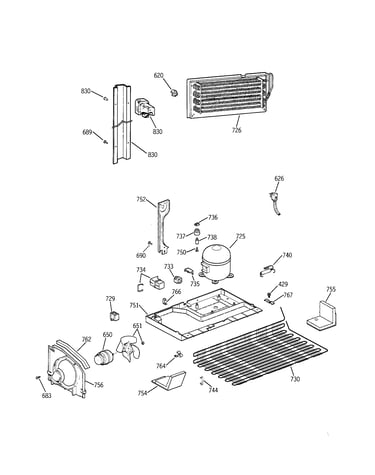

Unit parts diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

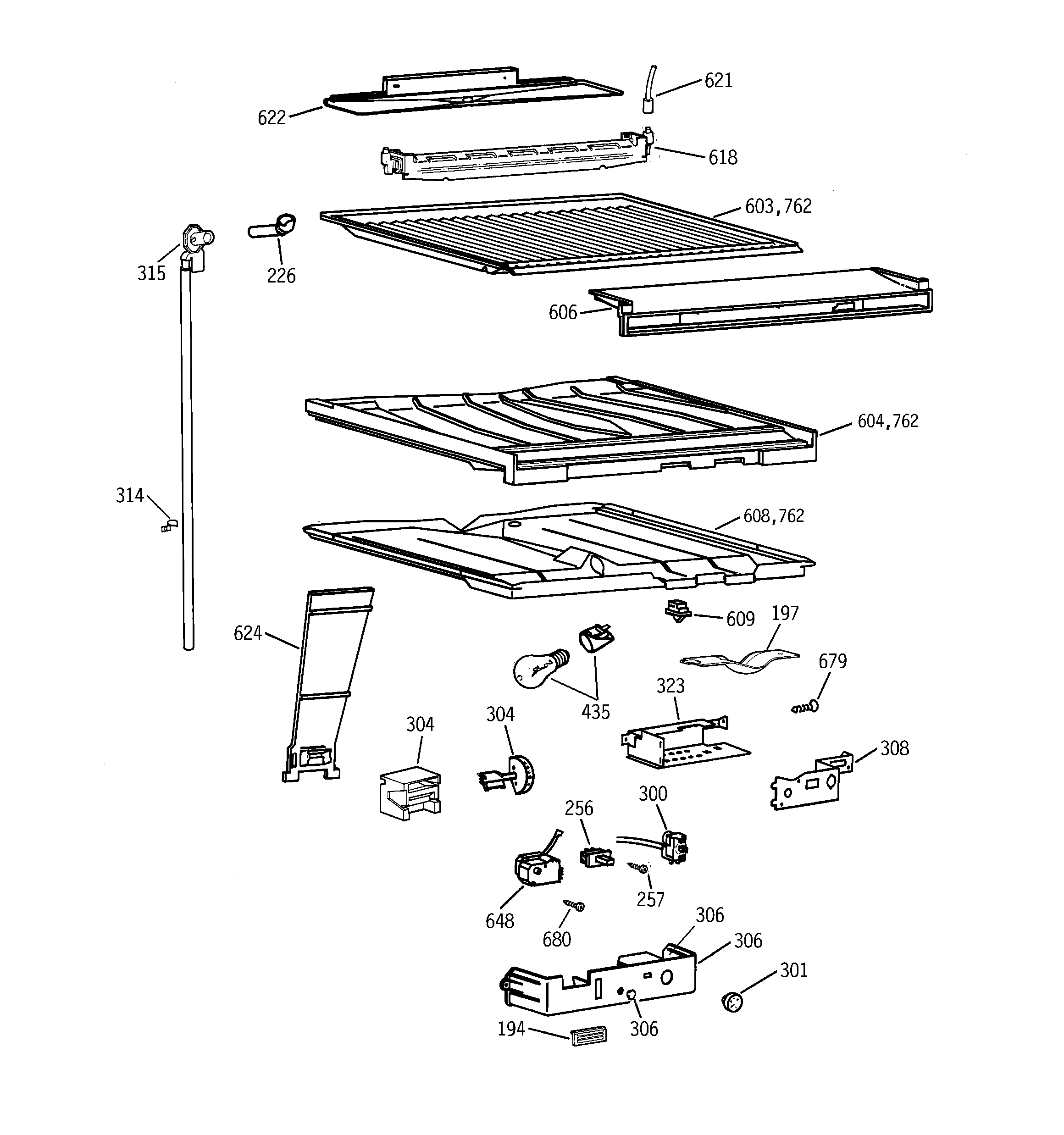

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Defrost Heater WR51X0448
#618

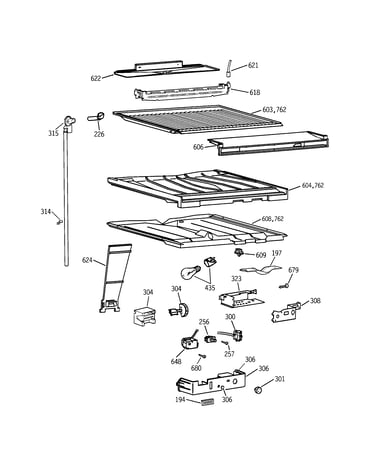

Compartment separator parts diagram

Refrigerator defrost heater

Part #WR51X0448

Replaced by #WR51X465

?
Manufacturer substitution
This part replaces WR51X0448. Substitute parts can look different from the original.
$118.07 |
9% OFF Phone Price : $130.07
In Stock
Light Switch WR23X0193
#609

Compartment separator parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Fan Blade WR60X0123
#613

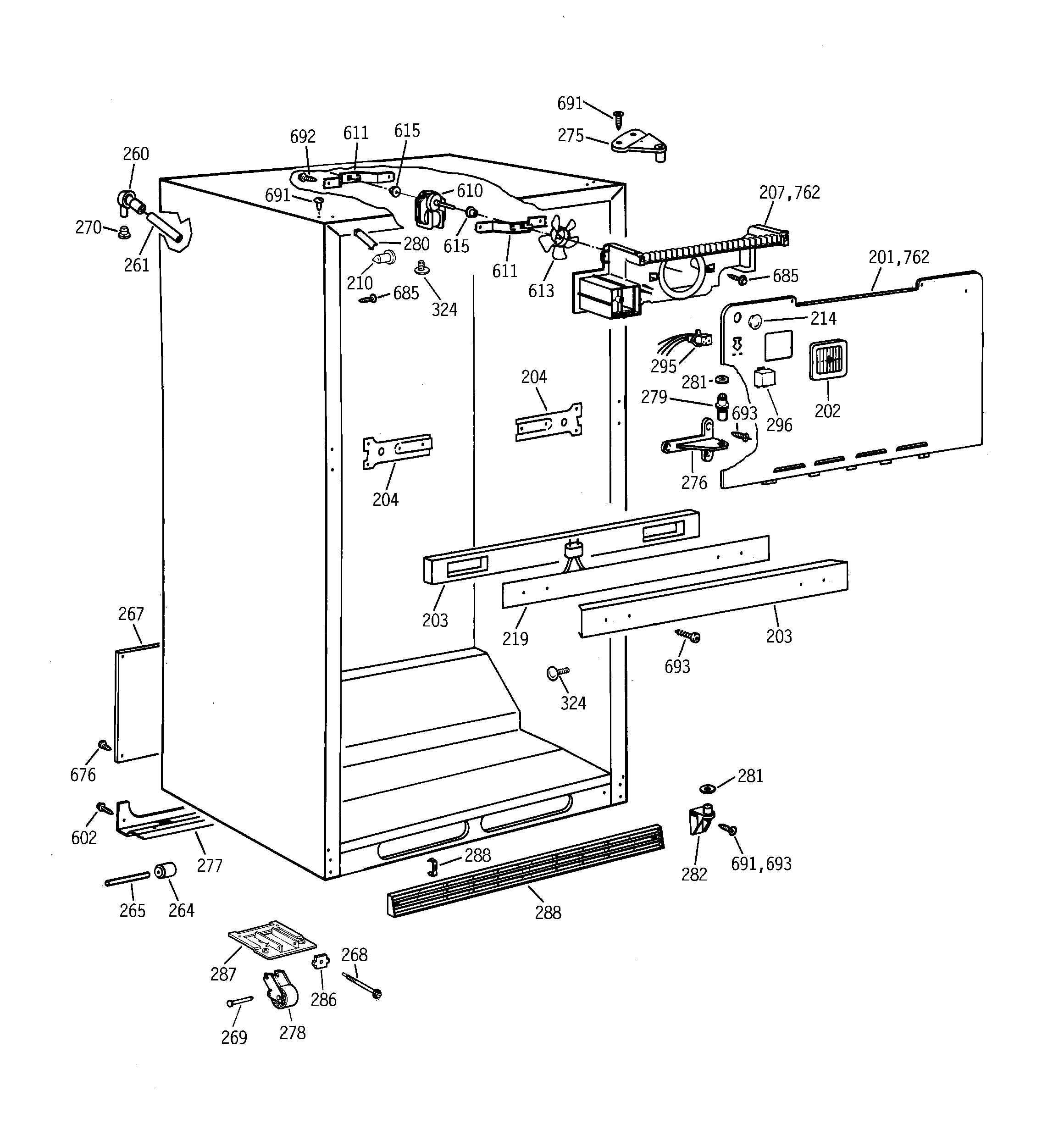

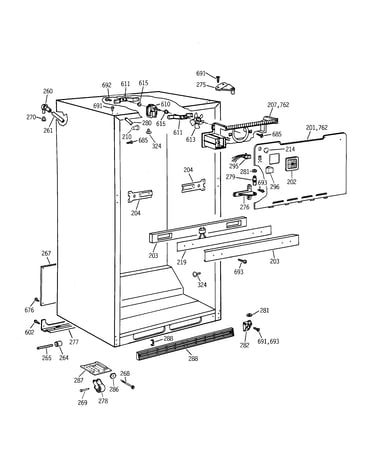

Cabinet parts diagram

Refrigerator fan blade

Part #WR60X0123

Replaced by #WR60X123

?
Manufacturer substitution
This part replaces WR60X0123. Substitute parts can look different from the original.
$65.59 |
8% OFF Phone Price : $71.59
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock

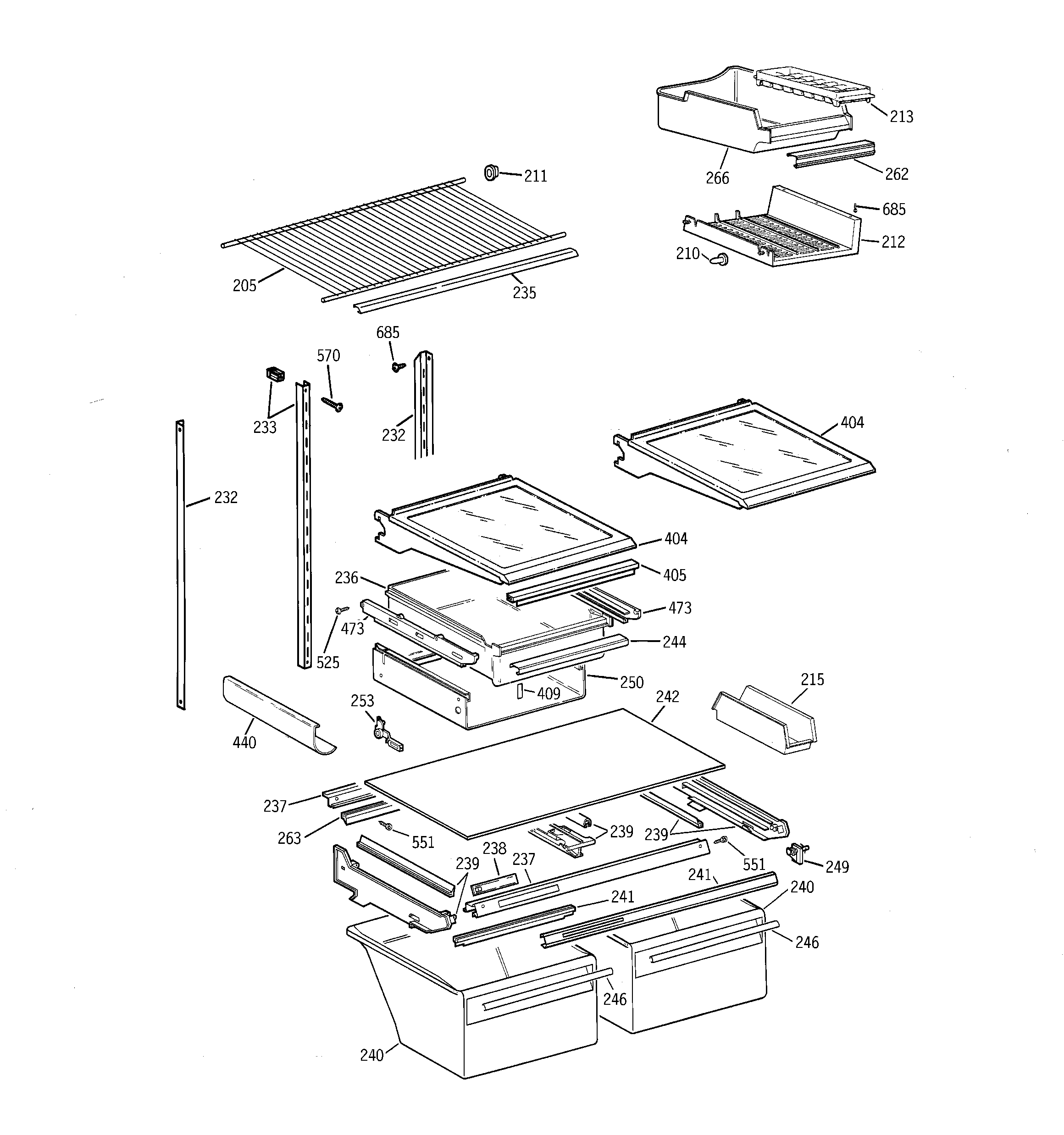

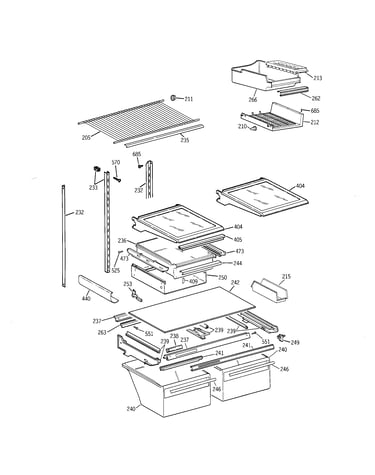

Refrigerator Shelf Cap WR02X7975
Refrigerator shelf cap

Part #WR02X7975

Replaced by #WR2X7975

?
Manufacturer substitution
This part replaces WR02X7975. Substitute parts can look different from the original.
$24.04 |
20% OFF Phone Price : $30.04
In Stock
Drive Reversible Plug WR02X8693
#112

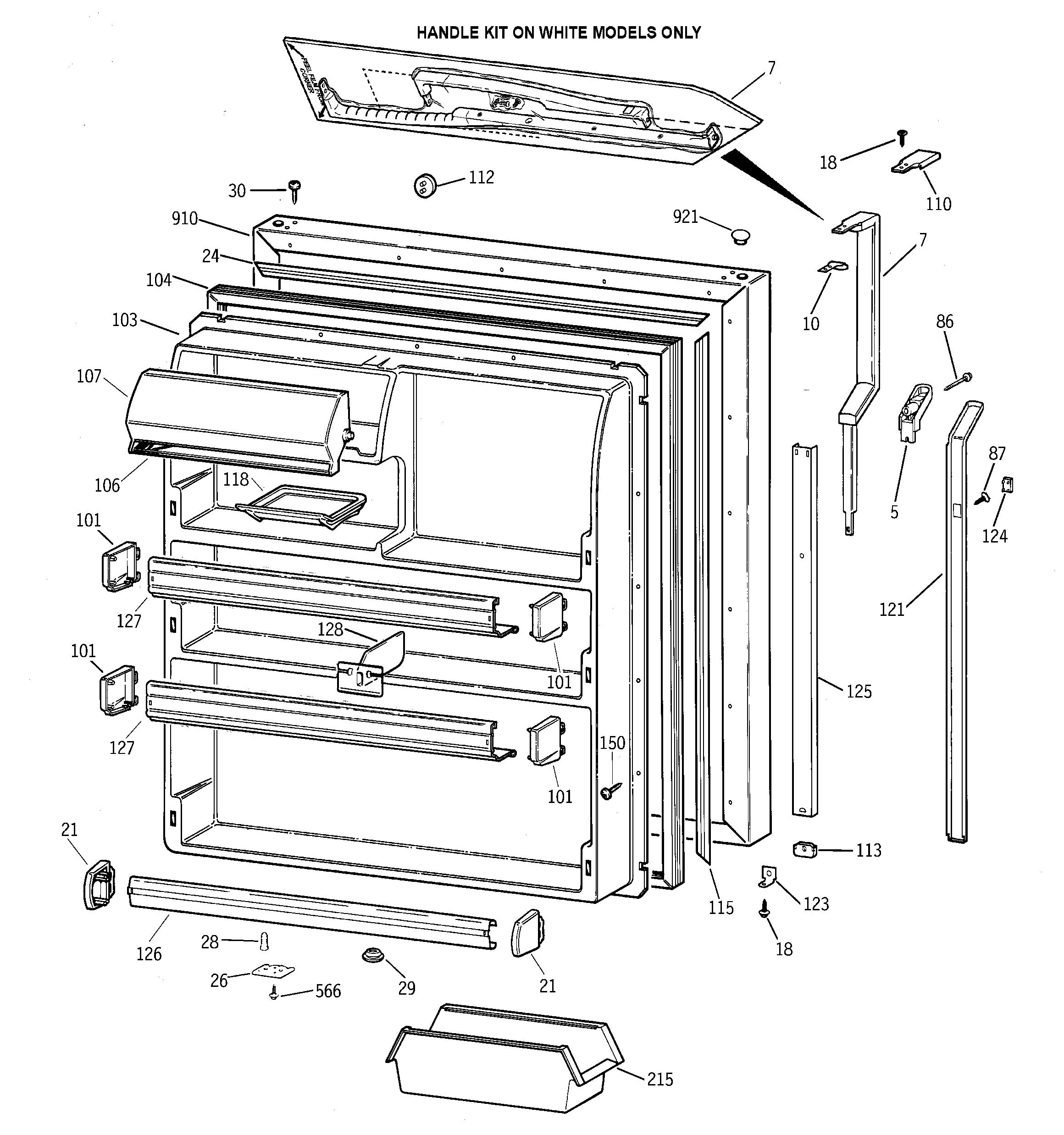

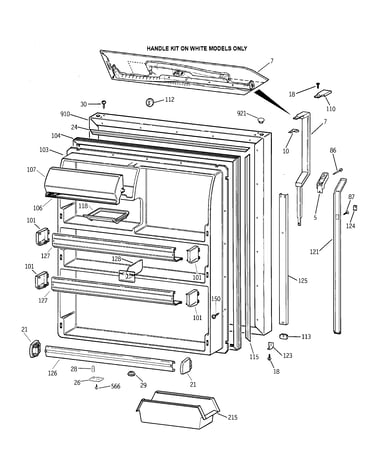

Fresh food door diagram
