Thermador
Upright Freezer

Model # T24IF70NSP/34 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24IF70NSP-34 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

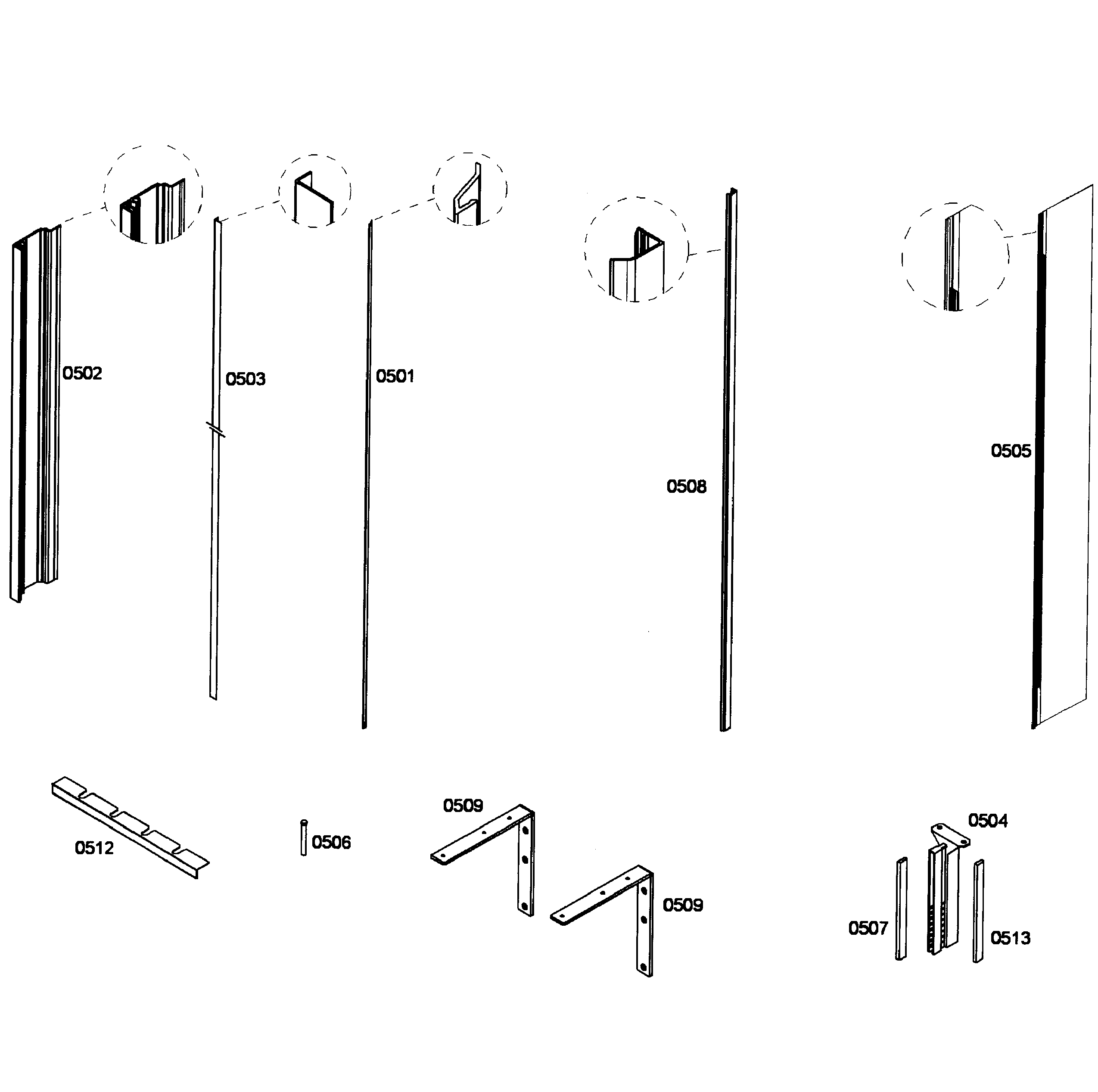

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Refrigerator Water Filter 641425
#411

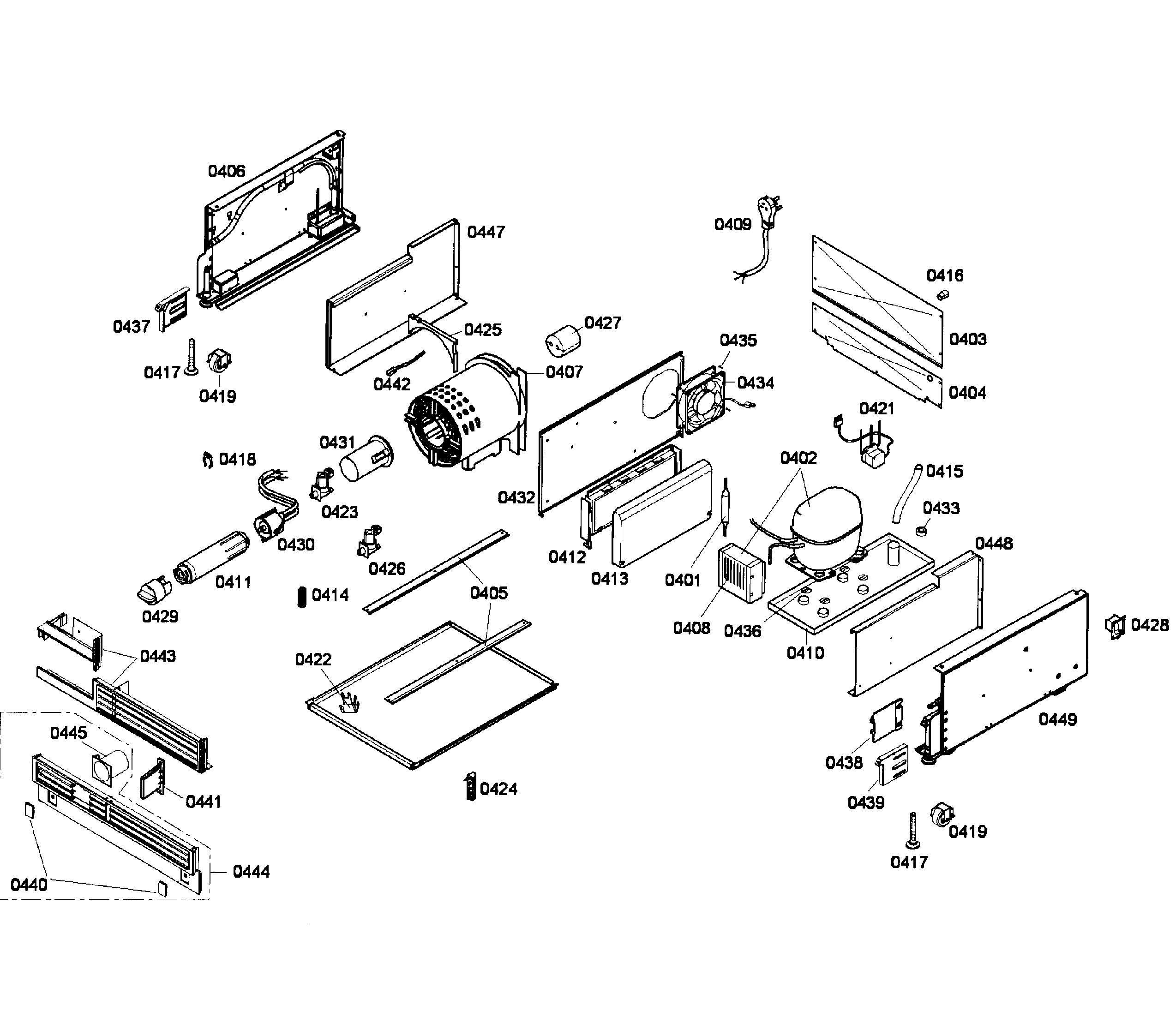

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Power Module 667843
#412

Compressor diagram

Power module

Part #667843

Replaced by #00704585

?
Manufacturer substitution
This part replaces 667843. Substitute parts can look different from the original.
$187.09 |
6% OFF Phone Price : $199.09
In Stock
Sensor 617203
#130

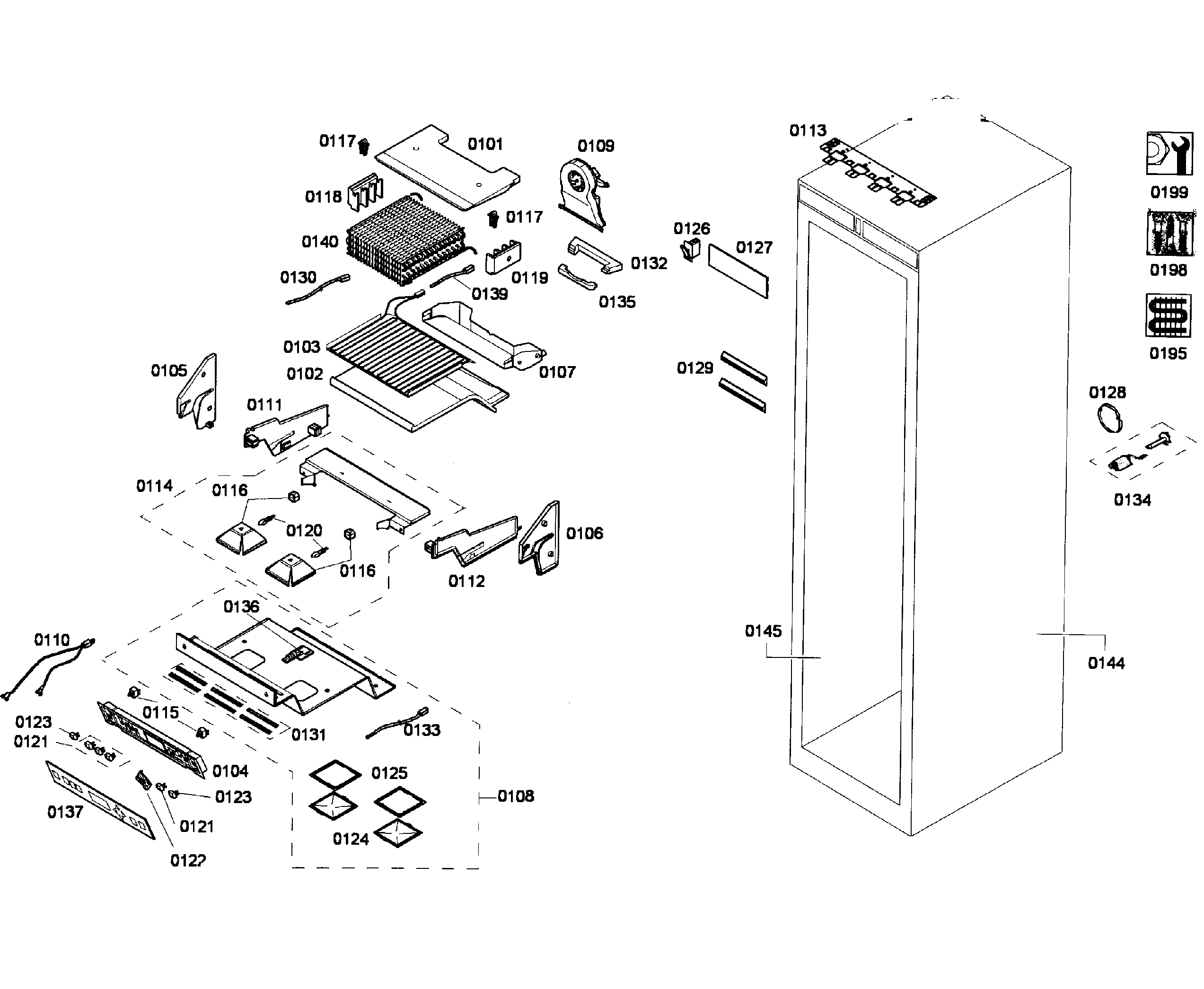

Cabinet parts diagram

Sensor

Part #617203

Replaced by #00617203

?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Operating 667838
#104

Cabinet parts diagram

Operating

Part #667838

Replaced by #11041652

?
Manufacturer substitution
This part replaces 667838. Substitute parts can look different from the original.
$239.70 |
5% OFF Phone Price : $251.70
Back Order
Freezer Water Valve 603967
#423

Compressor diagram

Freezer water valve

Part #603967

Replaced by #00639065

?
Manufacturer substitution
This part replaces 603967. Substitute parts can look different from the original.
$39.19 |
13% OFF Phone Price : $45.19
In Stock
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
Back Order
Fixture 684542
#205

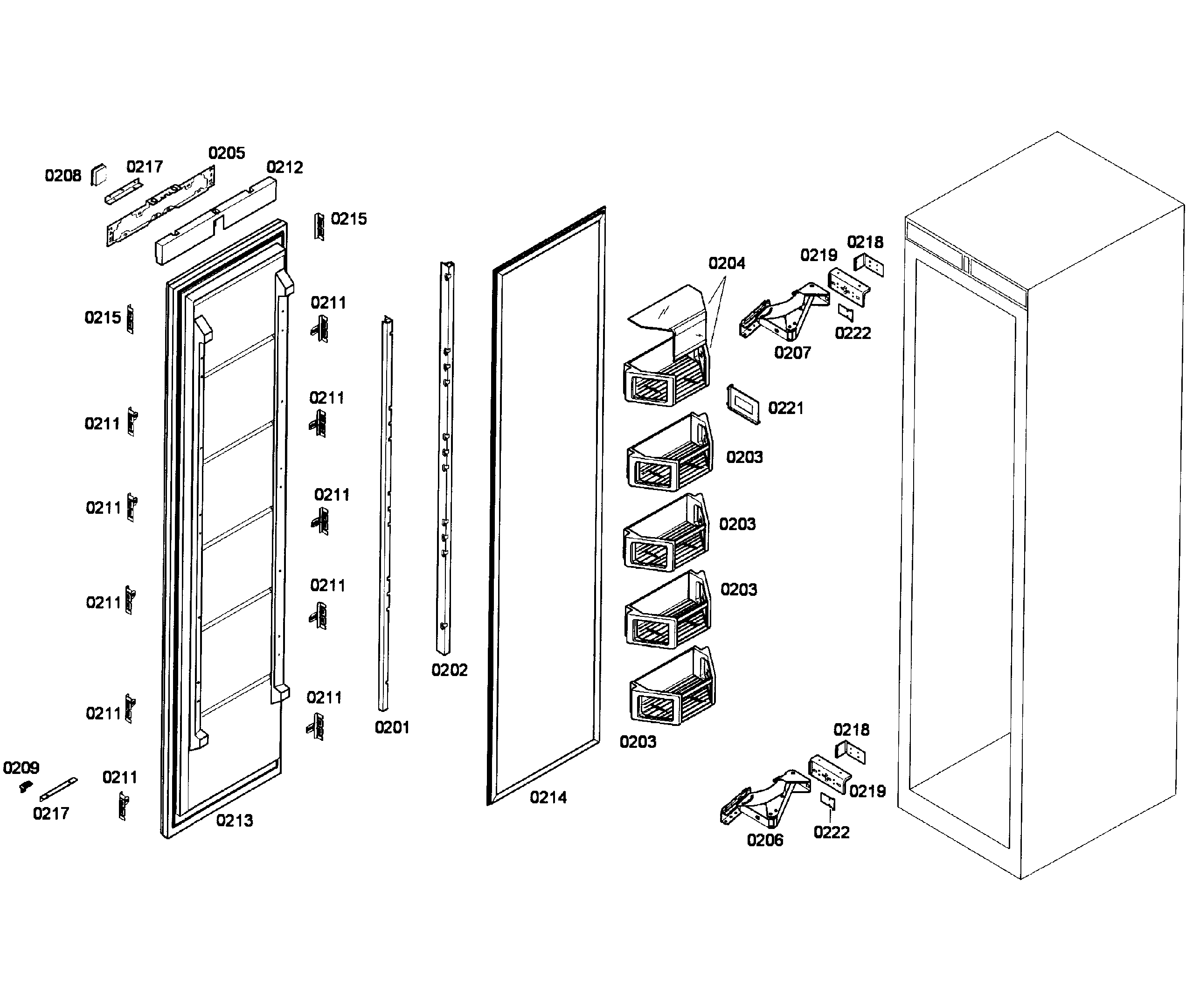

Door assy diagram

Fixture

Part #684542

Replaced by #00684542

?
Manufacturer substitution
This part replaces 684542. Substitute parts can look different from the original.
$22.91
In Stock
Cover 604608
#324

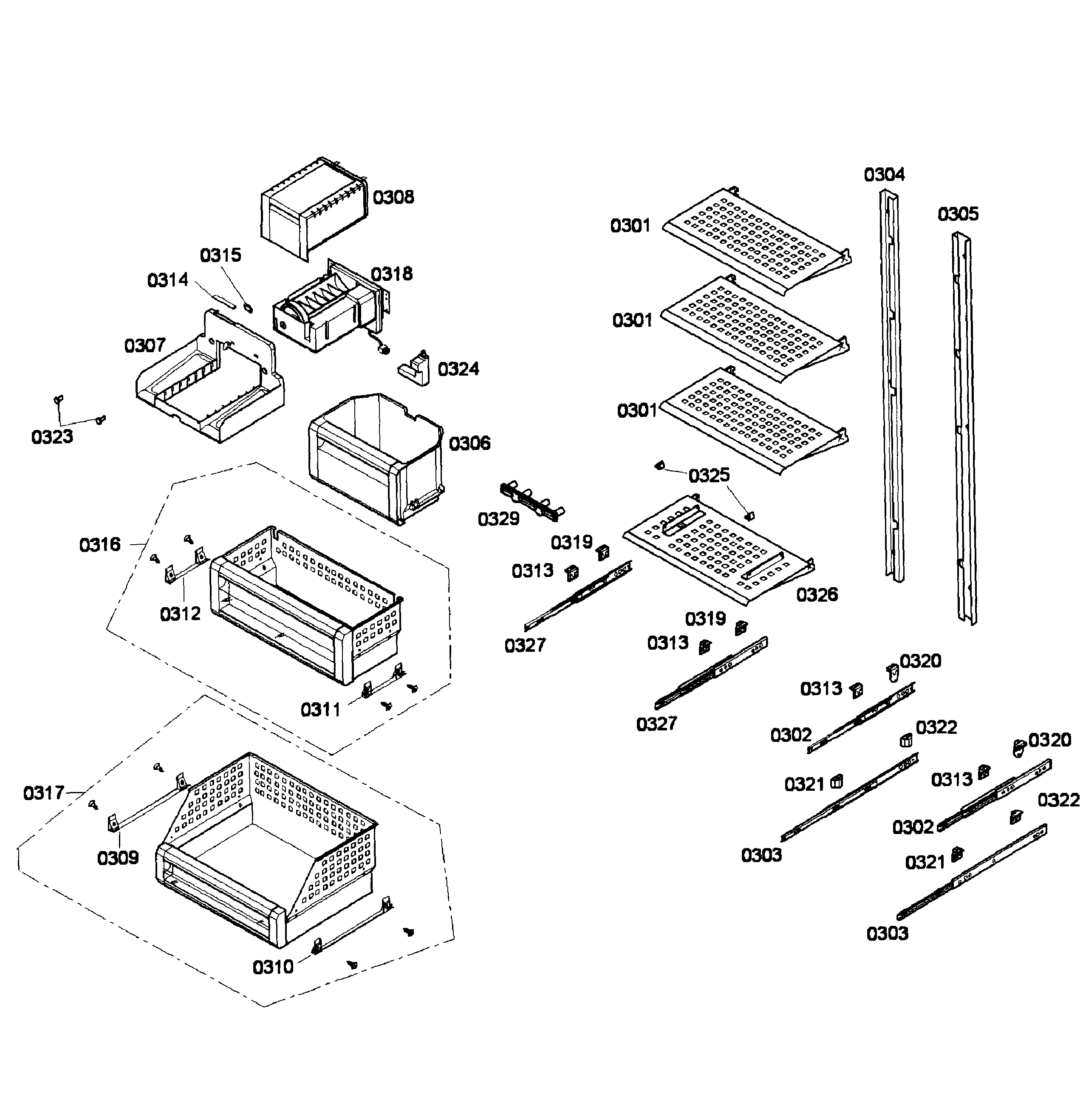

Shelfs diagram

Cover

Part #604608

Replaced by #00604608

?
Manufacturer substitution
This part replaces 604608. Substitute parts can look different from the original.
This item is not returnable
$6.45
In Stock
Clip 603971
#313

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Fixture 605604
#217

Door assy diagram

Fixture

Part #605604

Replaced by #00605604

?
Manufacturer substitution
This part replaces 605604. Substitute parts can look different from the original.
$12.71
In Stock
