Proctor Silex
Toaster

Model # T330W Official Proctor Silex toaster

Here are the diagrams and repair parts for Official Proctor Silex T330W toaster, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Thermostat 920806
#9

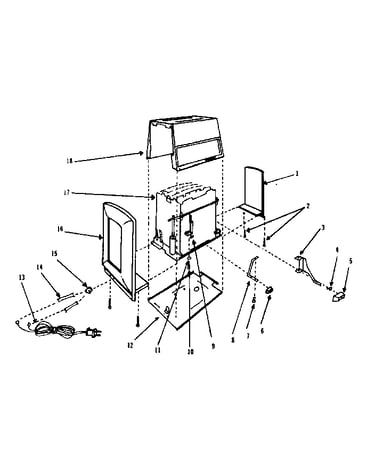

Replacement parts diagram

Thermostat

Part #920806

The manufacturer no longer makes this part, and there's no substitute part

Screw 002134
#2

Replacement parts diagram

Screw

Part #002134

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 609813
#13

Replacement parts diagram

Power cord

Part #609813

The manufacturer no longer makes this part, and there's no substitute part

Rear Panel 969339
#16

Replacement parts diagram

Rear panel

Part #969339

The manufacturer no longer makes this part, and there's no substitute part

Filtr Knob 156927
#5

Replacement parts diagram

Filtr knob

Part #156927

The manufacturer no longer makes this part, and there's no substitute part

Screw 001107
#10

Replacement parts diagram

Screw

Part #001107

The manufacturer no longer makes this part, and there's no substitute part

Spring 105335

#NI

All parts diagram

Spring

Part #105335

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 645267
#1

Replacement parts diagram

Front panel

Part #645267

The manufacturer no longer makes this part, and there's no substitute part

Wht Knob 166467

#NI

All parts diagram

Wht knob

Part #166467

The manufacturer no longer makes this part, and there's no substitute part

Relief 121006
#15

Replacement parts diagram

Relief

Part #121006

The manufacturer no longer makes this part, and there's no substitute part
