Model # MLR4410BXT Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag MLR4410BXT gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

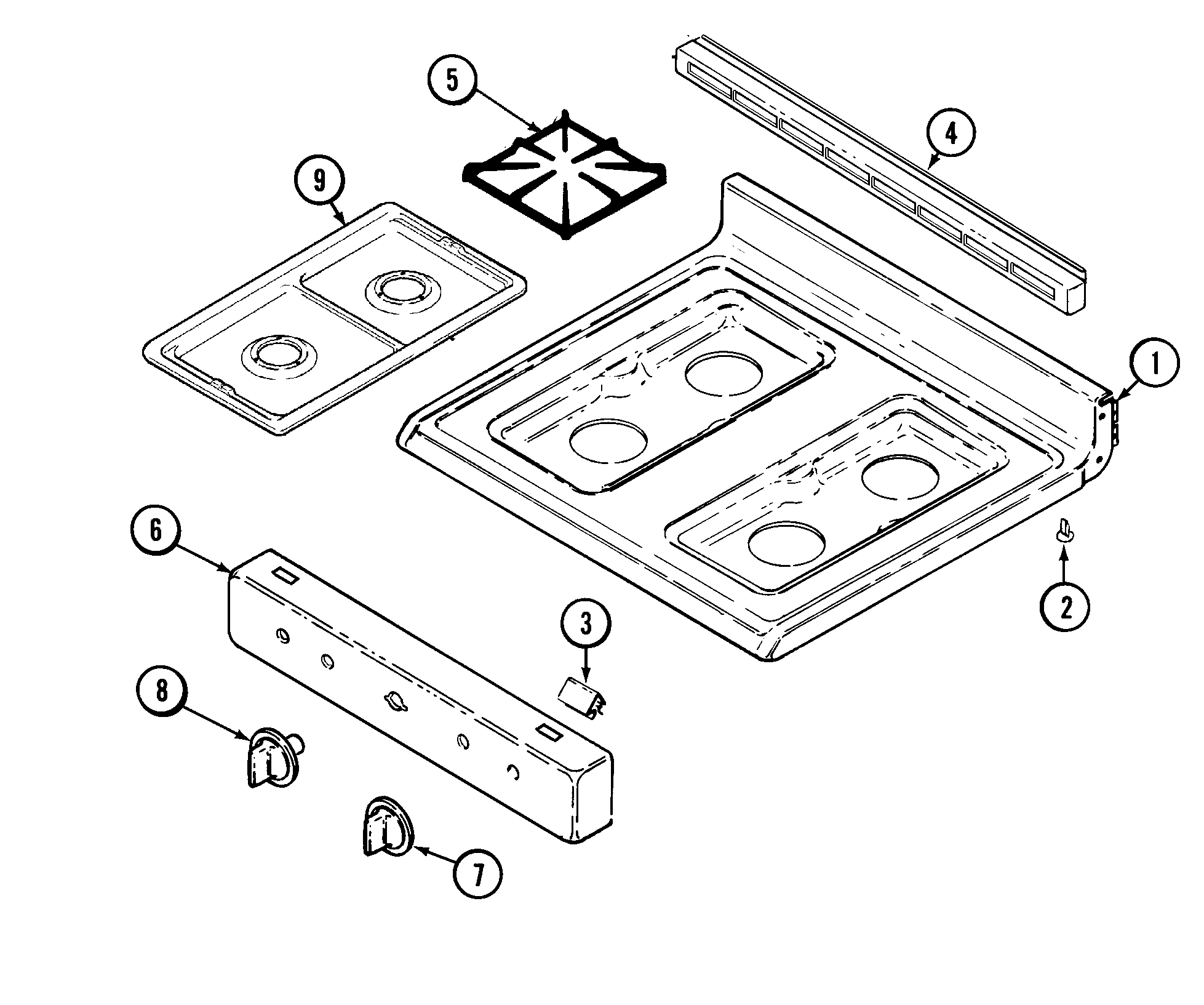

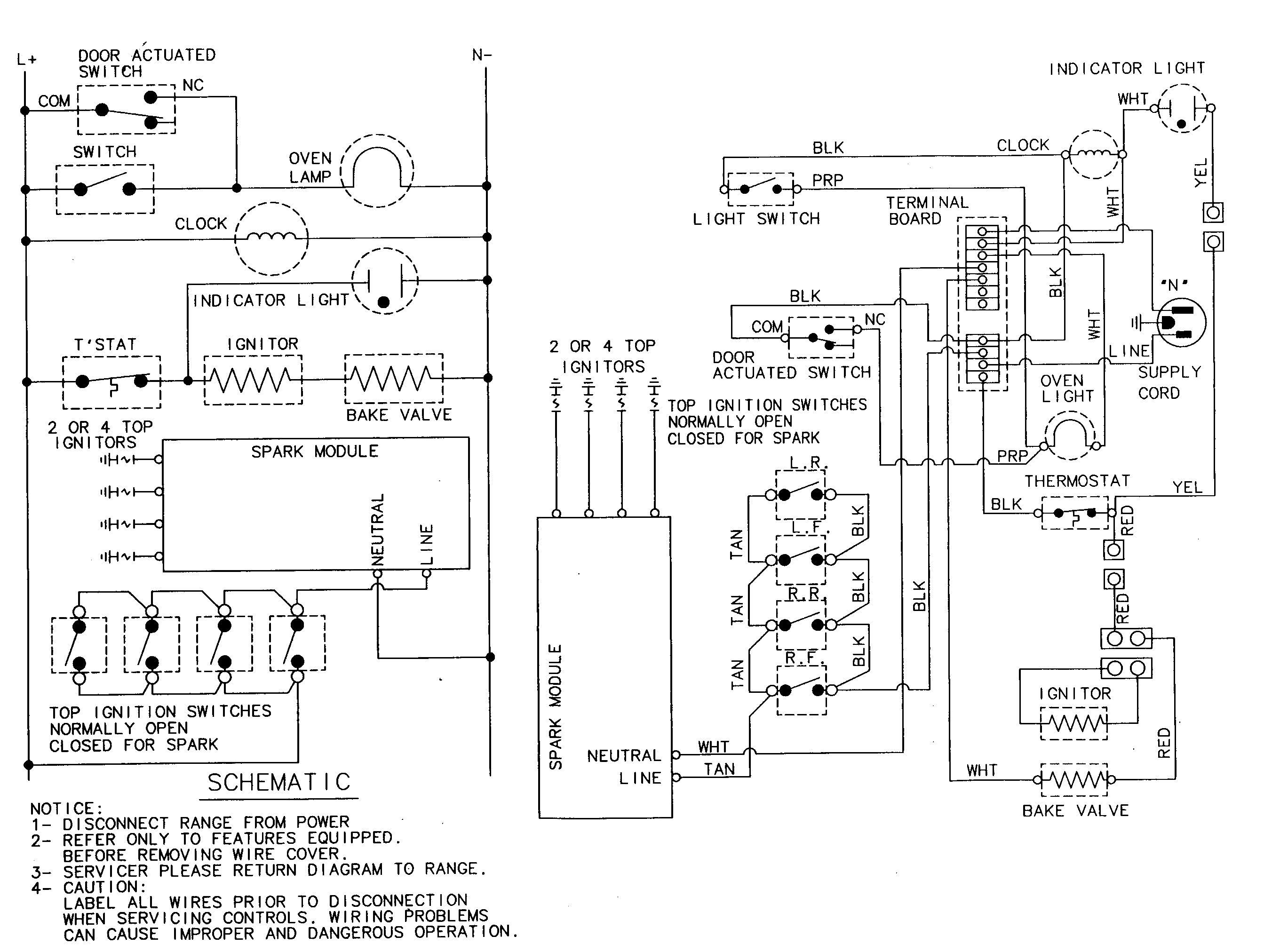

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Oven Bulb 7407P103-60
#4

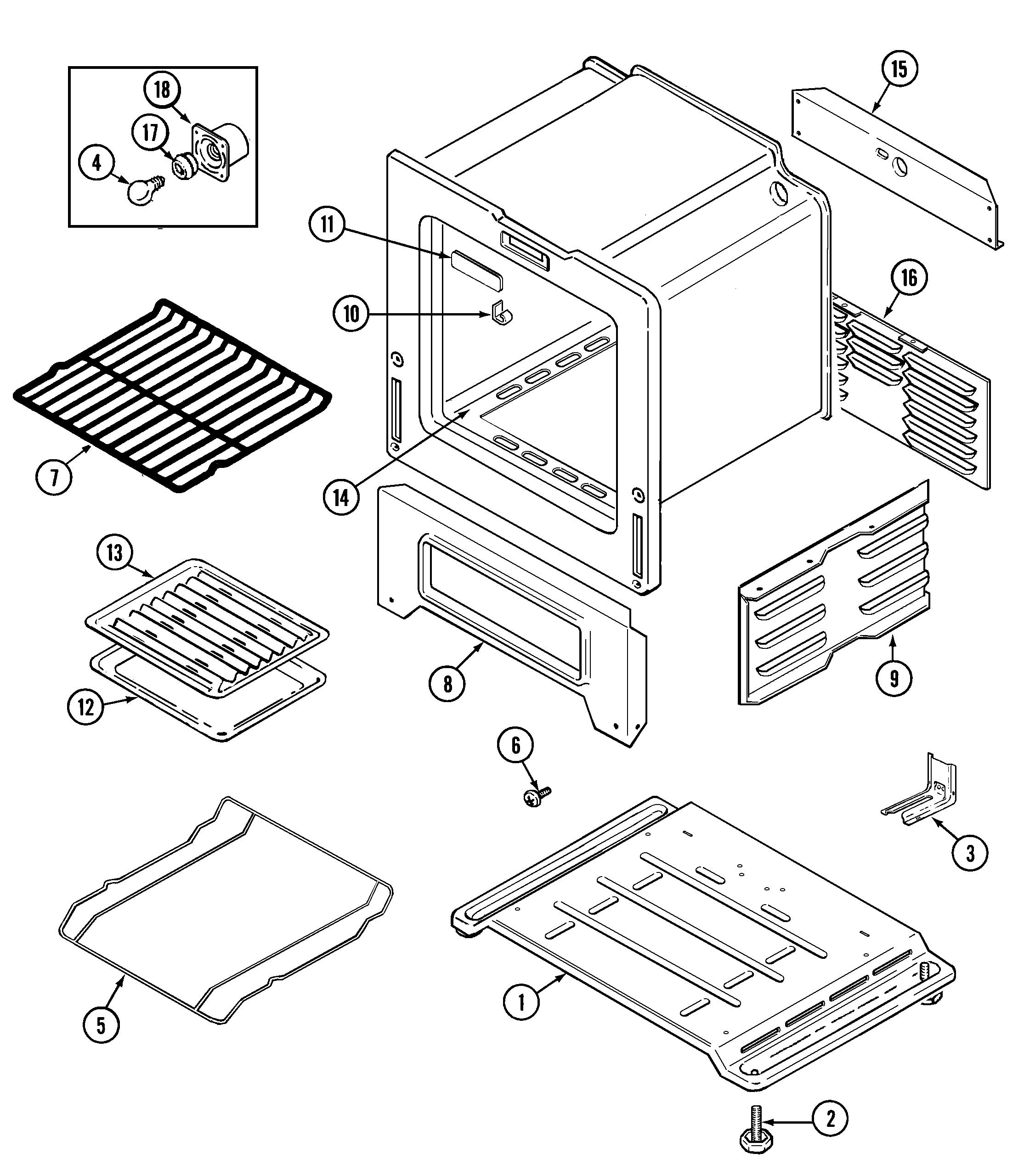

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Screw 74003004
#16A

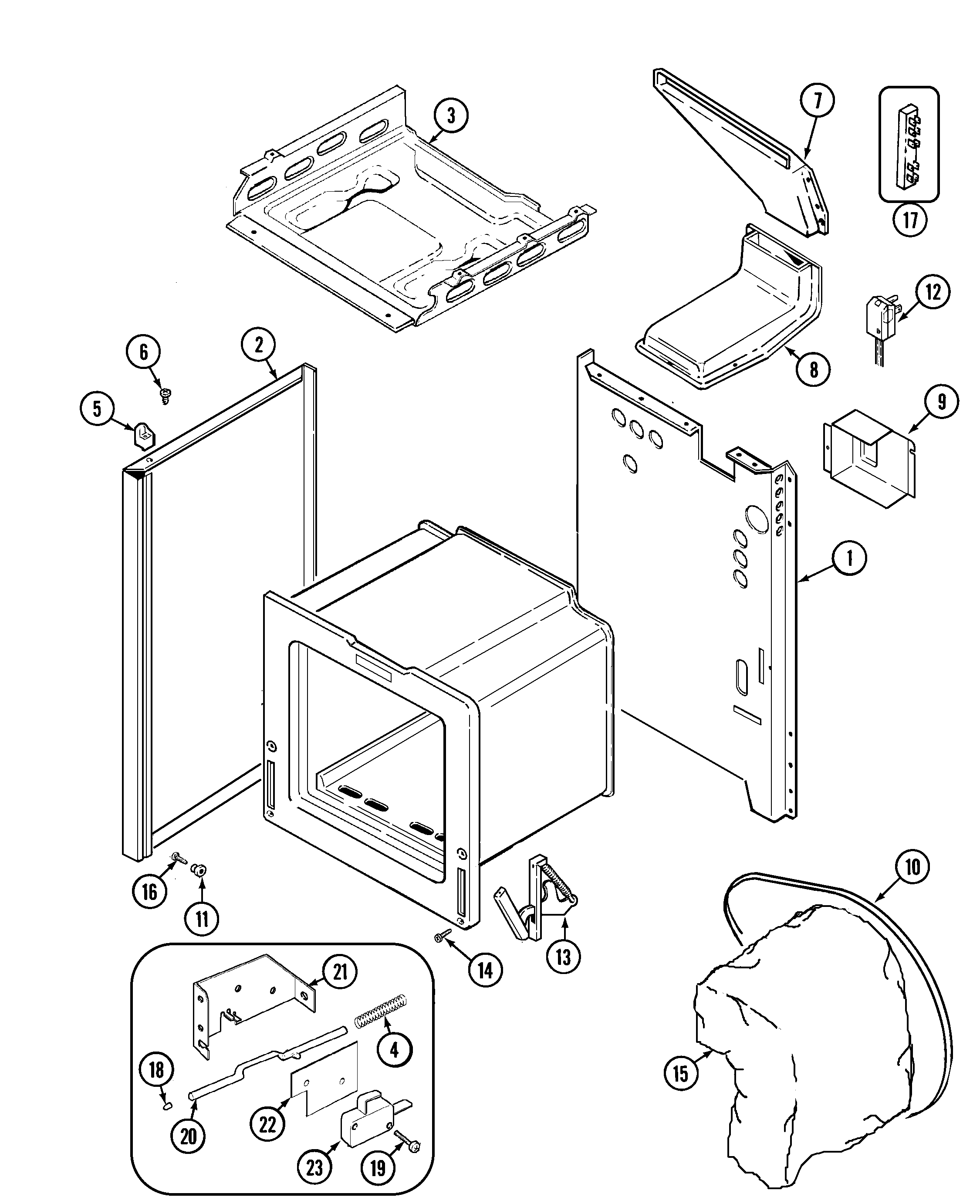

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Screw 790448
Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Bracket, Ant 74002311
#3

Oven/base diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P347-60
Screw

Part #7101P347-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 74004288
#7E

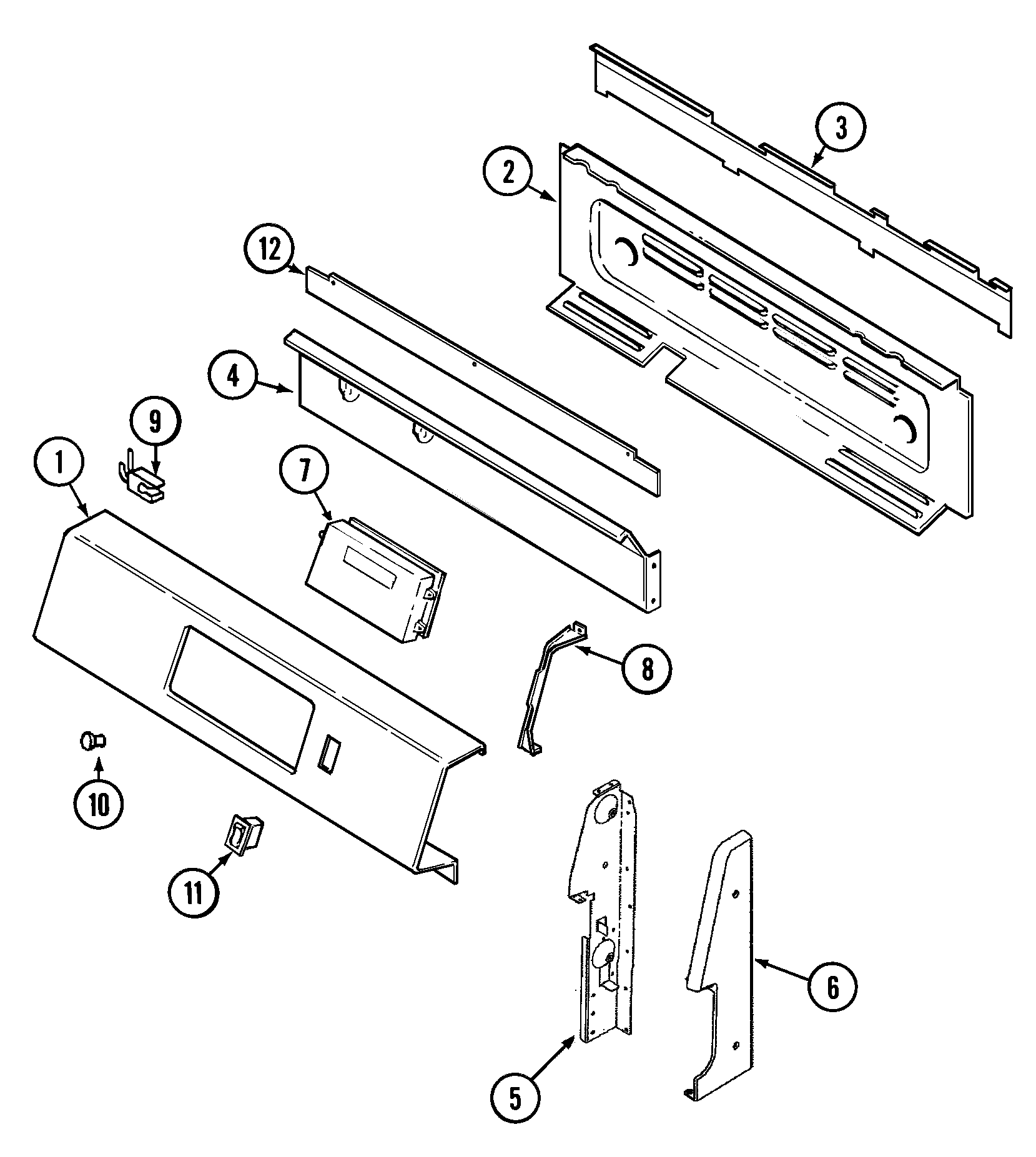

Control panel diagram

Screw

Part #74004288

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 74004288. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Thermostat Clip 7112P004-60
#10

Oven/base diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Range Wing Nut 7103P030-60
#17

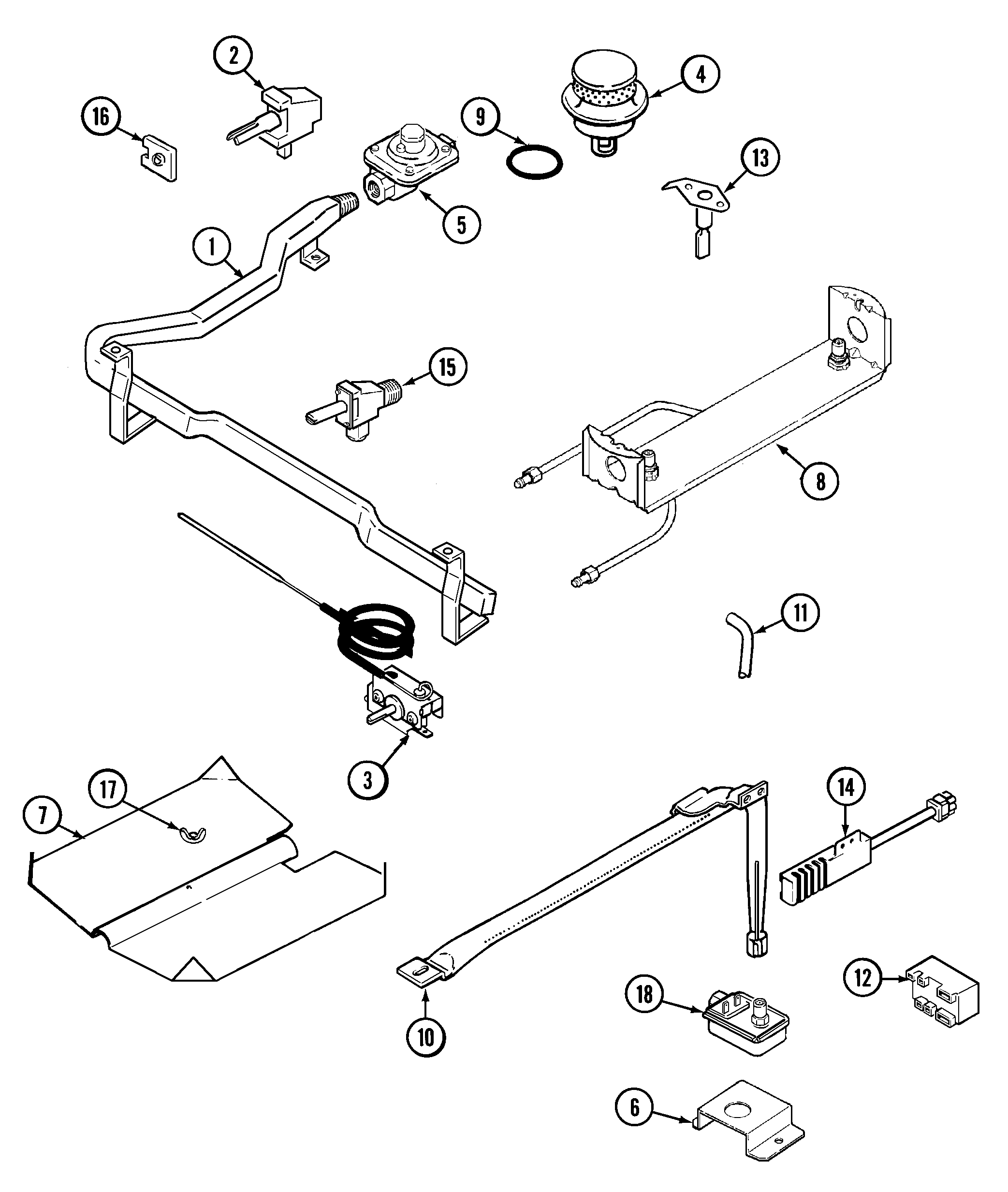

Gas controls diagram

Range wing nut

Part #7103P030-60

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 74002481
#16

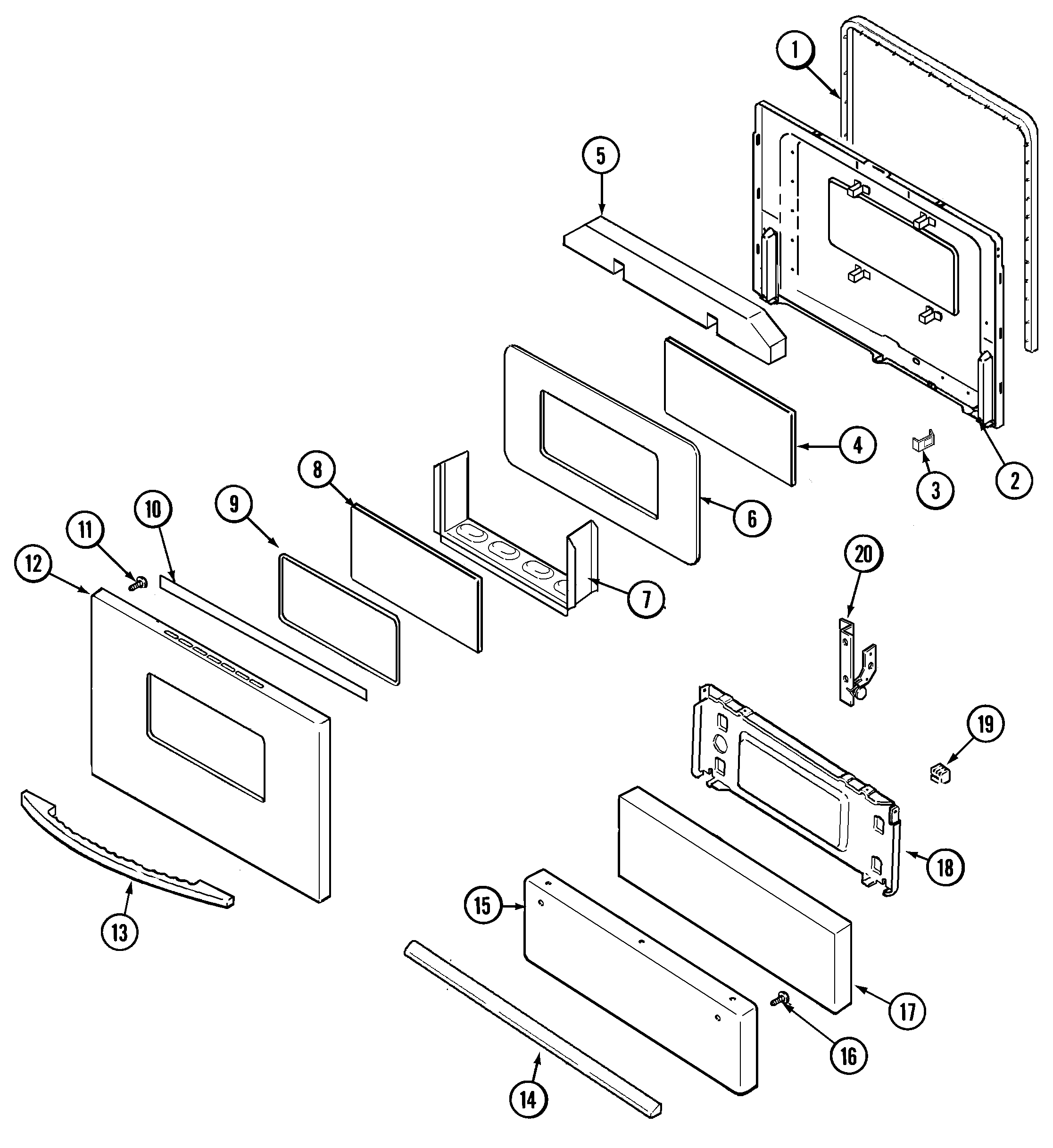

Door/drawer diagram
