Model # ENH4X30C17A1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP ENH4X30C17A1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Access Cover 1183271
#G

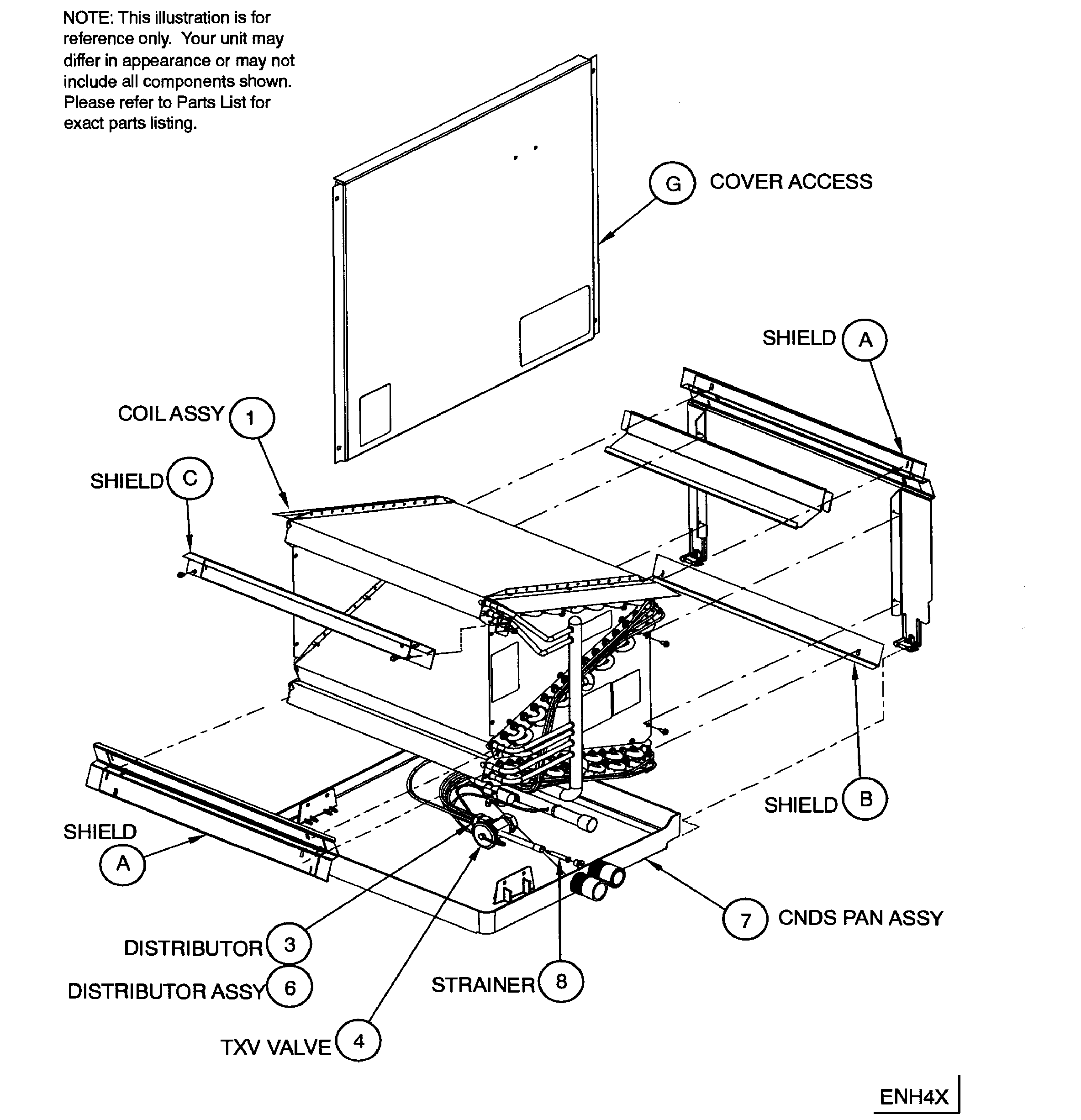

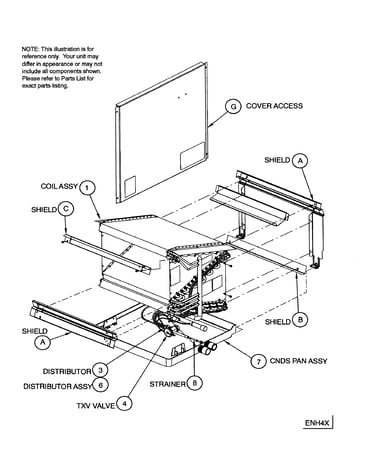

Evap coil diagram

Access cover

Part #1183271

$60.24
In Stock
Adapter 1085010
#NI

Evap coil diagram

Adapter

Part #1085010

$10.20
In Stock
Shield 1176827
#C

Evap coil diagram

Shield

Part #1176827

$27.04
In Stock
Grommet 1173157
#NI

Evap coil diagram

Grommet

Part #1173157

This item is not returnable
$2.16
In Stock
Shield A 1176840
#A

Evap coil diagram

Shield a

Part #1176840

$26.40
In Stock
Grommet 1173159
#NI

Evap coil diagram

Grommet

Part #1173159

This item is not returnable
$3.03
In Stock
Cnds Pan Assy 1183265
#7

Evap coil diagram

Cnds pan assy

Part #1183265

The manufacturer no longer makes this part, and there's no substitute part

Valve Txv 1183193
#4

Evap coil diagram

Valve txv

Part #1183193

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Coil 1183254
#1

Evap coil diagram

Evaporator coil

Part #1183254

The manufacturer no longer makes this part, and there's no substitute part

Distributor 1183250
#3

Evap coil diagram

Distributor

Part #1183250

The manufacturer no longer makes this part, and there's no substitute part
