Model # 25HCR360C0030010 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 25HCR360C0030010 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 109 parts |

#26

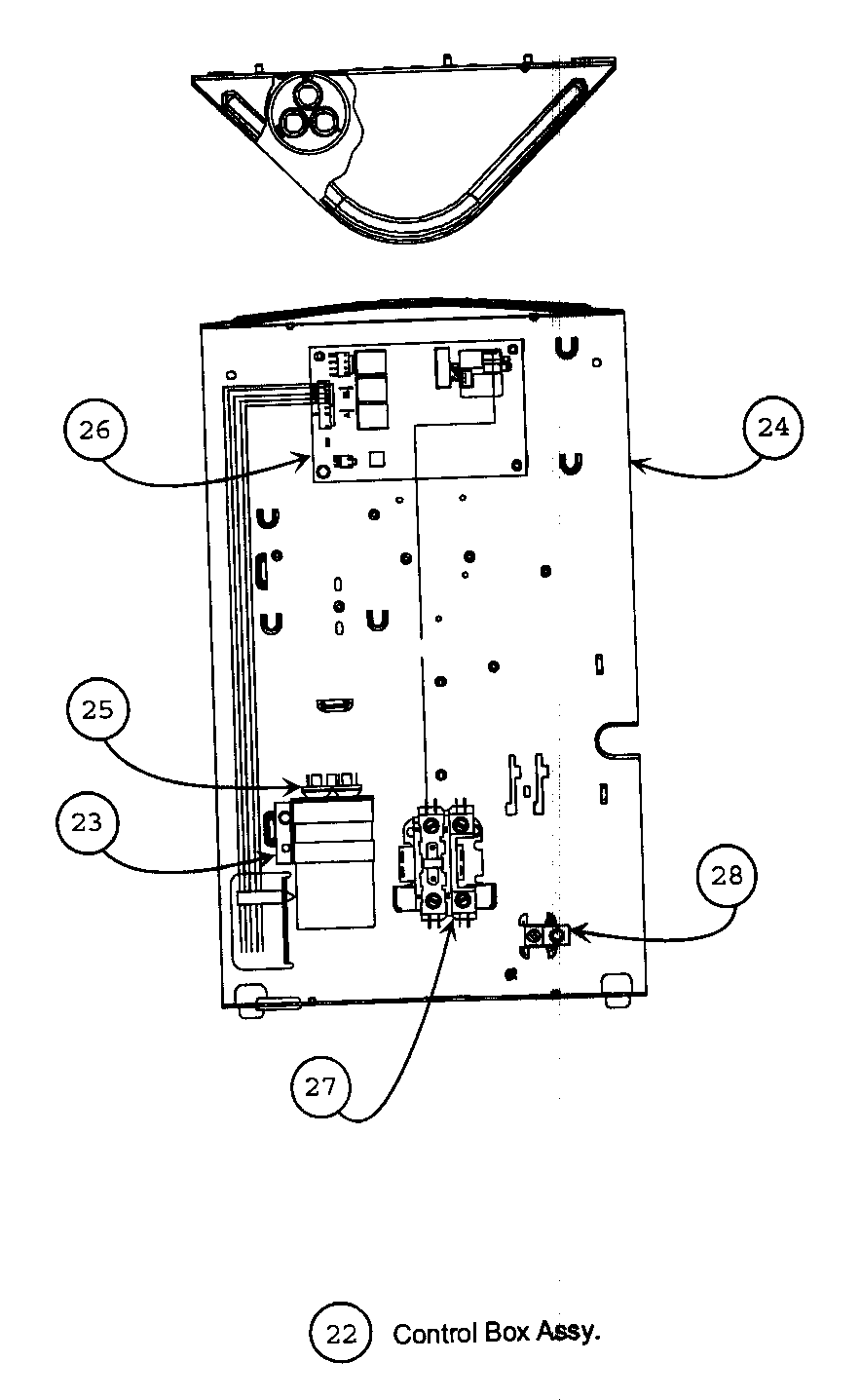

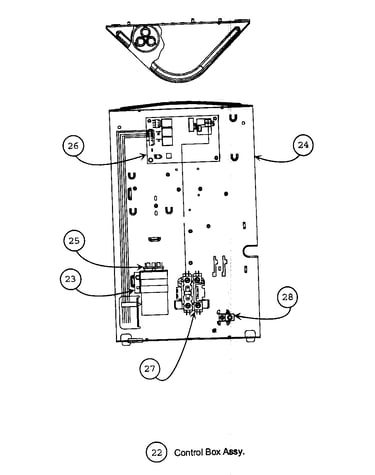

Control box assy diagram

Board, cir

Part #HK32EA003

Replaced by #HK32EA008

$223.93 |

5% OFF Phone Price : $235.93

In Stock

Qty

#NI

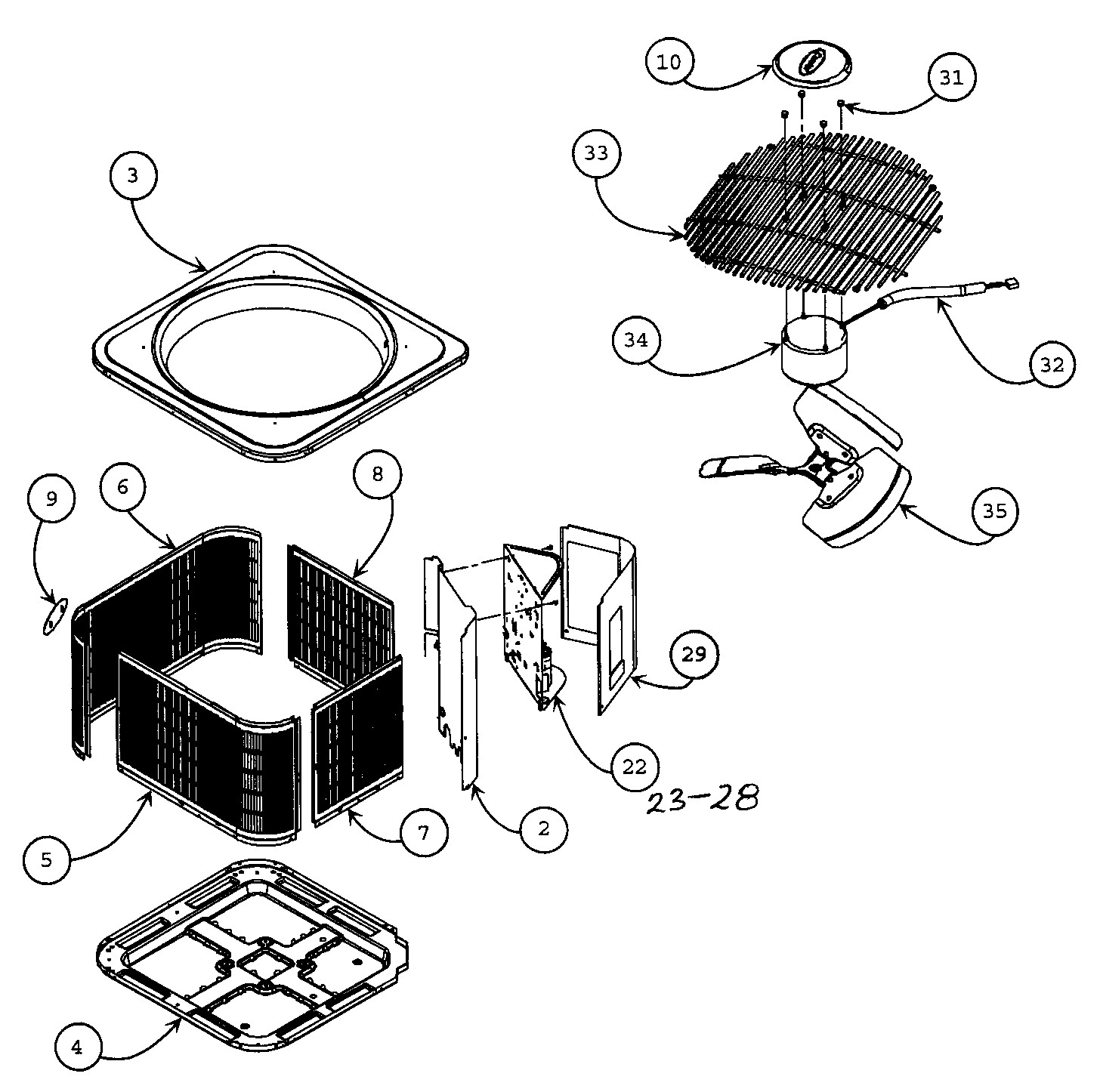

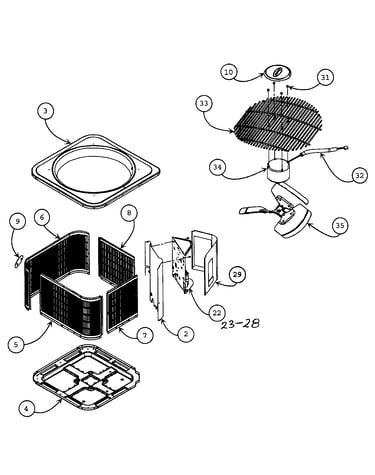

Cabinet parts diagram

Plug assembly

Part #P298-001

$45.89

In Stock

Qty

Central Air Conditioner Contactor HN52PD024

#27

Control box assy diagram

Central air conditioner contactor

Part #HN52PD024

$111.34 |

10% OFF Phone Price : $123.34

In Stock

Qty

#NI

Cabinet parts diagram

Switch tem

Part #HH18HA296

$27.58

In Stock

Qty

#NI

Cabinet parts diagram

Drier

Part #KH45LG141

$187.85

In Stock

Qty

#34

Cabinet parts diagram

Fan motor

Part #HC39GE242

The manufacturer no longer makes this part, and there's no substitute part

#NI

Cabinet parts diagram

Solenoid

Part #EF19ZG239

The manufacturer no longer makes this part, and there's no substitute part

#NI

Cabinet parts diagram

Switch, pr

Part #312926-249

$25.53

In Stock

Qty

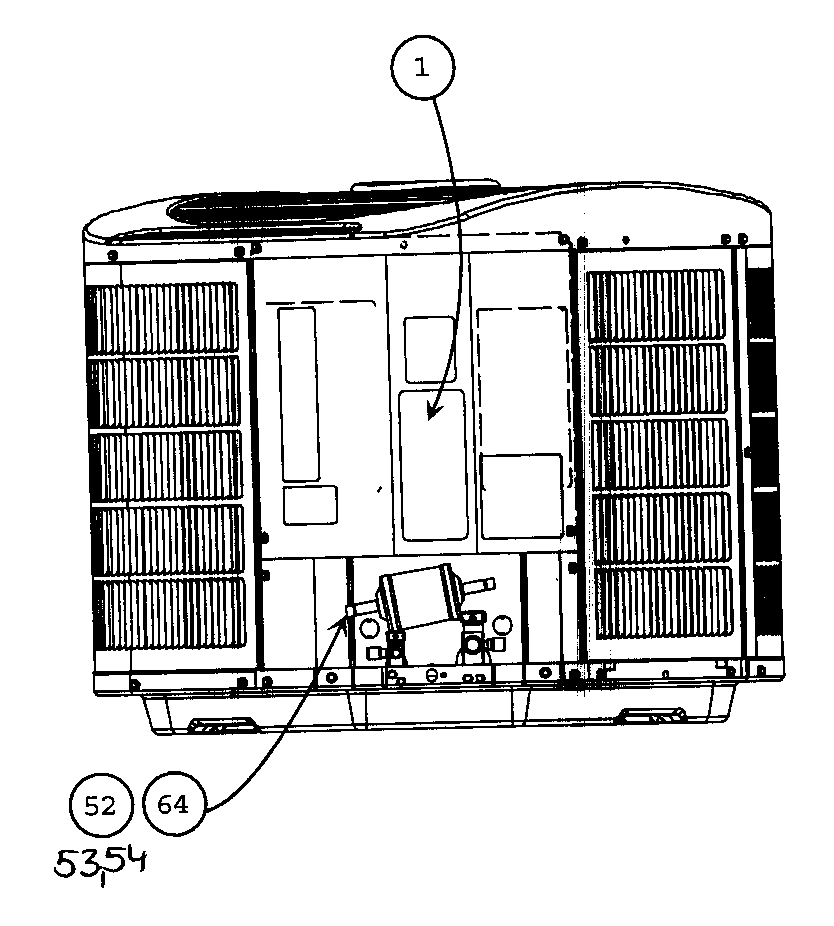

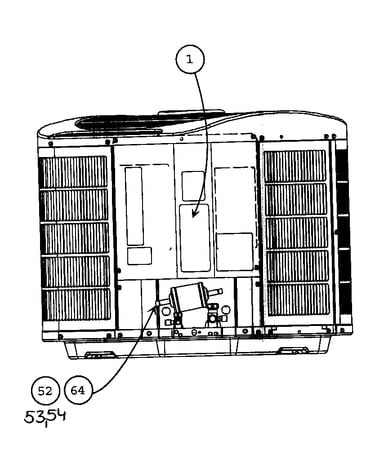

Side view diagram

Label

Part #324470-101

$23.62

In Stock

Qty

#NI

Cabinet parts diagram

Payne cpctr start

Part #P281-2706

$68.29

In Stock

Qty
