Model # 12001747 Official Maytag crusher bin & enclosure assy.

Here are the diagrams and repair parts for Official Maytag 12001747 crusher bin & enclosure assy., as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Yoke,ice Dis 63052-1
#9

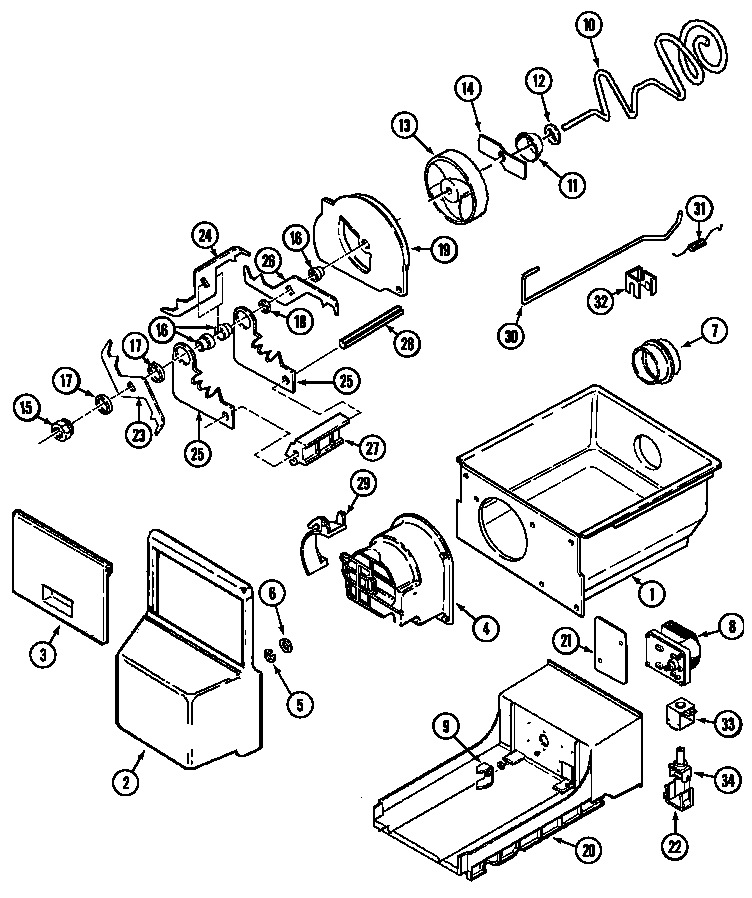

Crusher bin & enclosure assy. (230v) diagram

Yoke,ice dis

Part #63052-1

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052-1. Substitute parts can look different from the original.
BEST SELLER
$33.77 |
15% OFF Phone Price : $39.77
In Stock
Dryer Screw 415013-35
Dryer screw

Part #415013-35

$12.49
In Stock
Crusher Bin/enclosure (2 12001750
#15G

Crusher bin & enclosure assy. (230v) diagram

Crusher bin/enclosure (2

Part #12001750

The manufacturer no longer makes this part, and there's no substitute part

Enclosure, Ice - Series 10 61004848
#20B

Crusher bin & enclosure assy. (230v) diagram

Enclosure, ice - series 10

Part #61004848

The manufacturer no longer makes this part, and there's no substitute part

Screw, Motor - Series 10 61003324
Screw, motor - series 10

Part #61003324

The manufacturer no longer makes this part, and there's no substitute part

Wire Shield 61004850
#21

Crusher bin & enclosure assy. (230v) diagram

Wire shield

Part #61004850

The manufacturer no longer makes this part, and there's no substitute part

Yoke Assy. - Series 10 61003539
#34

Crusher bin & enclosure assy. (230v) diagram

Yoke assy. - series 10

Part #61003539

The manufacturer no longer makes this part, and there's no substitute part

Auger - Series 10 61004138
#10A

Crusher bin & enclosure assy. (230v) diagram

Auger - series 10

Part #61004138

The manufacturer no longer makes this part, and there's no substitute part

Screw, Guide - Series 10 400026-12
#22A

Crusher bin & enclosure assy. (230v) diagram

Screw, guide - series 10

Part #400026-12

The manufacturer no longer makes this part, and there's no substitute part

Crusher Bin/enclosure (2 12001748
#15E

Crusher bin & enclosure assy. (230v) diagram

Crusher bin/enclosure (2

Part #12001748

The manufacturer no longer makes this part, and there's no substitute part
