Model # 706291491 Official Craftsman 46" 10-drawer tool chest

Here are the diagrams and repair parts for Official Craftsman 706291491 46" 10-drawer tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Hardware Bag 26247
#NI

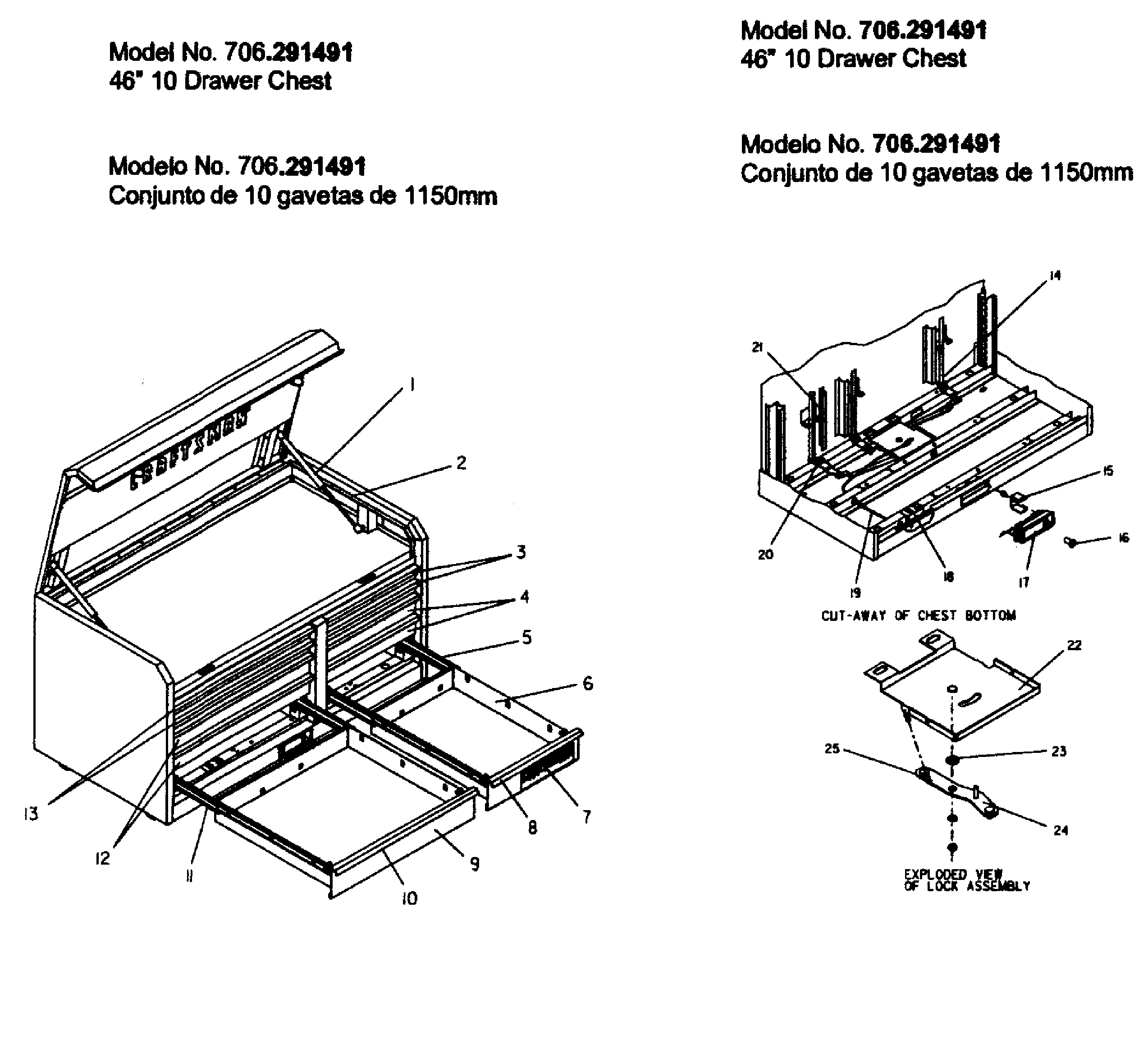

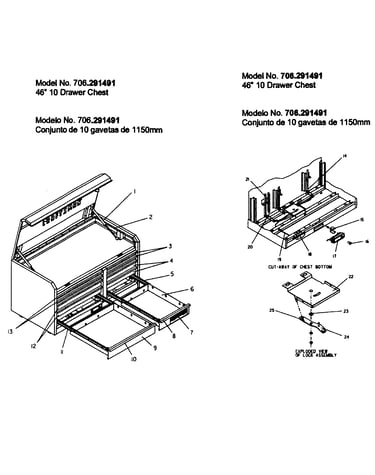

Tool chest diagram

Hardware bag

Part #26247

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Trim 13788A1-CA
Tool chest drawer trim

Part #13788A1-CA

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 3-in 16479A1-HGB15
#12

Tool chest diagram

Drawer, 3-in

Part #16479A1-HGB15

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 2-in (black) 16479-HGB15
#13

Tool chest diagram

Tool chest drawer, 2-in (black)

Part #16479-HGB15

The manufacturer no longer makes this part, and there's no substitute part

Bumper 11798A6
#21

Tool chest diagram

Bumper

Part #11798A6

The manufacturer no longer makes this part, and there's no substitute part

Gas Spring 9317A5
#1

Tool chest diagram

Gas spring

Part #9317A5

The manufacturer no longer makes this part, and there's no substitute part

Drawer Trim 13788-CA
#8

Tool chest diagram

Drawer trim

Part #13788-CA

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 4-in 26254-HGB15
#9

Tool chest diagram

Drawer, 4-in

Part #26254-HGB15

The manufacturer no longer makes this part, and there's no substitute part

Lock Brack 19194
#15

Tool chest diagram

Lock brack

Part #19194

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Handle 15406-HGB15
#17

Tool chest diagram

Tool chest lock handle

Part #15406-HGB15

The manufacturer no longer makes this part, and there's no substitute part
