Maytag
Dryer

Model # MDG6800AWQ Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag MDG6800AWQ dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

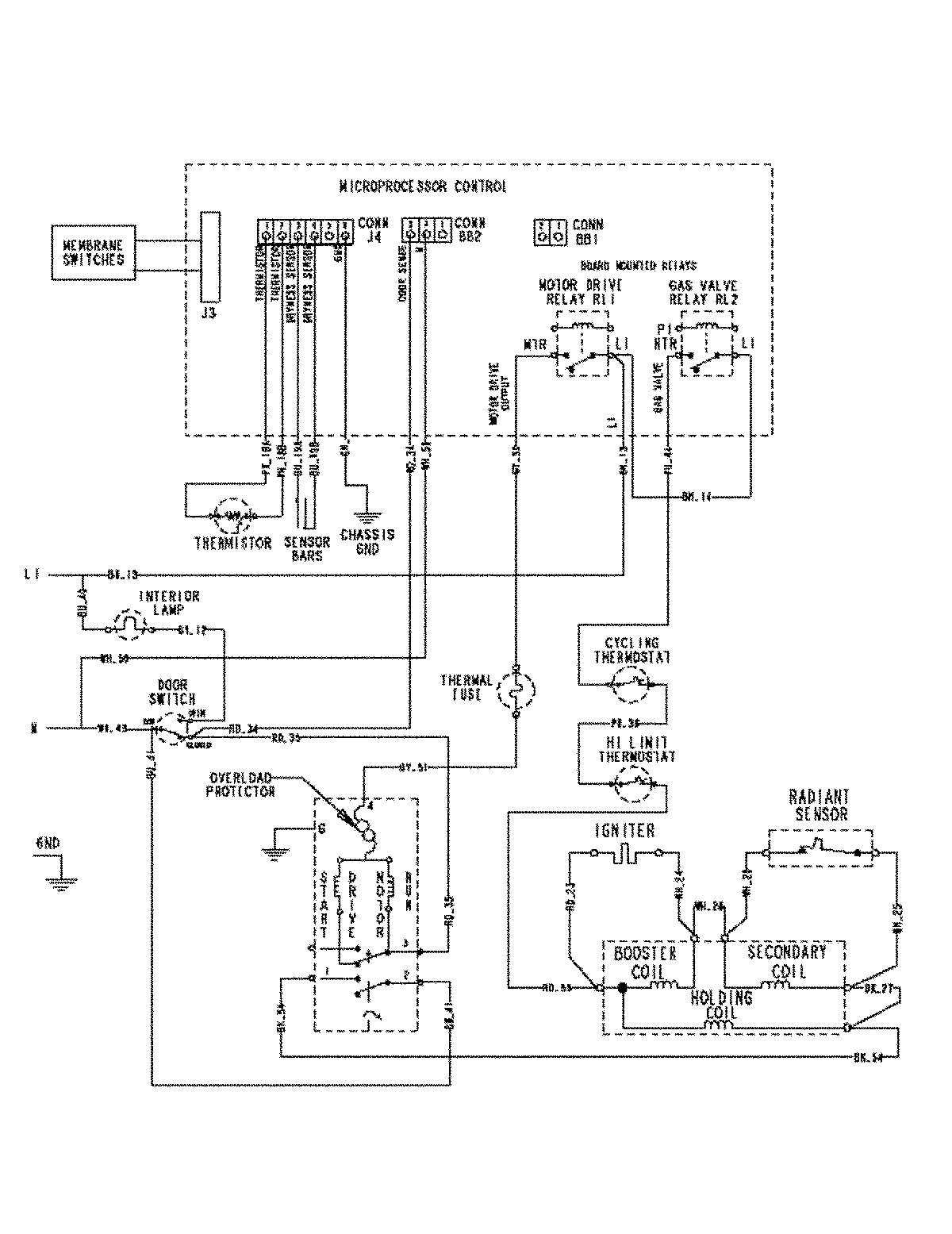

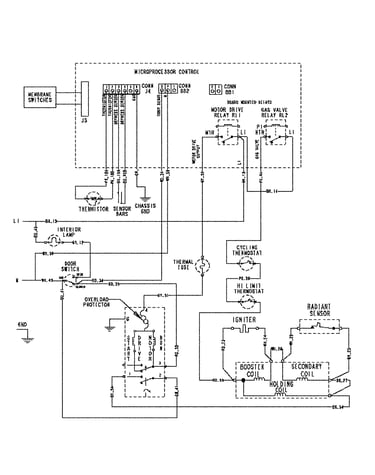

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Holding Coil 306106
#8

Supplemental information diagram

Holding coil

Part #306106

Replaced by #279834

?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Second Coil 306105
#7

Supplemental information diagram

Second coil

Part #306105

Replaced by #279834

?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Dryer Drum Support Roller (replaces W10116741, Y303373) 12001541
#7

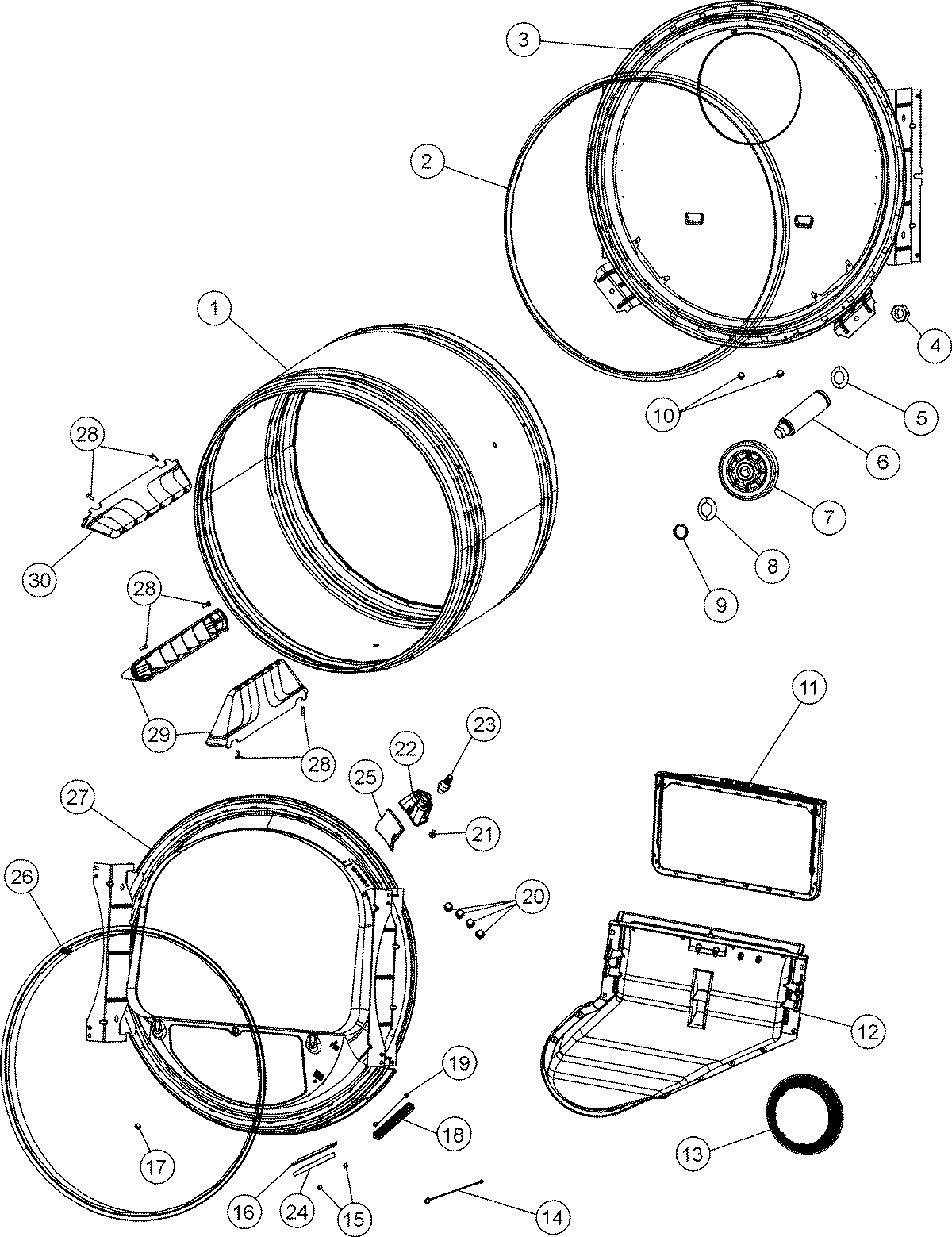

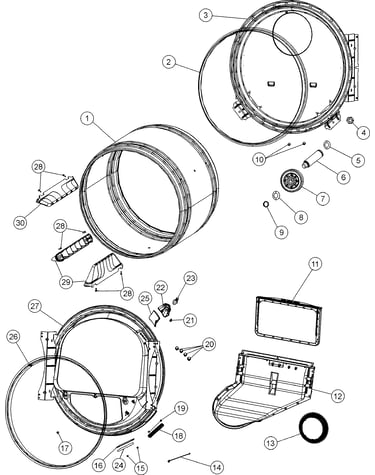

Tumbler diagram

Dryer drum support roller (replaces w10116741, y303373)

Part #12001541

BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Dryer Drum Belt 33002535
#1

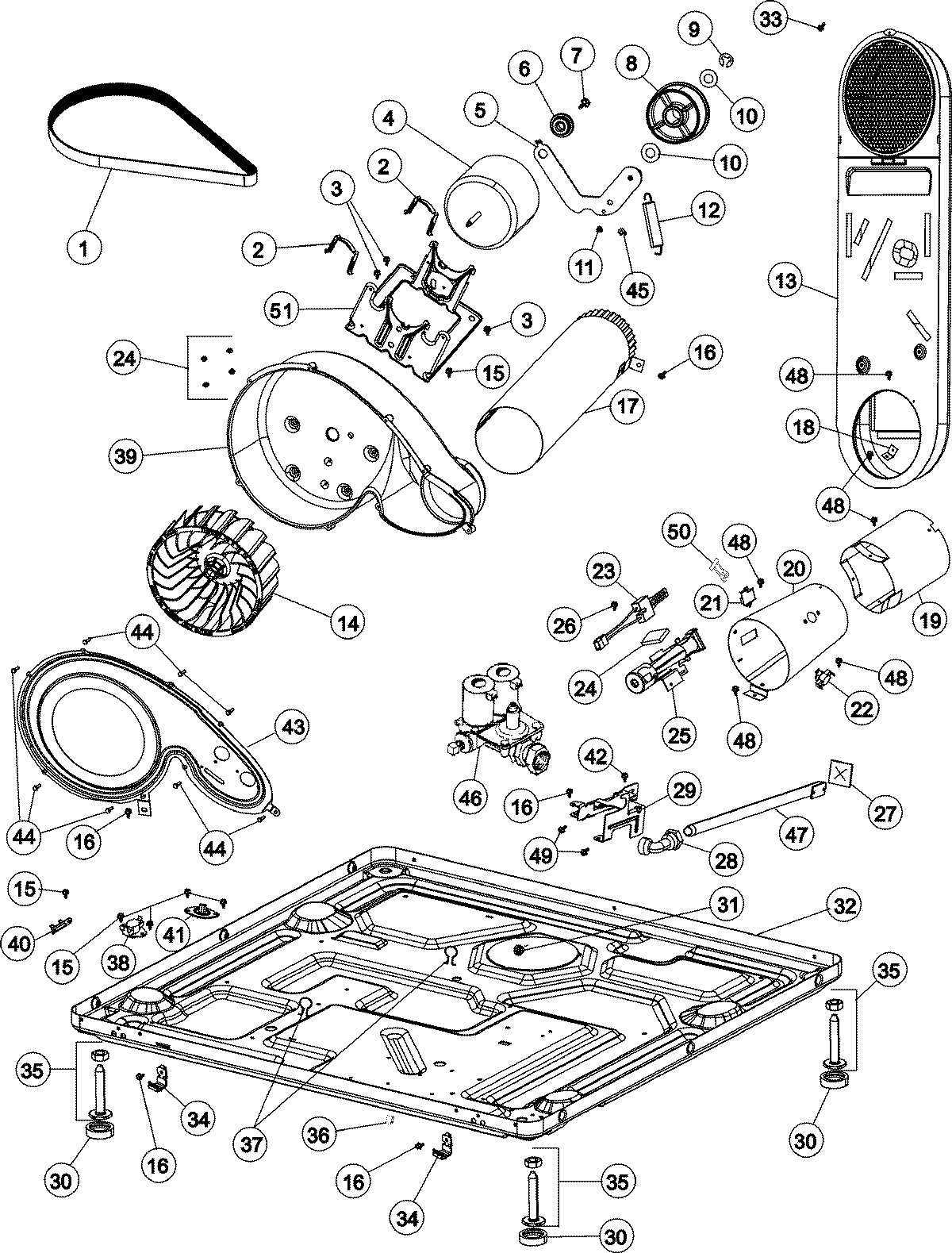

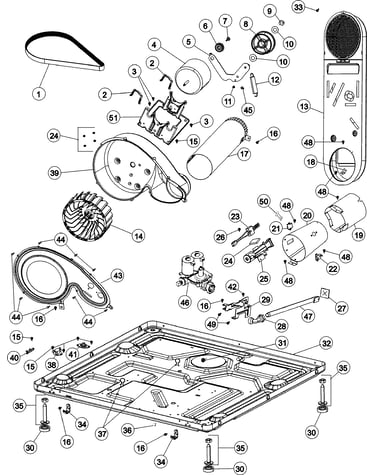

Base (gas) diagram

Dryer drum belt

Part #33002535

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33002535. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Gas Sensor 303377
#21

Base (gas) diagram

Gas sensor

Part #303377

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 303377. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Idler Pulley 33001783
#8

Base (gas) diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Dryer Drum Light Bulb 22002263
#23

Tumbler diagram

Dryer drum light bulb

Part #22002263

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 22002263. Substitute parts can look different from the original.
BEST SELLER
$11.35 |
15% OFF Phone Price : $13.35
In Stock
Dryer Operating Thermostat 33002567
#38

Base (gas) diagram

Dryer operating thermostat

Part #33002567

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 33002567. Substitute parts can look different from the original.
BEST SELLER
$55.47 |
10% OFF Phone Price : $61.47
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#16

Tumbler diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Bearing Pad 312940
#24

Tumbler diagram

Bearing pad

Part #312940

Replaced by #306508

?
Manufacturer substitution
This part replaces 312940. Substitute parts can look different from the original.
BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more
