Weider
Exercise Cycle

Model # WELR43062 Official Weider shape guide

Here are the diagrams and repair parts for Official Weider WELR43062 shape guide, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Caution Decal 136086

#NI

All parts diagram

Caution decal

Part #136086

Replaced by #140403

?
Manufacturer substitution
This part replaces 136086. Substitute parts can look different from the original.
This item is not returnable
In Stock
Axlecap,hat, 134526
#29

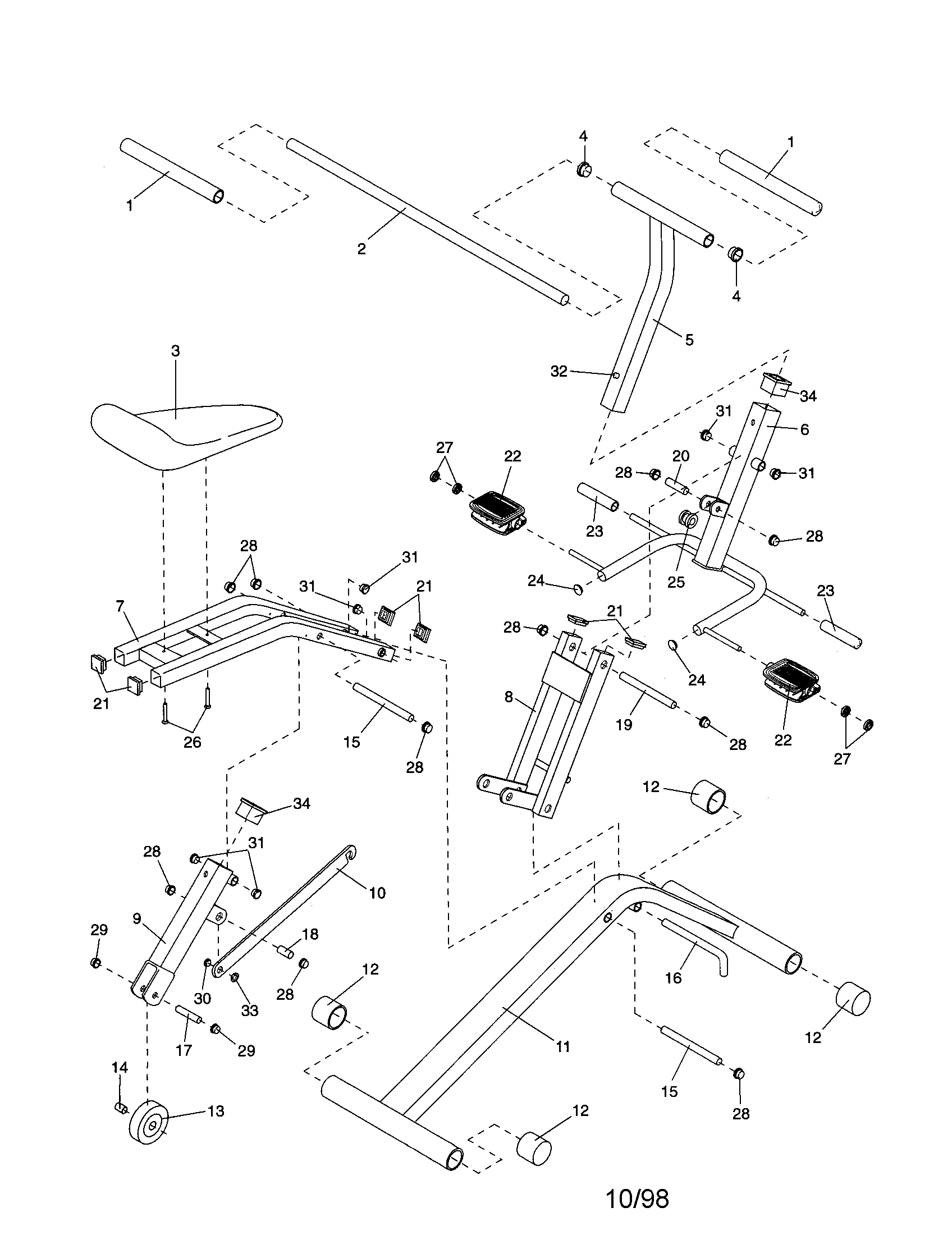

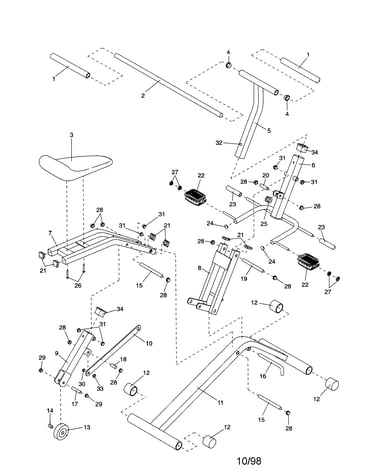

Unit parts diagram

Axlecap,hat,

Part #134526

Replaced by #103957

?
Manufacturer substitution
This part replaces 134526. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lifestyler Exercise Equipment Push Nut 128348
#27

Unit parts diagram

Lifestyler exercise equipment push nut

Part #128348

The manufacturer no longer makes this part, and there's no substitute part

Caution Decal 133224

#NI

All parts diagram

Caution decal

Part #133224

The manufacturer no longer makes this part, and there's no substitute part

Assy,axle,m1 134569
#20

Unit parts diagram

Assy,axle,m1

Part #134569

The manufacturer no longer makes this part, and there's no substitute part

Endcap,stblz 134515
#12

Unit parts diagram

Endcap,stblz

Part #134515

The manufacturer no longer makes this part, and there's no substitute part

Assy,axle,34 134566
#17

Unit parts diagram

Assy,axle,34

Part #134566

The manufacturer no longer makes this part, and there's no substitute part

End Cap 040152
#21

Unit parts diagram

End cap

Part #040152

The manufacturer no longer makes this part, and there's no substitute part

Bshg,btrfly, 134523
#25

Unit parts diagram

Bshg,btrfly,

Part #134523

The manufacturer no longer makes this part, and there's no substitute part

Assy,hb,sppr 134625
#5

Unit parts diagram

Assy,hb,sppr

Part #134625

The manufacturer no longer makes this part, and there's no substitute part
