Top-Mount Refrigerator

Model # GTS18GCSFRBB Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTS18GCSFRBB refrigerator - s series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGTS18GCSFRBB Refrigerators

  • Refrigerator Ice Maker Assembly WR30X10109
    #820

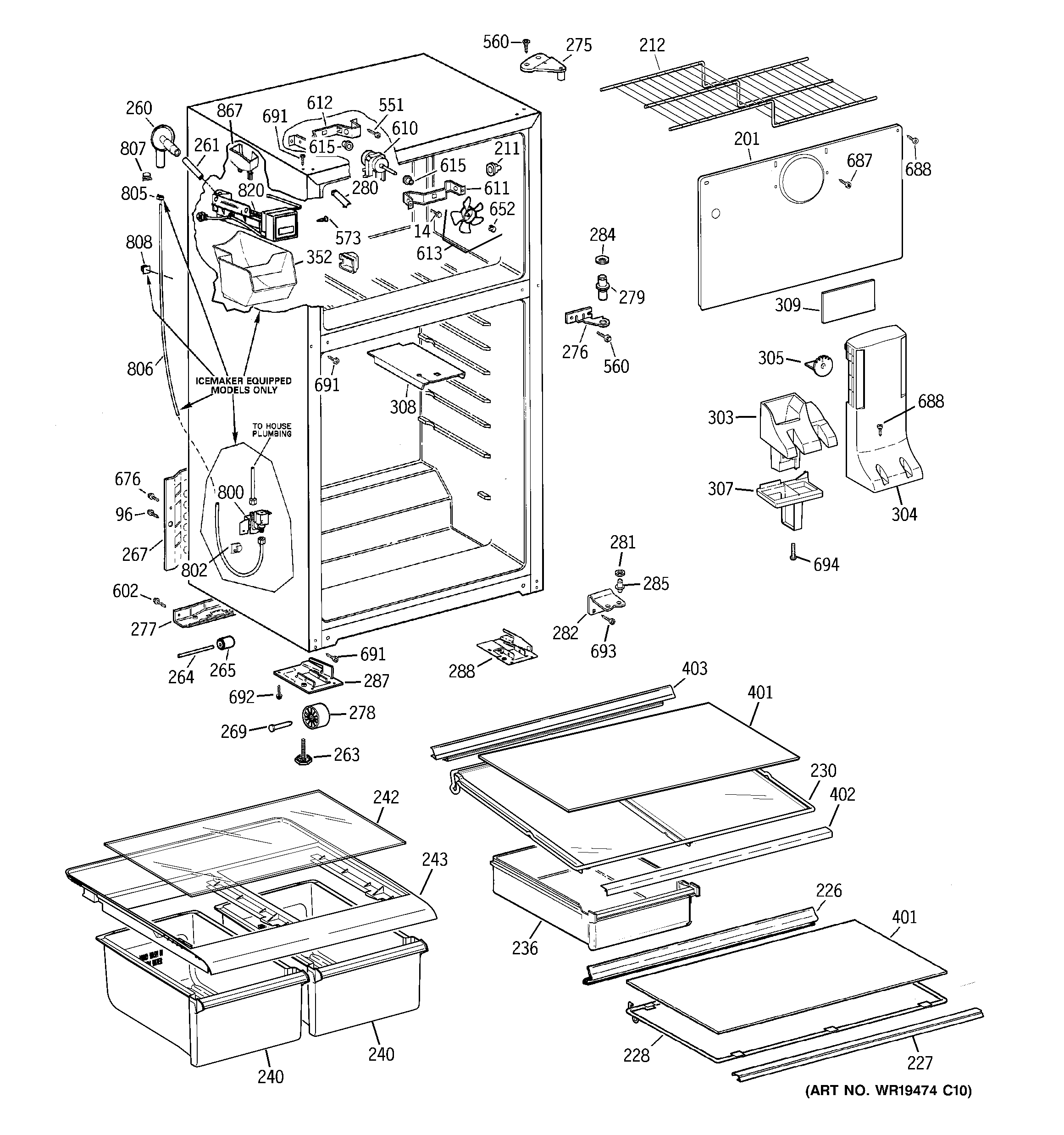

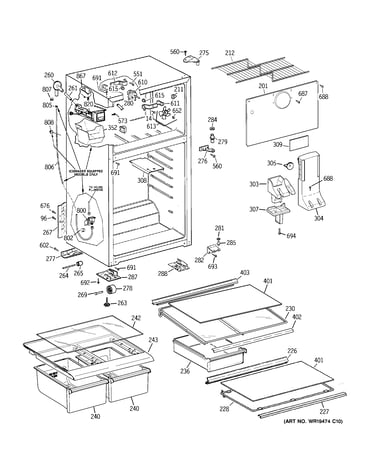

    Cabinet diagram

    Refrigerator ice maker assembly

    Part #WR30X10109

    Replaced by #WR30X10093

    ?
    Manufacturer substitution
    This part replaces WR30X10109. Substitute parts can look different from the original.
    BEST SELLER
    $190.85
    6% OFF Phone Price : $202.85
    In Stock
  • Dryer Filter WR86X0096
    #740

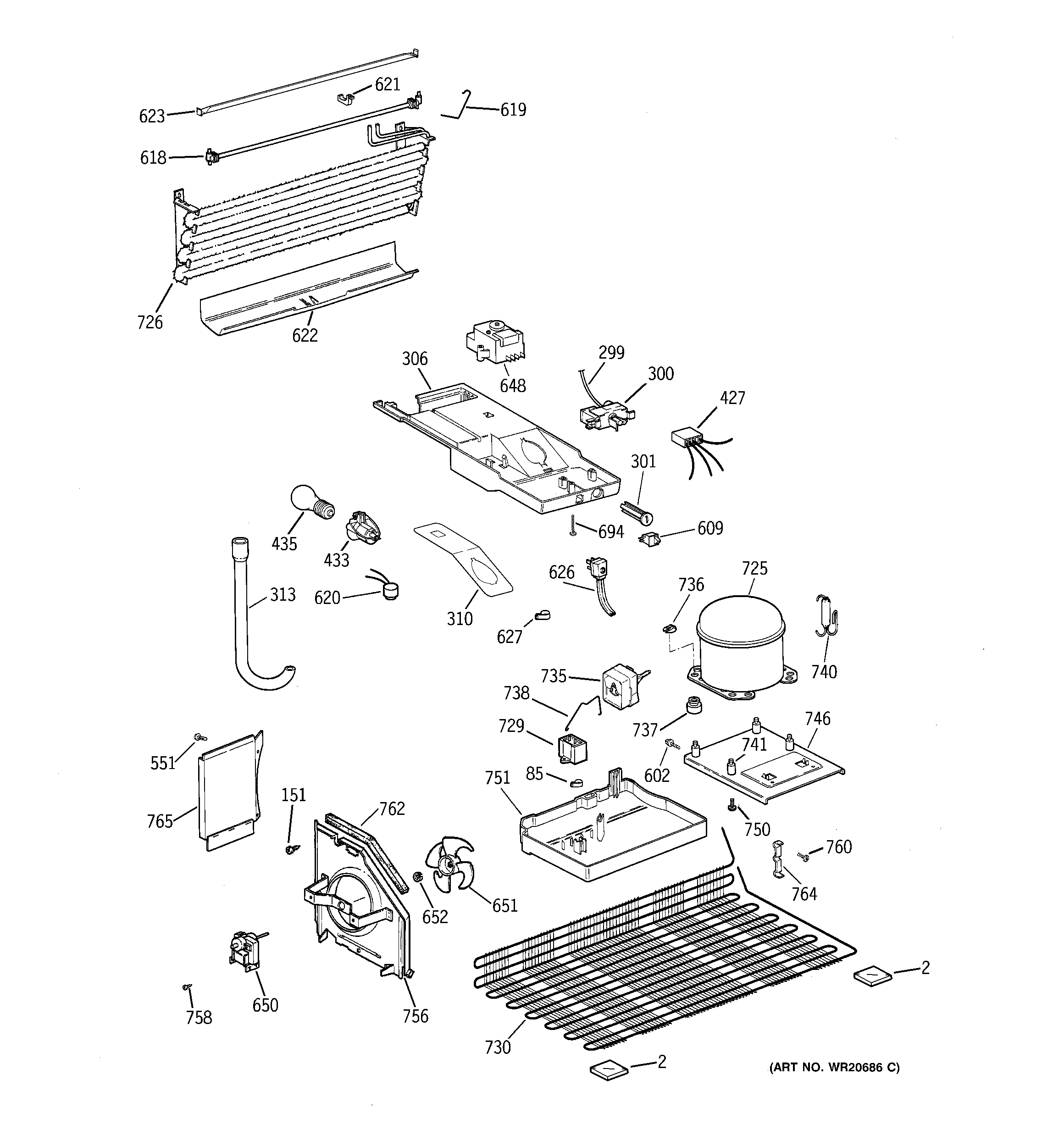

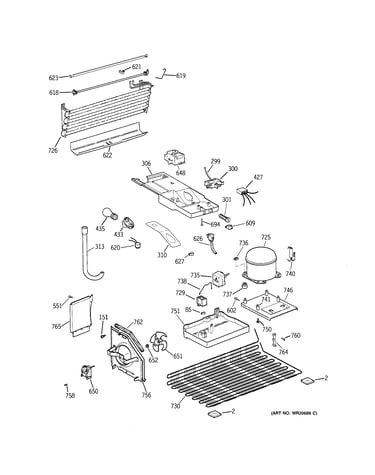

    Unit parts diagram

    Dryer filter

    Part #WR86X0096

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    BEST SELLER
    $74.11
    7% OFF Phone Price : $80.11
    In Stock
  • G.e. Appliance Light Bulb, 40-watt 40A15
    #435

    Unit parts diagram

    G.e. appliance light bulb, 40-watt

    Part #40A15

    BEST SELLER
    $14.03
    12% OFF Phone Price : $16.03
    In Stock
  • Refrigerator Compressor Start Relay WR07X10131
    #735

    Unit parts diagram

    Refrigerator compressor start relay

    Part #WR07X10131

    BEST SELLER
    $38.98
    13% OFF Phone Price : $44.98
    In Stock
  • Capacitor WR62X0079
    #729

    Unit parts diagram

    Capacitor

    Part #WR62X0079

    Replaced by #WR55X24064

    ?
    Manufacturer substitution
    This part replaces WR62X0079. Substitute parts can look different from the original.
    BEST SELLER
    $55.33
    10% OFF Phone Price : $61.33
    In Stock
  • Refrigerator Replacement Compressor WR87X10096
    #725

    Unit parts diagram

    Refrigerator replacement compressor

    Part #WR87X10096

    Replaced by #WR87X10224

    ?
    Manufacturer substitution
    This part replaces WR87X10096. Substitute parts can look different from the original.
    BEST SELLER
    $479.77
    $12.00 OFF Phone Price : $491.77
    In Stock
  • Refrigerator Condenser Fan Blade WR60X10207
    #651

    Unit parts diagram

    Refrigerator condenser fan blade

    Part #WR60X10207

    BEST SELLER
    This item is not returnable
    $10.51
    16% OFF Phone Price : $12.51
    In Stock
  • Refrigerator Door Hinge Nylon Washer WR01X10146
    #281

    Cabinet diagram

    Refrigerator door hinge nylon washer

    Part #WR01X10146

    Replaced by #WR01X27364

    ?
    Manufacturer substitution
    This part replaces WR01X10146. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.40
    12% OFF Phone Price : $8.40
    In Stock
  • Refrigerator Defrost Timer WR09X10049
    #648

    Unit parts diagram

    Refrigerator defrost timer

    Part #WR09X10049

    The manufacturer no longer makes this part, and there's no substitute part

  • Refrigerator Fixed Shelf WR17X12916
    #19

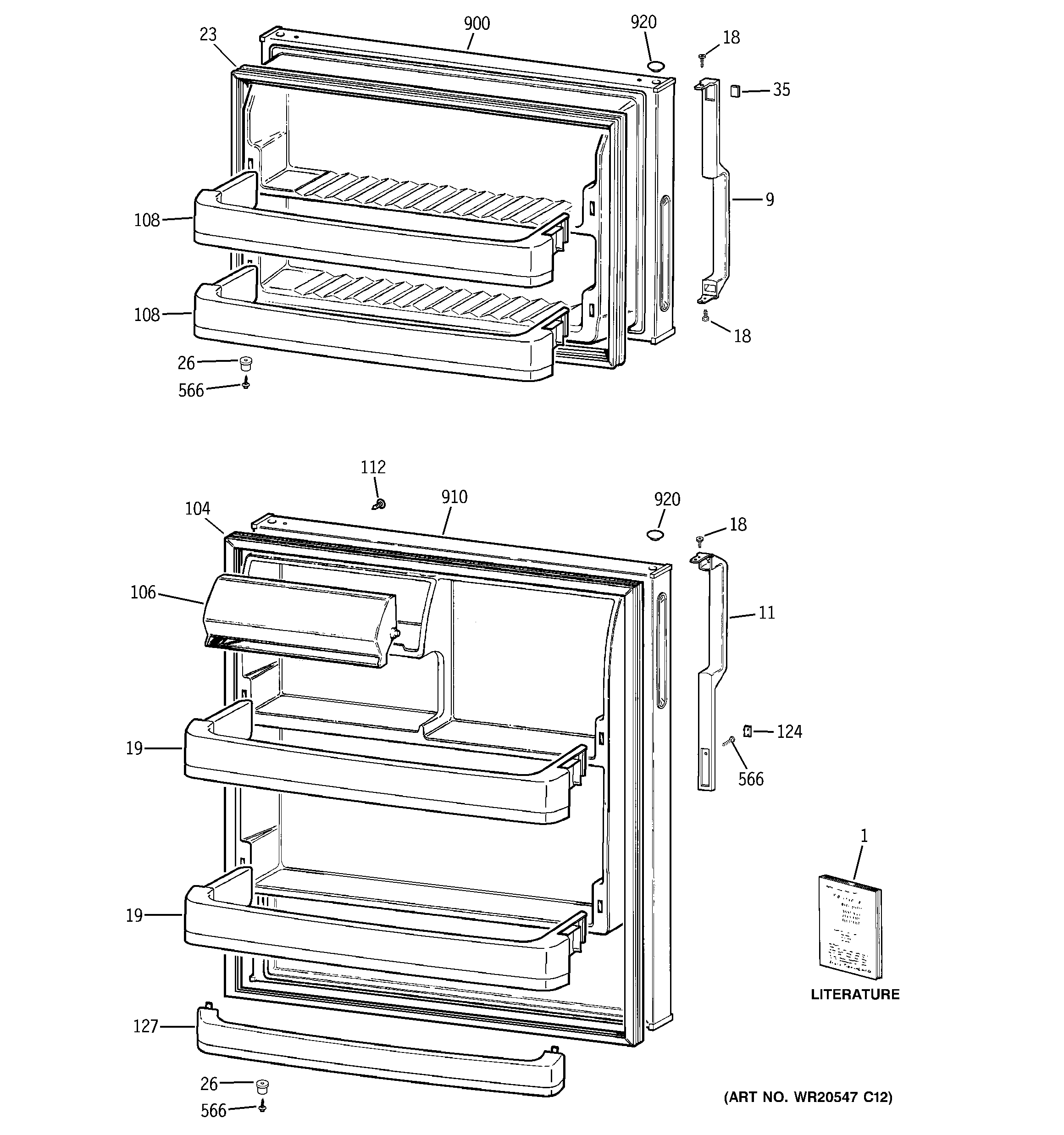

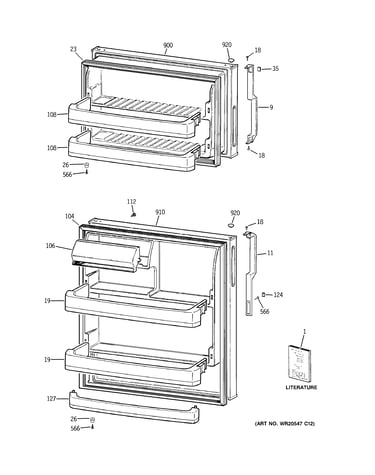

    Doors diagram

    Refrigerator fixed shelf

    Part #WR17X12916

    Replaced by #WR17X11889

    ?
    Manufacturer substitution
    This part replaces WR17X12916. Substitute parts can look different from the original.
    $34.97
    15% OFF Phone Price : $40.97
    In Stock
