Model # ZIBS240HASS Official GE bar refrigerator

Here are the diagrams and repair parts for Official GE ZIBS240HASS bar refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

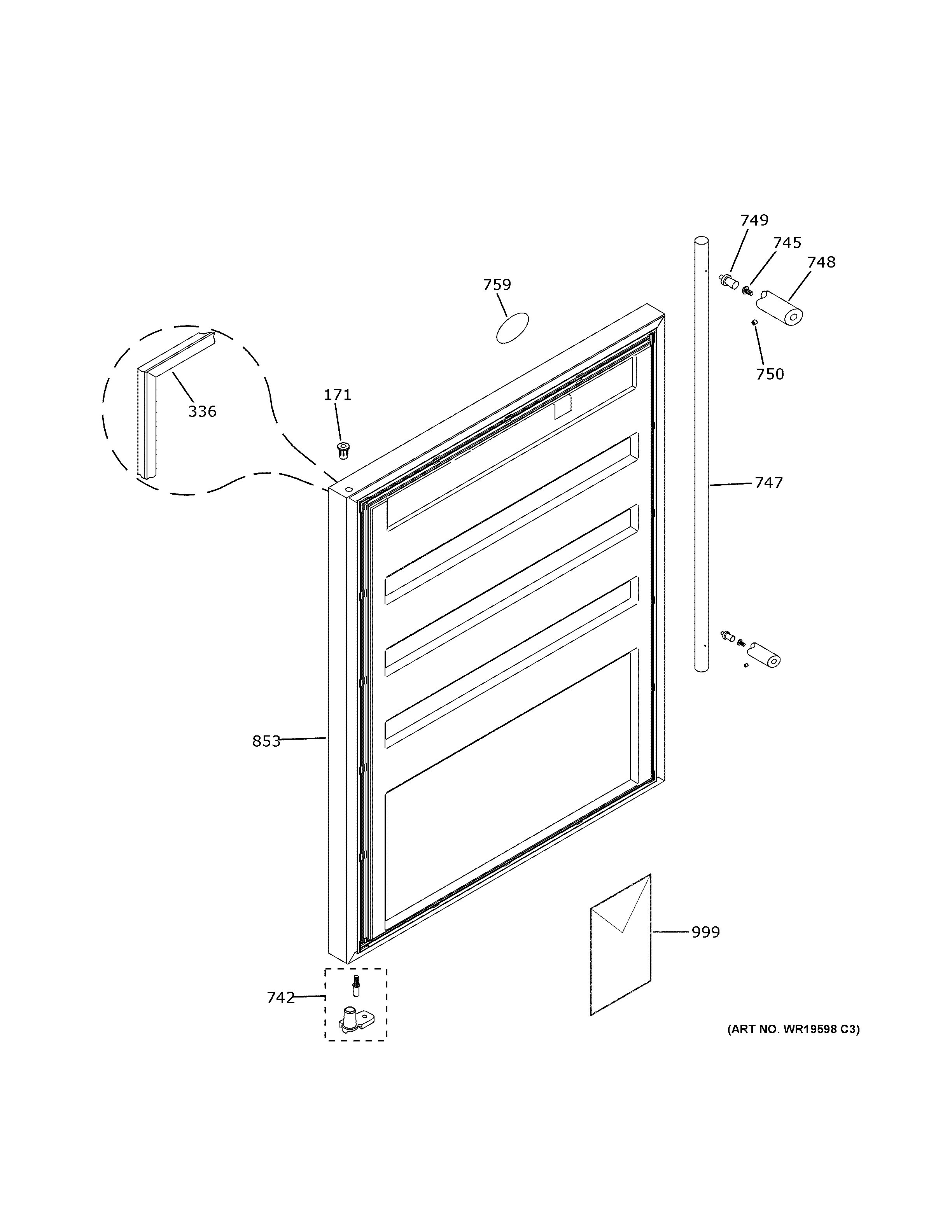

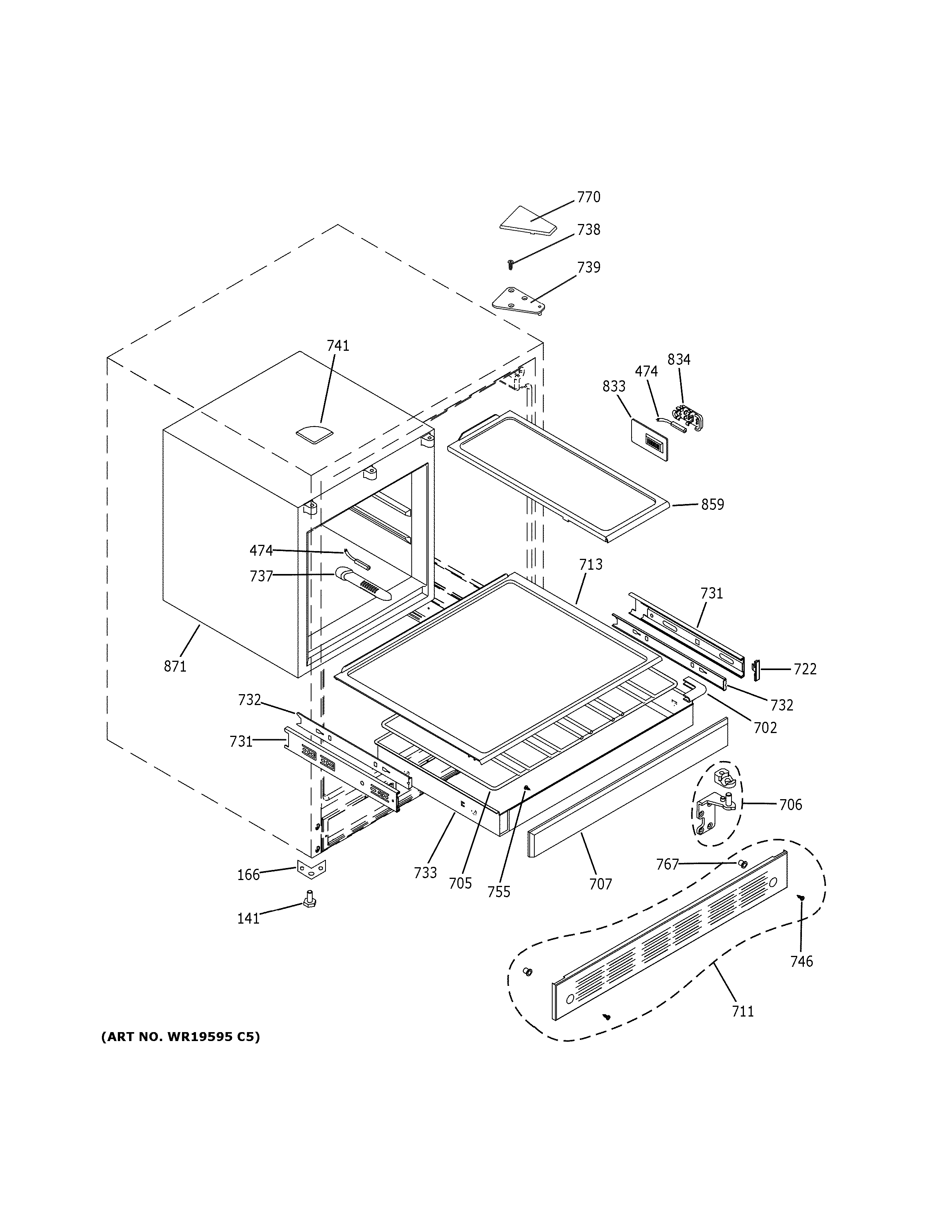

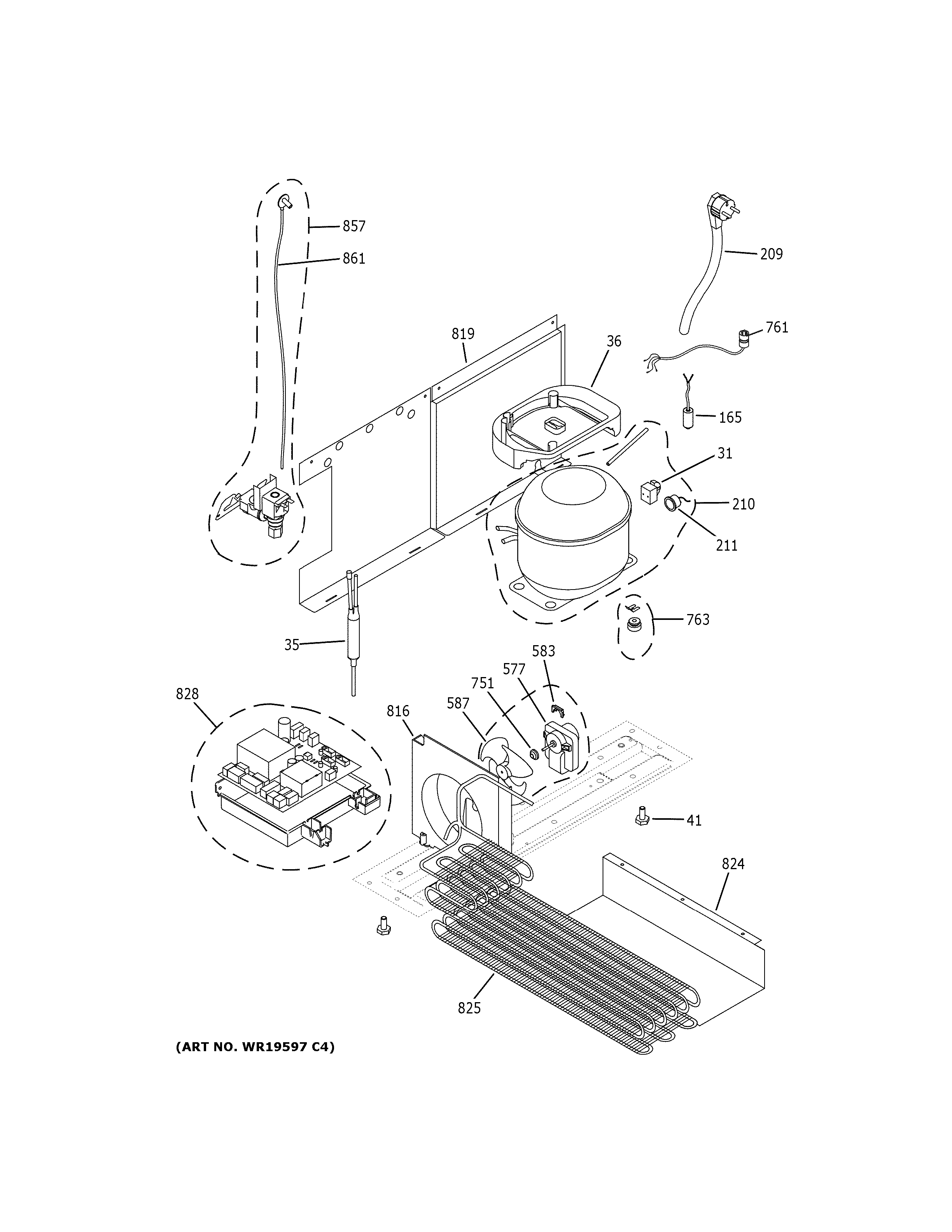

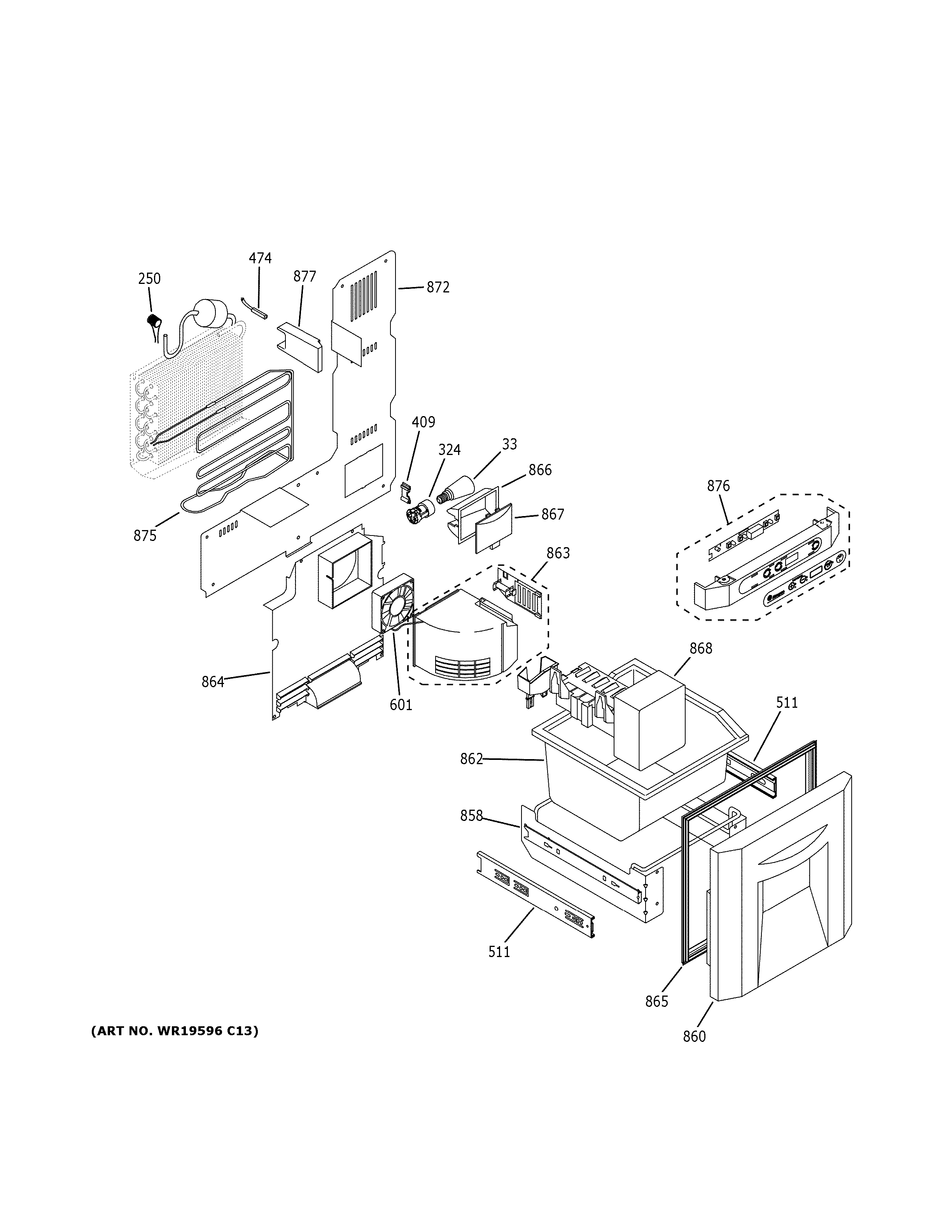

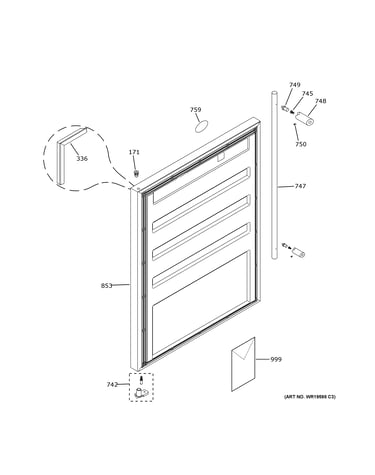

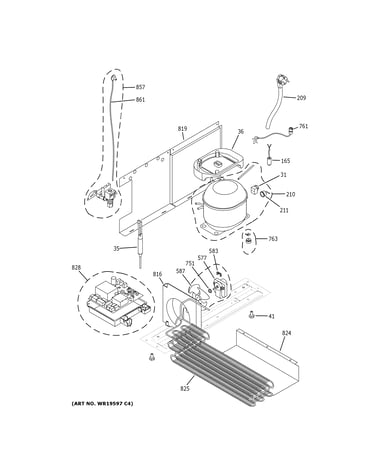

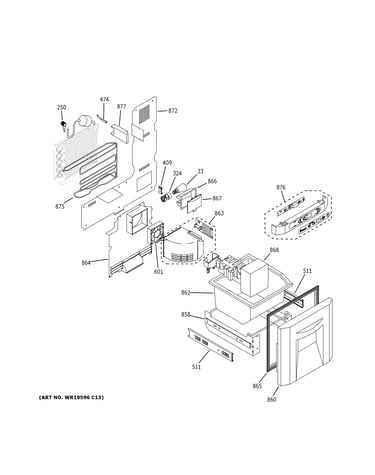

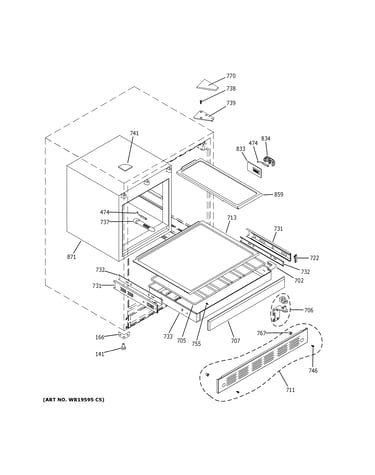

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Electronic I WR30X10058
Electronic i

Part #WR30X10058

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10058. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Wine Cooler Run Capacitor WR62X10033
Wine cooler run capacitor

Part #WR62X10033

$79.02 |
7% OFF Phone Price : $85.02
In Stock
Wine Cooler Temperature Sensor WR55X10409
Wine cooler temperature sensor

Part #WR55X10409

$54.14 |
10% OFF Phone Price : $60.14
In Stock
Drip Tray WR17X11673
Drip tray

Part #WR17X11673

Replaced by #WR17X10374

?
Manufacturer substitution
This part replaces WR17X11673. Substitute parts can look different from the original.
$56.71
In Stock
Bottle Rack WR71X10602
Bottle rack

Part #WR71X10602

$80.33
In Stock
Compressor M WR01X10452
Compressor m

Part #WR01X10452

$35.97 |
14% OFF Phone Price : $41.97
In Stock
Fan Cover Is WR02X11956
Fan cover is

Part #WR02X11956

$72.33
In Stock
Icemaker Com WR30X10059
Icemaker com

Part #WR30X10059

$294.96
In Stock
Corner Piece WR02X11950
Corner piece

Part #WR02X11950

$15.27
In Stock
Temperature Control WR02X11845
Temperature control

Part #WR02X11845

$10.00
In Stock
