Stand Mixer

Model # 7KSM180RPZMB0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 7KSM180RPZMB0 mixer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

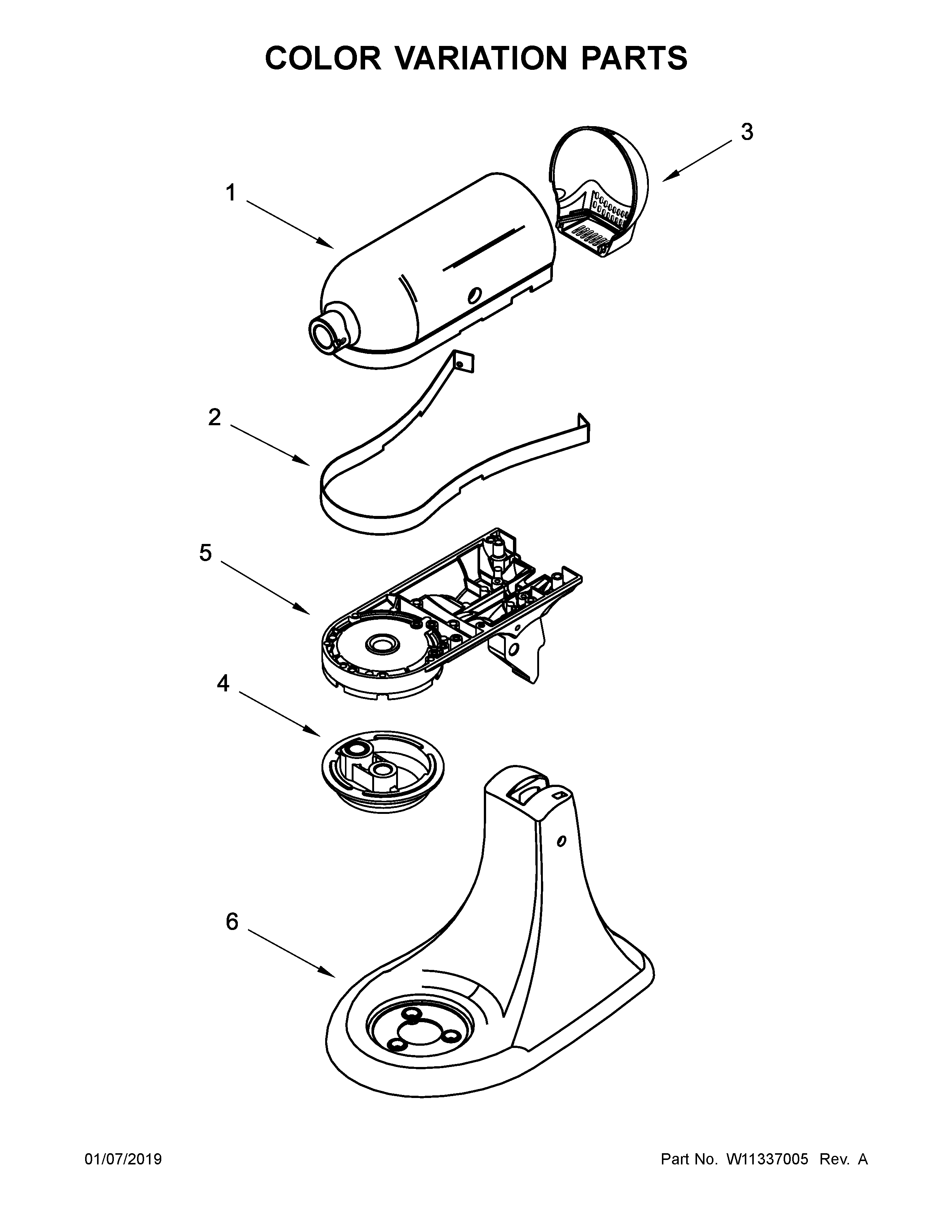

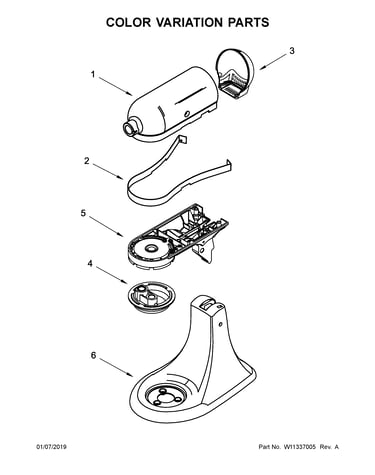

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for7KSM180RPZMB0 Mixer

  • Stand Mixer Worm Gear Assembly 240309-2
    #27

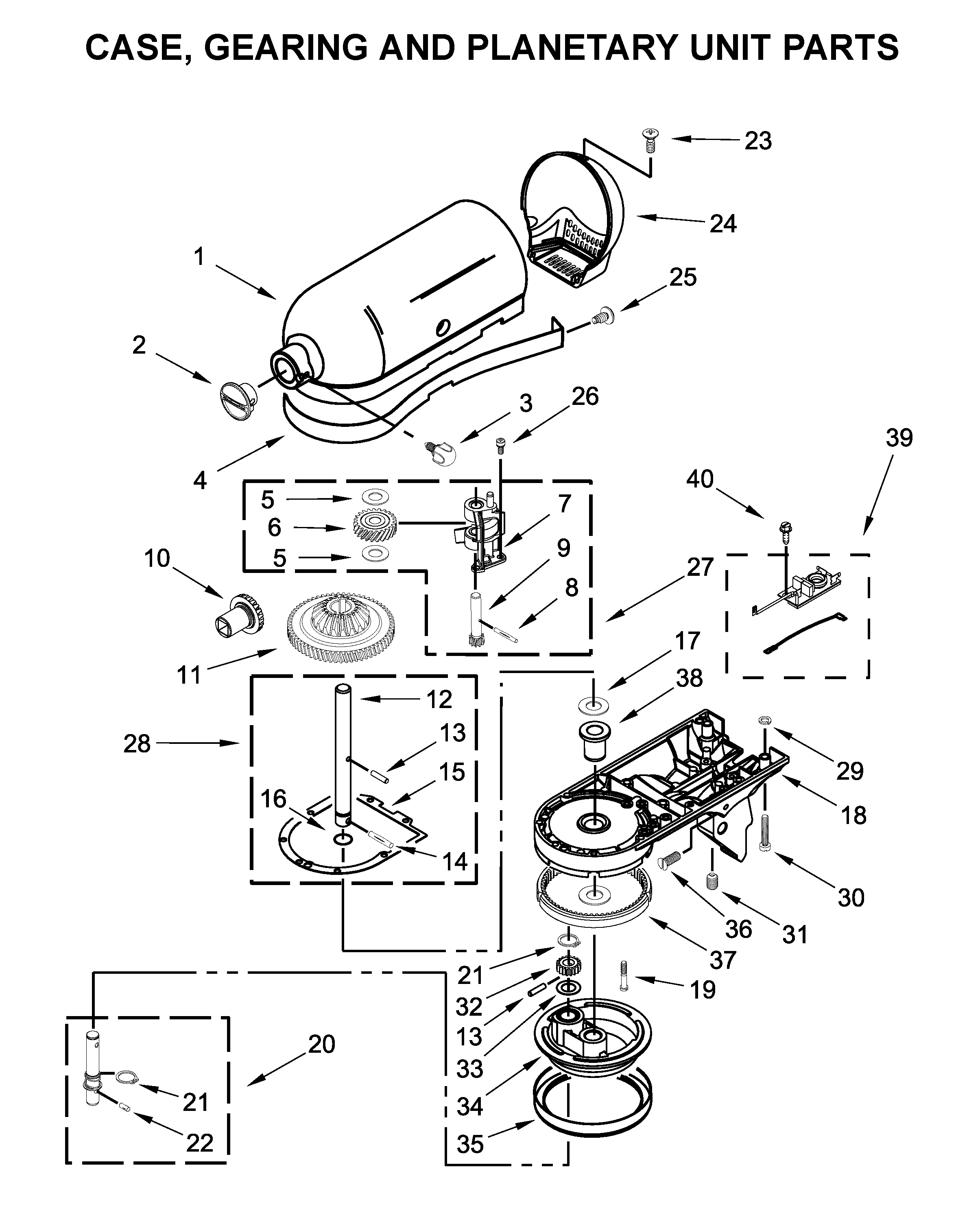

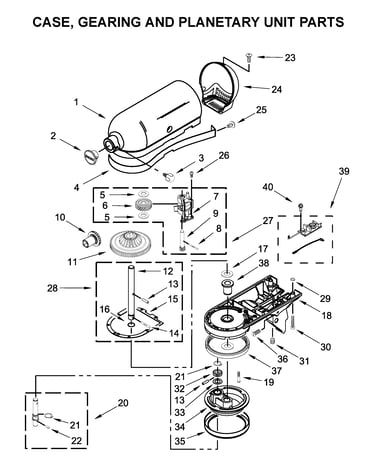

    Case, gearing and planetary unit parts diagram

    Stand mixer worm gear assembly

    Part #240309-2

    Replaced by #WP240309-2

    ?
    Manufacturer substitution
    This part replaces 240309-2. Substitute parts can look different from the original.
    $32.07
    16% OFF Phone Price : $38.07
    In Stock
  • Gasket 4162324
    #15

    Case, gearing and planetary unit parts diagram

    Gasket

    Part #4162324

    Replaced by #WP4162324

    ?
    Manufacturer substitution
    This part replaces 4162324. Substitute parts can look different from the original.
    This item is not returnable
    $16.49
    11% OFF Phone Price : $18.49
    In Stock
  • Brush-mtr W10380496
    #19

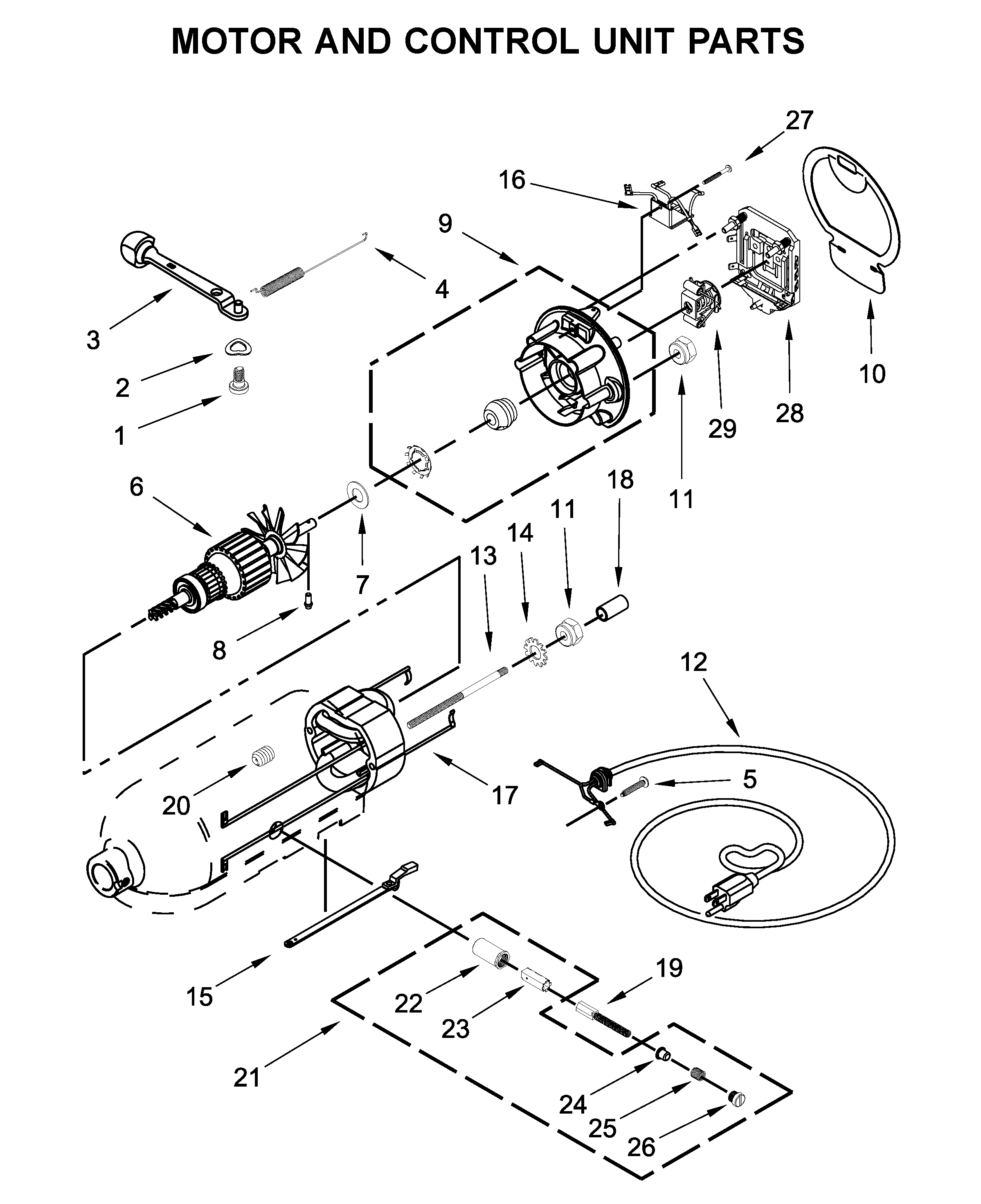

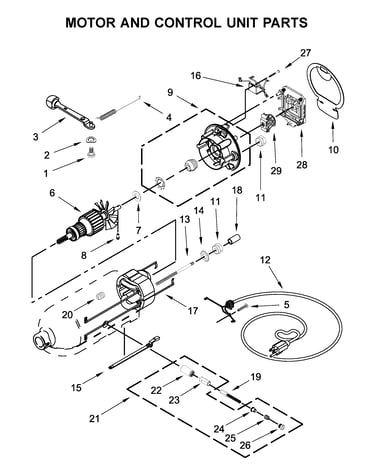

    Motor and control unit parts diagram

    Brush-mtr

    Part #W10380496

    Replaced by #WPW10380496

    ?
    Manufacturer substitution
    This part replaces W10380496. Substitute parts can look different from the original.
    $7.50
    12% OFF Phone Price : $8.50
    In Stock
  • Pin-groove 9705444
    #8

    Case, gearing and planetary unit parts diagram

    Pin-groove

    Part #9705444

    Replaced by #WP9705444

    ?
    Manufacturer substitution
    This part replaces 9705444. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Speed & Cam W10898250
    #15

    Motor and control unit parts diagram

    Speed & cam

    Part #W10898250

    Replaced by #W11557271

    ?
    Manufacturer substitution
    This part replaces W10898250. Substitute parts can look different from the original.
    This item is not returnable
    $4.35
    19% OFF Phone Price : $5.35
    In Stock
  • Seal 3184356
    #10

    Motor and control unit parts diagram

    Seal

    Part #3184356

    Replaced by #WP240775-1

    ?
    Manufacturer substitution
    This part replaces 3184356. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Center Shaft 4160474
    #28

    Case, gearing and planetary unit parts diagram

    Center shaft

    Part #4160474

    In Stock
  • Foot 9709707
    #7

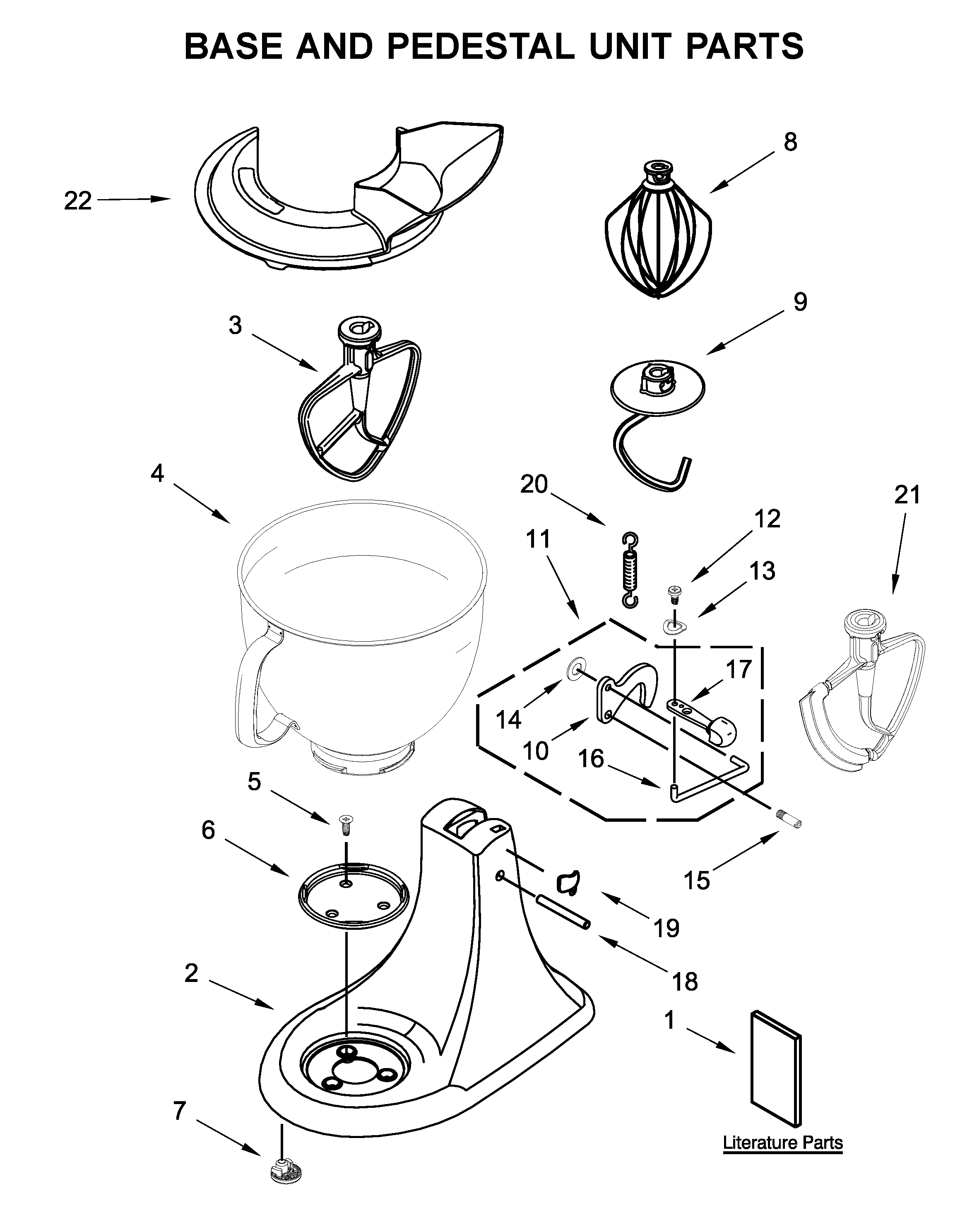

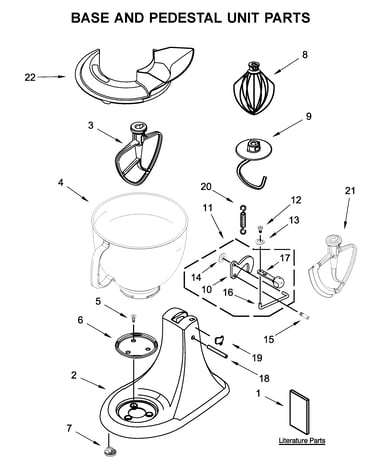

    Base and pedestal unit parts diagram

    Foot

    Part #9709707

    Replaced by #WP9709707

    ?
    Manufacturer substitution
    This part replaces 9709707. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Pin-dowel 16910
    #18

    Base and pedestal unit parts diagram

    Pin-dowel

    Part #16910

    Replaced by #WP16910

    ?
    Manufacturer substitution
    This part replaces 16910. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Center Shaft 240026
    #12

    Case, gearing and planetary unit parts diagram

    Center shaft

    Part #240026

    Replaced by #WP240026

    ?
    Manufacturer substitution
    This part replaces 240026. Substitute parts can look different from the original.
    This item is not returnable
    $9.58
    9% OFF Phone Price : $10.58
    In Stock
