Roper
Dishwasher

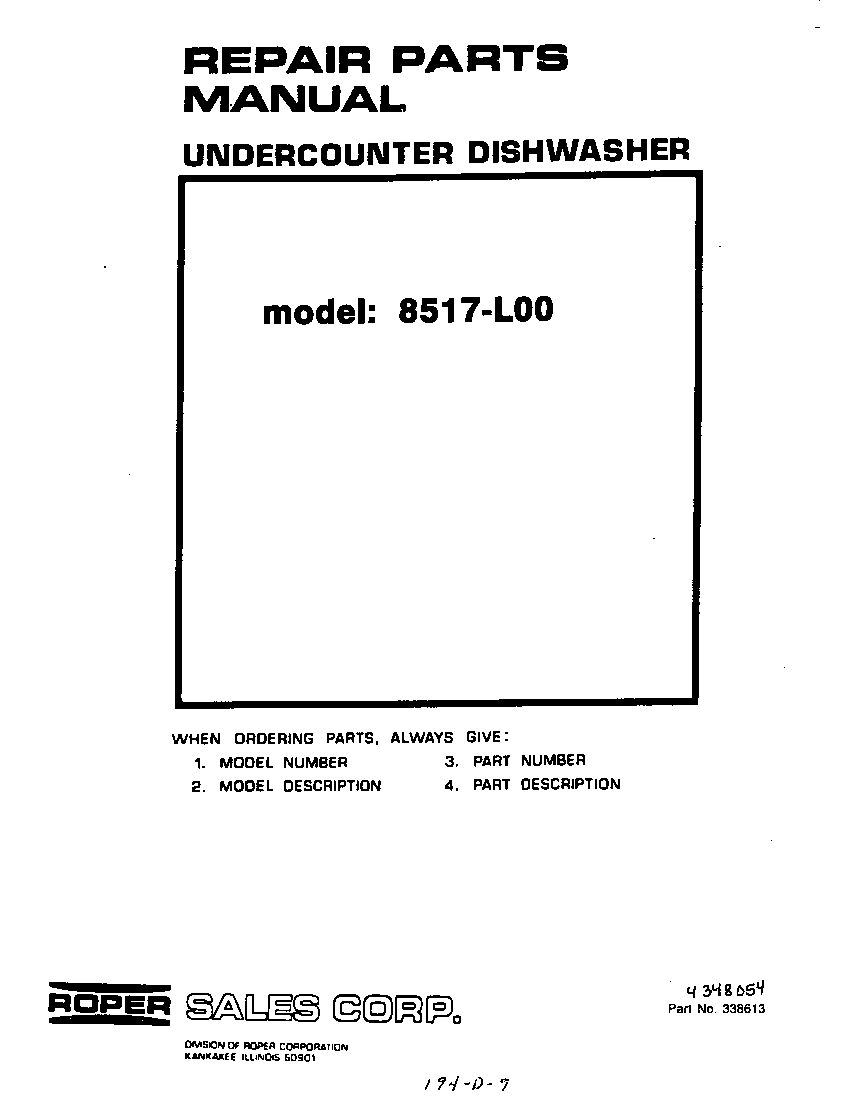

Model # 8517L00 Official Roper dishwasher

Here are the diagrams and repair parts for Official Roper 8517L00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

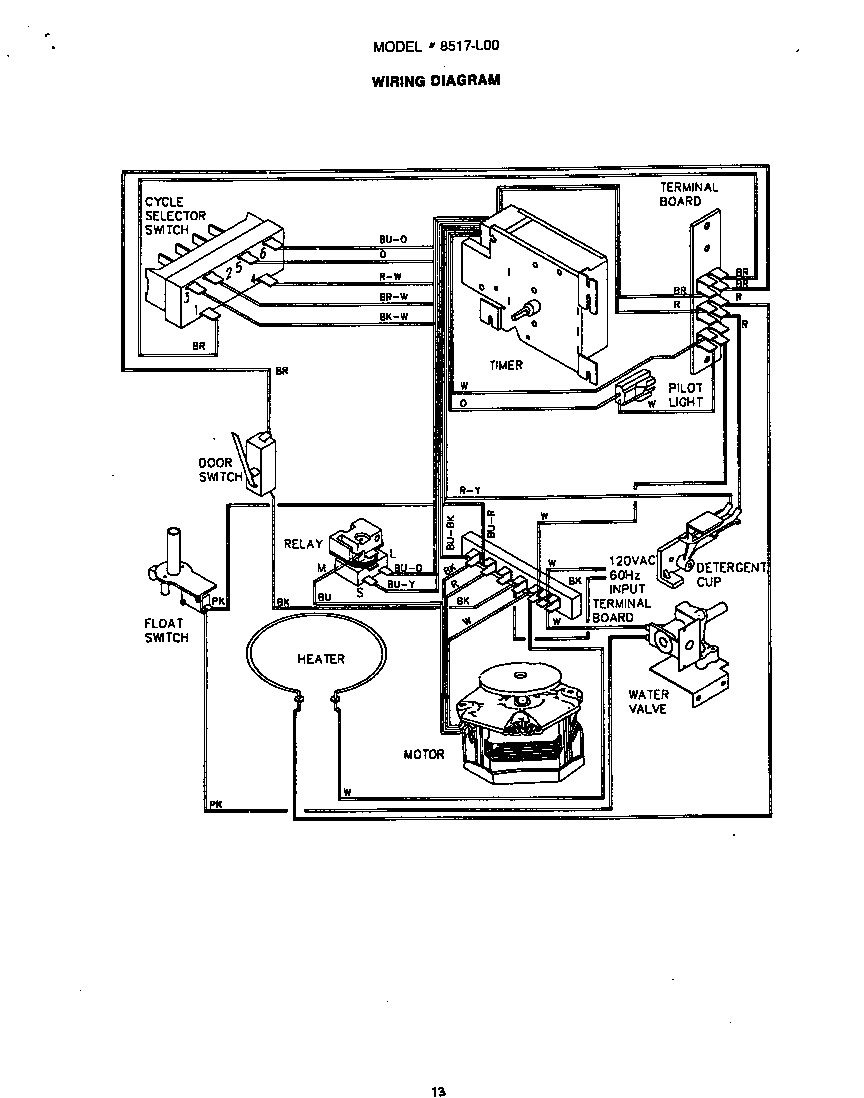

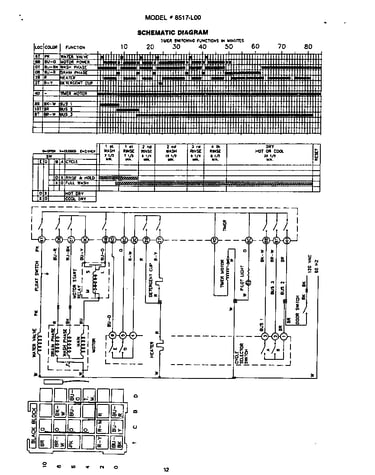

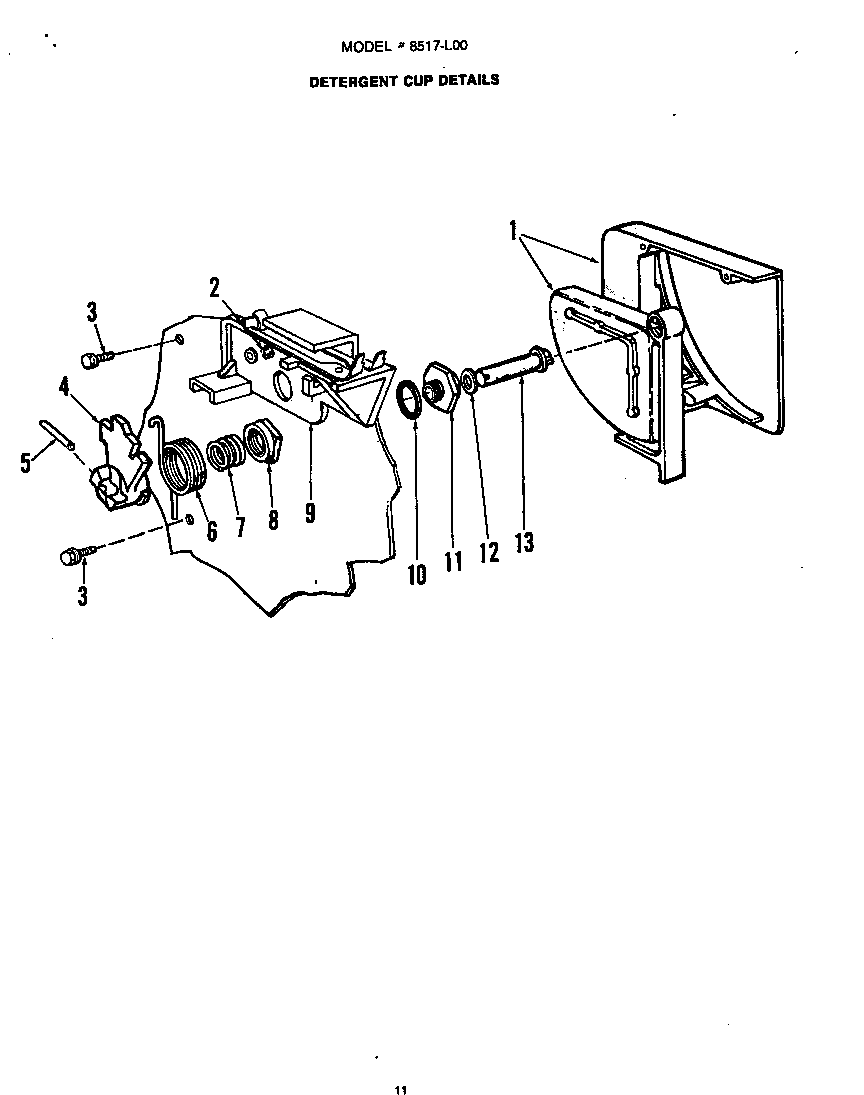

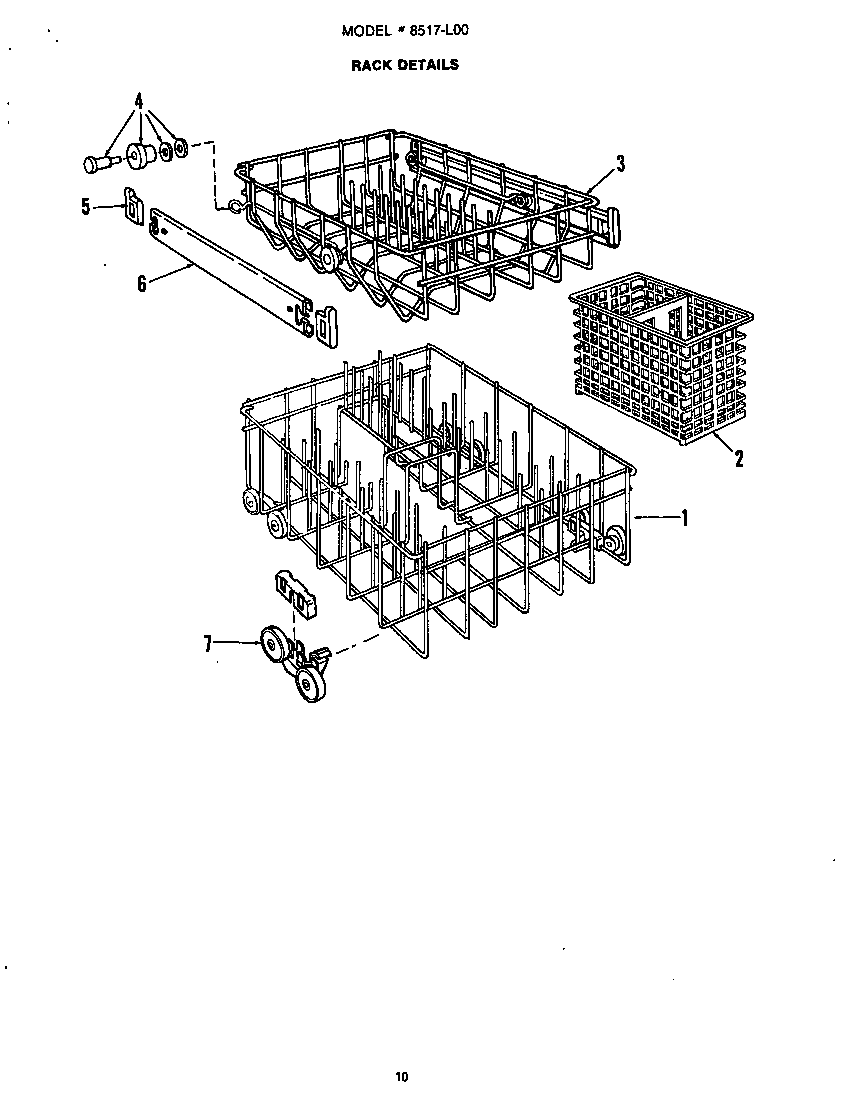

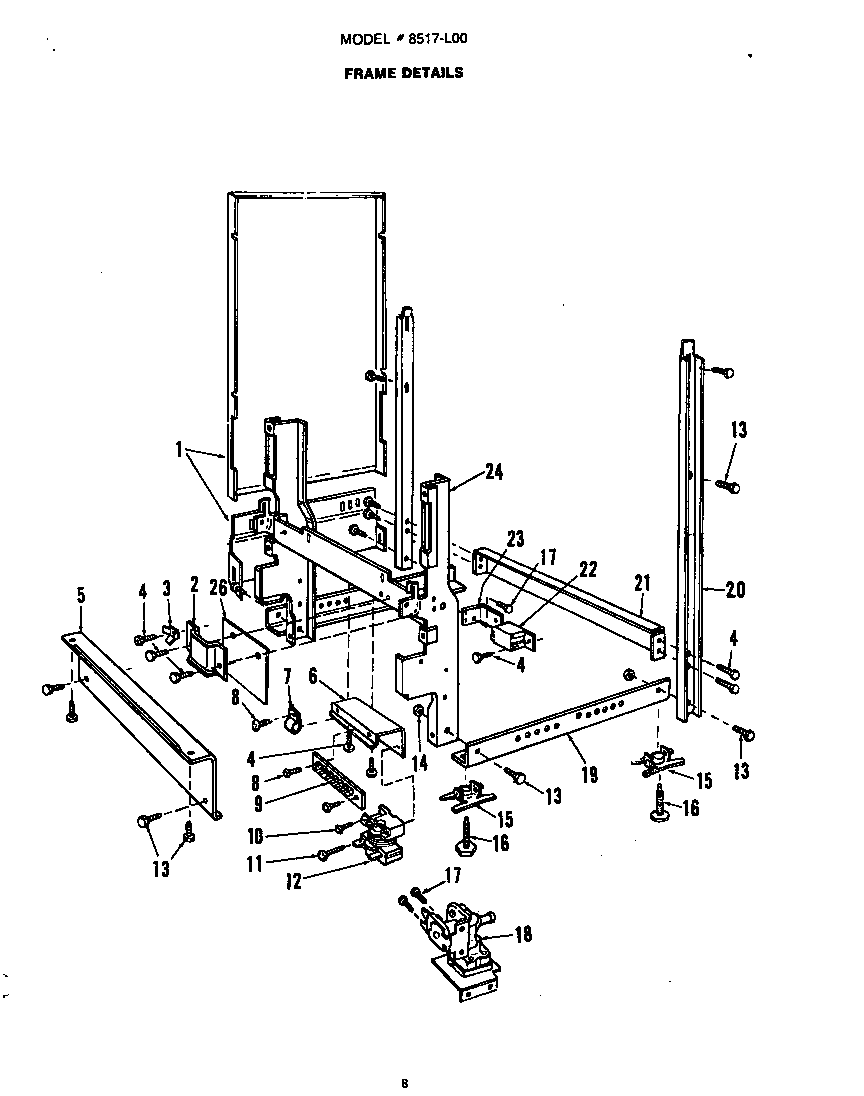

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Clamp Ring(p 807712
#15

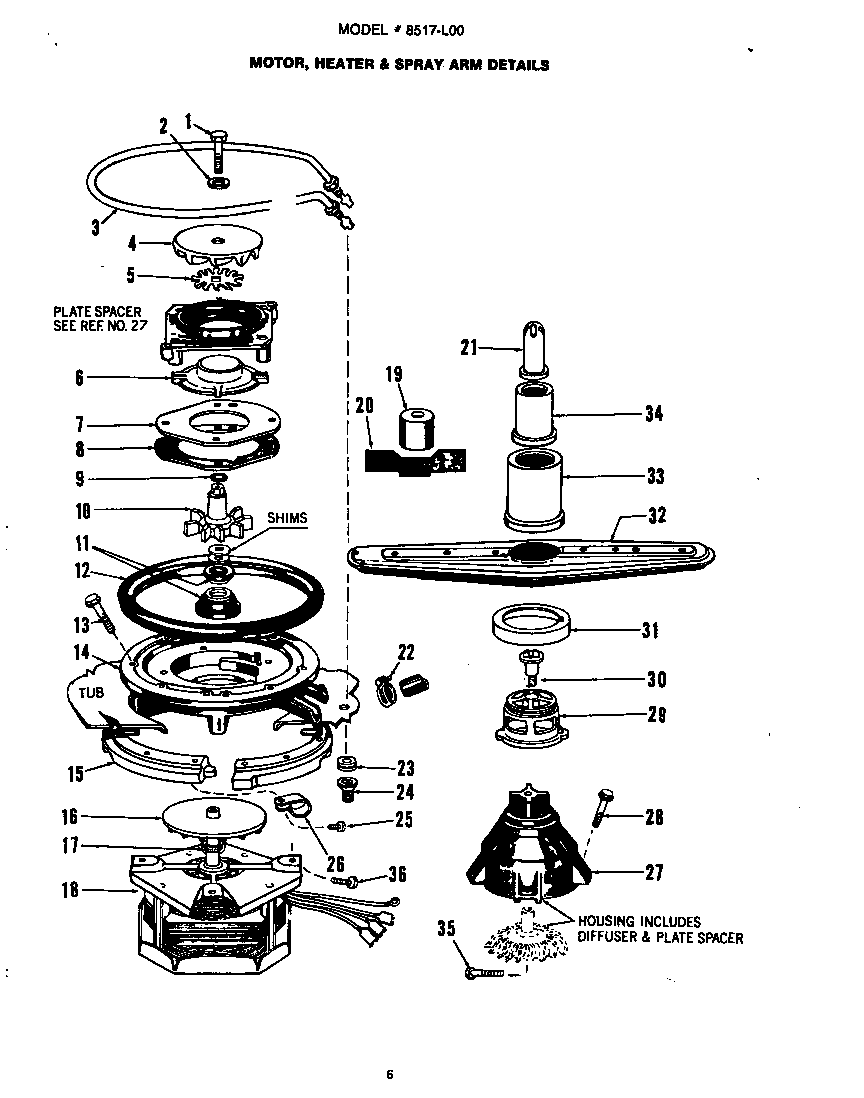

Motor, heater and spray arm diagram

Clamp ring(p

Part #807712

The manufacturer no longer makes this part, and there's no substitute part

Screw 806890
#7

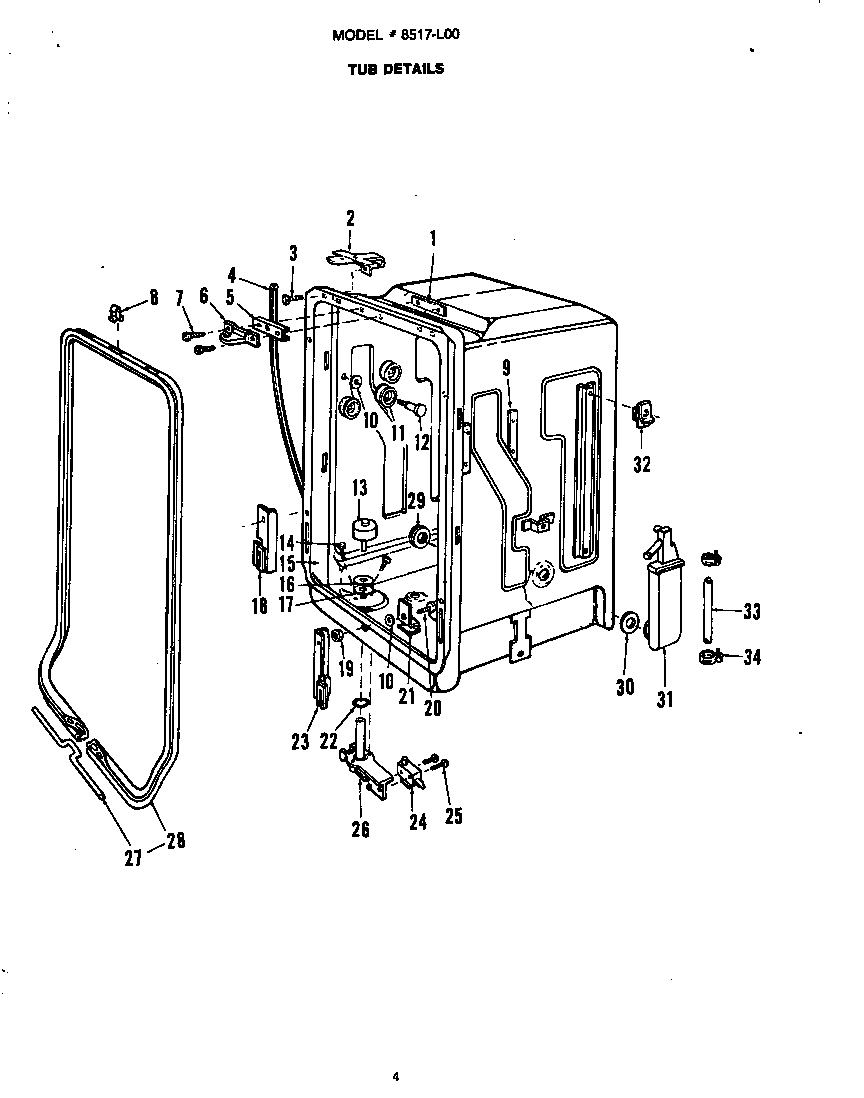

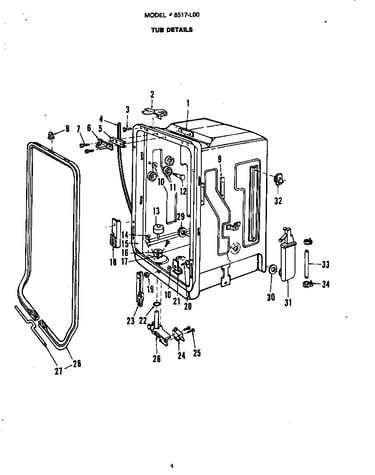

Tub diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Gasket 805763
#8

Tub diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Screw #8a X 3/8" Lg. C.r. Hex Washer Hd. 808658
Screw #8a x 3/8" lg. c.r. hex washer hd.

Part #808658

The manufacturer no longer makes this part, and there's no substitute part

"o" Ring 806521
#9

Motor, heater and spray arm diagram

"o" ring

Part #806521

The manufacturer no longer makes this part, and there's no substitute part

Screw No. 8b X 7/16" Lg. C. R. Truss Hd. Cad. Pl. 809175
#1

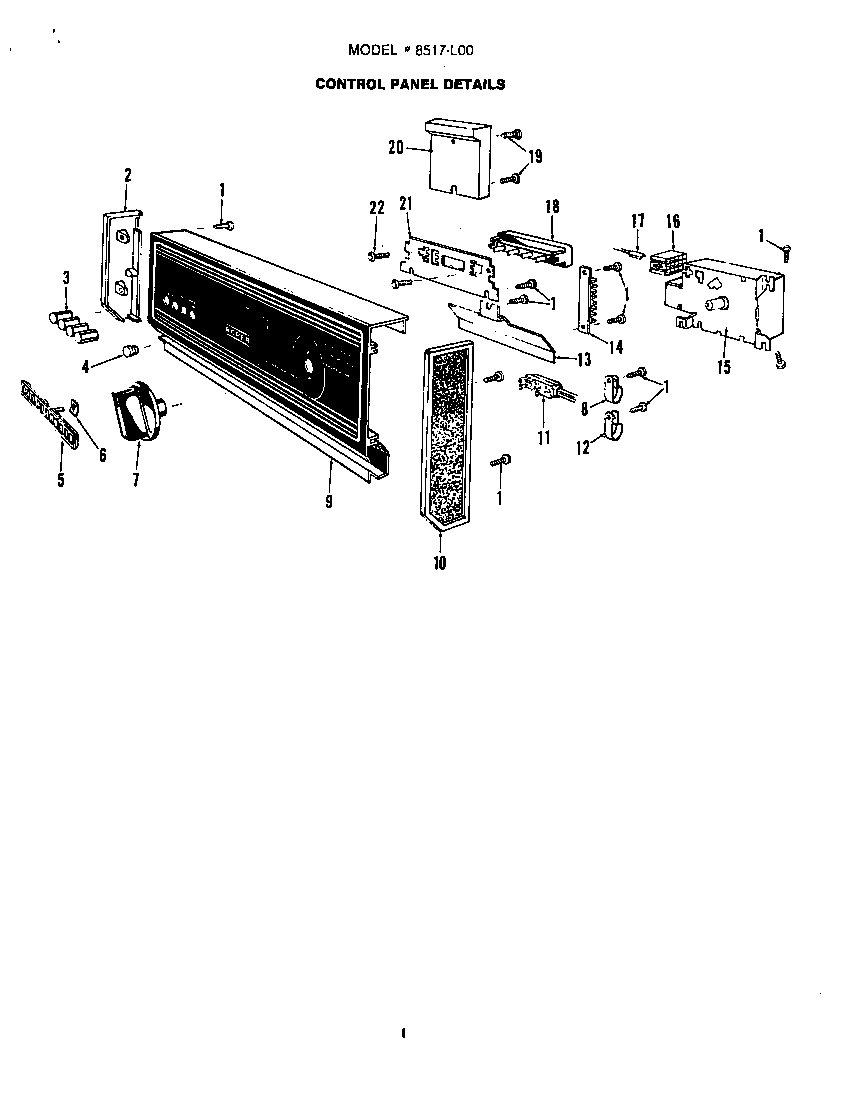

Control panel diagram

Screw no. 8b x 7/16" lg. c. r. truss hd. cad. pl.

Part #809175

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 807534
#18

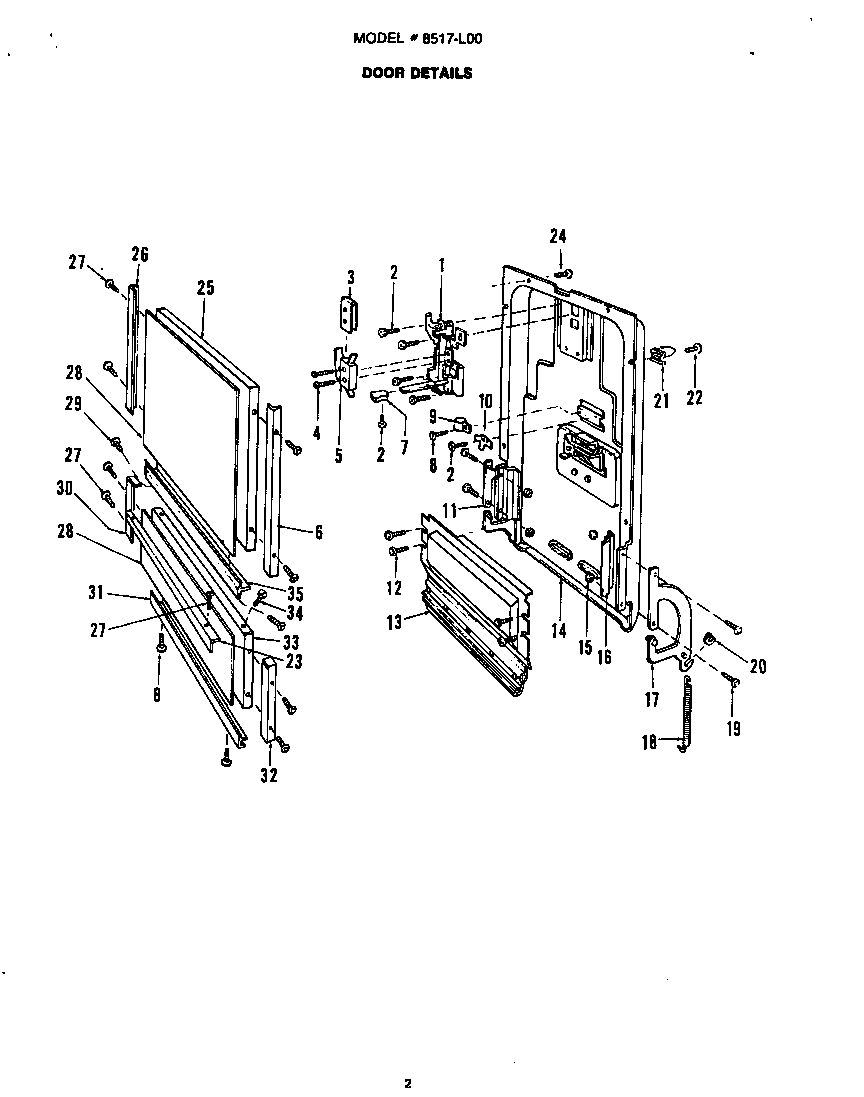

Door diagram

Door spring

Part #807534

The manufacturer no longer makes this part, and there's no substitute part

Nut 803346
#19

Tub diagram

Nut

Part #803346

The manufacturer no longer makes this part, and there's no substitute part

Screw #10 - 24 X 5/8" Lg. Truss Hd. Chrome Pl. 803311
#19

Door diagram

Screw #10 - 24 x 5/8" lg. truss hd. chrome pl.

Part #803311

The manufacturer no longer makes this part, and there's no substitute part

Clamp 808442
Clamp

Part #808442

The manufacturer no longer makes this part, and there's no substitute part
